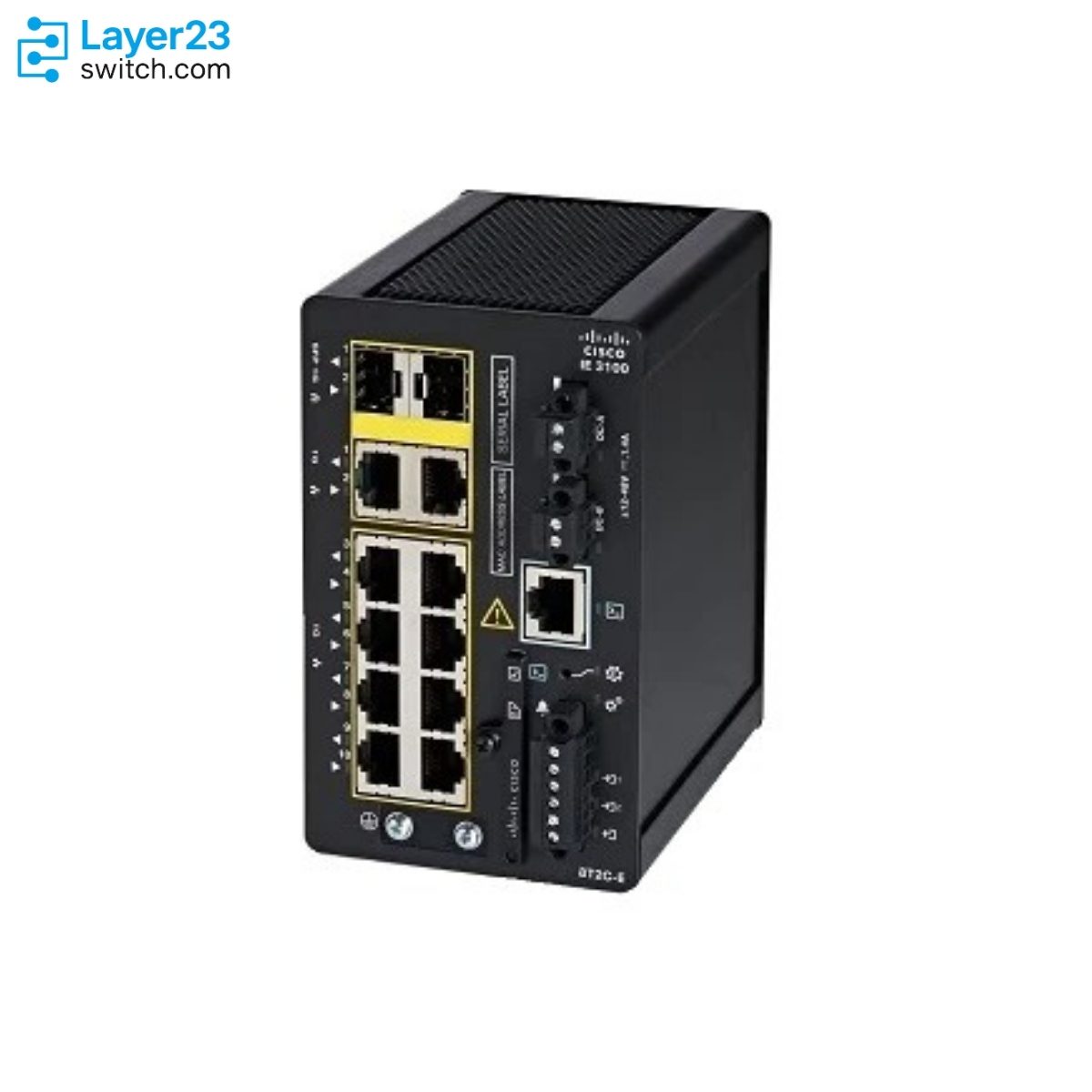

IE-3100-8T2C-A – 8 Ports – 2 × 1G combo uplinks – industrial switch
|
Condition: |
New Factory Sealed |
|
3/mo Solds | |
|
Warranty: | |
| Related: | |
|
Price: |
Original price was: $6,577.00.$1,373.96Current price is: $1,373.96. |
|
Quantity: |
|
|
Shipping: |
Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc. |
|
Payment: | |
IE-3100-8T2C-A Description
Cisco IE-3100-8T2C-A delivers a rugged, fan-less Gigabit switch with eight copper downlinks plus two versatile combo SFP/RJ-45 uplinks. Powered by Cisco IOS XE with a Network Advantage license, it supports advanced security, automation APIs (NETCONF/RESTCONF), and industrial protocols in extreme environments. Ideal as an industrial gigabit edge switch or hardened DIN-rail switch for Industry 4.0, smart buildings, and transportation networks.
Product Highlights
Ethernet Ports
Combo ports(SFP/RJ-45)
Forwarding Rate
Model Meaning
|
Code segment |
Meaning |
|---|---|
|
IE |
Cisco Industrial Ethernet family |
|
3100 |
IE 3100 Rugged Series |
|
8T |
8 × 10/100/1000 Base-T RJ-45 downlinks |
|
2C |
2 × 1 Gb combo (SFP/RJ-45) uplinks |
|
A |
Network Advantage software license |
Key Features
High-Density Gigabit Switching
Delivers ten line-rate 1 GbE ports (8 copper, 2 combo) with nonblocking architecture, ensuring zero-packet-loss and consistent throughput for time-sensitive industrial control and video analytics.
Rugged Industrial Resilience
Fan-less, convection-cooled chassis rated for –40 °C to 75 °C, 5–95 % non-condensing humidity, IEC shock/vibration compliance, and IP30 ingress protection, guaranteeing reliable operation in harsh field environments.
Flexible Uplink Versatility
Dual SFP/RJ-45 combo slots support both fiber and copper connectivity, enabling seamless network extension, redundant ring topologies, and high-speed backhaul in production networks and smart-city deployments.
Energy-Efficient Power Design
Typical power draw of just 17.7 W with dual 9.6–60 V DC inputs and reverse-polarity protection, allowing integration with battery, solar, or vehicle power systems while minimizing operational costs.
Cisco IOS XE Network Advantage
Network Advantage software license unlocks advanced features such as Secure Boot, MACsec readiness, 802.1X port-based access control, NETCONF/RESTCONF APIs, enabling zero-touch provisioning and centralized orchestration.
Seamless Protocol Integration
Native support for PROFINET, EtherNet/IP CIP, Modbus TCP, PTP precise timing, and ring recovery (REP, MRP), facilitating interoperability with PLCs, SCADA, and distributed control systems.
Applications Scenarios
Factory Automation
Reliable Gigabit connectivity for PLCs, HMIs and vision cameras on production floors.
Intelligent Transportation
Rugged edge switching in roadside cabinets, traffic controllers and toll systems.
Energy & Utilities
Substation IED aggregation, solar string monitoring and microgrid control in harsh conditions.
Rugged Industrial Ethernet Switch Product Comparison
|
Parameter |
IE-3100-8T2C-A | ||
|---|---|---|---|
|
Downlink ports |
8 × RJ-45 |
8 × RJ-45 |
8 × RJ-45 |
|
Uplink ports |
2 × 1 Gb combo |
2 × 1 Gb combo |
4 × 1 Gb SFP |
|
Total ports |
10 |
10 |
12 |
|
Software license |
Network Advantage |
Network Essentials |
Network Essentials |
|
Switching capacity |
Line-rate, all ports |
Line-rate, all ports |
Line-rate, all ports |
|
MAC table size |
8 000 entries |
8 000 entries |
8 000 entries |
|
DRAM |
4 GB |
4 GB |
4 GB |
|
Power consumption |
17.7 W typical |
17.7 W typical |
17.8 W typical |

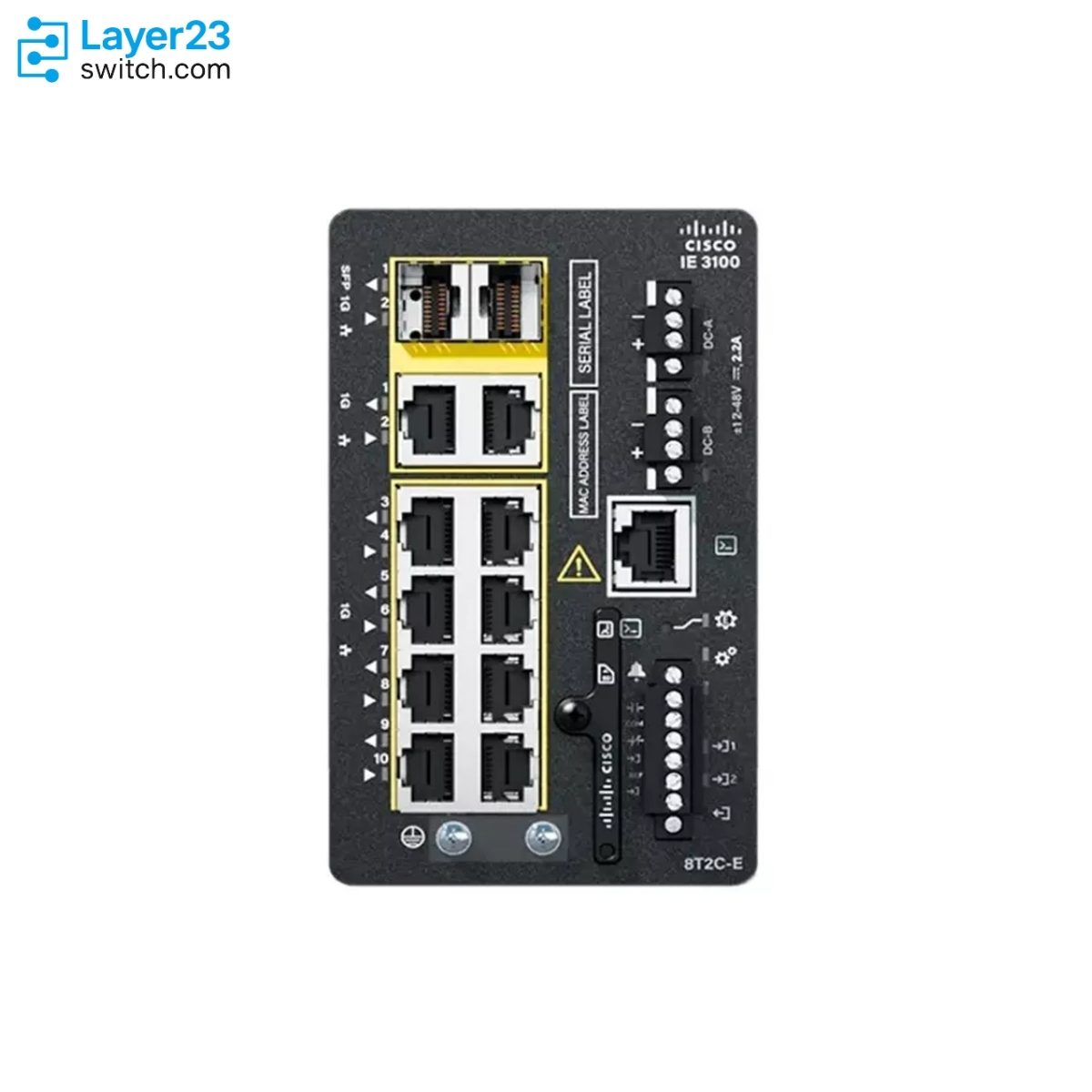

IE-3100-8T2C-A Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
Number |
Feature |
Number |
Feature |
|---|---|---|---|
|
1 |
Dual-media SFP port LEDs |
6 |
Express Setup LED |
|
2 |
Dual-media copper port LEDs |
7 |
System LED |
|
3 |
1000BASE-T port LEDs |
8 |
Alarm input LEDs |
|
4 |
Power connector LED |
9 |
Alarm output LED |
|
5 |
Management console LED |
10 |
PoE Status LED Note This LED is present in PoE models only. |
Get More Information
Discover unbeatable prices and fast shipping for the IE-3100-8T2C-A Access the detailed IE-3100-8T2C-A datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]Quality Certifications
Specifications
| Parameter | Value |
|---|---|
| Model | IE-3100-8T2C-A |
| Total Ports | 10 × 1 GbE |
| Copper Downlinks | 8 × 10/100/1000 RJ-45 |
| Combo Uplinks | 2 × 1 Gb SFP/RJ-45 |
| Software License | Network Advantage |
| Switching Capacity | Line-rate, all ports |
| Forwarding Rate | Line-rate, all sizes |
| MAC Address Table | 8 000 entries |
| VLANs Supported | 256 |
| IGMP Groups | 512 |
| Egress Queues | 8 hardware queues |
| DRAM | 4 GB |
| SD Card Support | 1 / 4 / 16 GB |
| Input Voltage | 9.6–60 V DC (dual) |
| Power Consumption | 17.7 W typical |
| Max Current | 2 A @ 12 V; 0.5 A @ 48 V |
| Dimensions (H×W×D) | 5 × 3 × 4.33 in |
| Weight | 0.86 kg |
| Operating Temp | –40 °C to 75 °C |
| Storage Temp | –40 °C to 85 °C |
| Humidity | 5–95 % (non-cond.) |
| Shock | 30 G, 11 ms (half-sine) |
| MTBF | ~854 560 hours |
| Ingress Rating | IP30 |
| Warranty | 5-year limited hardware |
Customer Reviews
Questions & Answers
Warranty
100% Low Price Guarantee:
Layer23-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.
Free CCIE Technical Support:
Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Resources Downloads
Related products
-
C9300-48T-A
Original price was: $9,219.00.$2,286.78Current price is: $2,286.78. Condition: New Factory Sealed -
IE-3300-8T2X-E
Original price was: $6,414.00.$2,378.93Current price is: $2,378.93. Condition: New Factory Sealed -
C9300-48S-E
Original price was: $9,594.00.$5,425.63Current price is: $5,425.63. Condition: New Factory Sealed -

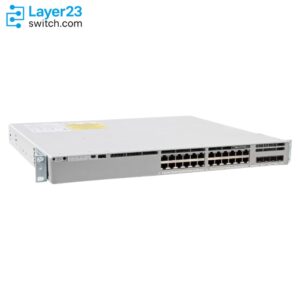

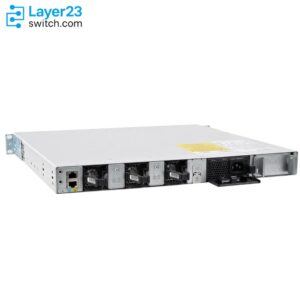

C9300L-24T-4X-A
