C9300-48T-A – 48 Ports – modular uplinks – access switch

Brand: Category: Availability: In Stock Model:

C9300-48T-A

(8 customer reviews)
Questions

10/mo Solds

List Price: $9219 $2030.58
  • 100% Genuine
    Original, factory-authenticated
  • S/N Verifiable
    Verified by official serial-check
Condition New Factory Sealed Related Quantity
Trusted & Secure Payments
Shipping Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc. Packaging weight and dimensions included:
Weight 14 kg
Dimensions 56 × 54 × 23 cm
layer23-switch
Certified Expertise for Project Delivery

CCIE · JNCIE · NSE7 · ACDX · HPE · Dell Server/AI Expert

Expert-Curated Bundles & Accessories

Our specialists have handpicked the essential add-ons to maximize your network’s performance.

  • C9300-NM-2Y

    2×25G uplink module – Cisco Catalyst 9300

  • C9300-NM-2Q

    2×40G uplink module – Cisco Catalyst 9300

  • C9300-NM-4M

    4×1/2.5/5/10G uplink module – Cisco Catalyst 9300

  • C9300-NM-8X

    8×10G uplink module – Cisco Catalyst 9300

    No posts

Stable Global Supply Chain for Thriving Businesses.

  • $3,000,000 Inventory
  • Certified Cisco Partner ships
  • Collaborating with FedEx, UPS, DHL

Free Expert Support from Planning to Deployment

  • Assistance with product selection and network solution design
  • Configuration guidance and best-practice recommendations
  • Troubleshooting support provided by CCIE-level technical experts

Established Global IT Distributor

With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

C9300-48T-A Description

  Cisco Catalyst 9300-48T-A is the high-performance 48-port data-only member of the Catalyst 9300 family. It delivers 256 Gbps non-blocking switching and 190 Mpps forwarding at Layer 2/3, backed by 480 Gbps StackWise-480 stacking for campus-wide scalenb-06-cat9300-ser-data-…. All downlinks are 10/100/1000 RJ-45, ideal for dense wired endpoints where PoE is not required, while a field-replaceable network-module bay accepts 1G, 10G, 25G or 40G uplinks to future-proof your backbone nb-06-cat9300-ser-data-…. With Network Advantage you gain full routing, SD-Access fabric, ETA encryption analytics, and programmability APIs—all in a 1RU chassis that draws just a 350 W AC PSU

Product Performance

Ethernet Ports
Switching Capacity
Forwarding Rate

Quick Specs

C9300-48T-A

Value

Switching Capacity

256 Gbps

Forwarding Rate

190.47 Mpps

Downlink Ports

48× RJ-45 10/100/1000 (data)

Uplink Slot

1× Type-1 network module

Packet Buffer

16 MB

Default Power Supply

350 W AC

Stacking

StackWise-480, 480 Gbps

Software License

Network Advantage

Key Features

48 × 1 GbE Data-Only Ports

All downlinks are pure Gigabit Ethernet (no PoE), ideal for desktops, printers, thin clients and any endpoint that doesn’t need inline power—cutting both CapEx and heat output.

256 Gbps / 190 Mpps

Delivers true wire-speed Layer 2/3 for every port, and—when stacked—scales to 736 Gbps with < 50 ms fail-over via StackWise-480.

Hot-Swap Modular Uplink Bay

A single Type-1 slot supports 4×1 G, 8×10 G, 2×25 G or 2×40 G modules, so core bandwidth can be upgraded without replacing the base switch.

Network Advantage Software Image

Ships with advanced routing (OSPF, BGP, IS-IS), SD-Access segmentation, Encrypted Traffic Analytics and open APIs—ready for automation and zero-trust architectures.

Integrated Hardware Security

Secure Boot, Trust Anchor, and AES-256 MACsec on uplinks protect the control plane, while ETA detects encrypted threats in real time.

Carrier-Class Resiliency

N+1 field-replaceable fans, dual-PSU redundancy, StackPower shared power pooling and StackWise-480 stacking keep the campus online 24 × 7.

Applications Scenarios

High-Density Wired Office Floors

48 non-PoE Gigabit ports give maximum port density at the lowest cost; StackWise-480 lets IT expand cabinet by cabinet with a single management IP.

University / Research Workstation Labs

256 Gbps non-blocking fabric plus optional 25/40 G uplinks eliminate bottlenecks when students or researchers move large simulation or CAD files.

Branch-Campus Aggregation Layer

Acts as the data-only aggregation point for multiple PoE access switches; Network Advantage routing and segmentation support seamless SD-Access rollouts.

Product Comparison

Parameter

C9300-48T-A

C9300-48P-A

C9300-48U-A

Switching Capacity

256 Gbps

256 Gbps

256 Gbps

Ports

48× 1G data

48× 1G PoE+

48× 1G UPOE

PoE Budget

N/A

740 W (dual PSU)

1440 W (dual PSU)

Default PSU

350 W

715 W

1100 W

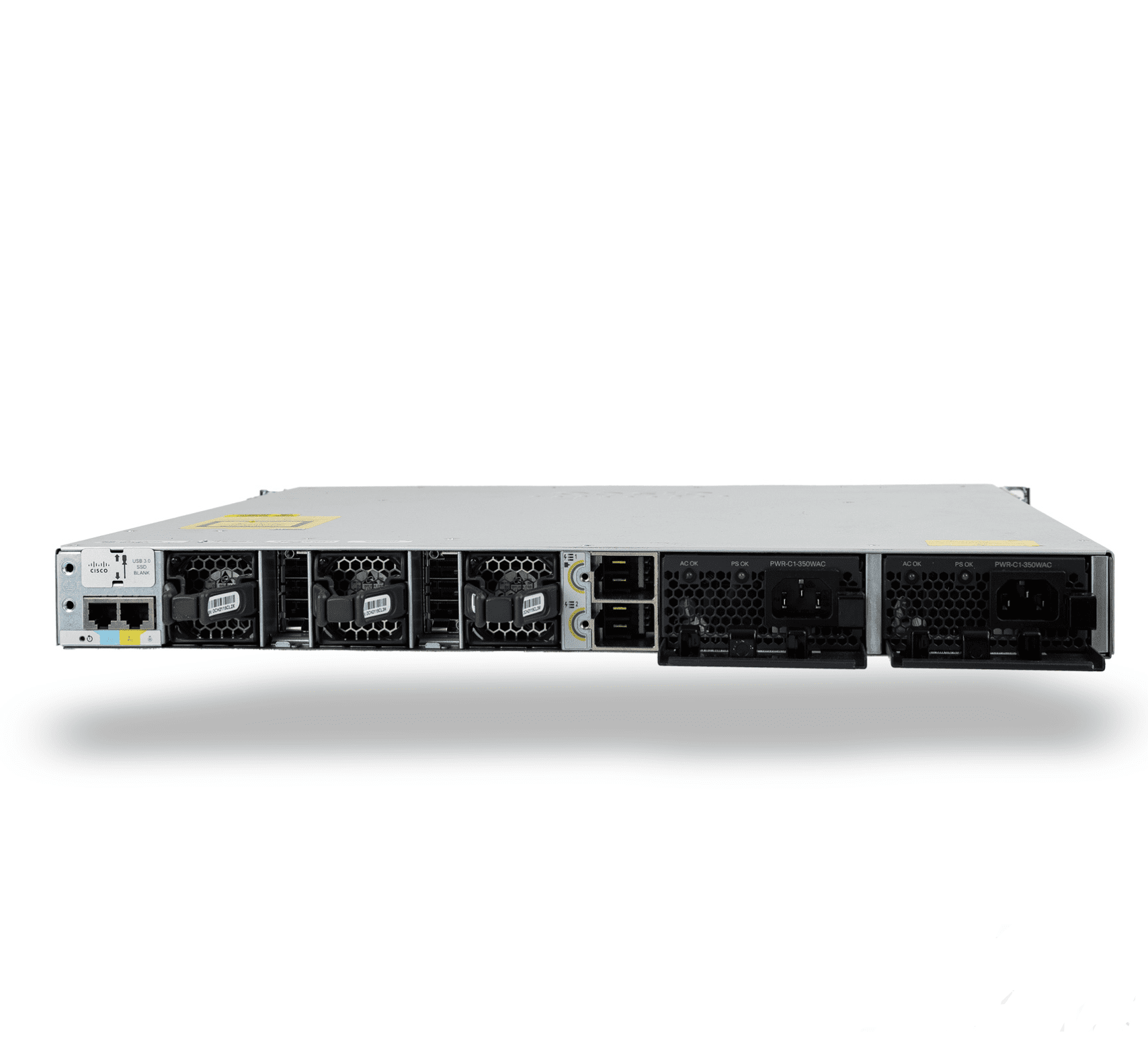

C9300-48T-A Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1

Ground connectors

7

StackPower connectors

2

USB3.0–SSD port

8

AC OK (input) status LED

3

BEACON LED

9

PS OK (output) status LED

4

CONSOLE (RJ-45 console port)

10

StackWise-480 port connectors

5

MGMT (RJ-45 10/100/1000 management port)

11

Power supply modules

6

Fan modules

–

–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1

Cisco Catalyst 9300 Series switch with optional network module1 (power supply and fan modules not shown)

9

Eight number-8 Phillips flat-head screws

2

AC power cord

10

Cable guide

3

Product documentation and compliance document

11

M4.0 x 20mm Phillips pan-head screw

4

Four rubber mounting feet

12

(Optional) RJ-45 console cable

5

Ground lug screw and ring terminal

13

(Optional) USB console cable

6

Two 19-inch mounting brackets

14

(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)

7

Four number-12 pan-head screws

15

(Optional) StackPower cable (0.3-meter or 1.5-meter)

8

Four number-10 pan-head screws

16

(Optional) StackWise-320 cable

cisco-catalyst-9300-switch-shipping-box

Specifications

Cisco Catalyst 9300-48T-A
Model SKU C9300-48T-A
Software Image Network Advantage
Switching Capacity 256 Gbps
Forwarding Rate 190.47 Mpps
Stacking Bandwidth 480 Gbps (StackWise-480)
Downlink Ports 48 × 10/100/1000 RJ-45 (data only)
Uplink Module Slot 1 × Type-1 (4×1G → 2×40G)
Packet Buffer 16 MB
MAC Table 64,000 addresses
IPv4 Routes (total) 32,000
IPv6 Routes 16,000
QoS Entries 5,120
ACL Entries 5,120
DRAM / Flash 8 GB / 16 GB
External Storage USB 3.0 SSD slot (120/240 GB)
Default Power Supply 350 W AC
Redundant PSU Option 350 W / 715 W / 1100 W AC
Fans 3 × field-replaceable, N+1
Dimensions (H×W×D) 1.73 × 17.5 × 17.7 in
Weight (with PSU) 16.43 lb / 7.45 kg
Operating Temperature -5 °C to +45 °C
Jumbo Frames 9,198 bytes
StackPower Supported (power pooling of four)

Get More Information

Discover unbeatable prices and fast shipping for the C9300-48T-A Access the detailed C9300-48T-A datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

Customer Reviews

Write A Review
5.0
(8 reviews)
5 Stars
8
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
    Tony Stark
    Posted on 20/07/2025
    Verified Buyer
    5.0

    Efficiency is key. You guys nailed the delivery speed. Impressive.

    Avery Beaumont
    Posted on 29/05/2025
    Verified Buyer
    5.0

    Fast shipping—arrived in two days—and the seller’s quote was very reasonable.

    IT Director
    Posted on 18/05/2025
    Verified Buyer
    5.0

    Responsive sales team. They helped me sort out the invoice requirements quickly.

    Procurement Manager
    Posted on 12/03/2025
    Verified Buyer
    5.0

    Ordered a pallet load. Everything arrived securely wrapped and on time. Professional logistics.

    Carter Neal
    Posted on 14/02/2025
    Verified Buyer
    5.0

    Price was fair for enterprise gear, and support answered my questions promptly.

Questions & Answers

  • Can I stack multiple units of the C9300-48T-A together, and what's the limit?

    Stacking capabilities depend on the specific technology implemented; usually, multiple units can be stacked, often limited by manufacturer's recommendations.

  • What should I do if my C9300-48T-A firmware update fails?

    If a firmware update fails, consult the recovery instructions from the official documentation or reach out to technical support for specific guidance.

  • Are there compatibility concerns I should be aware of when integrating the C9300-48T-A into my existing network?

    Compatibility concerns typically include software version alignments, integration with existing security protocols, and hardware compatibility checks.

  • Is there a recommended alternative if I can't find the C9300-48T-A?

    Comparable alternatives generally include other models within the same series or brand, ensuring similar specifications and compatibility.

  • What types of interfaces are provided by the C9300-48T-A?

    It typically includes standard Ethernet ports, and may offer uplink options such as fiber or copper, depending on the specific configuration.

  • How loud is the C9300-48T-A when operating at full capacity?

    Noise levels vary by model but generally remain within acceptable ranges suitable for office environments; consult specific product details for exact metrics.

  • What are common hardware issues reported by users of the C9300-48T-A?

    Common hardware issues include port failures, fan malfunctions, or power supply problems; regular maintenance can mitigate many issues.

  • Does the C9300-48T-A require specific environmental conditions for optimal operation?

    Ideally, maintain a temperature-controlled, dust-free environment to ensure optimal performance and longevity.

  • How do I perform a software update on the C9300-48T-A?

    Updates can usually be performed via the device's web interface, CLI, or through network management software provided by the manufacturer.

  • What steps should I take if the C9300-48T-A experiences connectivity issues?

    Begin by checking cables and connectors, verifying configurations, examining logs, and rebooting the device if necessary.
