STACK-T1-3M – 3m Type 1 StackWise Cable – C9300/C9300X Data Stack – 480G/1T
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
STACK-T1-3M Description

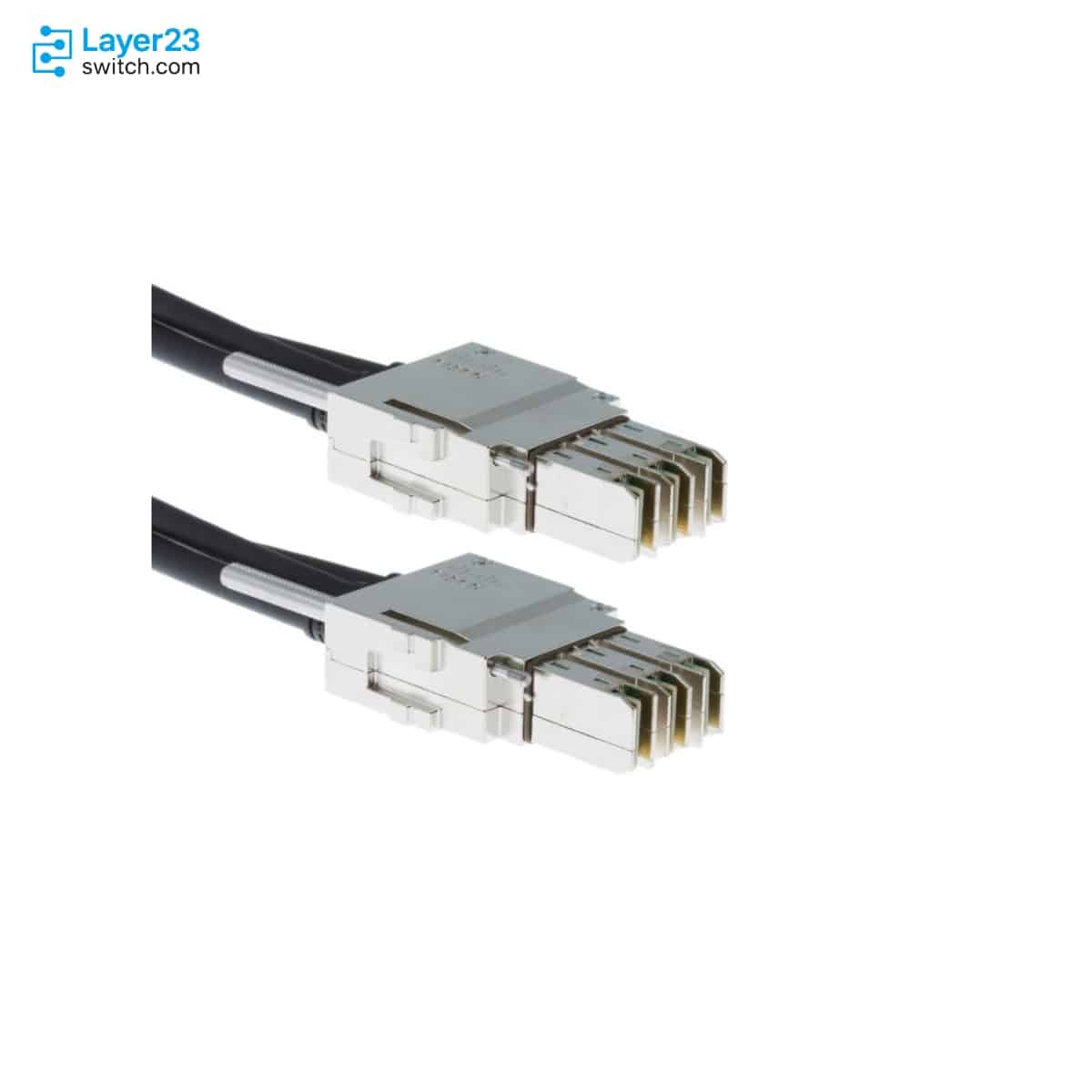

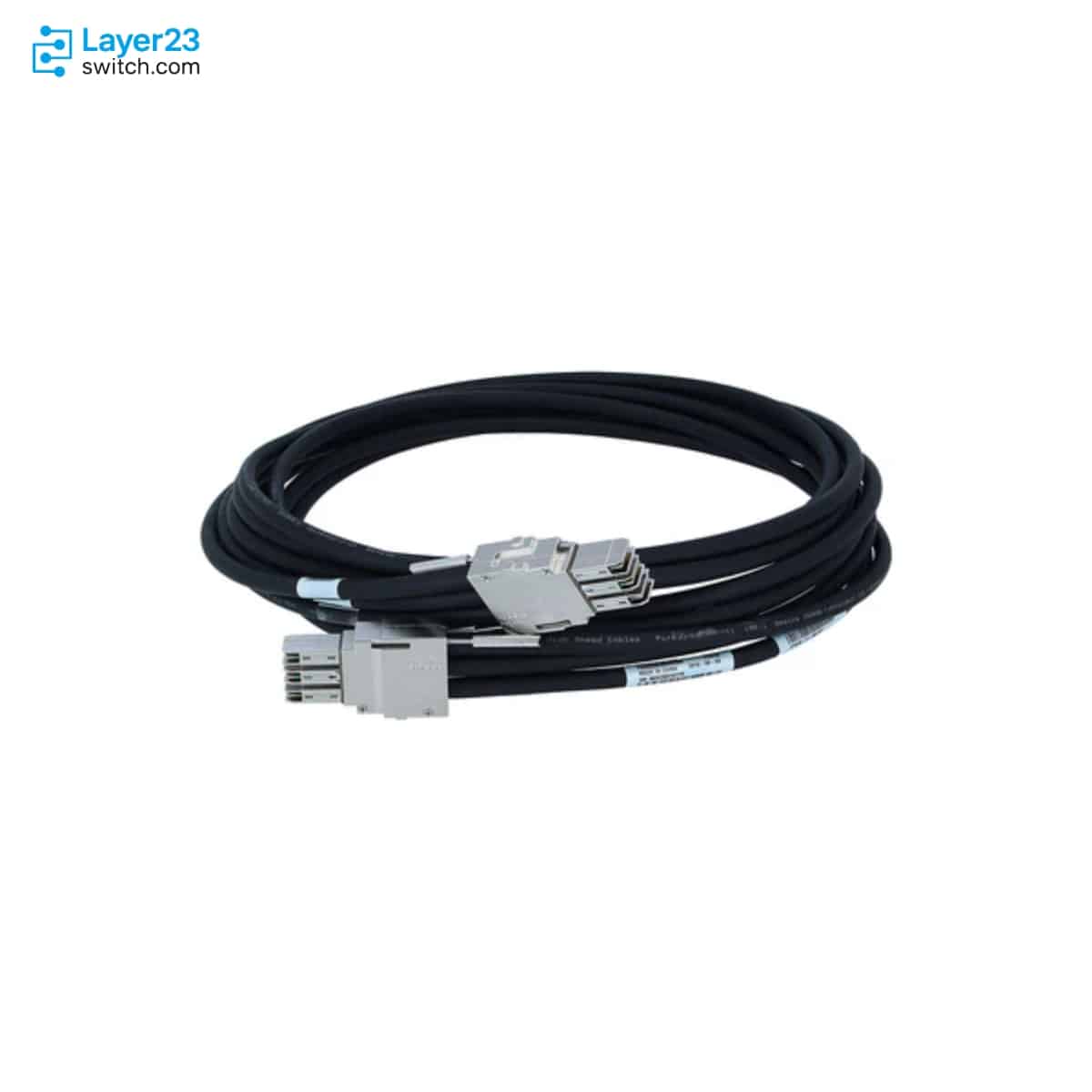

The STACK-T1-3M is a Cisco Type 1 StackWise stacking cable, 3 m (9.84 ft) long, for stack links in Catalyst 9300 and Catalyst 9300X switches that sit farther apart in the rack. The cable supports StackWise-480 and StackWise-1T and needs a minimum bend radius of 3.2 inches (82 mm) and a minimum coiled diameter of 7.17 inches (182 mm). The cable does not fit Catalyst 9300L or 9300LM stacks, which use StackWise-320 with Type 3 or Type 3A cables.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
STACK-T1-3M |
|
Product type |
Type 1 StackWise data stacking cable |
|
Cable length |
3 meters / 9.84 feet |
|
Supported switch group |
Cisco Catalyst 9300 and Catalyst 9300X modular uplink models |
|
Supported StackWise technologies |
Cisco StackWise-480 and Cisco StackWise-1T |
|
Cable family lengths |
0.5 m, 1 m, and 3 m Type 1 StackWise cables |
|
Minimum bend radius |
3.2 in. / 82 mm |
|
Minimum coiled diameter |
7.17 in. / 182 mm |
|
Spare product ID |
STACK-T1-3M= |
|
Cable material note |
Cisco stack cables are halogen-free |
Application Scenarios
When the members of a Catalyst 9300 stack sit in different rack positions, the 3 m cable covers the longer return path that shorter Type 1 cables cannot reach.
A Catalyst 9300X modular-uplink stack in a wide wiring closet runs StackWise-1T over the 3 m cable where the 0.5 m and 1 m cables fall short.
Product Comparison
|
Parameter |
STACK-T1-3M | |||
|---|---|---|---|---|
|
Cable length |
3 m / 9.84 ft |
1 m / 3.28 ft |
0.5 m / 1.64 ft |
3 m / 9.84 ft |
|
StackWise technology |
StackWise-480 and StackWise-1T |
StackWise-480 and StackWise-1T |
StackWise-480 and StackWise-1T |
StackWise-320 |
|
Supported switches |
C9300 and C9300X modular uplink models |
C9300 and C9300X modular uplink models |
C9300 and C9300X modular uplink models |
C9300L and C9300LM fixed uplink models |
|
Minimum bend radius |
3.2 in. (82 mm) |
1.6 in. (41 mm) |
1.6 in. (41 mm) |
3.2 in. (82 mm) |
|
Minimum coiled diameter |
7.17 in. (182 mm) |
5.2 in. (132 mm) |
Not applicable |
7.17 in. (182 mm) |
STACK-T1-3M and STACK-T1-1M are both Type 1 StackWise-480 and StackWise-1T cables for Catalyst 9300 and Catalyst 9300X, and length separates them: 3 m against 1 m, with the longer cable needing a 3.2 in. bend radius and 7.17 in. coiled diameter against 1.6 in. and 5.2 in. STACK-T1-50CM at 0.5 m suits adjacent switches and cannot be coiled. STACK-T3A-3M has the same 3 m length and the same bend limits but belongs to Catalyst 9300L and Catalyst 9300LM StackWise-320 stacks, so those stacks cannot use STACK-T1-3M.
Ordering Checklist
- Catalyst 9300 and 9300X hosts: Order for Catalyst 9300 modular-uplink switches (StackWise-480) such as C9300-24P-E, and Catalyst 9300X switches (StackWise-1T) such as C9300X-48TX-A. These are the families that use the STACK-T1 cable lengths of 0.5 m, 1 m and 3 m.
- Catalyst 9300L exclusion: Catalyst 9300L and 9300LM stacks use C9300L-STACK-KIT or C9300L-STACK-KIT2 with STACK-T3 or STACK-T3A cables. A STACK-T1 cable is not the StackWise-320 cable of those stacks.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | STACK-T1-3M | Product type | Type 1 StackWise data stacking cable |
| Cable length | 3 meters / 9.84 feet | Supported switch group | Cisco Catalyst 9300 and Catalyst 9300X modular uplink models |
| Supported StackWise technologies | Cisco StackWise-480 and Cisco StackWise-1T | Cable family lengths | 0.5 m, 1 m, and 3 m Type 1 StackWise cables |
| Minimum bend radius | 3.2 in. / 82 mm | Minimum coiled diameter | 7.17 in. / 182 mm |
| Spare product ID | STACK-T1-3M= | Cable material note | Cisco stack cables are halogen-free |
Get More Information
Need pricing, stock, or shipping details for the STACK-T1-3M ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What bend radius and coiled diameter must STACK-T1-3M observe?
-
Does STACK-T1-3M carry StackWise-1T between Catalyst 9300X switches such as C9300X-48TX-A?
-
Can STACK-T1-3M be used in a Catalyst 9300L or Catalyst 9300LM stack?
-
Which spare PID orders a replacement STACK-T1-3M?
