STACK-T4-1M – 1 m Data Stack Cable – Catalyst 9200 and 9200L – StackWise-160/80
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
STACK-T4-1M Description

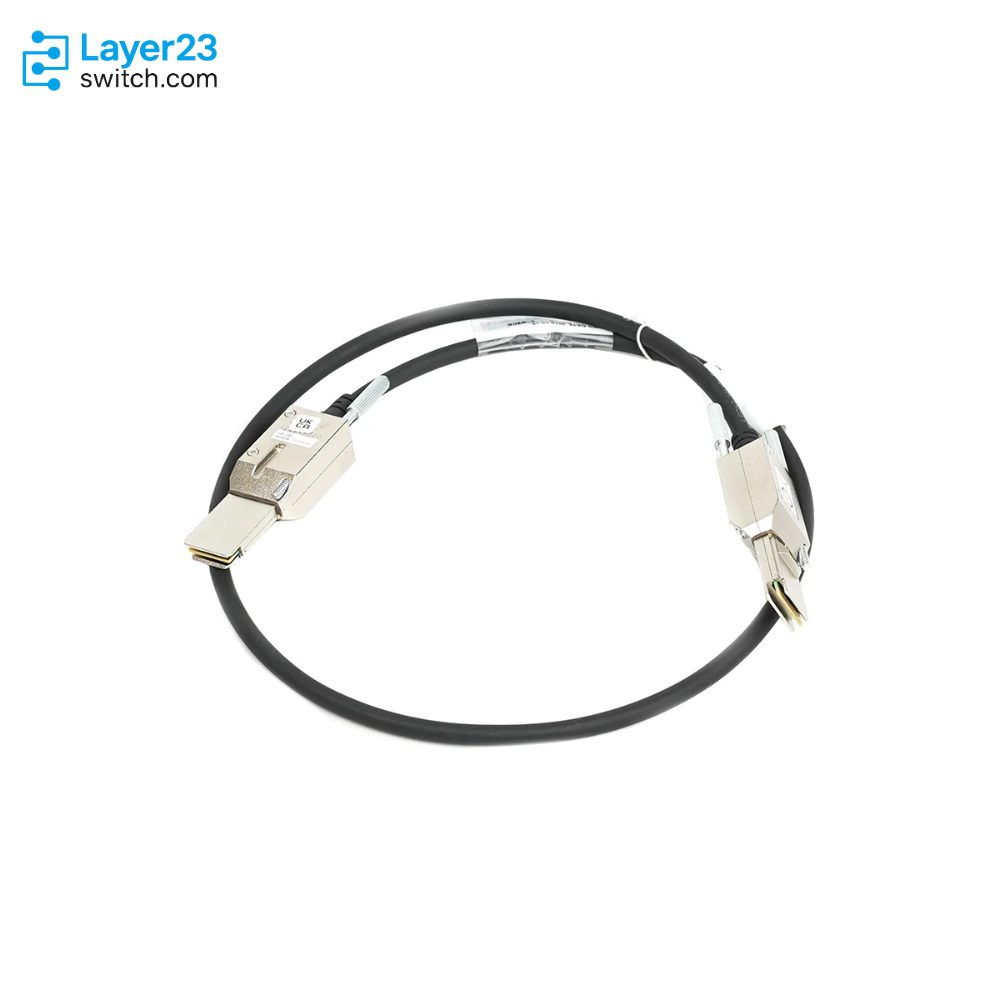

The STACK-T4-1M is a Cisco data stack cable for rear-panel stack links between Catalyst 9200 Series or Catalyst 9200L Series switches. The copper cable is 1 m long and carries StackWise-160 at 160 Gbps between Catalyst 9200 members or StackWise-80 at 80 Gbps between Catalyst 9200L members, in stacks of up to eight switches. Catalyst 9200 and Catalyst 9200L switches cannot share one stack, and Catalyst 9200CX compact switches do not support stacking.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
STACK-T4-1M |
|
Cable length |
1 m |
|
Cable type |
Copper Cisco StackWise data stack cable |
|
Compatible platform |
Catalyst 9200 and Catalyst 9200L Series switches |
|
Stacking architecture |
StackWise-160 (160 Gbps) on Catalyst 9200; StackWise-80 (80 Gbps) on Catalyst 9200L |
|
Stack kit |
C9200-STACK-KIT or C9200L-STACK-KIT adapters |
|
Maximum stack size |
Up to 8 switches |
|
Spare product ID |
STACK-T4-1M= |
Application Scenarios
In a branch-office wiring closet, the cable joins Catalyst 9200 access switches into one StackWise-160 ring, and up to eight members then run as a single switch with one management plane.
A Catalyst 9200L stack needs a full ring to run StackWise-80 at 80 Gbps, and the cable can serve as the link that closes that ring between members; with the ring open, the stack runs at half bandwidth.
Product Comparison
|
Parameter |
STACK-T4-1M | ||
|---|---|---|---|
|
Cable length |
1 m |
50 cm |
3 m |
|
Cable type |
1M Type 3 Stacking Cable |
50CM Type 3 Stacking Cable |
3M Type 3 Stacking Cable |
|
Compatible platform |
Catalyst 9200 and Catalyst 9200L |
Catalyst 9200 and Catalyst 9200L |
Catalyst 9200 and Catalyst 9200L |
|
Stacking architecture |
StackWise-160 / StackWise-80 |
StackWise-160 / StackWise-80 |
StackWise-160 / StackWise-80 |
|
Stack kit cable |
Optional length |
Default cable in C9200-STACK-KIT and C9200L-STACK-KIT |
Optional length |
STACK-T4-1M, STACK-T4-50CM and STACK-T4-3M are the same Type 3 data stack cable for Catalyst 9200 and Catalyst 9200L switches, separated by length: 1 m, 50 cm and 3 m. STACK-T4-50CM ships in C9200-STACK-KIT and C9200L-STACK-KIT as the default cable and covers any stack link that 50 cm reaches. STACK-T4-1M covers stack ports that sit farther apart than 50 cm, and links beyond 1 m move to STACK-T4-3M. Every length carries StackWise-160 only between Catalyst 9200 members and StackWise-80 only between Catalyst 9200L members; a mixed Catalyst 9200 and Catalyst 9200L stack is not supported with any of the three.
Ordering Checklist
- Catalyst 9200 hosts: Catalyst 9200 modular-uplink switches such as C9200-24P-E and C9200-48P-A, stacked on StackWise-160 with the adapters from C9200-STACK-KIT.
- Catalyst 9200L hosts: Catalyst 9200L fixed-uplink switches such as C9200L-24P-4G-E and C9200L-48T-4X-A, stacked on StackWise-80 with C9200L-STACK-KIT. Catalyst 9200CX compact switches do not stack.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | STACK-T4-1M | Spare product ID | STACK-T4-1M= |
| Cisco ordering description | 1M Type 3 Stacking Cable | Data sheet description | Data stack 1 m cable |
| Cable length | 1 m | Cable type | Copper Cisco StackWise data stack cable |
| Compatible platform | Catalyst 9200 (modular uplink) and Catalyst 9200L (fixed uplink) Series switches | Stack kit | C9200-STACK-KIT for Catalyst 9200; C9200L-STACK-KIT for Catalyst 9200L |
| Stack kit contents | Two data stack adapters and one data stack cable; 50 cm default cable, 1 m and 3 m optional | Stacking architecture | StackWise-160 on Catalyst 9200; StackWise-80 on Catalyst 9200L |
| Stack bandwidth | 160 Gbps (StackWise-160); 80 Gbps (StackWise-80) | Maximum stack size | Up to 8 switches |
| Stack ports | Two rear-panel stack ports per switch, identical on all Catalyst 9200 Series models; either cable end connects to either port | Stack cables per switch | Maximum of two |
| Stack membership | Same series and same license level; Catalyst 9200 and Catalyst 9200L cannot be mixed | Stacking not supported | Catalyst 9200CX compact switches |
| Backward compatibility | Not backward compatible with Catalyst 2960-X Series stacking |
Get More Information
Need pricing, stock, or shipping details for the STACK-T4-1M ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
How many data stack cables come in C9200-STACK-KIT, and where does STACK-T4-1M fit?
-
Can STACK-T4-1M join C9200L-24P-4G-E to C9200-24P-E in one stack?
-
Which Catalyst 9200 PoE+ switches can STACK-T4-1M stack with modular uplinks?
-
Which Catalyst 9200L fixed-uplink switches can STACK-T4-1M stack?
