The Cisco 8300 are IOS XE branch and edge routers that run Cisco's Catalyst SD-WAN with integrated on-box security. The series has four models — C8300-1N1S-6T, C8300-1N1S-4T2X, C8300-2N2S-6T, and C8300-2N2S-4T2X — in 1RU and 2RU form factors, with modular SM, NIM, and PIM slots and up to two 10-Gigabit WAN ports. Compare the models and pricing below, or send a bill of materials for a project quote.
Showing all 5 results
2x10G SFP+ + 4x1G RJ45 WAN – 1 SM + 1 NIM + 1 PIM Slots – 1RU Edge Router
2x1G SFP + 4x1G RJ45 WAN – 1 SM + 1 NIM + 1 PIM Slots – 1RU Edge Router
2x10G SFP+ + 4x1G RJ45 WAN – 2 SM + 2 NIM + 1 PIM Slots – 12-Core Edge Router
2x1G SFP + 4x1G RJ45 WAN – 2 SM + 2 NIM + 1 PIM Slots – Edge Router
20-Core uCPE – 4x10G SFP+ + 3x1G RJ45 – DNA Required
Cisco Catalyst 8300 Series Edge Platforms are used for enterprise branch routing, SD-WAN, secure WAN, cloud access, voice services, cellular backup, and modular edge connectivity. They are chosen when branch sites need more performance and expansion.
Choose by matching throughput, 1RU or 2RU form factor, embedded 1G or 10G WAN ports, NIM slots, SM slots, PIM slot needs, power design, license tier, and branch service requirements.
Catalyst 8300 is typically selected for larger or more modular branches, while Catalyst 8200 fits more compact edge deployments. The main buying differences are expansion slots, interface density, performance target, and future growth.
Catalyst 8300 platforms can support selected NIM, SM, and PIM options depending on the exact model and software release. Module choices may include Ethernet, switching, voice, serial, LTE, 5G, and other WAN interface options.
Yes, Catalyst 8300 Series Edge Platforms are widely used for Cisco SD-WAN. Confirm SD-WAN throughput, controller compatibility, security services, license tier, and software release before choosing the platform.
License needs depend on routing, SD-WAN, security, throughput, and application features. Buyers should verify Cisco DNA or software subscription tier, term, and any feature-specific requirements before purchase.
Choose a 10G WAN model when the branch, data center edge, or aggregation link needs higher bandwidth or faster service growth. A 1G model may fit smaller WAN circuits or cost-sensitive branches.
Catalyst 8300 can support selected voice and WAN modules, including some widely deployed NIM and service module options, but compatibility is model and software dependent. Confirm module support before migrating from older ISR platforms.
Check 1RU or 2RU form factor, power supply options, redundancy needs, airflow, rack depth, module clearance, and cable access. Modular edge platforms can require more physical planning than compact routers.
Verify exact SKU, form factor, embedded ports, NIM, SM and PIM slots, throughput target, SD-WAN needs, license tier, power supplies, modules, warranty, condition, and lead time before ordering.

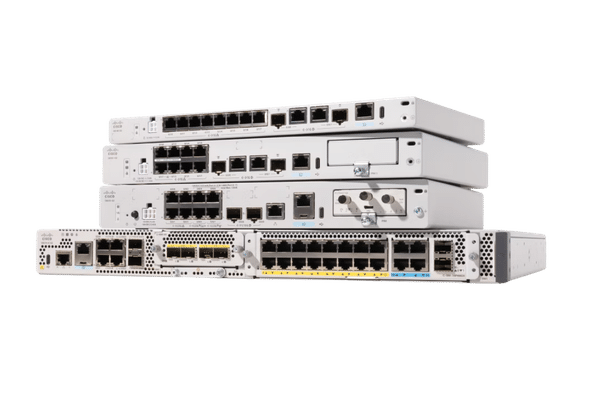

The Cisco Catalyst 8300 Series is part of the Cisco Catalyst 8000 edge family and is purpose-built for high-performance branch routing with integrated Cisco Catalyst SD-WAN services. It is well suited for medium-sized and large enterprise branch offices that need high WAN IPsec performance. Powered by Cisco IOS XE, the platforms support a fully programmable architecture with API support for zero-touch automation, and accept modular WAN, LAN, voice, and compute cards through SM, NIM, and PIM slots.
The Cisco 8300 has four models. The 1RU C8300-1N1S models carry one SM and one NIM slot; the 2RU C8300-2N2S models double that to two SM and two NIM slots. The C8300-1N1S-4T2X and C8300-2N2S-4T2X add two 10-Gigabit Ethernet ports for 10G WAN or uplink, while the 6T models provide six 1-Gigabit ports. Every model ships with 8 GB of DRAM by default (upgradable to 16 GB), a 16 GB M.2 SSD, and an 8- or 12-core multicore CPU.
| Model (SKU) | Form factor | Embedded WAN/LAN ports | Module slots | DRAM (default) |
|---|---|---|---|---|

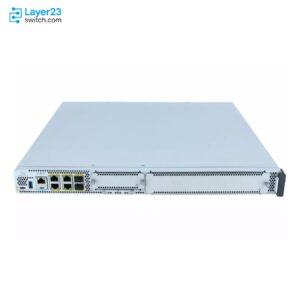

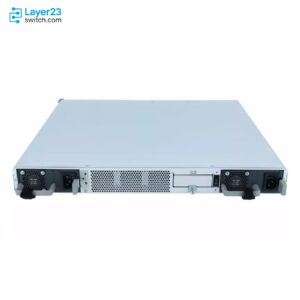

| C8300-1N1S-6T | 1RU | 6 × 1G | 1 SM + 1 NIM + 1 PIM | 8 GB (up to 16 GB) |

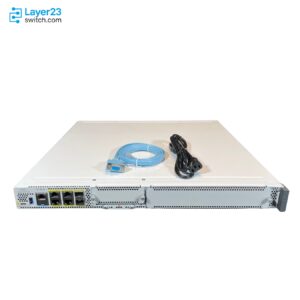

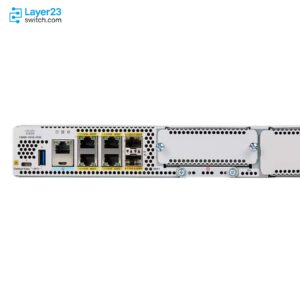

| C8300-1N1S-4T2X | 1RU | 4 × 1G + 2 × 10G | 1 SM + 1 NIM + 1 PIM | 8 GB (up to 16 GB) |

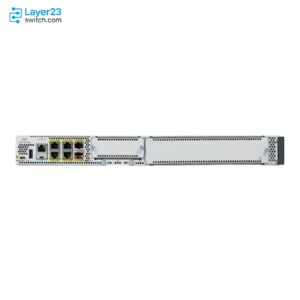

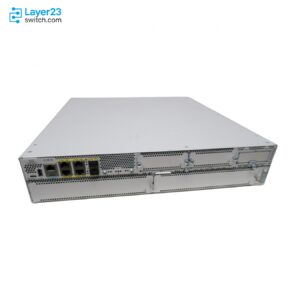

| C8300-2N2S-6T | 2RU | 6 × 1G | 2 SM + 2 NIM + 1 PIM | 8 GB (up to 16 GB) |

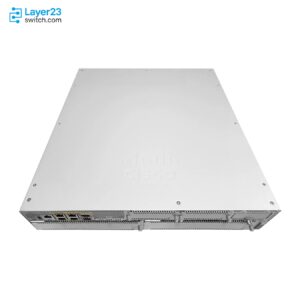

| C8300-2N2S-4T2X | 2RU | 4 × 1G + 2 × 10G | 2 SM + 2 NIM + 1 PIM | 8 GB (up to 16 GB) |
The model number describes the chassis. N is the number of Network Interface Module (NIM) slots, S is the number of Service Module (SM) slots, T is the count of 1-Gigabit Ethernet ports, and X is the count of 10-Gigabit ports. So a C8300-2N2S-4T2X has 2 NIM slots, 2 SM slots, four 1G ports, and two 10G ports, while a C8300-1N1S-6T has one of each module slot and six 1G ports.
Match the model to your WAN speed and how many modules the site needs.
Open each product page for unit pricing and availability: C8300-1N1S-6T, C8300-1N1S-4T2X, C8300-2N2S-6T, and C8300-2N2S-4T2X.
The Catalyst 8300 runs Cisco IOS XE and delivers Cisco’s Catalyst SD-WAN solution for the branch. Integrated on-box security includes a Next-Generation Firewall (NGFW) with application awareness and IPS/IDS, so a single platform can route, secure, and connect a site to the SD-WAN fabric. Software features are enabled through Cisco’s subscription licensing tiers; confirm the SD-WAN or networking tier, term, and any throughput-tier requirement that match your feature set before you finalize the order.
Layer23-Switch is a global network equipment supplier built for B2B branch and edge projects. We supply brand-new, original Cisco Catalyst 8300 hardware with pre-shipment product verification, a 3-year warranty, RMA service, and worldwide delivery. Our CCIE support team can review your model choice, WAN speed, modules, optics, SD-WAN licensing, and full bill of materials before you order — from a single branch router to a multi-site rollout. Browse listed pricing on each model page, then request a project quote for volume, configuration, and lead-time confirmation.
