Select Cisco Industrial Ethernet 2000 switches for automation access layers that need compact DIN-rail hardware plus operational features such as REP rings, PROFINET MRP, EtherNet/IP visibility, L2 NAT for repeated machine cells, IEEE 1588 options, PoE models, SFP uplinks, dual DC power, conformal coating, and IP67 variants. Compare IE 2000 SKUs by software tier, plant protocol, and cabinet conditions.
Showing all 7 results

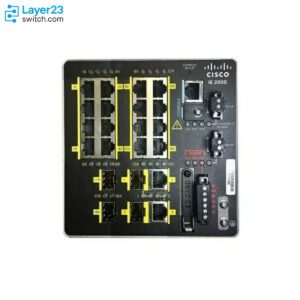

16xFE Copper – 4xPoE+ – 2xGE Dual-Purpose Uplinks

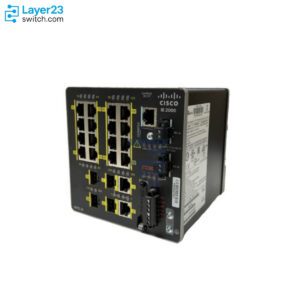

16xFE Copper – 2xGE Combo + 2xFE SFP – LAN Base
8xFE M12 PoE Ports – 2xGE M12 Uplinks – IP67 LAN Base

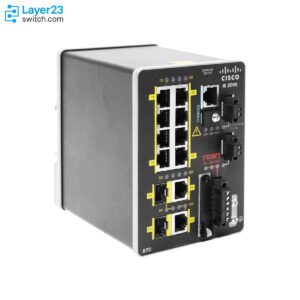

8xFE Copper – 2xFE Dual-Purpose Uplinks – LAN Base

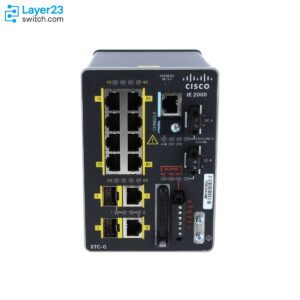

8×10/100 Copper Ports – 2xGE Combo Uplinks – LAN Base
8×10/100 Copper Ports – 2xGE Combo Uplinks – LAN Base 1588
8xFE Copper – 2xGE Dual-Purpose Uplinks – Enhanced LAN Base
Industrial Ethernet 2000 Switches provide rugged automation access for machine networks, substations, transportation systems, energy sites, and factory cells. They are often selected when protocol visibility, REP rings, L2 NAT, or PoE options are required.
Choose by automation protocol, software tier, copper port count, SFP uplink speed, PoE model, L2 NAT need, IEEE 1588 requirement, conformal coating, IP67 exposure, DC power design, and plant standard.
IE 1000 fits simpler lightly managed industrial access, while IE 2000 adds broader industrial switching capabilities, software feature options, resiliency protocols, automation integration, and more deployment flexibility for operational technology networks.
Yes, selected IE 2000 models support industrial integration needs such as EtherNet/IP visibility and PROFINET MRP. Exact protocol and feature support depends on the model, software image, license level, and configuration.
Layer 2 NAT helps industrial networks handle duplicate IP address schemes often found in machine cells. It can simplify equipment replication, but buyers must confirm feature support on the exact IE 2000 model and software.
Selected IE 2000 models support industrial PoE or PoE+ for cameras, phones, access points, and field devices. Verify the model, input power, endpoint power draw, PoE budget, and temperature limits before ordering.
DIN-rail IE 2000 models fit cabinets and panels, while IE 2000 IP67 models are built for harsher exposed environments. Selection depends on enclosure design, cabling, washdown exposure, dust, vibration, and mounting requirements.
IE 2000 software options affect features such as industrial protocol support, Layer 2 behavior, L2 NAT, timing, and manageability. Buyers should map the required plant function to the exact SKU rather than choosing by port count only.
Check the running SKU, license level, SD card contents, configuration backup, uplink speed, cabinet wiring, coating option, power input, and protocol features. A similar-looking replacement may not support the same automation behavior.
Confirm the exact IE 2000 SKU, LAN Lite or LAN Base tier, L2 NAT need, EtherNet/IP or PROFINET role, DIN-rail versus IP67 style, coating option, SD card reuse, ring topology, PoE model, and SFP uplinks before purchasing.

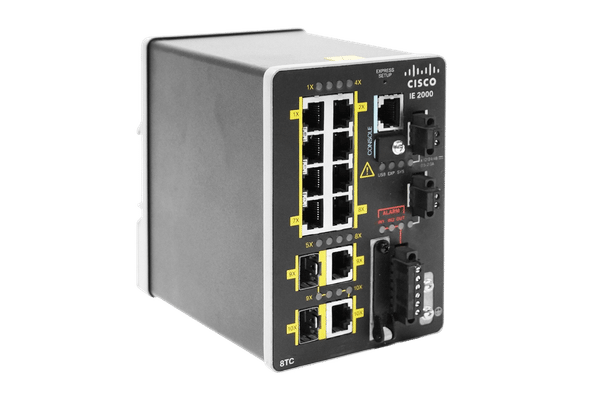

Cisco Industrial Ethernet 2000 Switches are compact rugged DIN-rail access switches designed for industrial Ethernet networks in factory automation, transportation, energy, mining, oil and gas, machine control, and utility environments. The Cisco IE2000 Series is widely used in operational technology networks that require reliable industrial switching, hardened hardware, and stable connectivity for field devices and control systems.
For customers sourcing Cisco IE2000 switches, the key selection factors usually include port count, uplink type, PoE requirement, software feature set, industrial protocol support, timing requirements, cabinet space, power design, and compatibility with the existing installation. This series remains especially important for installed-base replacement, project spares, maintenance inventory, and industrial network expansion where the same Cisco IE 2000 hardware platform is already deployed.
The Industrial Ethernet 2000 Series includes multiple fixed configurations for industrial access deployments. The models below cover common 8-port, 16-port, PoE, and Gigabit uplink requirements used in control cabinets and OT edge networks.
| Model | Configuration | Typical Use | Best Fit |
|---|---|---|---|
| IE-2000-16PTC-G-E | 16 Fast Ethernet copper ports, 4 PoE/PoE+ capable ports, and 2 GE dual-purpose uplinks | Industrial PoE access | IP cameras, access points, sensors, powered edge devices, and higher-density control cabinets |
| IE-2000-16TC-G-E | 16 Fast Ethernet copper ports, 2 GE combo uplinks, and 2 FE SFP ports | High-density industrial access | Factory automation cabinets, machine networks, and larger OT access layers |
| IE-2000-8TC-B | 8 Fast Ethernet copper ports and 2 FE dual-purpose uplinks | Compact copper access | Small industrial control panels, PLC networks, and copper-based edge connections |
| IE-2000-8TC-G-B | 8 Fast Ethernet copper ports and 2 GE combo uplinks | Compact access with Gigabit uplinks | OT cabinets that require flexible uplink options and compact DIN-rail installation |
| IE-2000-8TC-G-E | 8 Fast Ethernet copper ports, 2 GE combo uplinks, and enhanced feature support | Feature-specific industrial replacement | Industrial networks requiring timing, protocol visibility, or closer compatibility with existing IE2000 deployments |
Choose an 8-port Cisco IE2000 switch when the cabinet only needs a small number of copper access ports for PLCs, controllers, HMIs, sensors, drives, or machine equipment. IE-2000-8TC-B is suitable for simpler copper access requirements, while IE-2000-8TC-G-B and IE-2000-8TC-G-E are better choices when Gigabit uplinks or specific software features are required.
Choose a 16-port Cisco IE2000 switch when the site needs more downlink density in a single industrial access switch. IE-2000-16TC-G-E is a strong fit for higher-density copper access with uplink flexibility, while IE-2000-16PTC-G-E is the key option when the deployment also requires PoE or PoE+ for powered industrial endpoints.
Cisco IE2000 switches are often purchased for existing industrial environments where the exact hardware and software feature set matters. Before replacing or expanding an IE2000 deployment, confirm the required software tier, uplink media, PoE or PoE+ support, IEEE 1588 timing, L2 NAT, REP ring support, PROFINET MRP, EtherNet/IP visibility, SD card reuse, power input design, and Cisco IOS release requirements.
This is especially important for automation and control networks. Two IE2000 switches may appear similar by port count, but they may not be equivalent for a live industrial application. For replacement projects, always match the full Cisco PID, software feature set, uplink type, power design, cabinet wiring, and configuration requirements before ordering.
The Cisco Industrial Ethernet 2000 Series is commonly used where rugged access switching, stable connectivity, and industrial protocol support are more important than high port density or full Gigabit access. It remains a practical choice for customers maintaining legacy OT networks, replacing failed field hardware, or keeping spare units available for long-running industrial systems.
| Application | Recommended IE2000 Type | Typical Requirement |
|---|---|---|
| Factory automation | 8-port or 16-port IE2000 models | Rugged DIN-rail switching for PLCs, controllers, HMIs, machine tools, and production cells |
| Industrial PoE devices | IE-2000-16PTC-G-E | PoE or PoE+ connectivity for cameras, sensors, access points, and powered edge devices |
| Transportation networks | IE2000 models with Gigabit uplinks | Compact rugged switching for traffic cabinets, roadside systems, and distributed OT access |
| Energy and utility sites | Feature-specific IE2000 models | Industrial access switching for substations, field cabinets, and control network segments |
| Machine builders and repeated cells | IE2000 models matched to the required feature set | Reliable industrial Ethernet connectivity for M2M networks, repeated IP designs, and L2 NAT use cases |
Many Cisco IE2000 purchases are for replacement, spare inventory, maintenance projects, and urgent field hardware recovery. In these cases, choosing the correct model is more important than simply matching the number of ports. The existing configuration, uplink media, industrial protocol role, ring topology, timing requirement, and power design should all be checked before selecting the replacement unit.
If your current network already uses Cisco IE2000 switches, a close model match can help reduce cabling changes, configuration rework, and compatibility issues during maintenance windows. For critical OT environments, confirm the installed SKU and required feature set before placing the order.
Industrial networks often run for many years, and customers may need the same Cisco IE2000 model for spare stock, panel replication, field maintenance, or phased project expansion. Keeping the same platform can help simplify replacement planning, reduce engineering changes, and keep existing industrial configurations consistent across multiple sites.
When sourcing IE2000 switches for maintenance or expansion, check the exact Cisco part number, hardware condition, software requirement, accessories, available quantity, and delivery schedule. This is especially useful for plants, utilities, transportation operators, and system integrators that need stable availability for long-term OT support.
Layer23 Switch supplies Cisco Industrial Ethernet 2000 switches for industrial replacement, project spares, OT maintenance, and cabinet expansion. Contact us for Cisco IE2000 switch price, current stock, factory-sealed availability, lead time, shipping cost, and project-based quotations.
Need help choosing the right Cisco IE2000 switch? Send us the required model, current installed SKU, port count, PoE load, uplink type, software requirement, industrial protocol requirement, installation environment, destination country, and target delivery time. Our team can help confirm the correct Industrial Ethernet 2000 switch before you place the order.
