IE-2000-8T67P-G-E Description

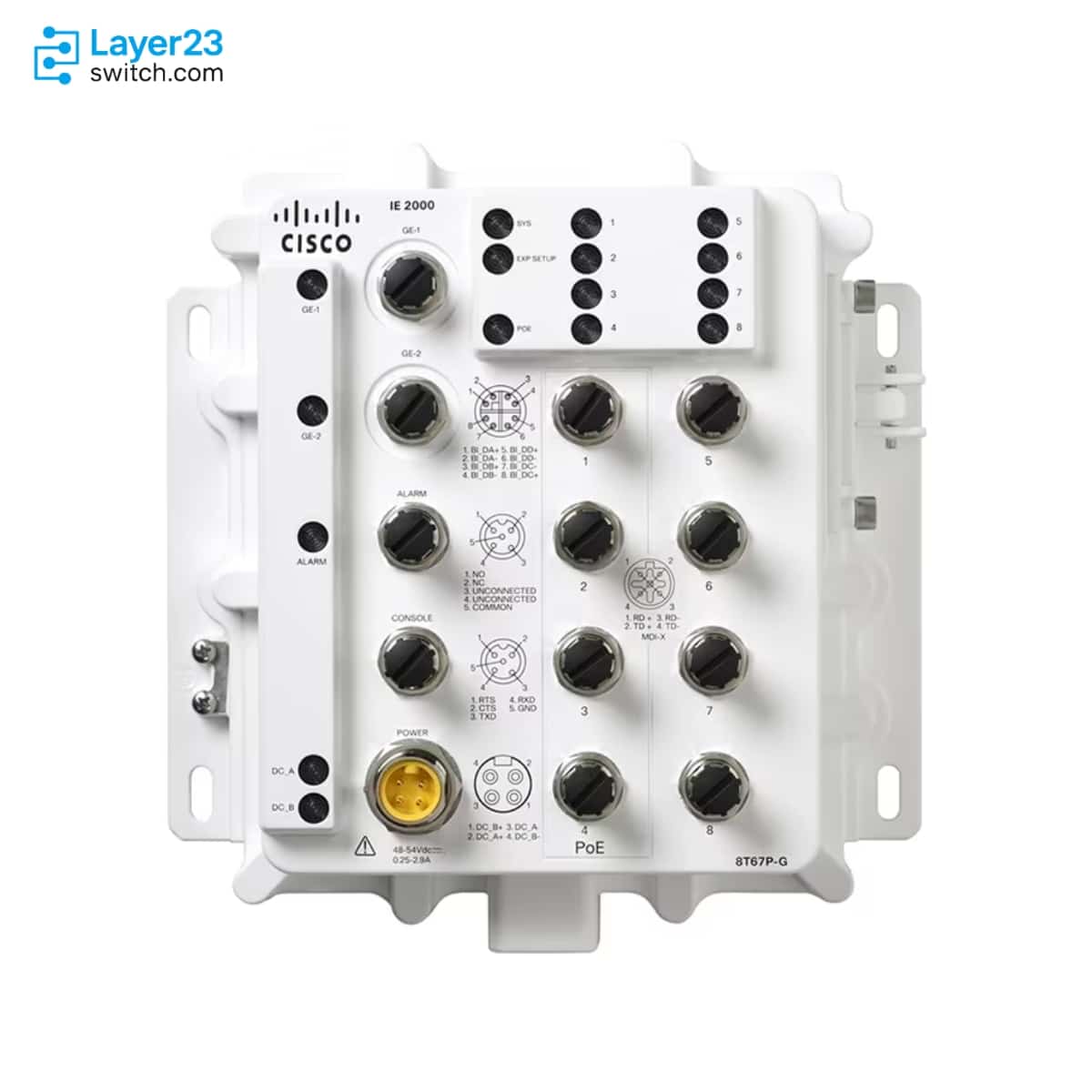

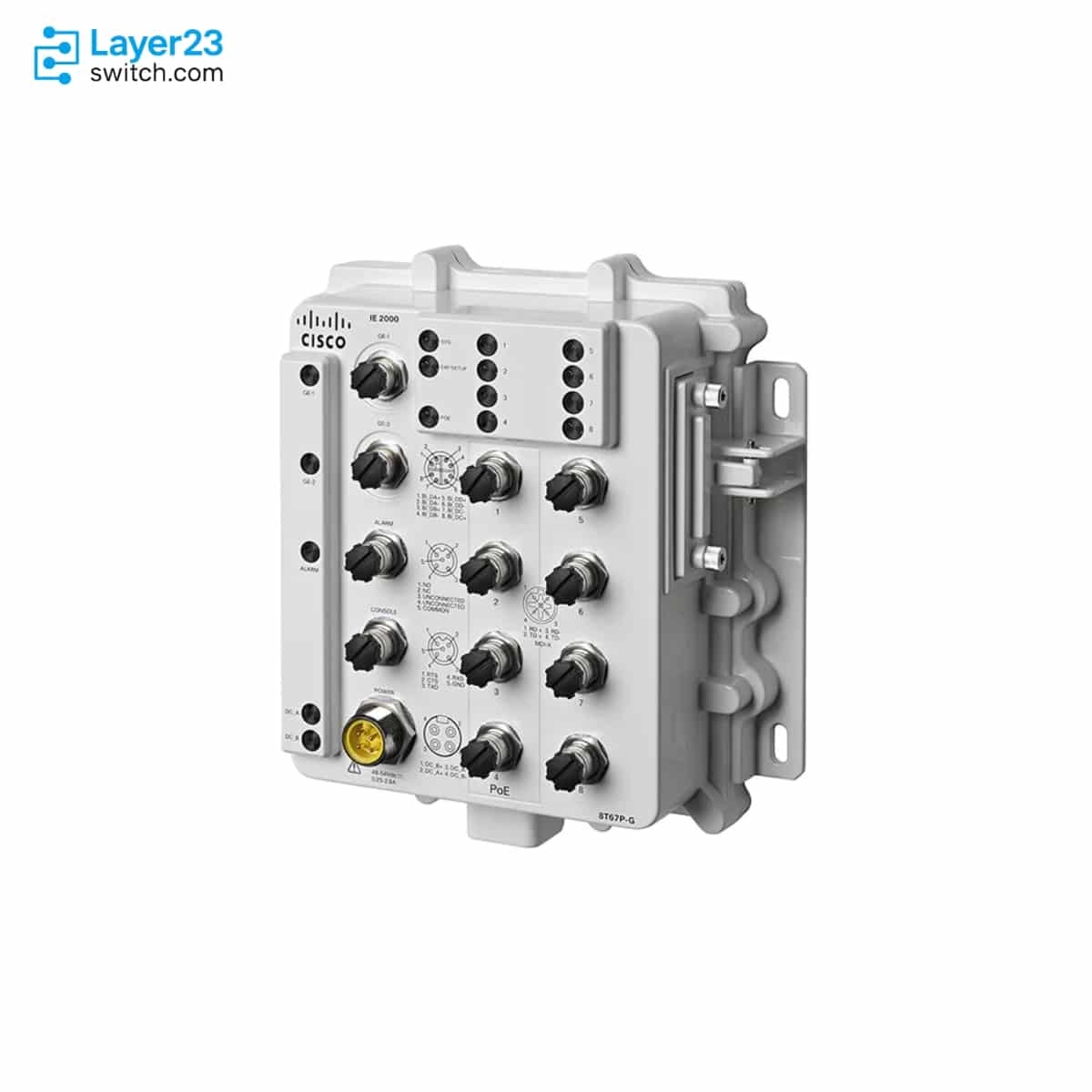

The IE-2000-8T67P-G-E is a Cisco Industrial Ethernet 2000 IP67 Series switch for wall-mounted installations outside protected cabinets. The switch has eight M12 D-coded Fast Ethernet ports that supply PoE on all eight or PoE+ on four, two Gigabit M12 X-coded uplinks, a 120W PoE budget and 6.5 Mpps of forwarding. The IP67 and NEMA type 4 ratings hold only when every cable is tightened or capped, and Layer 2 NAT requires the upgrade from LAN Base to Enhanced LAN Base.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-2000-8T67P-G-E |
|
Product type |
Industrial Ethernet switch |
|
Total ports |
10 |
|
Downlink ports |
8 x 10/100BASE-T M12 D-coded |
|
Uplink ports |
2 x GE M12 X-coded |
|
Manufacturing license |
LAN Base |
|
IEEE 1588 |
Yes |
|
NAT |
Requires LAN Base to Enhanced LAN Base image |
|
PoE support |
8 PoE ports or 4 PoE+ ports |
|
Minimum Cisco IOS release |
Cisco IOS Release 15.2(1)EY |
|
IP/type rating |
IP67 and NEMA type 4 |
|
Weight |
7.19 lb / 3.26 kg |
Product Performance
Key Features
The data ports use M12 D-coded connectors and the uplinks use M12 X-coded connectors, so the switch mounts on a wall with no RJ-45 cabinet hardware.
The enclosure is rated IP67 and NEMA type 4, which applies once every cable is tightened or each open port carries a dust cap.
Standard PoE runs on all eight downlink ports from a 44 to 57 VDC source. PoE+ covers four ports and needs a 50 to 57 VDC source.
PoE power comes from an external supply: the PWR-IE160W-67-DC= takes 18 to 60 VDC and the PWR-IE180W-67-AC takes 85 to 264 VAC, both at 54V output.
An IEEE 1588v2 FPGA provides precision time synchronization for control traffic that depends on tight clock alignment.
NAT runs on the Enhanced LAN Base image rather than LAN Base. The IE2000-B-E= license makes the change, and the switch then holds 128 bidirectional NAT entries.
Application Scenarios
On a production machine or conveyor line, the switch connects PLCs, drives and vision sensors over sealed M12 ports and powers PoE devices from the same ports, so no cabinet is needed.
At a rail yard or roadside location, PoE+ ports power cameras and wireless access points while the two Gigabit M12 uplinks carry their traffic back to the aggregation switch.
In a utility or substation yard, IEEE 1588 support lets the wall-mounted switch pass precision time to field devices on a small LAN Base segment.
Product Comparison
|
Parameter |
IE-2000-8T67P-G-E |
IE-2000-8T67-B |
IE-2000-16T67P-G-E |
|---|---|---|---|
|
Ethernet 10/100 ports (M12 D-coded) |
8 |
8 |
16 |
|
Gigabit Ethernet uplinks (M12 X-coded) |
2 |
Not applicable |
2 |
|
PoE ports |
8 PoE or 4 PoE+ |
Not applicable |
8 PoE or 4 PoE+ |
|
PoE power budget |
120W |
Not applicable |
Not published |
|
Input voltage |
44-57 VDC (PoE), 50-57 VDC (PoE+) |
9.6-60 VDC |
44-57 VDC (PoE), 50-57 VDC (PoE+) |
|
Operating temperature |
-40C to +75C |
-40C to +75C |
-40C to +75C |
|
Software image |
LAN Base |
LAN Base |
LAN Base |
|
IEEE 1588 |
Yes |
Not applicable |
Yes |
|
NAT |
Requires Enhanced LAN Base |
Not applicable |
Requires Enhanced LAN Base |
IE-2000-8T67P-G-E and IE-2000-8T67-B share the same eight 100 Mbps M12 D-code ports, but IE-2000-8T67-B has no PoE, no GE X-code uplinks, no IEEE 1588 and no NAT path, so it suits only sealed edge segments that need none of those. Sites that need 16 D-code field ports move to IE-2000-16T67P-G-E, which keeps the two GE uplinks and PoE on an 18-port chassis. Layer 2 NAT on IE-2000-8T67P-G-E requires the LAN Base to Enhanced LAN Base upgrade, and the IP Lite upgrade is a separate license. PoE+ mode on four ports needs a 50-57 VDC source, while the standard eight-port PoE mode runs from 44-57 VDC.
PoE Power Planning
|
Planning item |
Cisco-confirmed value |
Procurement impact |
|---|---|---|
|
PoE port scope |
8 PoE ports or 4 PoE+ ports |
Confirms whether the powered devices fit the supported PoE mode |
|
PoE mode input |
48 VDC nominal, 44 to 57 VDC absolute range |
Sets the DC source requirement for standard PoE operation |
|
PoE+ mode input |
54 VDC nominal, 50 to 57 VDC absolute range |
Prevents using a source that cannot support PoE+ voltage |
|
IP67 DC power supply |
PWR-IE160W-67-DC=, input 18 to 60 VDC, output 54 V, 3.1A max, 160W |
Provides a Cisco-listed IP67 DC option for PoE deployments |
|
IP67 AC power supply |
PWR-IE180W-67-AC, input 85 to 264 VAC or 88 to 300 VDC, output 54 V, 3.4A max, 180W |
Provides a Cisco-listed IP67 AC/DC source option when the site is not using a DC-only source |
|
Power input connector |
Mini style 4-pin connector for dual redundant power input |
Makes the power cable and connector plan part of the switch order |
Ordering Checklist
- Power supply: Order PWR-IE160W-67-DC= (18-60 VDC input) or PWR-IE180W-67-AC (85-264 VAC input), both 54 V output. The switch is sold without a power supply, and PoE needs a 54 V source.
- Power input cable: Order a Mini-Change A-size 4-pin power cable, such as Molex 130006-0737. The cable is not supplied and must be ordered separately for the power input.
- NAT license: Order IE2000-B-E= to upgrade LAN Base to Enhanced LAN Base. NAT is not enabled on the LAN Base image the switch ships with.
- Console cable: Order CAB-CONSOLE-M12= (6 ft, M12 to DB9F). The IP67 switch has an M12 console port that a standard console cable does not fit.
- SD card: Add SD-IE-1GB as the optional 1 GB removable flash. Without a card the switch has only its 64 MB on-board flash.
Optional Add-ons
|
Model |
Description |
|---|---|
|
PWR-IE160W-67-DC= |
IP67-rated PoE DC-DC power supply, input 18V to 60V, output 54V, 3.1A max, 160W |
|
PWR-IE180W-67-AC |
IP67-rated PoE AC-DC power supply, input 85V to 264VAC or 88V to 300VDC, output 54V, 3.4A max, 180W |
|
1 GB SD memory card listed for the IE 2000 IP67 Series | |
|
IE2000-B-E= |
IE 2000 LAN Base to Enhanced LAN Base paper NAT license to enable NAT capability |
|
LIC-IE2000-IP-L= |
Field-upgradable IE 2000 LAN Base to IP Lite license |
|
LIC-MRP-MANAGER= |
MRP ring Manager license |
|
LIC-MRP-Client= |
MRP ring Client license |
|
CAB-CONSOLE-M12= |
Console cable, 6 ft, with M12 and DB9F for the IE 2000 IP67 switch |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-2000-8T67P-G-E | Product type | Industrial Ethernet switch |
| Total ports | 10 | 100 MB D-code ports | 8 |
| GE X-code ports | 2 GE | Manufacturing license | LAN Base |
| IEEE 1588 | Yes | NAT | Requires LAN Base to Enhanced LAN Base image |
| PoE support | 8 PoE ports or 4 PoE+ ports | Minimum Cisco IOS release | Cisco IOS Release 15.2(1)EY |
| PoE mode input voltage | 48 VDC nominal, 44 to 57 VDC absolute range | PoE+ mode input voltage | 54 VDC nominal, 50 to 57 VDC absolute range |
| IP67 DC power supply | PWR-IE160W-67-DC=, 54V output, 160W max | IP67 AC power supply | PWR-IE180W-67-AC, 54V output, 180W max |
| Hardware memory | 256 MB DRAM with ECC memory | Flash | 64 MB |
| Optional removable flash | 1 GB SD flash memory card | IEEE 1588v2 FPGA | Yes |
| Forwarding rate | 6.5 mpps with 64-byte packets | Egress buffer | 2 MB |
| MAC addresses | 8000 | Max VLANs | 1005 |
| Data port connector | Copper 100 Base-T M12 D-coded 4-pole cable connector | Uplink port connector | Copper GE M12 X-coded 8-pole shielded cable connector |
| Power input connector | Mini style 4-pin connector for dual redundant power input | Console cable | CAB-CONSOLE-M12= |
| IP/type rating | IP67 and NEMA type 4 | Operating temperature | -40C to +75C measured inside enclosure |
| Operating humidity | 5% to 95% noncondensing | Operating altitude | Up to 15000 ft / 4570 m |
| Dimensions | 9.6 H x 9.35 W x 3.4 D in. / 243.84 x 237.49 x 86.36 mm | Weight | 7.19 lb / 3.26 kg |
| Mounting holes | 5.7 x 8.5 in. / 144.7 x 215.8 mm | Alarm output relay | M12 A-coded 5-pin connector, 24VDC at 1A or 48VDC at 0.5A max |
| PoE power budget | PWR-IE160W-67-DC 160W DC or PWR-IE180W-67-AC 180W AC/DC source supports the IP67 PoE mode |
