IE-9320-24T4X-E Description
The IE-9320-24T4X-E is a Cisco Catalyst IE9300 Rugged Series industrial switch for control rooms and equipment shelters whose devices carry their own power. The switch has 24 Gigabit RJ45 copper ports without PoE, four 1/10G SFP+ uplinks and 95.23 Mpps of forwarding, draws 35W from power modules that take 18-75V DC or 85-264V AC input, and runs from -40°C to 75°C in a forced-air cabinet as a 1RU rack-mount unit. The switch has no PoE budget, and HSR and PRP are not supported.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-9320-24T4X-E |
|
Downlink ports |
24x 10/100/1000M RJ45 (data only) |
|
Uplink ports |
4x 1/10G SFP+ |
|
Network license |
Network Essentials (upgradeable via IE9300-NW-A=) |
|
Stacking |
Cisco StackWise, 2 stack ports, up to 4 members |
|
Forwarding rate |
95.23 Mpps |
|
Switching capacity |
128 Gbps (full duplex) |
|
MAC addresses |
24,000 (IOS XE 17.17.1 and later) |
|
Power modules |
2x modular slots; 150W/250W/400W AC-DC and 150W low-voltage DC options |
|
Power consumption |
35W (indicative) |
|
Operating temperature |
-40°C to +75°C (forced-air cabinet); -40°C to +60°C sealed |
|
Alarm and console |
4 alarm in / 1 Form-C alarm out; RJ-45 + Micro USB console |
|
Mounting |
1RU rack mount, fanless, IP30 |
Product Performance
Key Features
Twenty-four Gigabit RJ45 ports carry data without PoE circuitry, so cabinets full of locally powered gear use the chassis for ports alone. The 35W draw is the lowest in the IE9320 line.
The rated MTBF is the highest in the IE9300 range, ahead of the PoE models at 489,710 hours. That gives a lower expected failure rate for sites where service visits are costly.
Four SFP+ uplinks run 1G or 10G optics, so a shelter can start on Gigabit backhaul and move to 10G without replacing the switch.
Two StackWise ports join up to four chassis into one managed unit, giving 112 ports under a single configuration. MRP over Stacking extends ring redundancy across the members.
OSPF with 1,000 routes, RIP and policy-based routing come with Network Essentials, alongside PROFINET, EtherNet/IP (CIP), GOOSE and SCADA classification, Modbus TCP and IOx.
IEC 61850-3, IEEE 1613, NEMA TS2:2021 and EN 50121-4 cover substations, roadside cabinets and railways. Two isolated power modules and a -40°C to 75°C range in a forced-air cabinet suit unconditioned rooms.
Application Scenarios
In a substation control house or plant server room, the switch terminates relays, RTUs, workstations and historians that all draw local power over its 24 copper ports.
An ITS hub site built to NEMA TS2 can use the switch to connect locally powered field processors, with the 10G-capable SFP+ uplinks leading back to the traffic management center.
At a depot, signal house or tunnel that needs EN 50121-4 railway EMC compliance, the switch connects fixed equipment over copper, and stacking adds ports as the electronics grow.
Product Comparison
|
Parameter |
IE-9320-24T4X-E | ||
|---|---|---|---|
|
Downlinks |
24 ports 10/100/1000M RJ45 |
24 ports 10/100/1000M RJ45 PoE+ |
22 ports 100/1000M SFP and 2 ports dual-media |
|
Uplinks |
4 ports 1/10G SFP+ |
4 ports 1/10G SFP+ |
4 ports 1/10G SFP+ |
|
Software license (default) |
Network Essentials |
Network Essentials |
Network Essentials |
|
PoE power budget |
No PoE (data only) |
Up to 720W (dual 400W) |
No PoE (data only) |
|
HSR and PRP |
Not supported |
Not supported |
Supported |
|
GNSS and IRIG-B |
Not supported |
Not supported |
Supported |
|
Conformal coating |
No |
No |
Yes |
|
Power consumption |
35W |
39W |
73W |
|
Rated MTBF (hours) |
651,580 |
489,710 |
323,733 |
IE-9320-24T4X-E and IE-9320-24P4X-E share 24 copper ports and four 1/10G SFP+ uplinks, but IE-9320-24T4X-E has no PoE, draws 35W and has a 651,580-hour MTBF, while IE-9320-24P4X-E adds a PoE+ budget up to 720W at 39W and 489,710 hours. One powered camera or access point on the rack means IE-9320-24P4X-E. Sites that need fiber downlinks, GNSS/IRIG-B timing or conformal coating should order IE-9320-22S2C4X-E, which has 22 SFP downlinks plus 2 combo ports and draws 73W. HSR/PRP is not supported on IE-9320-24T4X-E, so seamless redundancy also points to IE-9320-22S2C4X-E.
Ordering Checklist
- Power modules: Select PWR-RGD-LOW-DC-H (24-60V DC feed) or PWR-RGD-AC-DC-H / -250 / -400 (85-264V AC or 88-300V DC), up to two per switch. The module must match the site feed; the 150W, 250W and 400W choices only matter for PoE models.
- License tier: Network Essentials is the default on this -E PID; Network Advantage is the perpetual upgrade IE9300-NW-A=. Catalyst Center term licenses are IE9300-DNA-E, 3, 5 or 7 years, and optional. BGP, EIGRP, TrustSec and MACsec-256 are Advantage features, so match the license line to the design.
- SD card: Add SD-IE-16GB= if the switch needs a configuration backup for replacement. The 16 GB SD card is optional and is not added unless ordered.
- Stack cables: Add CAB-STK-0.5M= or CAB-STK-1M= for each added member, up to 4 members. Stack members need these cables, which are ordered as separate parts.
- Industrial optics: Order SFP-10G-SR-I, SFP-10G-LR-X or other -I/-RGD optics for the 4 SFP+ uplinks. Non-industrial SFPs need temperature derating.
Optional Add-ons
|
Model |
Description |
|---|---|
|
IE9300-NW-A= |
Perpetual Network Advantage upgrade license for -E units |
|
150W AC-DC power module, 85-264V AC / 88-300V DC input | |
|
150W low-voltage DC power module, 18-75V input range | |
|
CAB-STK-0.5M= |
StackWise stacking cable, 0.5 m |
|
CAB-STK-1M= |
StackWise stacking cable, 1 m |
|
RM-RGD-19IN= |
19-inch rack mount kit |
|
SD-IE-16GB= |
16GB SD card for configuration and SwapDrive replacement |
|
SFP-10G-SR-I= |
10GBASE-SR SFP+, industrial temperature range |

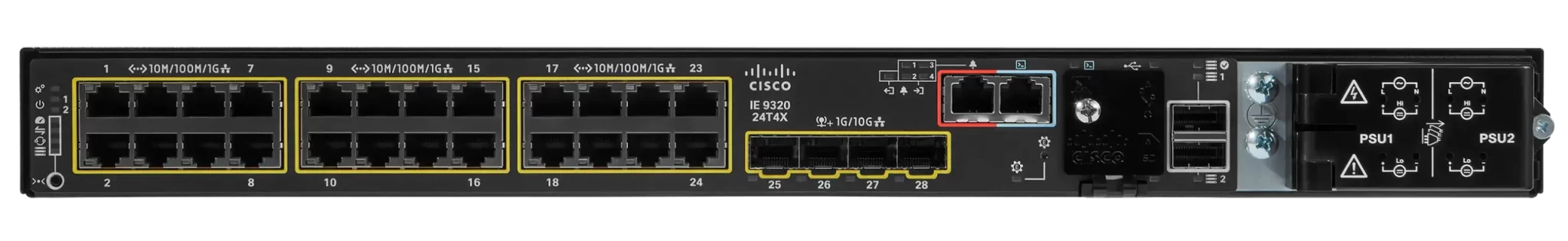

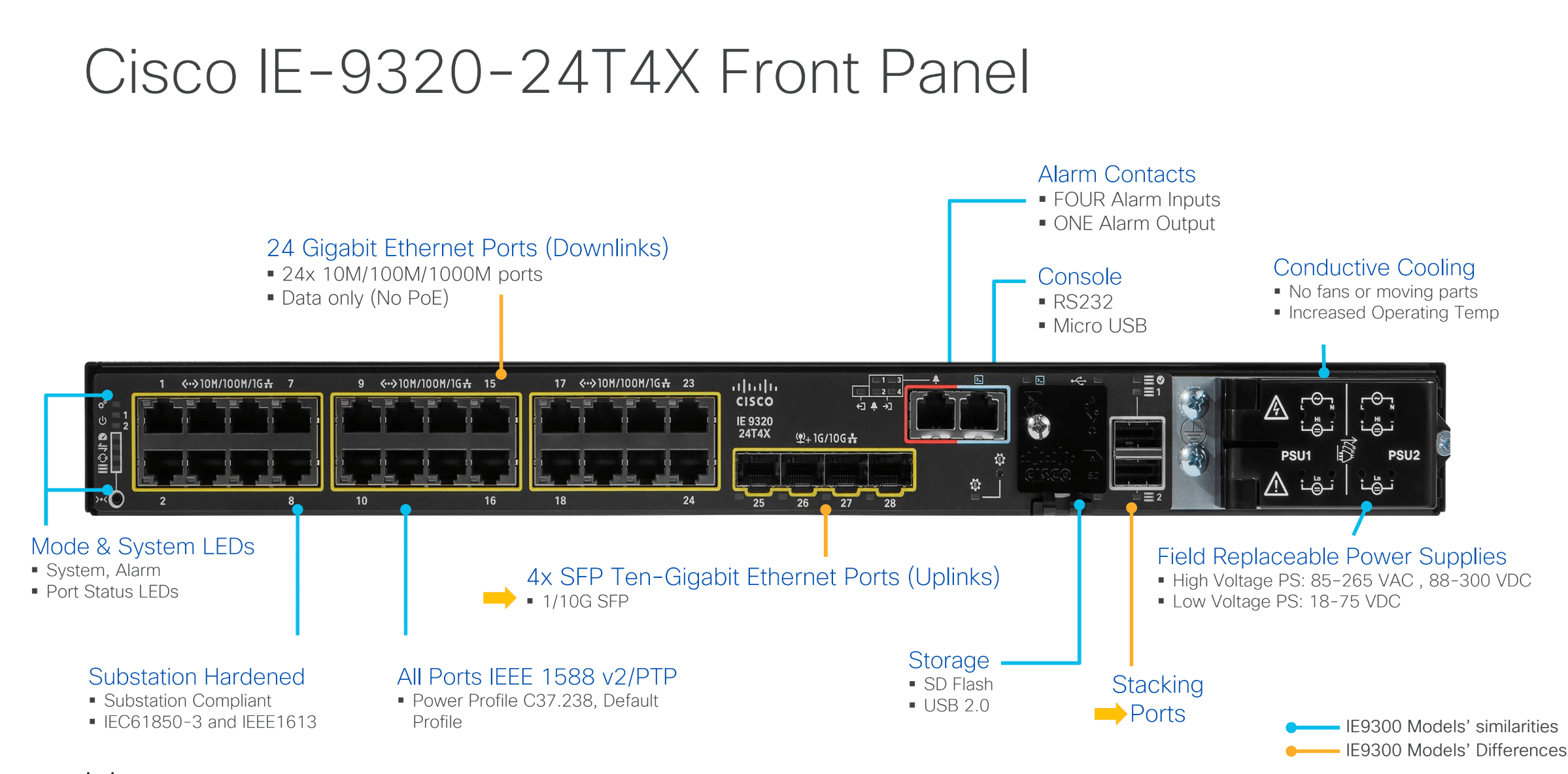

IE-9320-24T4X-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.
|
1 |
Display mode button |
6 |
Alarms |
|---|---|---|---|
|
2 |
Express Setup button |
7 |
RJ-45 console port |
|
3 |
Ethernet RJ-45 downlinks |
8 |
(Beneath cover) Micro-USB console port, USB-A host port, and SD slot |
|
4 |
Dual-media downlink ports |
9 |
Stacking interface (IE9320 switches only) |
|
5 |
Ethernet SFP uplinks |
10 |
AC/DC power input |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-9320-24T4X-E | Network license | Network Essentials; perpetual in-place upgrade via IE9300-NW-A= |
| Downlink ports | 24x 10/100/1000M RJ45, data only | Uplink ports | 4x 1/10G SFP+ |
| Stacking | Cisco StackWise, 2 stack ports, up to 4 members; MRP over Stacking | Performance | 95.23 Mpps; 64 Gbps forwarding, 128 Gbps switching bandwidth |
| Scale (IOS XE 17.17.1+) | 24,000 MAC; 4,096 VLAN IDs, 1,024 active VLANs; 128 STP instances; 1,536 ACL entries | Memory | 4 GB DRAM; 8 GB flash (~2.5 GB user); optional 16 GB SD card |
| Essentials features | Static routing, OSPF (1,000 routes), OSPFv3, RIP, PBR; REP/REP Fast, MRP/Fast MRP, PTP over MRP; PROFINET, CIP, GOOSE/SCADA classification, L2 NAT, Modbus TCP, ERSPAN, IOx; 802.1X, DAI, DHCP snooping, IPv6 FHS, FNF, MACsec-128, TLS 1.3 | Advantage upgrade adds | BGP, EIGRP, IS-IS, HSRP, LISP, BGP-EVPN over VXLAN, VRF-lite, TrustSec (SGACL), MACsec-256, L3 NAT, multicast routing suite, SD-Access fabric roles, GRE, IP SLA |
| PTP timing | IEEE 1588 PTPv2 Default and Power Profile (2011/2017); IEC 61850-9-3 PUP; NTP-PTP interworking | Model boundaries | HSR/PRP/PTP over PRP not supported on 24T4X; GNSS/IRIG-B only on 22S2C4X models |
| Management | WebUI, Cisco Catalyst Center, SNMP, NETCONF/RESTCONF/YANG, EEM, PnP, Day-0 ZTP | Security hardware | IOS XE Secure Boot, image signing, Trust Anchor module; FIPS 140-2 |
| Power modules | 2x field-replaceable slots, isolated outputs: PWR-RGD-LOW-DC-H (150W, 18-75V DC), PWR-RGD-AC-DC-H (150W), -250 (250W), -400 (400W) | Power consumption | 35W (indicative) |
| Alarms / console | 4 dry-contact alarm in, 1 Form-C alarm out; RS-232 RJ-45 + Micro USB console; optional USB 2.0 and SD card | Operating temperature | -40°C to +75°C forced-air cabinet; +70°C vented; +60°C sealed (safety approval to 60°C) |
| Altitude / humidity | 15,000 ft without derating, to 40,000 ft derated to 25°C; 5-95% non-condensing; storage -40°C to +85°C | Dimensions / weight | 1.72 x 17.5 x 14.0 in; 4.3 kg (9.5 lb); 1RU, fanless, IP30 |
| MTBF | 651,580 hours (highest in the IE9300 series) | Compliance | IEC 61850-3, IEEE 1613, NEMA TS2:2021, EN 50121-4, AREMA 2019, IEC 62443-4-1/-4-2, hazloc Class I Div 2 / Zone 2 |
