SFP-10G-SR – 10GBASE-SR SFP+ – 850nm MMF – 400m OM4
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
SFP-10G-SR Description

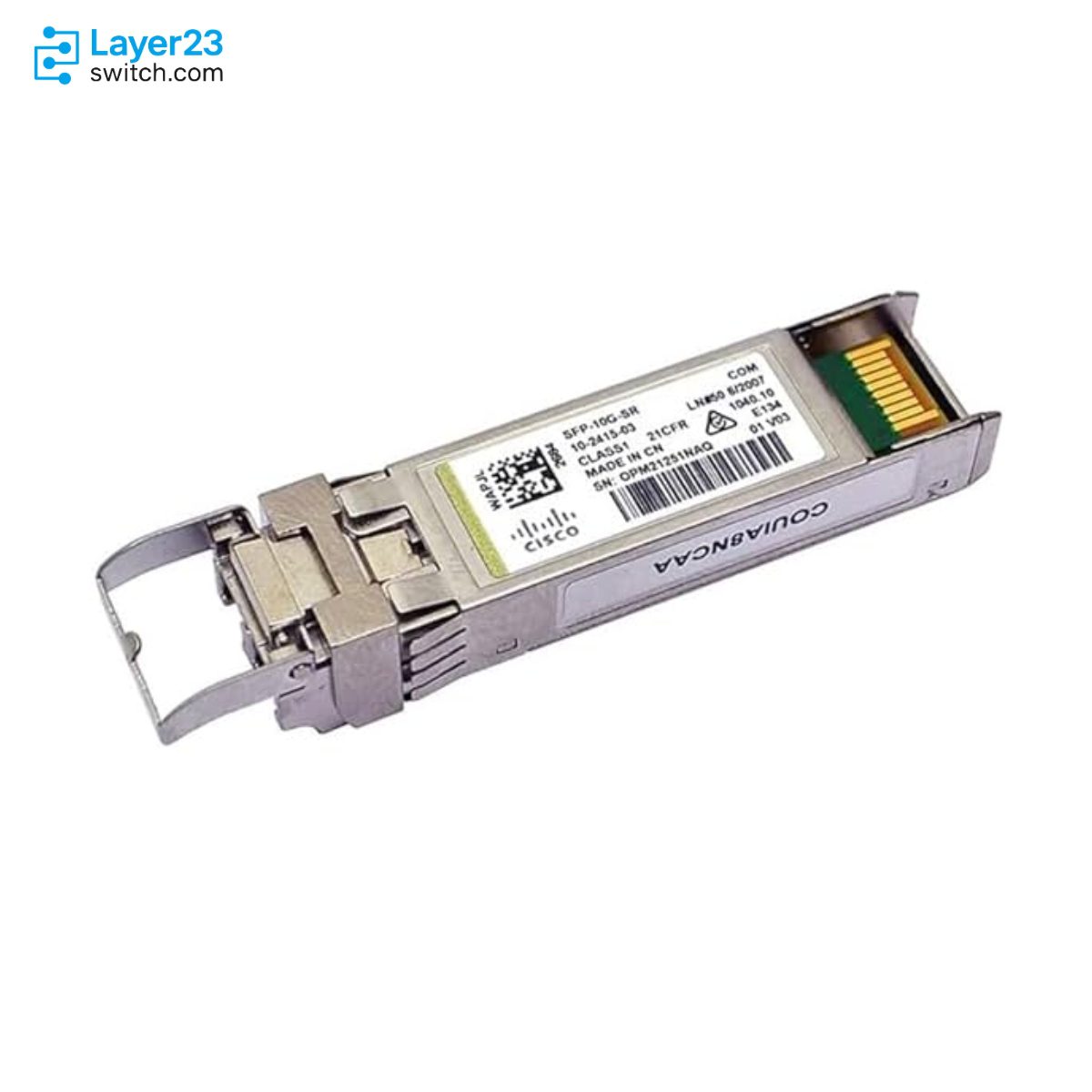

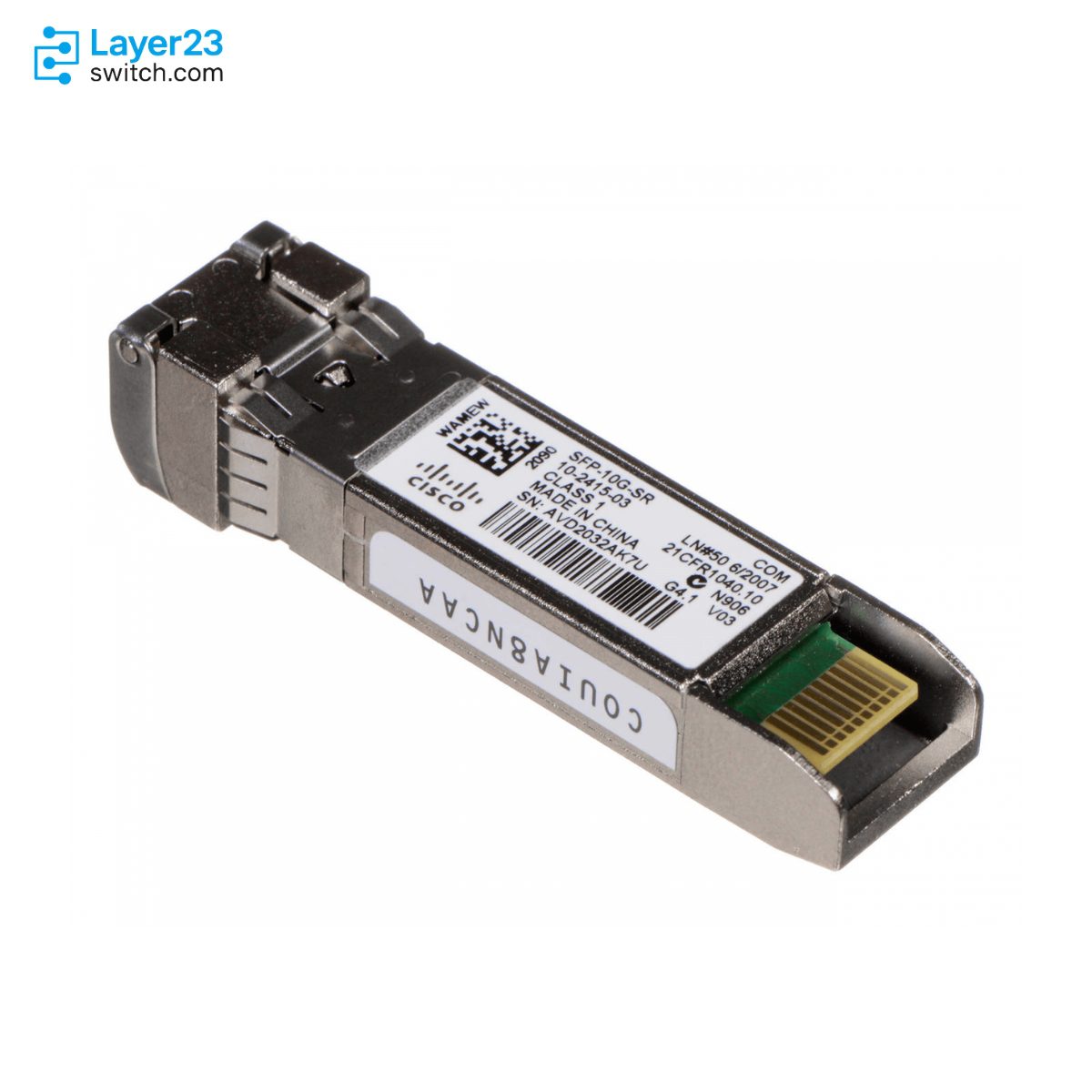

The SFP-10G-SR is a Cisco 10GBASE-SR SFP+ transceiver for short 10G links over multimode fiber inside buildings and data center rows. The module reaches 300 m on OM3 and 400 m on OM4 or OM5 at 850 nm through dual LC connectors, operates from 0 to 70°C and draws up to 1W. The module carries 10GBASE-SR only and needs multimode cabling, so single-mode fiber or spans beyond 400 m cannot use it.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
SFP-10G-SR |
|
Product type |
10GBASE-SR SFP+ transceiver |
|
Ethernet protocol |
10GBASE-SR |
|
Fiber type |
Multimode fiber |
|
Nominal wavelength |
850 nm |
|
Reach on OM3 MMF |
300 m |
|
Reach on OM4 or OM5 MMF |
400 m |
|
Connector type |
Dual LC/PC |
|
Bail latch color |
Beige |
|
Maximum power consumption |
1W |
|
Operating temperature class |
Commercial 0 to 70°C |
Application Scenarios
In a data center row, the module connects a 10G SFP+ switch port to an aggregation switch over OM3 or OM4 multimode patching of up to 300 m or 400 m.
Between a floor wiring closet and the building distribution room, the module runs a 10G uplink across existing multimode riser cabling at 850 nm.
Product Comparison
|
Parameter |
SFP-10G-SR | ||
|---|---|---|---|
|
Protocol scope |
10GBASE-SR |
10GBASE-SR, no FCoE support (S-Class) |
10GBASE-LR |
|
Fiber type |
Multimode fiber |
Multimode fiber |
Single-mode fiber |
|
Nominal wavelength |
850 nm |
850 nm |
1310 nm |
|
Operating distance |
300 m on OM3, 400 m on OM4 or OM5 |
300 m on OM3, 400 m on OM4 or OM5 |
10 km over G.652 SMF |
|
Operating temperature |
Commercial, 0 to 70°C |
Commercial, 0 to 70°C |
Commercial, 0 to 70°C |
|
Maximum power consumption |
1W |
1W |
1W |
SFP-10G-SR is the standard 10GBASE-SR optic for multimode fiber, reaching 300 m on OM3 and 400 m on OM4 or OM5 at 850 nm, while SFP-10G-LR runs at 1310 nm over single-mode fiber to 10 km, so any link beyond 400 m or on single-mode cabling needs SFP-10G-LR. SFP-10G-SR-S has the same reach but is the S-Class listing with Cisco’s no-FCoE note, so FCoE links use SFP-10G-SR. Sites that need a -5 to 85 degrees C rating or the multirate SR, SW and OTU2e description move to SFP-10G-SR-X.
Ordering Checklist
- Host support: Confirm the target platform and port are listed for this optic in Cisco’s Transceiver Module Group Compatibility Matrix (tmgmatrix.cisco.com). A host can reject an optic that fits the cage but is not on its supported list.
- Fiber type and length: Use multimode fiber at 850 nm: up to 300 m on OM3, up to 400 m on OM4 or OM5. OM3 links fall 100 m short of OM4 or OM5, so confirm the cable grade before ordering.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SFP-10G-SR | Product type | 10GBASE-SR SFP+ transceiver |
| Cisco ordering description | 10GBASE-SR SFP+ Module for MMF | Ethernet protocol | 10GBASE-SR |
| Fiber type | Multimode fiber | Nominal wavelength | 850 nm |
| Transmit wavelength range | 840 to 860 nm | Receive wavelength range | 840 to 860 nm |
| Connector type | Dual LC/PC | FDDI-grade MMF reach | 26 m with 62.5 micron 160 MHz*km fiber |
| OM1 MMF reach | 33 m with 62.5 micron 200 MHz*km fiber | 400 MHz*km MMF reach | 66 m with 50.0 micron fiber |
| OM2 MMF reach | 82 m with 50.0 micron 500 MHz*km fiber | OM3 MMF reach | 300 m with 50.0 micron 2000 MHz*km fiber |
| OM4 MMF reach | 400 m with 50.0 micron 4700 MHz*km fiber | OM5 MMF reach | 400 m with 50.0 micron 4700 MHz*km fiber |
| Bail latch color | Beige | Transmit power range | -1.2 to -7.3 dBm |
| Receive power range | -1.0 to -9.9 dBm | Maximum power consumption | 1W |
| Operating temperature class | Commercial | Operating temperature | 0 to 70°C |
| Storage temperature | -40 to 85°C | SFP+ connector dimensions | 8.5 x 13.4 x 56.5 mm |
| SFP+ connector weight | 75 grams or less | Installation note product number | SFP-10G-SR= |
| Hot-swappable role | SFP+ I/O device for supported 10GBASE ports | Cisco platform note | Not every listed Cisco platform supports every module |
| Platform support boundary | Cisco compatibility documentation required for exact host and software support | Digital optical monitoring | Cisco SFP+ feature list includes digital optical monitoring capability |
Get More Information
Need pricing, stock, or shipping details for the SFP-10G-SR ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Does SFP-10G-SR need an extra converter on the 8-port Nexus M-series module?
-
What transmit power limits apply to SFP-10G-SR?
-
Can SFP-10G-SR connect a 32-port 10-Gigabit Nexus module to a FEX?
-
Does SFP-10G-SR carry a footnote on Nexus F-series line cards?
