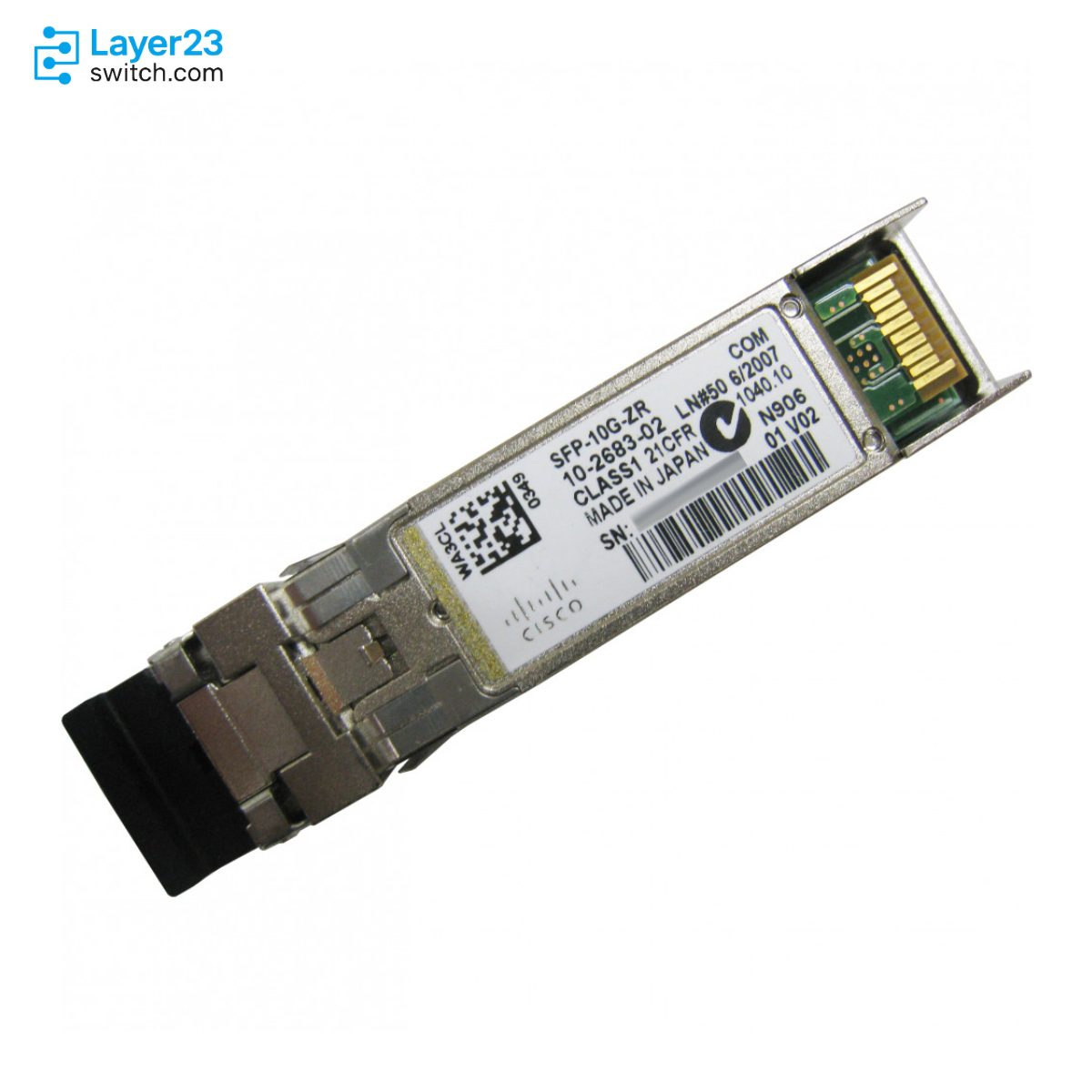

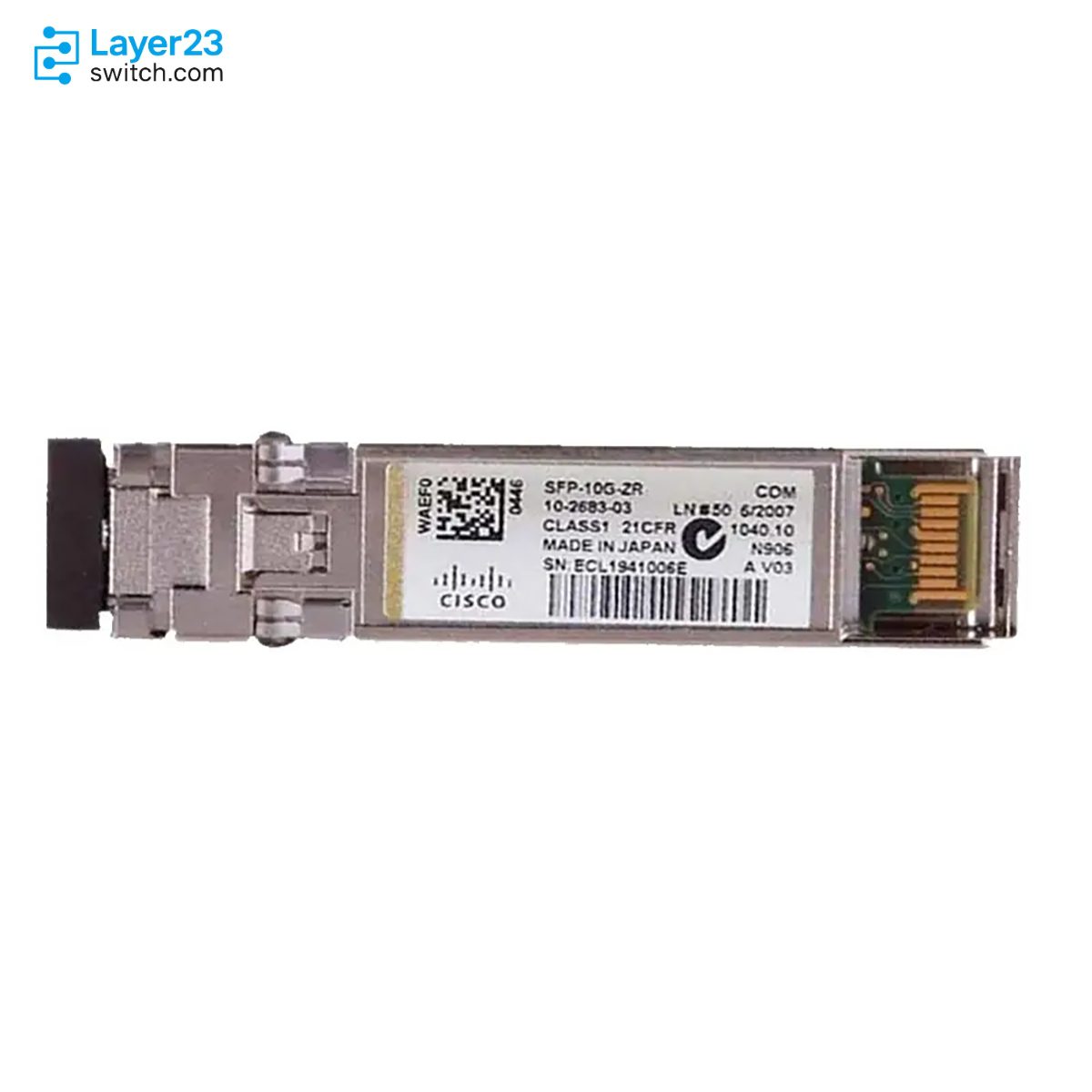

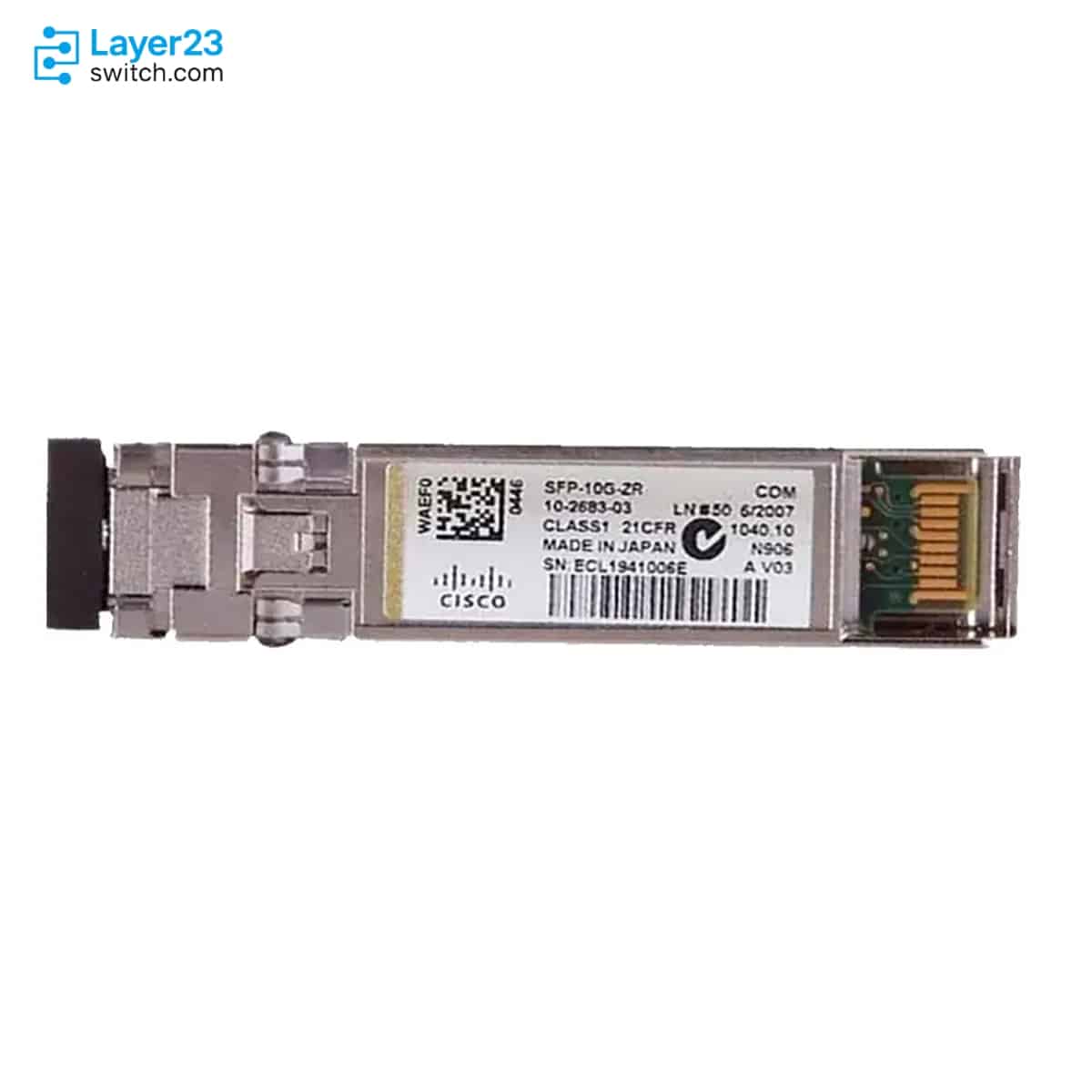

SFP-10G-ZR Description
SFP-10G-ZR is a Cisco multirate 10GBASE-ZR SFP+ transceiver for long-reach 10G optical links over standard ITU-T G.652 single-mode fiber. It supports 10GBASE-ZR, 10GBASE-ZW, and OTU2/OTU2e applications at a 1550 nm nominal wavelength, uses a dual LC/PC connector, and is documented for link lengths up to about 80 km. The module has a green bail latch, a maximum power consumption of 1.5W, and a commercial 0 to 70 degrees C operating temperature class, making it a Cisco SFP+ option for engineered metro or extended campus fiber paths where the target host platform is confirmed in Cisco compatibility documentation.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
SFP-10G-ZR |
|
Product type |
Multirate 10GBASE-ZR SFP+ transceiver |
|
Protocol scope |
10GBASE-ZR, 10GBASE-ZW, OTU2/OTU2e |
|
Fiber type |
Standard single-mode fiber |
|
SMF reference |
ITU-T G.652 |
|
Wavelength |
1550 nm |
|
Operating distance |
Up to about 80 km |
|
Connector |
Dual LC/PC |
|
Bail latch color |
Green |
|
Maximum power consumption |
1.5W |
|
Operating temperature class |
Commercial 0 to 70 degrees C |
Application Scenarios
Use SFP-10G-ZR when the bill of materials calls for Cisco’s ZR reach class and the fiber path is standard G.652 single-mode cabling at 1550 nm.
Keep this PID in the order when the service design names Cisco’s ZR, ZW, or OTU2/OTU2e multirate description instead of a plain 10GBASE-ER Ethernet optic.
Separate SFP-10G-ZR from SFP-10G-ZR-S and SFP-10G-ZR-I in inventory. The shared ZR family does not remove the buying differences around S-Class FCoE support notes, temperature class, and documented reach.
Product Comparison
|
Parameter |
SFP-10G-ZR | ||
|---|---|---|---|
|
Product type |
Multirate 10GBASE-ZR SFP+ transceiver |
10GBASE-ER SFP+ transceiver |
10GBASE-LR SFP+ transceiver |
|
Protocol scope |
10GBASE-ZR, 10GBASE-ZW, OTU2/OTU2e |
10GBASE-ER |
10GBASE-ER |
|
Supported media |
Standard SMF |
Standard SMF |
Standard SMF |
|
Fiber reference |
G.652 |
G.652 |
G.652 |
|
Nominal wavelength |
1550 nm |
1550 nm |
1310 nm |
|
Documented reach |
Up to about 80 km |
Up to 40 km |
10 km |
|
Operating temperature class |
Commercial |
Commercial |
Commercial 0 to 70 degrees C |
|
Maximum power consumption |
1.5W |
1.5W |
1W |
|
Bail latch color |
Green |
Red |
Blue |
|
Short-span attenuator rule |
Required by distance band below 45 km |
5 dB attenuator below 20 km |
5 dB attenuator below 20 km |
- In a SFP-10G-ZR vs SFP-10G-ZR-S comparison, both table entries share the 1550 nm ZR reach class, G.652 SMF medium, green latch, 1.5W power rating, and commercial temperature class; SFP-10G-ZR-S is separated by the S-Class no-FCoE note.
- The SFP-10G-ZR difference from SFP-10G-ZR-I is temperature and reach: SFP-10G-ZR is the commercial ZR line at up to about 80 km, while SFP-10G-ZR-I is the industrial-temperature ZR line with a 70 km reach statement and 2W power rating.
- SFP-10G-ZR vs SFP-10G-ER is a reach and protocol-scope comparison because SFP-10G-ZR is Cisco’s longer multirate ZR listing, while SFP-10G-ER is the 40 km 10GBASE-ER listing.
- For which model to choose, align the SKU with reach class, service protocol, operating-temperature requirement, attenuator plan, and Cisco host-compatibility result. SFP-10G-LR is included as an additional same-family comparison point.
Selection Guide
1. Choose it for Cisco ZR distance class
Select SFP-10G-ZR when the design needs Cisco’s commercial-temperature ZR SFP+ optic for a standard G.652 single-mode span approaching the 80 km class.
2. Keep ER orders separate
Use SFP-10G-ER only when the fiber design fits Cisco’s 40 km ER class; do not substitute ER and ZR optics only because both use 1550 nm SMF.
3. Check S-Class and industrial variants
Move to SFP-10G-ZR-S when the approved BOM specifically names the S-Class PID, or to SFP-10G-ZR-I when the site requires Cisco’s industrial-temperature ZR option.
4. Verify host and attenuation before release
Confirm the Cisco device, SFP+ port, software support, optical-loss worksheet, and attenuator value before approving this SKU for quote or replacement stock.
Ordering Checklist
|
Check Item |
What to Confirm |
Procurement Risk Controlled |
|---|---|---|
|
Host support |
Cisco compatibility documentation covers the target device, SFP+ port, and operating system |
Avoids approving the optic only because the port is physically SFP+ |
|
Fiber span |
The path uses standard G.652 single-mode fiber and fits the ZR reach design |
Keeps the 80 km class tied to the real fiber plant |
|
Attenuator value |
Shorter spans apply Cisco’s ZR attenuator distance bands below 45 km |
Reduces receiver overload risk on short ZR links |
|
Service protocol |
The network design calls for ZR, ZW, or OTU2/OTU2e support rather than only an ER Ethernet optic |
Keeps the order aligned with Cisco’s multirate description |
|
Connector plan |
Patch cords use LC/PC or LC/UPC ends and exclude APC connectors |
Matches Cisco’s connector rule for this SFP+ family |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SFP-10G-ZR | Product type | Multirate 10GBASE-ZR SFP+ transceiver |
| Ordering description | Multirate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF | Protocol scope | 10GBASE-ZR, 10GBASE-ZW, OTU2/OTU2e |
| Fiber type | Standard single-mode fiber | SMF reference | ITU-T G.652 |
| Nominal wavelength | 1550 nm | Transmit wavelength range | 1530 to 1565 nm |
| Receiver input wavelength range | 1260 to 1565 nm | Receiver sensitivity wavelength note | Specified over 1530 to 1565 nm with 3 dB degradation from 1260 to 1530 nm |
| Operating distance | Up to about 80 km | Engineered-link note | Links longer than 30 km are engineered links |
| Transmitter optical output power | 0 to +4.0 dBm | Receiver overload | -7 dBm |
| 10GE receiver sensitivity | -24 dBm | OTU2 or OTU2e receiver sensitivity | -27 dBm with FEC application |
| Connector | Dual LC/PC | Patch-cord rule | PC or UPC connectors supported |
| Bail latch color | Green | Maximum power consumption | 1.5W |
| Operating temperature class | Commercial | Commercial operating temperature | 0 to 70 degrees C |
| Storage temperature range | -40 to 85 degrees C | Maximum chromatic dispersion | 1600 ps/nm |
| Short-span attenuation | 15 dB below 5 km, 10 dB from 5 km to 25 km, 5 dB from 25 km to 45 km | Attenuator spare parts | 15216 ATT LC 5=, 15216 ATT LC 10=, 15216 ATT LC 15= |
| SFP+ connector dimensions | 8.5 x 13.4 x 56.5 mm | SFP+ connector weight | 75 grams or less |
| Platform support boundary | Cisco compatibility documentation required for exact host and software support | Standard warranty | 5 years |
