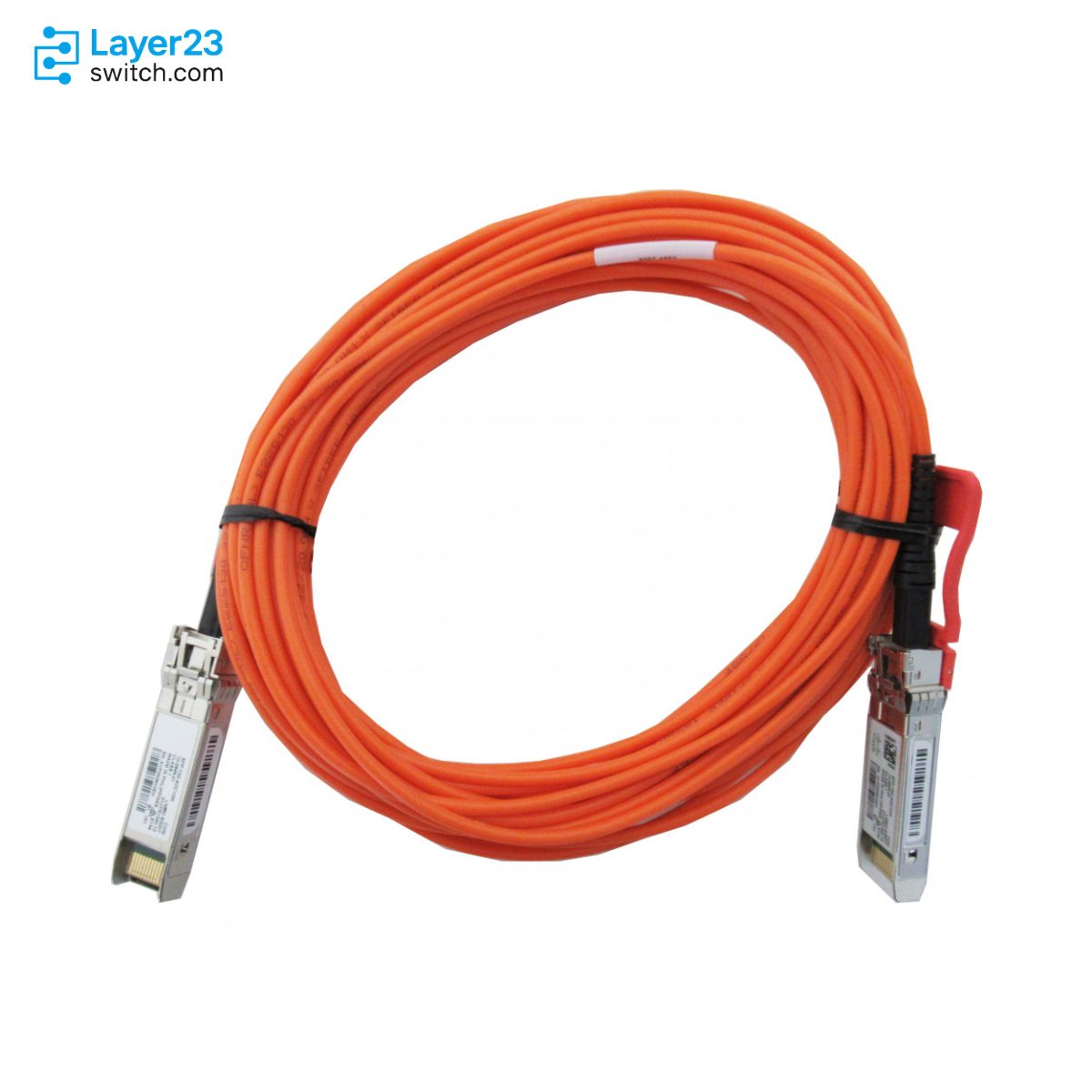

SFP-10G-AOC10M – 10G SFP+ AOC – 10m Length – Active Optical Cable
4/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
SFP-10G-AOC10M Description
SFP-10G-AOC10M is a Cisco 10GBASE-AOC SFP+ active optical cable assembly in the Cisco 10GBASE SFP+ module portfolio, used for fixed 10 Gigabit Ethernet links between compatible Cisco SFP+ host ports. It provides an SFP+ to SFP+ active optical cable connection at a 10-meter length, with Cisco-confirmed 10G Ethernet operation, red bail latch identification, 1W maximum power consumption, and a commercial operating temperature range of 0 to 70 degrees C for BOMs that require this exact AOC length and media type.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
SFP-10G-AOC10M |
|
Product type |
10GBASE-AOC SFP+ active optical cable assembly |
|
Cable assembly type |
Active optical cable assembly |
|
Interface role |
SFP+ to SFP+ 10G cable |
|
Supported Ethernet rate |
10 Gigabit Ethernet |
|
Cable length |
10 meters |
|
Bail latch color |
Red |
|
Maximum power consumption |
1W |
|
Operating temperature class |
Commercial 0 to 70 degrees C |
|
Compatibility reference |
Cisco Transceiver Module Group Compatibility Matrix |
Application Scenarios
Deploy SFP-10G-AOC10M where two supported Cisco SFP+ ports need a fixed 10-meter active optical cable and the route is longer than the 5-meter or 7-meter AOC options after cable managers and service slack are included.
This SKU fits Cisco Catalyst projects that list SFP-10G-AOC10M as a supported cable for 10G uplinks. The platform, port type, and software support still need confirmation in Cisco compatibility documentation before purchase.
For Cisco UCS 6300 Series Fabric Interconnects, SFP-10G-AOC10M appears in the supported SFP+ transceiver and cable table as the 10-meter 10GBASE-AOC option. That makes the exact length and AOC media type important during receiving checks.
Product Comparison
|
Parameter |
SFP-10G-AOC10M | |||
|---|---|---|---|---|
|
Product type |
10GBASE-AOC SFP+ active optical cable |
10GBASE-AOC SFP+ active optical cable |
10GBASE-AOC SFP+ active optical cable |
10GBASE-CU SFP+ active twinax copper cable |
|
Cable assembly type |
Active optical cable assembly |
Active optical cable assembly |
Active optical cable assembly |
Active twinax cable assembly |
|
Interface role |
SFP+ to SFP+ 10G cable |
SFP+ to SFP+ 10G cable |
SFP+ to SFP+ 10G cable |
SFP+ to SFP+ 10G cable |
|
Supported Ethernet rate |
10 Gigabit Ethernet |
10 Gigabit Ethernet |
10 Gigabit Ethernet |
10 Gigabit Ethernet |
|
Cable length |
10 meters |
5 meters |
7 meters |
10 meters |
|
Bail latch color |
Red |
Gray |
Blue |
Red |
|
Maximum power consumption |
1W |
1W |
1W |
1W |
|
Operating temperature class |
Commercial |
Commercial |
Commercial |
Commercial |
- In a SFP-10G-AOC10M vs SFP-10G-AOC7M comparison, the confirmed difference is the fixed cable length: SFP-10G-AOC10M is the 10-meter AOC while SFP-10G-AOC7M is the 7-meter AOC.
- The SFP-10G-AOC10M difference from SFP-10G-AOC5M is also length and bail latch color, with Cisco listing the 5-meter AOC with a gray latch and the 10-meter AOC with a red latch.
- SFP-10G-AOC10M vs SFP-H10GB-ACU10M is a media-type comparison at the same 10-meter length: SFP-10G-AOC10M is active optical cable and SFP-H10GB-ACU10M is active twinax copper.
- For which model to choose, start from the required 10G SFP+ cable medium, then confirm fixed length and host support in Cisco compatibility documentation.
Selection Guide
1. Choose it for a fixed 10-meter AOC path
Select SFP-10G-AOC10M when the bill of materials requires a Cisco 10GBASE-AOC SFP+ active optical cable and the measured route needs the 10-meter length.
2. Use shorter AOC models for shorter dressed routes
Order SFP-10G-AOC5M or SFP-10G-AOC7M only when the installed path fits those fixed lengths. This avoids leaving excess 10-meter cable in a dense SFP+ panel.
3. Keep copper active twinax separate
Use SFP-H10GB-ACU10M only when the design calls for the Cisco 10-meter active twinax copper cable. It should not replace SFP-10G-AOC10M in an AOC-specific bill of materials.
4. Confirm Cisco host support before purchase
Check the target switch, fabric interconnect, port type, and software release in Cisco compatibility documentation before adding SFP-10G-AOC10M to a quote.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Cable length |
Fixed 10-meter route with service slack |
Confirms the installed path can be dressed without changing cable family |
|
Cable medium |
10GBASE-AOC active optical cable assembly |
Keeps the order aligned with optical AOC cabling rather than twinax copper |
|
Host compatibility |
Cisco platform, port type, and software support in Cisco TMG documentation |
Verifies that the target hardware supports the exact cable SKU |
|
Power and temperature |
1W maximum power and commercial temperature class |
Helps confirm the target port and environment match the Cisco specification |
|
Receiving details |
Red bail latch and Cisco 10-meter AOC label |
Catches accidental replacement with 5-meter, 7-meter, or active copper cable SKUs |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SFP-10G-AOC10M | Product type | 10GBASE-AOC SFP+ active optical cable assembly |
| Ordering description | Cisco 10GBASE-AOC Active Optical Cable SFP+ assembly, 10 meters | Cable assembly type | Active optical cable assembly |
| Interface role | SFP+ to SFP+ 10G cable | Supported Ethernet rate | 10 Gigabit Ethernet |
| Cable length | 10 meters | Bail latch color | Red |
| Maximum power consumption | 1W | Operating temperature class | Commercial |
| Commercial operating temperature | 0 to 70 degrees C | Storage temperature range | -40 to 85 degrees C |
| SFP+ connector dimensions | 8.5 x 13.4 x 56.5 mm | SFP+ connector weight | 75 grams or less |
| Catalyst support example | C9200L Multigigabit Ethernet models with 10 Gigabit uplinks list SFP-10G-AOC10M as supported cable | Catalyst 9500 support example | C9500-24Y4C, C9500-32C, C9500-32QC, and C9500-48Y4C list SFP-10G-AOC10M as a supported Direct-Attach Active Optical Cable |
| UCS support example | Cisco UCS 6300 Series Fabric Interconnect supported SFP+ cable table lists SFP-10G-AOC10M | Compatibility reference | Cisco Transceiver Module Group Compatibility Matrix |
| Standard warranty | 5 years |
Get More Information
Need pricing, stock, or shipping details for the SFP-10G-AOC10M ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is SFP-10G-AOC10M?
-
When is SFP-10G-AOC10M selected?
-
How is SFP-10G-AOC10M different from SFP-H10GB-ACU10M?
-
Does SFP-10G-AOC10M need separate transceivers?
-
Can SFP-10G-AOC10M be extended through patch panels?
-
What host check applies to SFP-10G-AOC10M?
-
What handling risk applies to SFP-10G-AOC10M?
-
How is SFP-10G-AOC10M verified after turn-up?
