SFP-10G-SR-S Description

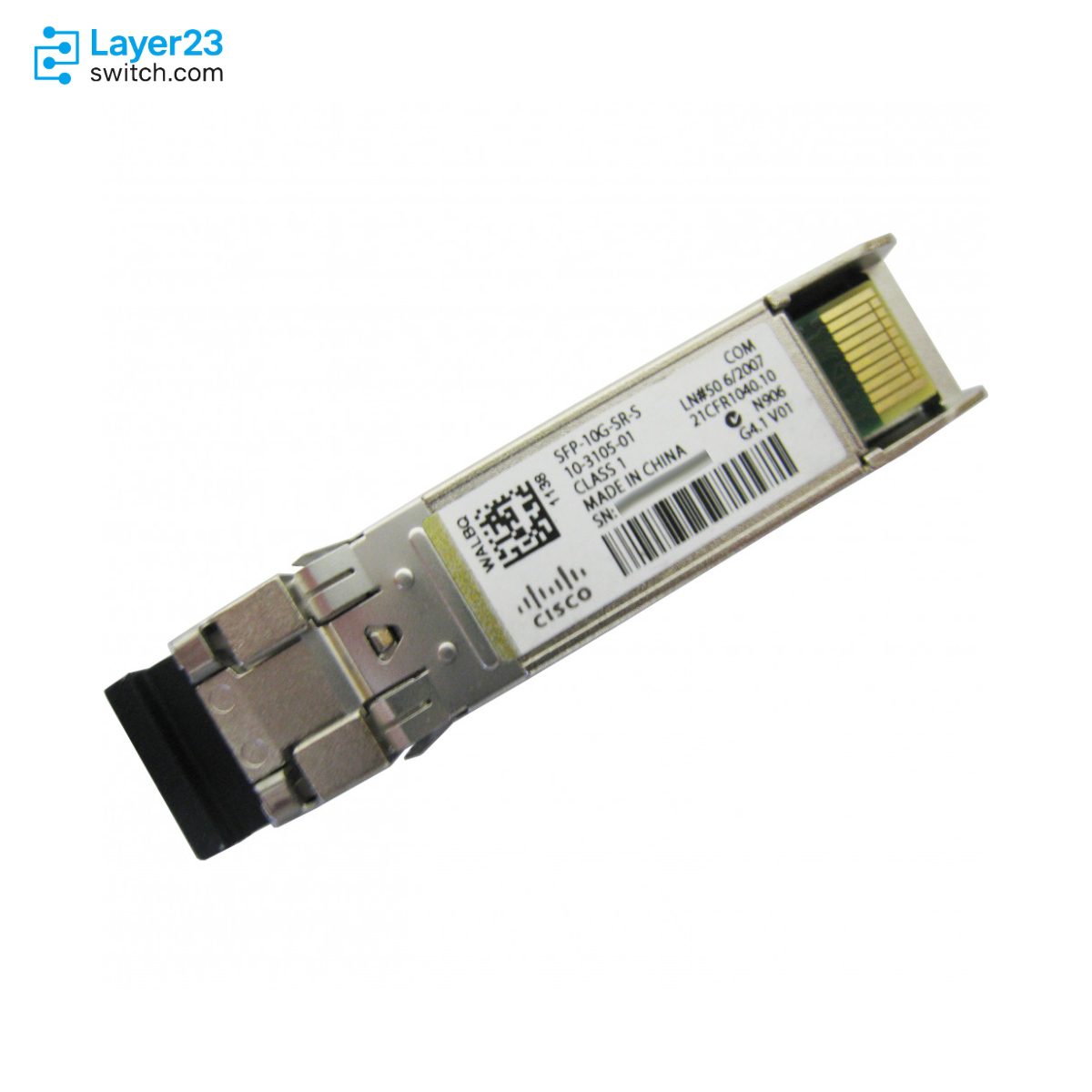

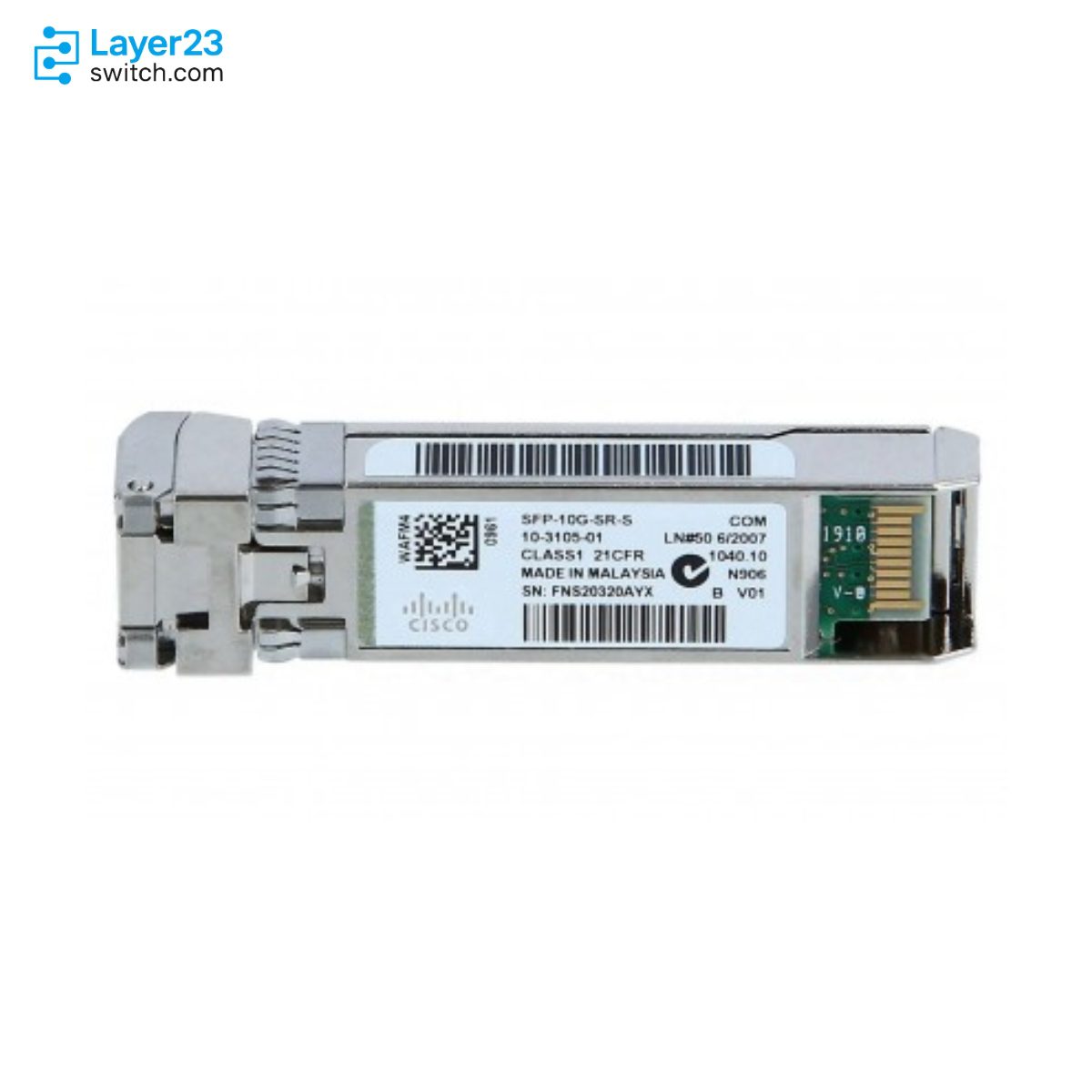

The SFP-10G-SR-S is a Cisco 10GBASE-SR S-Class SFP+ transceiver for 10G links of up to 400 m over duplex multimode fiber. The module uses 850 nm optics on dual LC connectors, reaches 300 m on OM3 and 400 m on OM4 or OM5 fiber, draws up to 1W and operates from 0 to 70°C. The S-Class module does not support FCoE, so links that carry FCoE need a different optic.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
SFP-10G-SR-S |
|
Product type |
10GBASE-SR S-Class SFP+ transceiver |
|
Module class |
S-Class |
|
Ethernet protocol |
10GBASE-SR |
|
Fiber type |
Multimode fiber |
|
Nominal wavelength |
850 nm |
|
Reach on OM3 MMF |
300 m |
|
Reach on OM4 or OM5 MMF |
400 m |
|
Connector type |
Dual LC/PC |
|
FCoE support |
Not supported |
|
Maximum power consumption |
1W |
|
Operating temperature class |
Commercial 0 to 70°C |
Application Scenarios
On a Catalyst 9200L Multigigabit switch, the module fills a 10G uplink port and carries traffic to an aggregation switch over OM3 or OM4 multimode patching.
Between a top-of-rack switch and servers in the same hall, the module carries 10G IP traffic over short multimode runs where no FCoE is needed.
Product Comparison
|
Parameter |
SFP-10G-SR-S |
SFP-10G-SR-I | ||
|---|---|---|---|---|
|
Standard |
10GBASE-SR; no FCoE |
10GBASE-SR |
10GBASE-SR, 10GBASE-SW, OTU2e |
10GBASE-SR, 10GBASE-SW, OTU2/2e |
|
Wavelength |
850 nm |
850 nm |
850 nm |
850 nm |
|
Distance (OM3 / OM4 or OM5 MMF) |
300 m / 400 m |
300 m / 400 m |
300 m / 400 m |
300 m / 400 m |
|
Operating temperature |
0 to 70°C |
0 to 70°C |
-5 to 85°C |
-40 to 85°C |
|
Maximum power consumption |
1W |
1W |
1W |
1W |
|
Bail latch color |
Beige |
Beige |
Beige |
Beige |
SFP-10G-SR-S and SFP-10G-SR share the same 850 nm reach of 300 m on OM3 and 400 m on OM4 or OM5, but SFP-10G-SR-S is the S-Class listing and its protocol scope is 10GBASE-SR with no FCoE support, so links that carry FCoE must be planned outside this PID. Sites with extended-temperature requirements move to SFP-10G-SR-X, which adds 10GBASE-SW and OTU2e support. Industrial-temperature enclosures, or links that need CPRI options, move to SFP-10G-SR-I, which adds 10GBASE-SW and OTU2/2e. All four optics draw a maximum of 1W and use a beige bail latch, so the choice rests on temperature class and protocol scope.
Ordering Checklist
- Catalyst 9200L hosts: Confirm the host is a Catalyst 9200L Multigigabit model (C9200L-24PXG-2Y, C9200L-24PXG-4X, C9200L-48PXG-2Y or C9200L-48PXG-4X) using its 10G uplinks. A cable that fits an SFP+ cage can still be unsupported; Cisco’s TMG matrix is the final reference for each host.
- Fiber connector: Order LC patch cords for the 10GBASE-SR SFP+ port. The SFP+ optic terminates in an LC connector.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SFP-10G-SR-S | Product type | 10GBASE-SR S-Class SFP+ transceiver |
| Cisco ordering description | 10GBASE-SR SFP+ Module for MMF S-Class | Module class | S-Class |
| Ethernet protocol | 10GBASE-SR | FCoE support | Not supported |
| Fiber type | Multimode fiber | Nominal wavelength | 850 nm |
| Transmit wavelength range | 840 to 860 nm | Receive wavelength range | 840 to 860 nm |
| Connector type | Dual LC/PC | FDDI-grade MMF reach | 26 m with 62.5 micron 160 MHz*km fiber |
| OM1 MMF reach | 33 m with 62.5 micron 200 MHz*km fiber | 400 MHz*km MMF reach | 66 m with 50.0 micron fiber |
| OM2 MMF reach | 82 m with 50.0 micron 500 MHz*km fiber | OM3 MMF reach | 300 m with 50.0 micron 2000 MHz*km fiber |
| OM4 MMF reach | 400 m with 50.0 micron 4700 MHz*km fiber | OM5 MMF reach | 400 m with 50.0 micron 4700 MHz*km fiber |
| Minimum cabling distance | 2 m | Transmit power range | -1.2 to -7.3 dBm |
| Receive power range | -1.0 to -9.9 dBm | Bail latch color | Beige |
| Maximum power consumption | 1W | Operating temperature class | Commercial |
| Operating temperature | 0 to 70°C | Storage temperature | -40 to 85°C |
| SFP+ connector dimensions | 8.5 x 13.4 x 56.5 mm | SFP+ connector weight | 75 grams or less |
| C9200L support example | C9200L Multigigabit Ethernet 10G uplink release notes list SFP-10G-SR-S | Platform support boundary | Cisco compatibility documentation required for exact host and software support |
Get More Information
Need pricing, stock, or shipping details for the SFP-10G-SR-S ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
How far does SFP-10G-SR-S reach on OM1, OM2 and FDDI-grade multimode fiber?
-
What transmit and receive power ranges does SFP-10G-SR-S specify?
-
What wavelength window and minimum cabling distance does SFP-10G-SR-S specify?
-
Does SFP-10G-SR-S support FCoE?
