Cisco IE3500 Rugged Series switches are built for industrial access networks that need hardened DIN-rail hardware, high-bandwidth uplinks, high-power PoE, modular expansion, OT visibility, and secure remote access planning. Compare IE-3500 and IE-3505 models by copper or fiber mix, 10G uplinks, 90W PoE needs, expansion modules, Network Essentials or Advantage licensing, power design, enclosure conditions, management platform, and quote requirements.
Showing all 10 results
8xGE PoE/PoE+ Ports – 3xGE SFP Uplinks – 240W PoE Budget
12xGE PoE + 2xmGig UPoE – 2x10G SFP+ – 240W PoE Budget
16xGE X-coded M12 Ports – IP67 Wall Mount
24xGE X-coded M12 Ports – IP67 Wall Mount
8xGE X-coded M12 Ports – IP67 Wall Mount
8xGE PoE/PoE+ Ports – 3xGE SFP Uplinks – Adv Modular Essentials – 240W PoE Budget
8xGE Copper Ports – 3xGE SFP Uplinks – Adv Modular Essentials
IE3500 fits industrial sites that are outgrowing basic rugged access switches and need higher bandwidth, PoE for cameras or vision systems, modular port growth, OT security visibility, and IOS XE operations in one DIN-rail platform. The decision is usually about cabinet design, power budget, uplinks, licenses, and management, not only port count.
Use IE-3500 models when the site mainly needs modular rugged access with copper, PoE, or 10G uplinks. Consider IE-3505 models when advanced redundancy requirements are part of the design. Also check whether the site needs PoE, 90W 4PPoE, 10G SFP+ uplinks, expansion modules, and Network Advantage features before quoting.
Start with PoE load, not the cheapest chassis. IE-3500-8P3S covers PoE and PoE+ endpoints, while IE-3500-8U3X supports higher-wattage 4PPoE use cases and 10G uplinks. Count simultaneous powered devices, expansion-module draw, DC input design, spare power margin, and whether future sensors may require 60W or 90W ports.
Expansion modules make sense when a cabinet needs more copper, fiber, or PoE ports but should avoid a second switch. Confirm the exact IEM-3500 module, physical cabinet width, power consumption, PoE budget, heat clearance, and whether future changes require fiber, 2.5G copper, or additional PoE before ordering the base unit.
IE3500 sits between earlier compact IE3x00 access switches and the larger IE9300 rugged platform. It is attractive when a project needs 10G uplinks, high-power PoE, modular growth, TSN-related capabilities, Cyber Vision options, and modern IOS XE management without moving to a rack-style industrial aggregation switch.
Community discussions repeatedly focus on total installed design: sealed enclosures, grounding, DC power quality, PoE budgeting, expansion-module compatibility, CLI familiarity, and the premium paid for industrial protocol support. Those topics matter because a rugged switch can still fail the project if cabinet, power, or accessory scope is wrong.
Network Essentials may fit straightforward industrial access switching. Network Advantage is the safer quote path when the design needs advanced segmentation, fabric features, Cyber Vision or Secure Equipment Access entitlement, richer automation, or future OT security integration. Check the exact SKU suffix and license line because hardware and software scope are linked.
Yes, Cisco positions IE3500 with Cyber Vision for OT asset visibility and Secure Equipment Access for zero-trust remote troubleshooting when paired with the right licensing. Treat this as a design item: confirm endpoint count, subscription term, management integration, data privacy requirements, and whether the site already uses Catalyst Center, Meraki dashboard, ISE, or a SOC workflow.
Confirm DIN-rail space, vertical mounting, enclosure rating, operating temperature, grounding method, DC voltage range, dual power inputs, wire gauge, airflow clearance, SFP or SFP+ optics, alarm wiring, SD or USB needs, and whether hazardous-location procedures apply. These details affect the actual bill of materials more than a simple switch model name.
Send the target model, Network Essentials or Advantage choice, PoE load, 10G uplink need, expansion module, SFP or SFP+ optics, power supply plan, DIN-rail or rack accessories, enclosure constraints, software release target, management platform, Cyber Vision or Secure Equipment Access requirement, shipping location, and whether the project is new build, retrofit, or spare replacement.

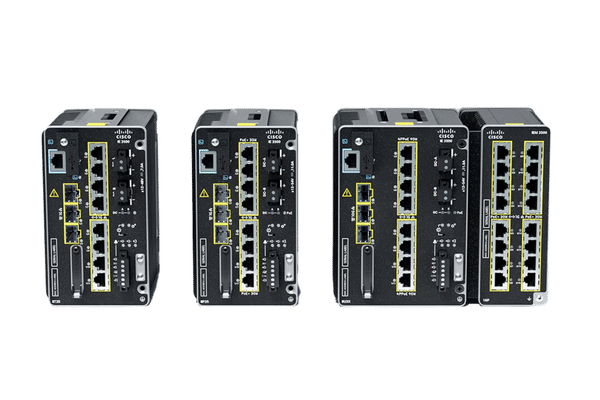

Cisco Catalyst IE3500 Rugged Switches are modular, fanless DIN-rail industrial Ethernet switches designed for high-bandwidth OT edge networks. The Cisco IE3500 Rugged Series supports rugged industrial access, high-speed uplinks, PoE options, secure operation, and flexible expansion for demanding industrial environments.
This category covers common Cisco IE3500 and IE3505 rugged switch models for factory automation, energy, transportation, mining, smart city infrastructure, warehouses, machine vision, industrial surveillance, and outdoor cabinet deployments. Procurement teams, system integrators, and solution providers source Cisco IE3500 switches when projects require a hardened Cisco industrial switch with high performance, modular growth, and reliable field operation.
Layer23 Switch supplies Cisco IE3500 rugged switches in data, PoE/PoE+, and high-power PoE configurations, with 1G SFP or 10G SFP+ uplink options. Available models may include Network Essentials (-E) or Network Advantage (-A) license variants depending on stock and project requirements.
| Cisco PID | Copper Ports | PoE | Uplinks | License |
|---|---|---|---|---|
| IE-3500-8T3S-E | 8 x 1G RJ-45 | Non-PoE | 3 x 1G SFP | Network Essentials |
| IE-3500-8P3S-E | 8 x 1G RJ-45 | PoE / PoE+ | 3 x 1G SFP | Network Essentials |
| IE-3500-8T3X-E | 8 x 1G RJ-45 | Non-PoE | 3 x 10G SFP+ | Network Essentials |
| IE-3500-8U3X-E | 8 x 1G RJ-45 | PoE / PoE+ / 4PPoE | 3 x 10G SFP+ | Network Essentials |
| IE-3505-8P3S-E | 8 x 1G RJ-45 | PoE / PoE+ | 3 x 1G SFP | Network Essentials |
Confirm the exact Cisco IE3500 part number, license tier, quantity, PoE requirement, uplink type, and expansion plan when ordering. For Cisco IE3500 price, stock, factory-sealed availability, and lead time, contact us for a project quotation.
The Cisco IE3500 Series combines rugged industrial hardware with high-bandwidth access, modular expansion, PoE options, and secure management. Key category-level specifications are summarized below.
| Base Ports | Up to 11 ports, including 8 x 1G copper RJ-45 ports and 3 uplinks by model |
| Uplinks | 3 x 1G SFP or 3 x 10G SFP+ uplinks depending on model |
| Expansion | Compatible IEM-3500 expansion modules can add copper, fiber, PoE, or multigigabit ports |
| PoE | PoE / PoE+ on P models; PoE / PoE+ / 4PPoE on U models; total PoE budget depends on model, power supply, and expansion configuration |
| Security | Secure boot, Trust Anchor, MACsec, Cisco Cyber Vision, and Secure Equipment Access options depending on license and configuration |
| Redundancy | Industrial redundancy features such as MRP, REP, DLR, PRP, and HSR depending on model, software, and deployment design |
| Software | Cisco IOS XE with Network Essentials or Network Advantage licensing |
| Management | WebUI, CLI, Catalyst Center, and cloud management options depending on software release and deployment model |
| Hardware | Fanless DIN-rail design with dual DC power inputs for industrial environments |
Cisco IE3500 rugged switches are used in industrial access networks that need high bandwidth, secure connectivity, modular expansion, and reliable operation in harsh environments. Common applications include factory automation, machine vision, industrial AI data collection, traffic cabinets, substations, mining networks, smart city infrastructure, warehouses, outdoor enclosures, and industrial surveillance systems.
These switches are commonly used to connect controllers, industrial PCs, IP cameras, wireless access points, sensors, access devices, vision systems, and other OT endpoints. Expansion modules can be used when the cabinet requires additional copper ports, fiber ports, PoE access, or multigigabit connectivity within the same IE3500 system.
Layer23 Switch supplies Cisco Catalyst IE3500 Rugged Switches and IEM-3500 expansion modules worldwide. Contact us for current Cisco IE3500 price, stock, factory-sealed availability, lead time, shipping cost, and project-based quotations.
Need help confirming the right Cisco IE3500 model? Send us the part number, license tier, quantity, PoE load, uplink type, expansion plan, cabinet environment, destination country, and target delivery date. Our team can check availability and provide a project quotation before purchase.
