IE-3500-8T3S-E Description

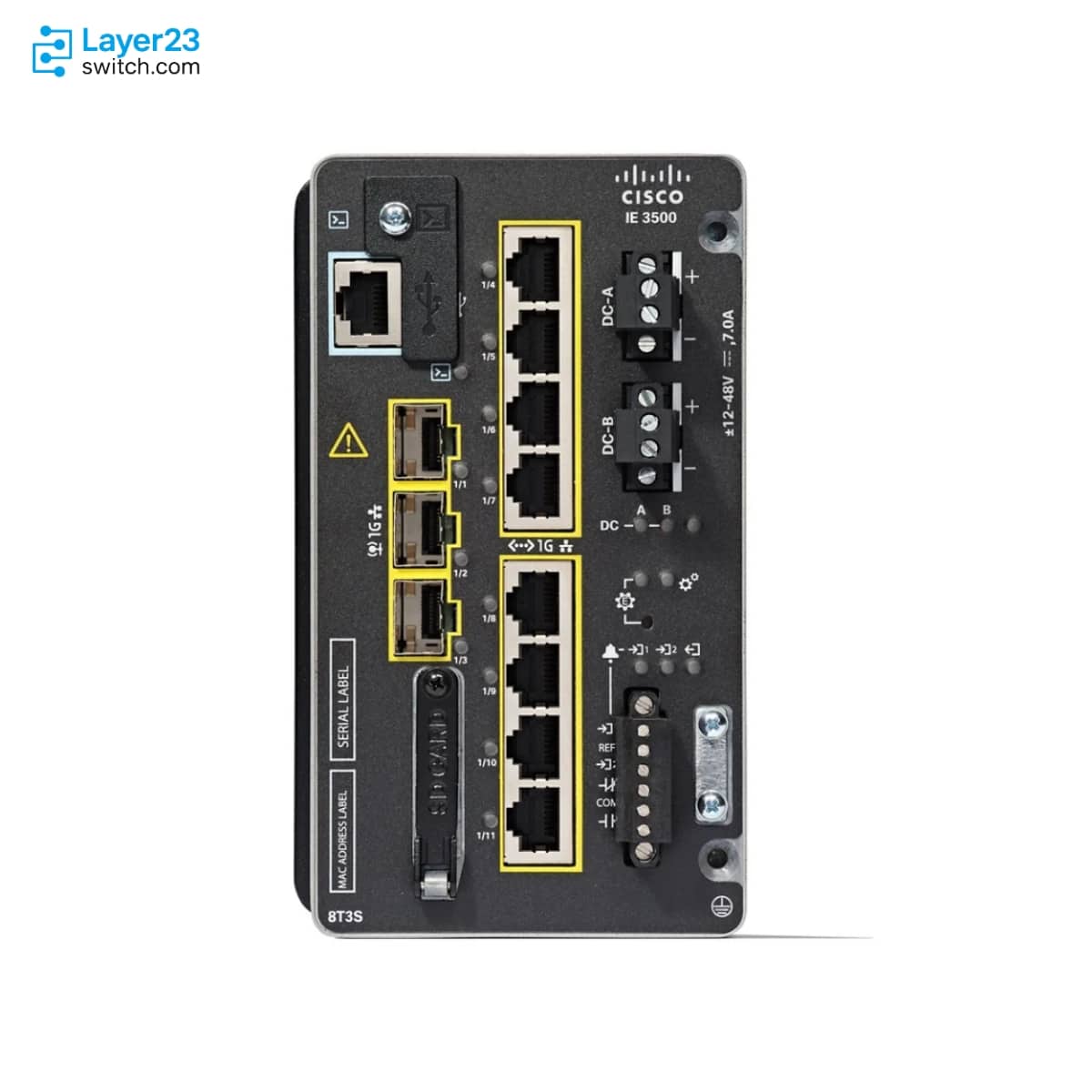

The IE-3500-8T3S-E is a Cisco IE3500 Rugged Series modular industrial Ethernet switch for DIN-rail cabinets that connect copper field devices to a fiber backbone. The switch has eight Gigabit RJ45 copper ports and three 1G/100M SFP uplinks, on a 12V to 48V DC input at 29W, with an operating range of -40 to +75°C in a forced-air enclosure. The switch carries no PoE and has no built-in power supply.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3500-8T3S-E |
|
Product type |
Modular industrial Ethernet switch |
|
Network license |
Network Essentials |
|
Total base ports |
11 |
|
Copper downlink ports |
8 x Ethernet 10/100/1000 RJ45 ports |
|
Fiber uplink ports |
3 x 100/1000 SFP ports |
|
PoE support |
Non-PoE base switch |
|
Input voltage rating |
12 to 48 VDC |
|
Maximum input current |
7.0A |
|
Power consumption |
29W |
|
Mounting |
DIN rail |
Product Performance
Key Features
The three SFP slots run at 1G or 100M, so the switch can reach older fiber runs as well as gigabit ones. Industrial-grade FE parts such as GLC-FE-100FX-RGD= (2 km multimode) and GLC-FE-100LX-RGD= (10 km single-mode) are supported.
Power consumption is 29W on a 12V to 48V nominal input at 7A, with two DC terminals for separate feeds. That keeps the load on a small DIN-rail supply modest.
Modules such as IEM-3500-8T=, IEM-3500-8S= and IEM-3500-16T= extend the switch to 19 or 27 ports. PoE expansion modules do not attach to a non-PoE base.
Application Scenarios
Inside a machine-cell cabinet, the switch connects PLCs, drives and HMIs over its copper ports and sends the cell’s traffic to the line network on a fiber uplink. The DIN-rail body mounts beside the controllers.
Along a railway, the switch links signaling and track-side equipment in a wayside cabinet over shielded copper and returns the traffic on industrial-grade SFP fiber. The -40 to +75°C range suits unheated enclosures.
In a vented substation enclosure, the switch ties protection relays and meters to the station network over copper, with one SFP uplink toward the next switch in a ring.
Product Comparison
|
Parameter |
IE-3500-8T3S-E | |||
|---|---|---|---|---|
|
1000/100/10M RJ45 copper ports |
8 |
8 |
8 |
8 PoE/PoE+ |
|
SFP ports |
3x 1G/100M |
3x 1G/100M |
2x 1G/100M |
3x 1G/100M |
|
PoE power budget |
Not applicable |
Not applicable |
Not applicable |
240W base; 360W with expansion module |
|
Input voltage range |
12V to 48V nominal; 9.6V to 60V absolute |
12V to 48V nominal; 9.6V to 60V absolute |
9.6V to 60V absolute |
12V to 54V nominal; 9.6V to 60V absolute |
|
Power consumption |
29W |
29W |
36W |
32W |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
MAC addresses |
24000 |
24000 |
16K |
24000 |
|
No. of active VLANs |
1024 |
1024 |
256 |
1024 |
IE-3500-8T3S-E has three 100/1000 SFP uplinks and eight non-PoE copper ports, while IE-3500-8P3S-E keeps the same 11-port layout but supplies PoE/PoE+ with a 360W maximum budget, so powered cameras and access points need that model. Sites that want 10G on the uplinks order IE-3500-8T3X-E, which has three 10G/1G SFP+ ports. IE-3500-8T3S-E is Network Essentials; IE-3500-8T3S-A is the Network Advantage version of the same hardware, and an installed switch can move up with IE3500-NW-A=. IE-3400-8T2S-E is the smaller option, with two SFP uplinks, 16K MAC addresses and 256 active VLANs against 24000 and 1024 here.
Ordering Checklist
- Power supply: No supply is included; for this non-PoE switch order a DIN rail unit such as PWR-IE50W-AC=, PWR-IE50W-AC-IEC= or PWR-IE50W-AC-L=. Without one the cabinet has no power source.
- Expansion module: Add an IEM-3500 module such as IEM-3500-8T=, IEM-3500-8S=, IEM-3500-16T=, IEM-3500-6T2S= or IEM-3500-14T2S=, or none. Modules are separate orderable items, and their power draw is counted against the host.
- SD card: Add SD-IE-16GB= if configuration backup or switch replacement from card is wanted. The card is optional and not fitted by default.
- Software tier: Network Essentials ships as ordered; IE3500-NW-A= (perpetual) upgrades to Network Advantage later, and IE3500-DNA-E or IE3500-DNA-A adds a Catalyst Center subscription. DNA Advantage works only with the Network Advantage license, so the tiers must match.
- Uplink optics: Select GE SFP modules, with industrial-grade parts such as GLC-FE-100FX-RGD= or GLC-FE-100LX-RGD= for 100M links. Commercial or non-industrial SFPs force a lower operating temperature.
- Mounting: Choose DIN rail mounting; STK-RACK-DINRAIL= is the 19-inch DIN rail mount kit. The rack mount kit is a separate item.
Optional Add-ons
|
Model |
Description |
|---|---|
|
IEM-3500-8T= |
IE3500 expansion module with 8 GE copper ports |
|
IEM-3500-8S= |
IE3500 expansion module with 8 GE SFP fiber ports |
|
IEM-3500-16T= |
IE3500 expansion module with 16 GE copper ports |
|
IEM-3500-6T2S= |
IE3500 expansion module with 6 GE copper ports and 2 GE SFP ports |
|
IEM-3500-14T2S= |
IE3500 expansion module with 14 GE copper ports and 2 GE SFP ports |
|
SD-IE-16GB= |
Cisco IE 16GB SD memory card option |
|
STK-RACK-DINRAIL= |
19-inch DIN Rail mount kit |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3500-8T3S-E | Product type | Modular industrial Ethernet switch |
| Network license | Network Essentials | Operating system family | Cisco IOS XE |
| Total base ports | 11 | Copper downlink ports | 8 x Ethernet 10/100/1000 RJ45 ports |
| Fiber uplink ports | 3 x fiber 100/1000 SFP ports | Uplink interface IDs | Gigabit Ethernet 1/1-3 |
| Downlink interface IDs | Gigabit Ethernet 1/4-11 | PoE support | Non-PoE base switch |
| Maximum PoE power budget | No PoE budget listed for IE-3500-8T3S-E | Data-path FPGA | No |
| Removable storage | USB and SD card | Alarm interfaces | 2 alarm inputs and 1 alarm output |
| Console port | 1 RS-232 via RJ-45 and 1 USB Type-C | Input voltage rating | 12 to 48 VDC |
| Input voltage range | 9.6 to 60 VDC absolute | Maximum input current | 7.0A |
| Power consumption | 29W | Forwarding rate | Line rate for all ports and all packet sizes |
| Queues | 8 | MAC addresses | 24000 |
| Active VLANs | 1024 | VLAN IDs | 4096 |
| Jumbo frames | 9198 bytes | DRAM | 8 GB |
| Flash | 5.1 GB | SVIs | 32 |
| Dimensions | 3.48 x 6.00 x 5.29 in. / 8.84 x 15.24 x 13.44 cm | Weight | 3.90 lb / 1.77 kg |
| Mounting | DIN rail | MTBF | 518,889 hours |
| Expansion module family | IE3500 expansion modules |
