IE-3500H-12P2MU2XE – 12xGE PoE + 2xmGig UPoE – 2x10G SFP+ – 240W PoE Budget
Shop Expert-Recommended Accessories for the IE-3500H-12P2MU2XE
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $853.95.$52.00Current price is: $52.00. -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $1,213.85.$91.68Current price is: $91.68. -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $2,439.88.$150.00Current price is: $150.00. -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $4,873.66.$149.00Current price is: $149.00. -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $1,260.58.$95.80Current price is: $95.80. -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $570.10.$70.00Current price is: $70.00. -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $633.46.$59.00Current price is: $59.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.

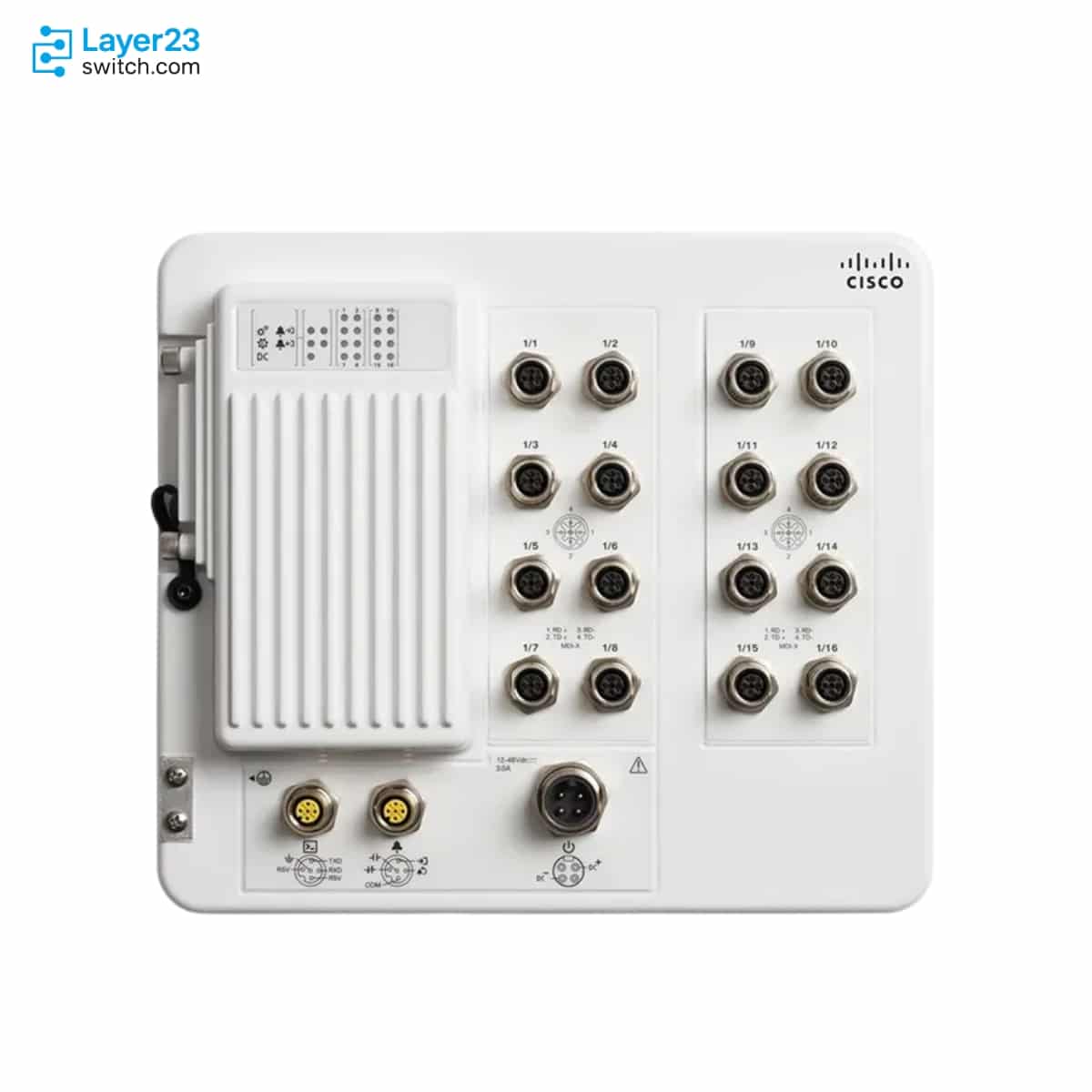

IE-3500H-12P2MU2XE Description
The IE-3500H-12P2MU2XE is a Cisco IE3500 Heavy Duty Series industrial Ethernet switch for sealed field cabinets that power cameras and sensors and need 10G fiber uplinks. The switch has 12 Gigabit M12 X-coded ports, 2 mGig UPoE ports, 2 SFP+ uplinks and a 240W PoE budget on a 12 to 54 VDC input, and it mounts on a wall. The full 240W budget needs an input of 44 to 54 VDC, and the IP66/IP67 rating holds only when every IP67 cable is mated and torqued or the supplied dust caps are fitted.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3500H-12P2MU2XE |
|
Product type |
IP66/IP67-rated industrial Ethernet switch |
|
Default IOS XE feature set |
Network Essentials |
|
Total ports |
16 |
|
Gigabit M12 PoE ports |
12 x 10/100/1000 M12 X-coded ports |
|
MGig UPoE ports |
2 x 100/1000/2500 M12 X-coded ports |
|
SFP+ uplink ports |
2 x 1G/10G SFP+ ports |
|
Default PoE budget |
240 W |
|
PoE class support |
Classes 1-4 on 12 GE ports and classes 1-8 on 2 mGig ports |
|
Power input connector |
Mini-Change 4-pin connector |
|
Input voltage range |
12 to 54 VDC |
|
Input voltage for PoE |
44 to 54 VDC |
|
Ingress protection |
IP66 and IP67 with required IP67 cabling or supplied dust caps |
Product Performance
Key Features
The two 100M/1G/2.5G M12 ports support PoE classes 1-8, so higher-power cameras and access points can run at multigigabit speed without a separate injector.
Twelve 10/100/1000 M12 X-coded ports support PoE classes 1-4 for standard PoE and PoE+ endpoints such as sensors and fixed cameras.
The 240W PoE budget is shared across all 14 powered ports and is available only when the DC input is between 44 and 54 VDC. Below that range the switch still runs from 12 VDC but does not deliver PoE.
The two cages take 1G or 10G SFP and SFP+ modules, including industrial-grade GLC-SX-MM-RGD= optics. An M25 adapter in the CW-SFP-KIT1 kit keeps the IP67 seal over the fiber connector.
IP66, IP67 and Type 4X protection apply only when all IP67 cables are mated and torqued correctly or the supplied dust caps cover unused connectors.
Power enters through a 4-pin Mini-Change connector rated for 6 A, and no power supply ships with the switch. Power consumption is 45W before the load of attached PoE devices.
Application Scenarios
In a roadside cabinet, the switch powers PoE cameras and traffic sensors over sealed M12 ports and returns their traffic to the control center over a 10G SFP+ fiber uplink.
Along a railway line, the switch connects signaling gear and high-bandwidth cameras through its 2.5G mGig UPoE ports, while the SFP+ uplinks carry the aggregated traffic to the next cabinet.
On a production line exposed to washdown or dust, the switch supplies PoE to access points and panels from its Gigabit ports and links back to the plant core over fiber.
Product Comparison
|
Parameter |
IE-3500H-12P2MU2XE |
IE-3500H-12P2MU2XA |
IE-3500H-14P2T-E |
|---|---|---|---|
|
Total ports |
16 |
16 |
16 |
|
1000/100/10M M12 X-Code ports |
12 |
12 |
16 |
|
MGig/4PPoE (type 3) ports |
2 |
2 |
0 |
|
10G/1G SFP ports |
2 |
2 |
0 |
|
Default PoE budget |
240W |
240W |
240W |
|
Input voltage range (absolute) |
12-54VDC |
12-54VDC |
12-54VDC |
|
Input voltage for PoE |
44-54VDC |
44-54VDC |
44-54VDC |
|
Dimensions (H x W x D) |
10.46 x 10.90 x 3.36 in. |
10.46 x 10.90 x 3.36 in. |
9.58 x 10.90 x 3.16 in. |
|
Product feature set |
Network Essentials |
Network Advantage |
Network Essentials |
IE-3500H-12P2MU2XE is the only IE-3500H model with 2 mGig UPoE ports and 2 SFP+ uplinks, while IE-3500H-14P2T-E has 14 gigabit PoE/PoE+ ports plus 2 gigabit M12 ports and no mGig or SFP+ ports, at the same 240 W budget. A site with higher-power multigigabit endpoints or 10G fiber uplinks needs IE-3500H-12P2MU2XE, and a copper-only gigabit PoE design fits IE-3500H-14P2T-E in a slightly smaller chassis. Hardware is identical on IE-3500H-12P2MU2XA, which ships with Network Advantage; order it when Advantage is needed from the start, or add IE3500-NW-A= to IE-3500H-12P2MU2XE later.
PoE Power Planning
|
Planning item |
Cisco-confirmed value |
Procurement check |
|---|---|---|
|
Total PoE budget |
240 W |
Size the powered-device load against the documented switch budget |
|
12 GE M12 ports |
PoE classes 1-4 from 4 W to 30 W |
Use these ports for standard PoE or PoE+ endpoint requirements |
|
2 mGig M12 ports |
PoE classes 1-8 from 4 W to 60 W |
Reserve these ports for higher-power multigigabit endpoints when required |
|
PoE input voltage |
44 to 54 VDC |
Confirm the field DC power design supports PoE operation |
|
Power consumption note |
45 W excludes power delivered to attached PoE devices |
Add endpoint draw separately during power budget review |
Ordering Checklist
- SFP+ uplink optics: Select SFP or SFP+ modules for the two 1G/10G ports, preferably industrial-grade such as GLC-SX-MM-RGD= for 1G, plus CW-SFP-KIT1 and an M25 adapter. The SFP cages need the IE-3500H-12P2MU2X installation kit and an M25 adapter to keep the IP67 rating.
- Power cable and PoE input: Order a Mini-Change A-size single-ended cable such as Molex 130006-0737, fed from a 44 to 54 VDC source if PoE is used. No power supply ships with the switch, and PoE runs only on a 44 to 54 VDC input rather than the 12 to 54 VDC base range.
- SD card and console cable: Add SD-IE-16GB for configuration backup and CAB-CONSOLE-M12= for the M12 console port, if the site needs them. The SD card is not shipped by default, and the console port needs an M12 to DB9F cable.
- Software tier: Network Essentials is the default; IE3500-NW-A= upgrades to Network Advantage, and IE3500-DNA-E or -A terms (3Y, 5Y, 7Y) cover Catalyst Center. The Catalyst Center licenses are optional and Network Advantage is a separate line item, so the order needs the intended tier.
Optional Add-ons
|
Model |
Description |
|---|---|
|
SD-IE-16GB |
IE 16GB SD memory card |
|
CAB-CONSOLE-M12= |
Console cable 6 ft with M12 and DB9F for Cisco IE3500 Heavy Duty Series switch |
|
CW-SFP-KIT1 |
SFP installation kit for IE-3500H-12P2MU2X |
|
IE3500-NW-A= |
Cisco Network Advantage license for IE3500 Series |
|
IE3500-DNA-E |
Cisco Catalyst Center DNA Essentials license for IE3500 and IE3500H Series switches |
|
IE3500-DNA-E-3Y |
IE3500 and IE3500H Cisco DNA Essentials 3-year term license |
|
IE3500-DNA-E-5Y |
IE3500 and IE3500H Cisco DNA Essentials 5-year term license |
|
IE3500-DNA-E-7Y |
IE3500 and IE3500H Cisco DNA Essentials 7-year term license |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3500H-12P2MU2XE | Product type | IP66/IP67-rated industrial Ethernet switch |
| Default IOS XE feature set | Network Essentials | Total ports | 16 |
| Gigabit M12 PoE ports | 12 x 10/100/1000 M12 X-coded ports | MGig UPoE ports | 2 x 100/1000/2500 M12 X-coded ports |
| SFP+ uplink ports | 2 x 1G/10G SFP+ ports | Default PoE budget | 240 W |
| PoE class support | Classes 1-4 on 12 GE ports and classes 1-8 on 2 mGig ports | Network Advantage upgrade | IE3500-NW-A= optional upgrade listed by Cisco |
| Power input connector | Mini-Change 4-pin connector | Input voltage range | 12 to 54 VDC |
| Input voltage for PoE | 44 to 54 VDC | Input current | 6 A |
| Power consumption | 45 W excluding power delivered to attached PoE devices | Alarm I/O | 1 alarm output relay and 1 alarm input |
| Alarm relay rating | 30 VDC at 1 A or 60 VDC at 0.5 A | Console port | 1 M12 A-coded 5-pin console port |
| Removable storage | SD card optional and not shipped by default | Mounting | Wall mount |
| Dimensions | 10.46 x 10.90 x 3.36 in. (26.57 x 27.69 x 8.53 cm) | Weight | 5.17 kg (11.40 lb) including mounting bracket |
| Operating temperature | -40C to +70C in vented enclosures, -40C to +60C in sealed enclosures, -34C to +75C with 200 LFM airflow | Operating humidity | 5 to 95 percent noncondensing |
| Ingress protection | IP66 and IP67 with required IP67 cabling or supplied dust caps | NEMA rating | Type 4X |
| GE M12 cable type | Copper GE M12 X-coded 8-pole shielded cable | MGig cable type | 2.5G mGig copper M12 X-coded 8-pole shielded cable |
| SFP uplink cabling | 1G/10G SFP fiber-optic cable using the connector determined by the SFP/SFP+ module | Power input cable type | Mini-Change 4-pin connector for power input |
| Forwarding rate | Line rate for all ports and all packet sizes | MAC addresses | 24000 |
| Active VLANs | 1024 | VLAN IDs | 4096 |
| DRAM | 8 GB | Flash | 5.1 GB |
| Jumbo frames | 9198 bytes | SVIs | 32 |
| MTBF | 352,809 hours | Operating system | Cisco IOS XE |
