IE-3500-8U3X-E Description

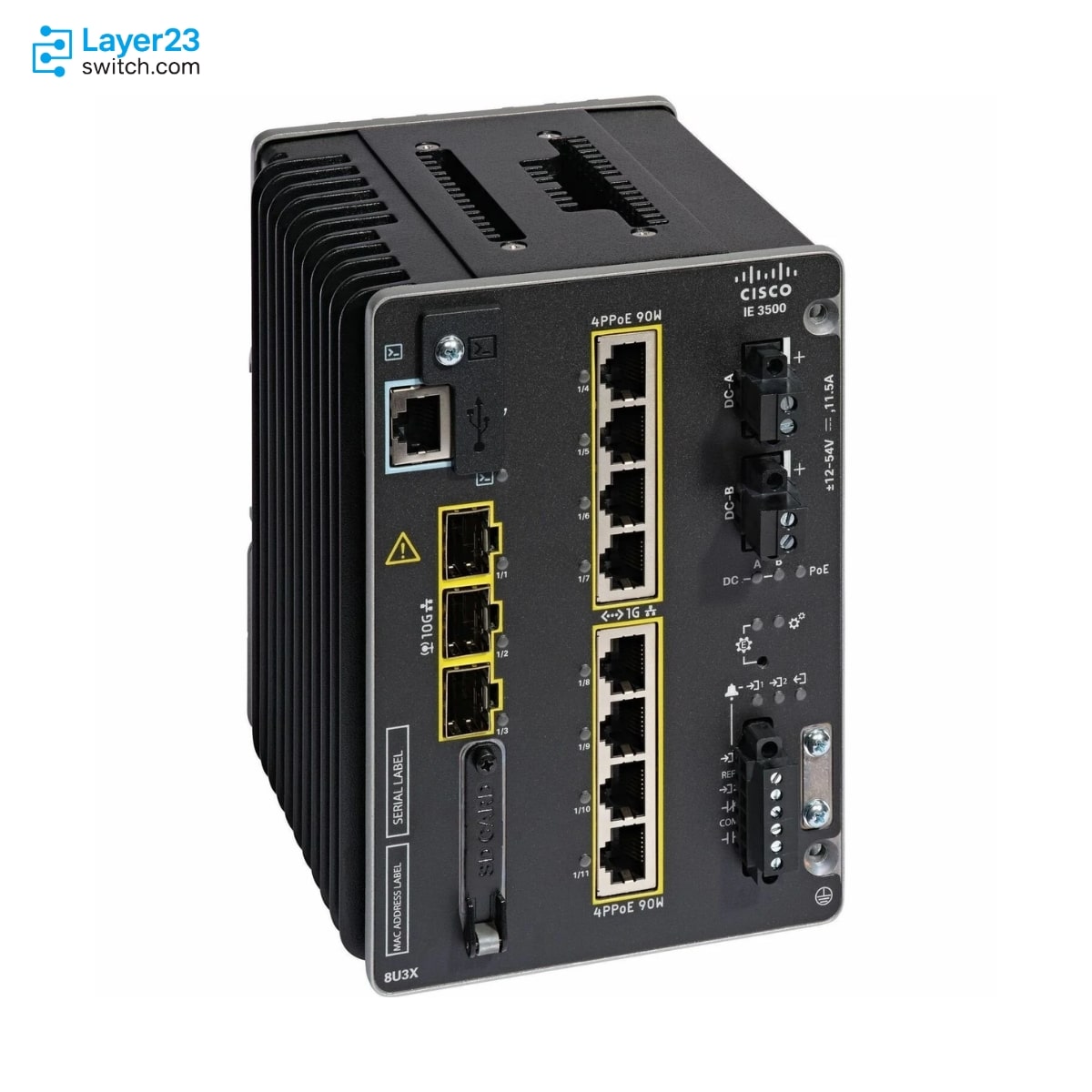

The IE-3500-8U3X-E is a Cisco IE3500 Rugged Series modular industrial Ethernet switch for DIN-rail cabinets that power high-draw field devices and uplink on 10G fiber. The switch has eight Gigabit PoE/PoE+/4PPoE copper ports, three 10G/1G SFP+ uplinks and a 480W PoE budget, on a 12V to 54V DC input and an operating range of -40 to +75°C in a forced-air enclosure. The input must be at least 54VDC for Type 4 power (classes 7 and 8), and the switch has no built-in power supply.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3500-8U3X-E |
|
Product type |
Modular industrial Ethernet switch |
|
Network license |
Network Essentials |
|
Total base ports |
11 |
|
Powered copper ports |
8 x Ethernet 10/100/1000 PoE/PoE+/4PPoE ports |
|
Fiber uplink ports |
3 x 1G/10G SFP+ ports |
|
Maximum PoE budget |
480 W |
|
Input voltage rating |
12 to 54 VDC |
|
Maximum input current |
11.5A |
|
Power consumption |
49 W excluding connected powered-device load |
|
Mounting |
DIN rail |
Product Performance
Key Features
The budget is 480W on the base switch and stays 480W with expansion modules, so added modules do not raise it. Across eight ports that averages 60W per port, enough for a full set of PoE+ endpoints.
Each of the eight ports supports PoE, PoE+ and 4PPoE. PoE needs 48VDC at the input, PoE+ needs 54VDC, and Type 4 power for classes 7 and 8 needs a feed of at least 54VDC.
The three SFP+ slots run at 10G or 1G. SFP+ optics are supported on 10G uplink variants only, and non-industrial parts reduce the operating temperature range.
The input is rated 11.5A, and the switch itself draws 49W before any PoE load. The DC feed has to carry the switch, modules and the full PoE output.
IEM-3500-8P=, IEM-3500-16P= and IEM-3500-4MU= can attach to this PoE-capable base. The 4MU module adds four 2.5G ports and does not support HSR, PRP or DLR.
The switch is fanless and rated -40 to +70°C with 40 LFM of airflow, -40 to +60°C in a sealed enclosure and up to +75°C with 200 LFM or more.
Application Scenarios
At a highway interchange, the switch powers pan-tilt-zoom cameras and radar units from its 4PPoE ports and returns their video to the control center on 10G fiber.
In a large plant, the switch powers industrial wireless access points mounted along the production hall and links them to the core over its SFP+ uplinks.
In a rail yard cabinet, the switch supplies PoE to track-side cameras and network devices and ties the yard to the operations center over fiber, within its -40 to +75°C rating.
Product Comparison
|
Parameter |
IE-3500-8U3X-E |
IE-3500-8U3X-A | ||
|---|---|---|---|---|
|
1000/100/10M RJ45 copper ports |
8 PoE/PoE+/4PPoE |
8 PoE/PoE+/4PPoE |
8 |
8 PoE/PoE+ |
|
SFP ports |
3x 10G/1G |
3x 10G/1G |
3x 10G/1G |
3x 1G/100M |
|
PoE power budget |
480W |
480W |
Not applicable |
240W base; 360W with expansion module |
|
Input voltage range |
12V to 54V nominal; 9.6V to 60V absolute |
12V to 54V nominal; 9.6V to 60V absolute |
12V to 48V nominal; 9.6V to 60V absolute |
12V to 54V nominal; 9.6V to 60V absolute |
|
Input current |
11.5A |
11.5A |
7A |
11A |
|
Power consumption |
49W |
49W |
37W |
32W |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Operating temperature |
-40°C to +75°C (min. 200 LFM fan or blower-equipped enclosure) |
-40°C to +75°C (min. 200 LFM fan or blower-equipped enclosure) |
-40°C to +75°C (min. 200 LFM fan or blower-equipped enclosure) |
-40°C to +75°C (min. 200 LFM fan or blower-equipped enclosure) |
IE-3500-8U3X-E is the 4PPoE model of the group: its 8 copper ports support PoE, PoE+ and 4PPoE from a 480W budget and its three uplinks are 10G/1G SFP+, while IE-3500-8T3X-E has the same uplinks with no PoE at all. Designs that only need PoE/PoE+ over gigabit SFP uplinks can use IE-3500-8P3S-E, which tops out at 360W. IE-3500-8U3X-E is Network Essentials; IE-3500-8U3X-A is the Network Advantage version, and an installed switch can be upgraded with IE3500-NW-A=. Its 12 to 54 VDC input at 11.5A supports the higher PoE classes, with 54 VDC the minimum for classes 7 and 8.
PoE Power Planning
|
Planning item |
Cisco-confirmed value |
Procurement check |
|---|---|---|
|
Powered access ports |
8 x Ethernet 10/100/1000 PoE/PoE+/4PPoE ports |
Match each endpoint to the required PoE class before assigning port count |
|
Maximum PoE budget |
480 W |
Keep base and expansion power planning within the documented budget |
|
Input voltage rating |
12 to 54 VDC |
Confirm the industrial DC feed supports the selected PoE class |
|
Maximum current |
11.5A |
Size the external power design for the Cisco-listed current rating |
|
PoE Type 1 minimum input |
46 VDC |
Use this check for PoE classes 1 through 3 |
|
PoE+ Type 2 and 4PPoE Type 3 minimum input |
52 VDC |
Use this check for PoE class 4 and classes 5 through 6 |
|
4PPoE Type 4 minimum input |
54 VDC |
Required for PoE classes 7 and 8 |
Ordering Checklist
- Power supply: No supply is included. Order a PoE-capable unit such as PWR-IE480W-PCAC-L= (480W) for the full budget; PWR-IE50W-AC= variants do not support PoE. A smaller supply cuts the PoE budget below the 480W the ports are rated for.
- Expansion module: Add an IEM-3500 module such as IEM-3500-8T=, IEM-3500-8S=, IEM-3500-16T=, IEM-3500-6T2S= or IEM-3500-14T2S=, or none. Modules are separate orderable items, and their power draw is counted against the host.
- SD card: Add SD-IE-16GB= if configuration backup or switch replacement from card is wanted. The card is optional and not fitted by default.
- Software tier: Network Essentials ships as ordered; IE3500-NW-A= (perpetual) upgrades to Network Advantage later, and IE3500-DNA-E or IE3500-DNA-A adds a Catalyst Center subscription. DNA Advantage works only with the Network Advantage license, so the tiers must match.
- Uplink optics: Select GE SFP or 10G SFP+ modules from the supported lists, for example SFP-10G-LR= or SFP-10G-SR=. The 3 uplinks take SFP+ only on this 10GE variant, and non-industrial SFPs force a lower operating temperature.
- Mounting: Choose DIN rail mounting; STK-RACK-DINRAIL= is the 19-inch DIN rail mount kit. The rack mount kit is a separate item.
Optional Add-ons
|
Model |
Description |
|---|---|
|
IEM-3500-8P= |
IE3500 expansion module with 8 PoE/PoE+ ports |
|
IEM-3500-16P= |
IE3500 expansion module with 16 PoE/PoE+ ports |
|
IEM-3500-4MU= |
IE3500 expansion module with 4 multigigabit PoE/PoE+/4PPoE ports |
|
IEM-3500-8S= |
IE3500 expansion module with 8 GE SFP fiber ports |
|
IEM-3500-8T= |
IE3500 expansion module with 8 GE copper ports |
|
IEM-3500-16T= |
IE3500 expansion module with 16 GE copper ports |
|
IEM-3500-6T2S= |
IE3500 expansion module with 6 GE copper ports and 2 GE SFP ports |
|
IEM-3500-14T2S= |
IE3500 expansion module with 14 GE copper ports and 2 GE SFP ports |
|
480 W AC-to-DC power supply option with PoE/PoE+ support | |
|
SD-IE-16GB= |
Cisco IE 16GB SD memory card option |
|
STK-RACK-DINRAIL= |
19-inch DIN Rail mount kit |
|
IE3500-NW-A= |
Cisco Network Advantage license upgrade for IE3500 Series |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3500-8U3X-E | Product type | Modular industrial Ethernet switch |
| Network license | Network Essentials | Operating system family | Cisco IOS XE |
| Total base ports | 11 | Powered copper ports | 8 x Ethernet 10/100/1000 PoE/PoE+/4PPoE ports |
| Fiber uplink ports | 3 x fiber 10G/1G SFP+ ports | Uplink interface IDs | TenGigabit Ethernet 1/1-3 |
| Downlink interface IDs | Gigabit Ethernet 1/4-11 | Default PoE budget | 480 W |
| Total PoE budget with expansion module | 480 W | PoE standards | PoE, PoE+, and 4PPoE |
| Power inputs | Dual DC power input | Input voltage rating | 12 to 54 VDC nominal |
| Input voltage range | 9.6 to 60 VDC absolute | Maximum input current | 11.5A |
| Power consumption | 49 W excluding power delivered to attached PoE devices | Required voltage for PoE type 1 | 46 VDC minimum |
| Required voltage for PoE+ type 2 | 52 VDC minimum | Required voltage for 4PPoE type 4 | 54 VDC minimum |
| Expansion module family | IE3500 expansion modules | Removable storage | USB and SD card |
| Alarm interfaces | 2 alarm inputs and 1 alarm output | Console port | 1 RS-232 via RJ-45 and 1 USB Type-C |
| Forwarding rate | Line rate for all ports and all packet sizes | Queues | 8 |
| MAC addresses | 24000 | IGMP multicast groups | 1024 |
| Active VLANs | 1024 | VLAN IDs | 4096 |
| Jumbo frames | 9198 bytes | DRAM | 8 GB |
| Flash | 5.1 GB | SVIs | 32 |
| Dimensions | 4.38 x 6.00 x 5.29 in. / 11.13 x 15.24 x 13.44 cm | Weight | 5.05 lb / 2.29 kg |
| Mounting | DIN rail | MTBF | 474,807 hours |
| Software package family | IE3500 Universal Cisco IOS XE image |
Get More Information
Need pricing, stock, or shipping details for the IE-3500-8U3X-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Can IE-3500-8U3X-E power class 8 devices at up to 90W?
-
Does IE-3500-8U3X-E support TrustSec in hardware?
-
What are the dimensions and weight of IE-3500-8U3X-E?
-
What is the MTBF of IE-3500-8U3X-E?
