IE-3000-8TC – 8×10/100 Ports – 2xDual-Purpose Uplinks – LAN Base
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
IE-3000-8TC Description

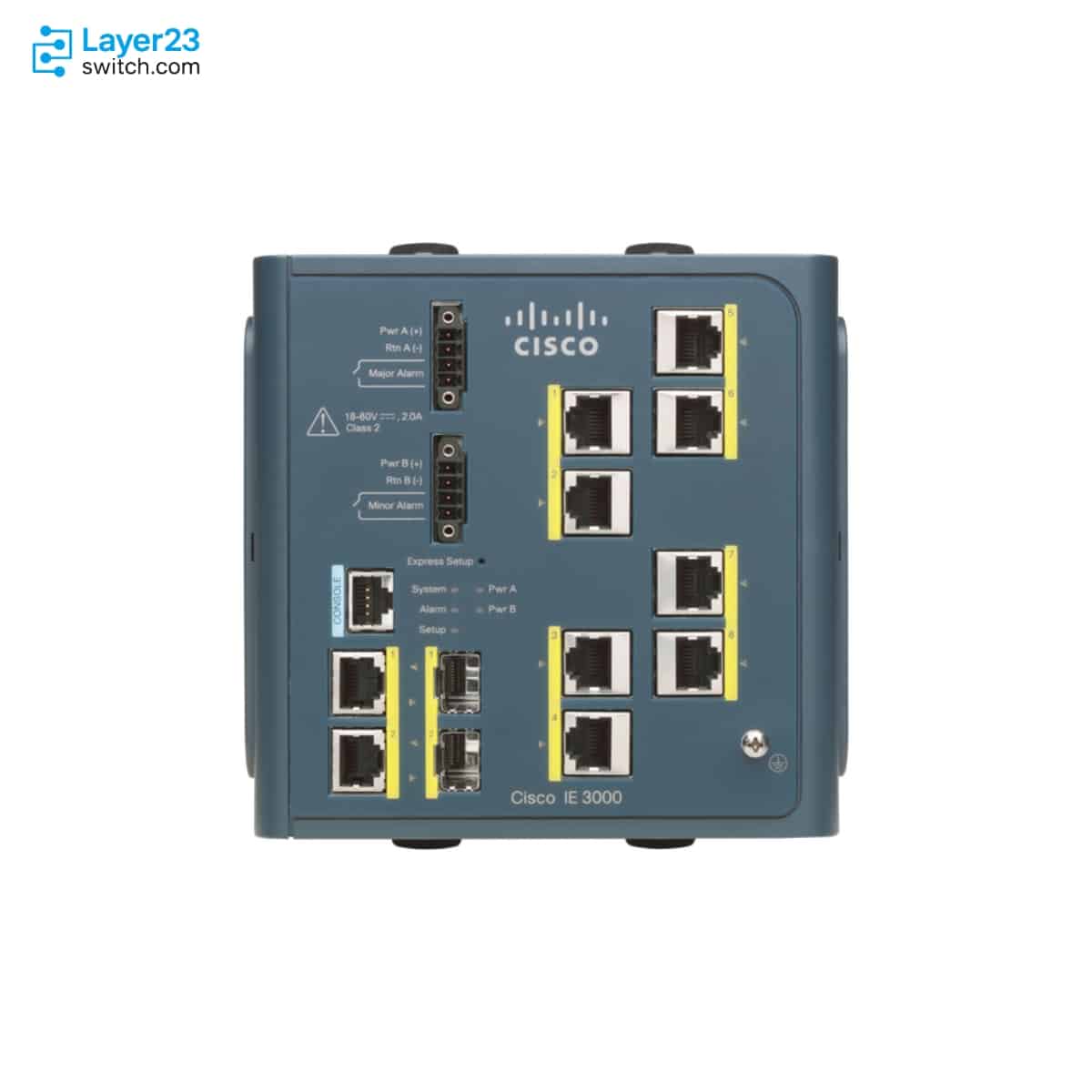

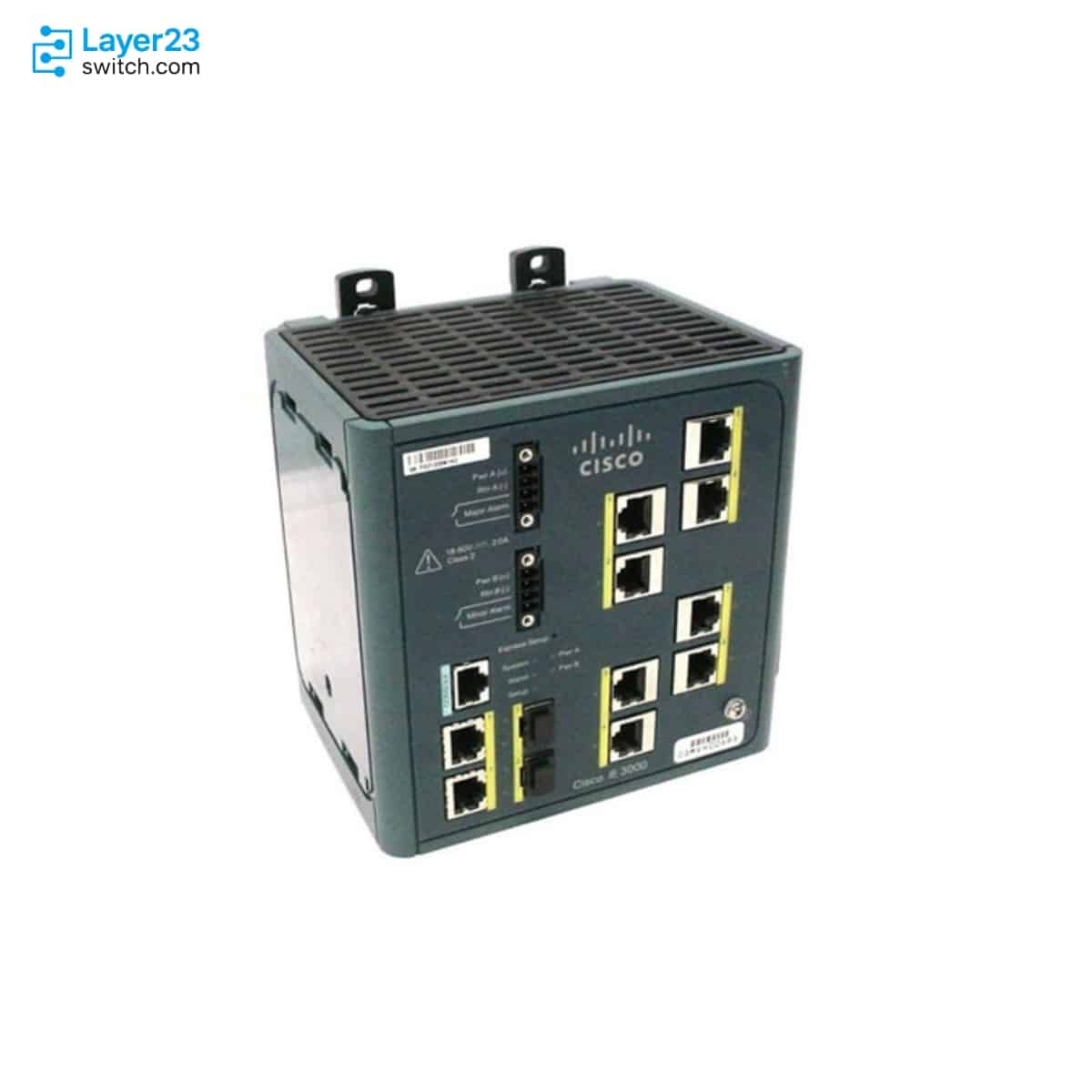

The IE-3000-8TC is a Cisco Industrial Ethernet 3000 Series Layer 2 switch for DIN-rail cabinets that need eight device connections in one chassis. The switch has eight 10/100 ports, two dual-purpose Gigabit uplinks, a 16 Gbps switching fabric and 6.5 Mpps of forwarding, and it draws at most 15.7 W from an 18 to 60 VDC feed. Each uplink uses its copper port or its SFP port, never both, and the installed LAN Base image provides Layer 2 features only.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3000-8TC |
|
Product type |
Industrial Ethernet switch |
|
Software image |
Layer 2 LAN Base Image |
|
Downlink ports |
8 x 10/100BASE-T Ethernet |
|
Uplink ports |
2 x dual-purpose uplinks |
|
Dual-purpose uplink media |
One active 10/100/1000 copper port or SFP fiber port per uplink |
|
Expansion support |
Up to two Cisco IE 3000 expansion modules with supported combinations |
|
DC input range |
18-60 VDC |
|
Maximum power consumption |
15.7 W |
|
Switching fabric |
16 Gbps |
|
Forwarding rate |
6.5 Mpps with 64-byte packets |
|
Mounting |
DIN rail, wall, and 19 in rack mount options |
|
Supported SFP families |
100BASE-FX, 100BASE-LX10, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, and supported BX/CWDM/DWDM options |
Product Performance
Key Features
Eight 10/100BASE-T ports serve a full cabinet of controllers and field devices before any expansion module is added.
Each of the two uplinks offers a 10/100/1000 copper port and an SFP port, and one of the two is active at a time, so the media is fixed per uplink during cabling.
Up to two IE 3000 expansion modules add ports. Two IEM-3000-8TM= copper modules take the switch to 24 Fast Ethernet ports, and fiber, SFP and PoE modules are also available.
Application Scenarios
In a control cabinet serving several machines, the switch connects eight controllers, drives, HMIs or gateways on its 10/100 ports without an expansion module.
On a plant network that segments operational traffic with VLANs, the switch acts as the access layer and sends traffic to the distribution switch over its Gigabit uplinks.
Where a cabinet sits far from the aggregation point, an SFP uplink carries fiber back to the plant core, while a short run can stay on Gigabit copper.
Product Comparison
|
Parameter |
IE-3000-8TC | ||
|---|---|---|---|
|
Ethernet 10/100 ports |
8 |
4 |
8 |
|
Dual-purpose uplinks |
2 |
2 |
2 |
|
Expansion module support |
Up to 2 modules |
Up to 2 modules |
Not supported |
|
Input voltage |
18-60 VDC |
18-60 VDC |
9.6-60 VDC |
|
Maximum power consumption |
15.7 W |
15.1 W |
12.5-20 W |
|
Operating temperature |
-40C to +75C |
-40C to +75C |
Not published |
|
Software image |
LAN Base |
LAN Base |
LAN Base |
|
Dimensions (W x H x D) |
6.0 x 5.8 x 4.4 in |
6.0 x 5.8 x 4.4 in |
3.6 x 5.1 x 4.51-5.26 in |
IE-3000-8TC and IE-3000-4TC use the same chassis, uplinks and LAN Base image, but IE-3000-8TC has eight 10/100 access ports against four, so it covers a cabinet of eight drops without an expansion module. With expansion modules IE-3000-8TC reaches 16 Fast Ethernet ports using one IEM-3000-8TM= and 24 using two. Sites that need the Layer 3 IP Services image order IE-3000-8TC-E, since the image is fixed by PID. IE-2000-8TC-G-B also has eight ports and two dual-purpose uplinks but takes no expansion modules, accepts 9.6-60 VDC against 18-60 VDC here, and is 3.6 in wide. Cabinets with only four drops can use IE-3000-4TC.
Ordering Checklist
- Expansion modules: Choose up to two of IEM-3000-8TM=, IEM-3000-8FM=, IEM-3000-4SM=, IEM-3000-8SM=, IEM-3000-4PC= or IEM-3000-4PC-4TC=. Two IEM-3000-8SM= together are not supported because of power limits, and a module cannot run on its own.
- PoE module power: Provide an external 44-57 VDC (PoE) or 50-57 VDC (PoE+) source such as PWR-IE65W-PC-DC= or PWR-IE65W-PC-AC=. IEM-3000-4PC= and IEM-3000-4PC-4TC= do not take PoE power from the switch.
- AC power module: Order PWR-IE50W-AC= (screw terminal) or PWR-IE50W-AC-IEC= (IEC plug), 24 VDC output. The switch itself takes 18-60 VDC, so an AC site needs a power module.
- AC power cord: Add a cord with the local plug and a C13 connector for PWR-IE50W-AC-IEC=. The module is supplied without a power cord.
- Rack mounting: Add STK-RACKMNT-2955= to convert the DIN rail mount for a 19 in rack. Without the kit the switch mounts only on DIN rail or wall.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco IE 3000 expansion copper module for IE-3000-8TC and related IE 3000 switches, eight 10/100 TX ports | |
|
IEM-3000-8FM= |
Cisco IE 3000 expansion FX fiber module for IE-3000-8TC and related IE 3000 switches, eight 100 FX ports |
|
IEM-3000-4SM= |
Cisco IE 3000 expansion SFP module for IE 3000 switches, four 100 MB SFP ports, minimum IOS release 15.0(2)EY |
|
IEM-3000-8SM= |
Cisco IE 3000 expansion SFP module for IE 3000 switches, eight 100 MB SFP ports, minimum IOS release 15.0(2)EY |
|
IEM-3000-4PC= |
Cisco IE 3000 expansion PoE module, four 10/100 PoE or PoE+ ports with an external power source requirement |
|
IEM-3000-4PC-4TC= |
Cisco IE 3000 expansion PoE module, four 10/100 PoE or PoE+ ports plus four non-PoE ports with an external power source requirement |
|
Expansion power module for IE-3000-8TC and related IE 3000 switches, AC or high-voltage DC input with 24 VDC output |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3000-8TC | Product type | Industrial Ethernet switch |
| Software image | Layer 2 LAN Base Image | Downlink ports | 8 x 10/100BASE-T Ethernet |
| Dual-purpose uplinks | 2 x 10/100/1000 copper or SFP fiber uplinks, one active media side per uplink | Expansion support | Up to two Cisco IE 3000 expansion modules with supported combinations |
| DC input range | 18-60 VDC | Maximum power consumption | 15.7 W |
| Power rating | 0.05 kVA | Switching fabric | 16 Gbps |
| Forwarding rate | 6.5 Mpps with 64-byte packets | DRAM | 128 MB |
| Compact flash memory | 64 MB | Layer 2 MAC addresses | Configurable up to 8000 MAC addresses |
| Layer 2 multicast groups | Configurable up to 256 IGMP multicast groups | Jumbo frames | Up to 9018 bytes on Gigabit uplink port |
| SFP support | 100BASE-FX, 100BASE-LX10, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, and supported BX/CWDM/DWDM options | Connectors | RJ-45 for copper ports and LC connectors for listed SFP-based fiber ports |
| Cooling design | Fanless switch design with convection cooling | Mounting | DIN rail, wall, and 19 in rack mount options |
| Dimensions | 6.0 in W x 5.8 in H x 4.4 in D (152 x 147 x 112 mm) | Weight | 2.0 kg (4.4 lb) |
| Operating temperature | -40C to +75C | Operating humidity | 10% to 95% non-condensing |
| MTBF | 329,451 hours |
