IE-3000-4TC Description

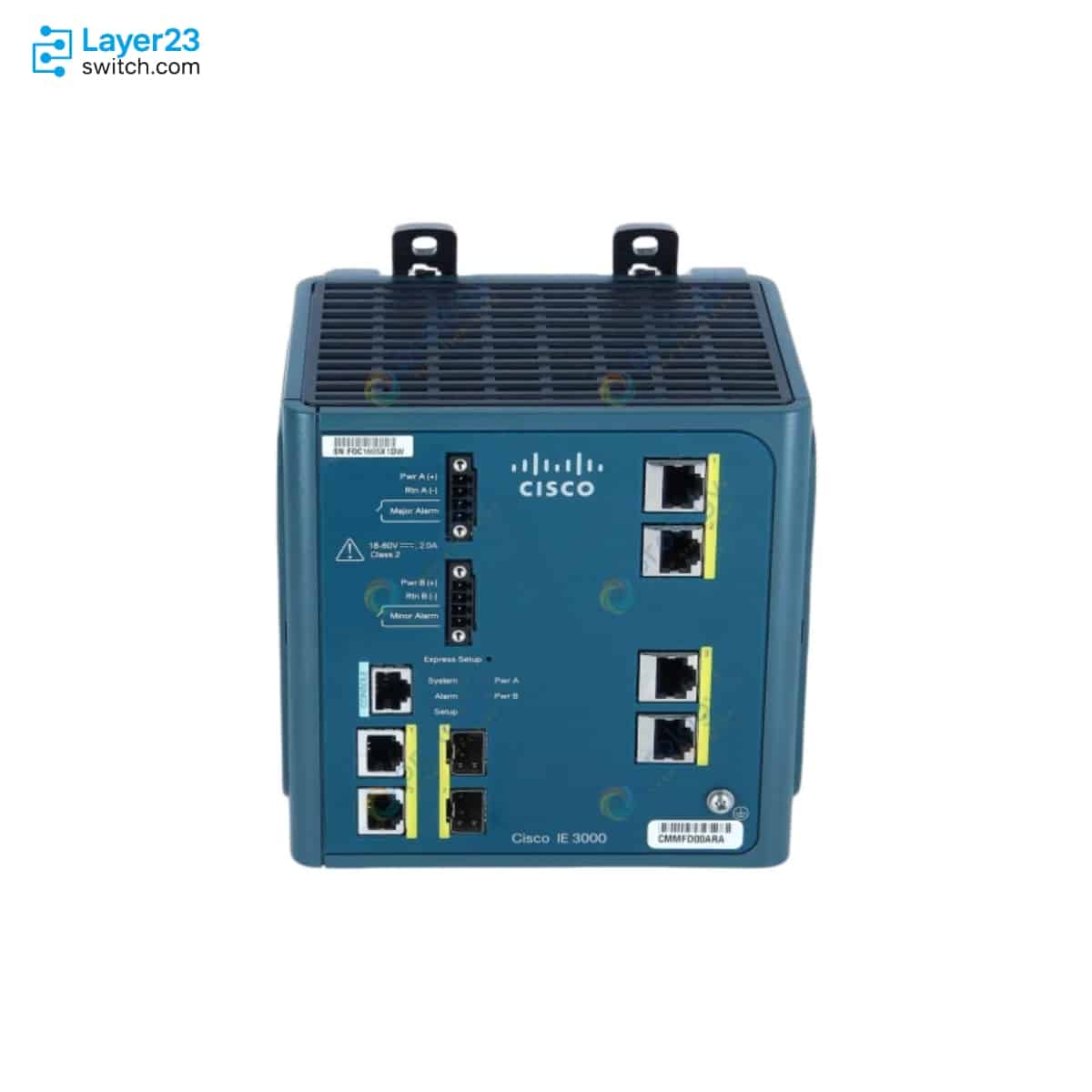

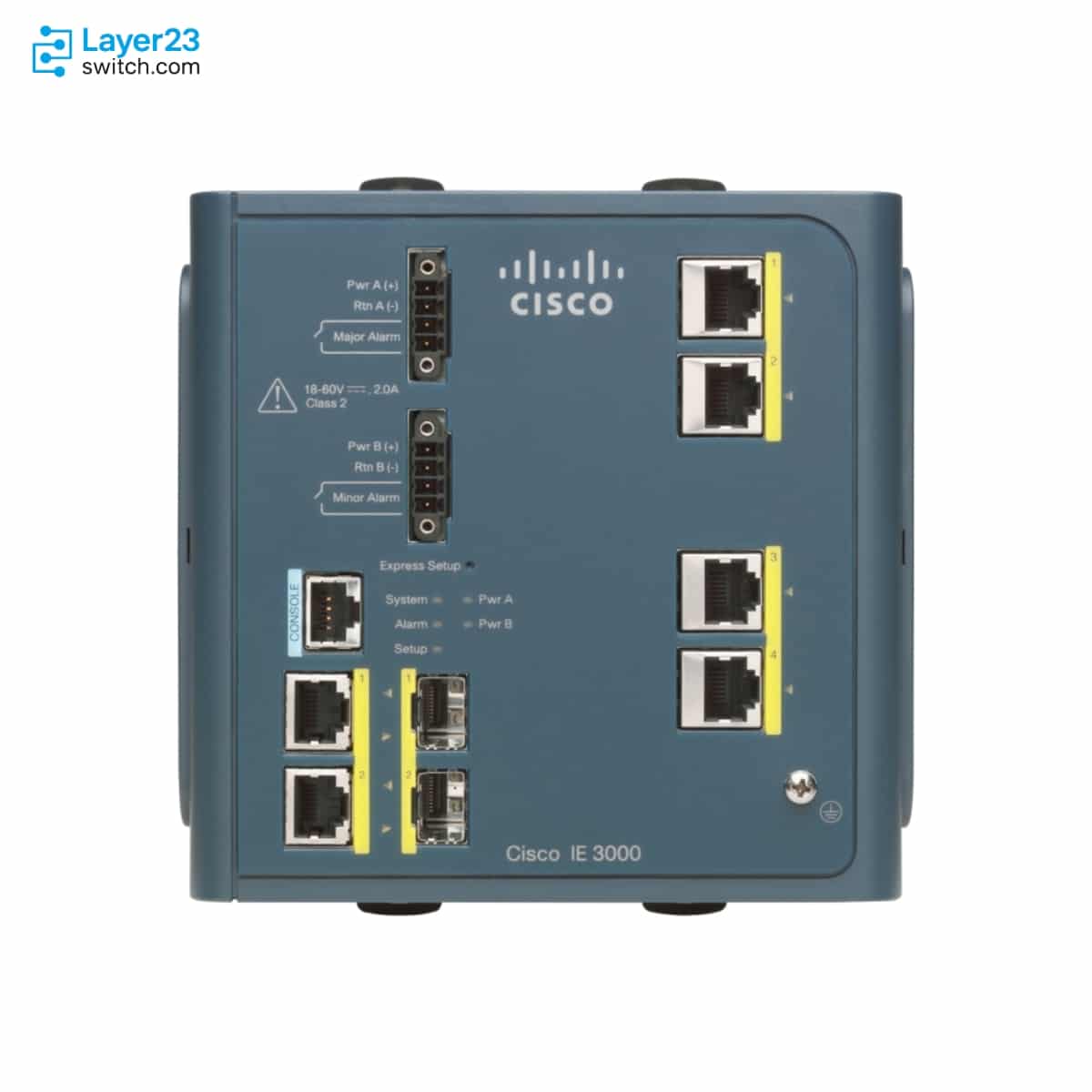

The IE-3000-4TC is a Cisco Industrial Ethernet 3000 Series Layer 2 switch for DIN-rail control cabinets on factory and process floors. The switch has four 10/100 ports, two dual-purpose Gigabit uplinks, a 16 Gbps switching fabric and 6.5 Mpps of forwarding, and it runs from an 18 to 60 VDC feed. Each uplink uses either its copper port or its SFP port at one time, and the installed LAN Base image provides Layer 2 features only.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3000-4TC |
|
Product type |
Industrial Ethernet switch |
|
Software image |
Layer 2 LAN Base Image |
|
Downlink ports |
4 x Ethernet 10/100 |
|
Uplink ports |
2 x dual-purpose uplinks |
|
Dual-purpose uplink media |
One active 10/100/1000 copper port or SFP fiber port per uplink |
|
Expansion support |
Up to two Cisco IE 3000 expansion modules with supported combinations |
|
DC input range |
18-60 VDC |
|
Maximum power consumption |
15.1 W |
|
Switching fabric |
16 Gbps |
|
Forwarding rate |
6.5 Mpps with 64-byte packets |
|
Mounting |
DIN rail, wall, and 19 in rack mount options |
|
Operating temperature |
-40C to +75C |
Product Performance
Key Features
Each of the two uplinks offers a 10/100/1000 copper port and an SFP port, and one of the two is active at a time. The cabling plan therefore decides copper or fiber for each uplink.
Up to two IE 3000 expansion modules add ports. Two IEM-3000-8TM= copper modules bring the switch to 20 Fast Ethernet ports, and fiber, SFP and PoE modules are also available.
Convection cooling and an operating range of -40C to +75C suit sealed control panels. DIN rail, wall and 19 in rack mounting are supported.
Application Scenarios
In a small machine or process cell, the switch links four PLCs, drives or HMIs on its 10/100 ports and sends their traffic upstream on a Gigabit uplink.
Mounted on DIN rail in a roadside traffic cabinet or substation panel, the switch runs fanless from an 18 to 60 VDC feed across -40C to +75C.
At the edge of a production line, one SFP uplink can carry fiber to the plant backbone while the other stays on copper toward a local aggregation switch.
Product Comparison
|
Parameter |
IE-3000-4TC | ||
|---|---|---|---|
|
Ethernet 10/100 ports |
4 |
8 |
8 |
|
Dual-purpose uplinks |
2 |
2 |
2 |
|
Expansion module support |
Up to 2 modules |
Up to 2 modules |
Not supported |
|
Input voltage |
18-60 VDC |
18-60 VDC |
9.6-60 VDC |
|
Maximum power consumption |
15.1 W |
15.7 W |
12.5-20 W |
|
Operating temperature |
-40C to +75C |
-40C to +75C |
Not published |
|
Software image |
LAN Base |
LAN Base |
LAN Base |
|
Dimensions (W x H x D) |
6.0 x 5.8 x 4.4 in |
6.0 x 5.8 x 4.4 in |
3.6 x 5.1 x 4.51-5.26 in |
IE-3000-4TC and IE-3000-8TC use the same chassis, two dual-purpose uplinks and LAN Base image, but IE-3000-4TC has four 10/100 access ports where IE-3000-8TC has eight, which matters when a cabinet needs more than four drops before any expansion module. Sites that need the Layer 3 IP Services image order IE-3000-4TC-E, because the image is fixed by PID. Added ports come from IEM-3000-8TM= copper modules, and IE-3000-4TC takes up to two for 20 Fast Ethernet ports. IE-2000-8TC-G-B has eight ports and takes no expansion modules, but it accepts 9.6-60 VDC against 18-60 VDC here and is 3.6 in wide.
Ordering Checklist
- Expansion modules: Choose up to two of IEM-3000-8TM=, IEM-3000-8FM=, IEM-3000-4SM=, IEM-3000-8SM=, IEM-3000-4PC= or IEM-3000-4PC-4TC=. Two IEM-3000-8SM= together are not supported because of power limits, and a module cannot run on its own.
- PoE module power: Provide an external 44-57 VDC (PoE) or 50-57 VDC (PoE+) source such as PWR-IE65W-PC-DC= or PWR-IE65W-PC-AC=. IEM-3000-4PC= and IEM-3000-4PC-4TC= do not take PoE power from the switch.
- AC power module: Order PWR-IE50W-AC= (screw terminal) or PWR-IE50W-AC-IEC= (IEC plug), 24 VDC output. The switch itself takes 18-60 VDC, so an AC site needs a power module.
- AC power cord: Add a cord with the local plug and a C13 connector for PWR-IE50W-AC-IEC=. The module is supplied without a power cord.
- Rack mounting: Add STK-RACKMNT-2955= to convert the DIN rail mount for a 19 in rack. Without the kit the switch mounts only on DIN rail or wall.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Expansion copper module for IE-3000-4TC and related IE 3000 switches, eight 10/100 TX ports | |
|
IEM-3000-8FM= |
Expansion FX fiber module for IE-3000-4TC and related IE 3000 switches, eight 100 FX ports |
|
IEM-3000-4SM= |
Expansion SFP module for IE 3000 switches, four 100 MB SFP ports, minimum IOS release 15.0(2)EY |
|
IEM-3000-8SM= |
Expansion SFP module for IE 3000 switches, eight 100 MB SFP ports, minimum IOS release 15.0(2)EY |
|
IEM-3000-4PC= |
Expansion PoE module for IE 3000 switches, four 10/100 PoE/PoE+ ports with external power source requirement |
|
Expansion power module for IE-3000-4TC and related IE 3000 switches, AC or high-voltage DC input with 24 VDC output |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3000-4TC | Product type | Industrial Ethernet switch |
| Software image | Layer 2 LAN Base Image | Downlink ports | 4 x Ethernet 10/100 |
| Dual-purpose uplinks | 2 x 10/100/1000 copper or SFP fiber uplinks, one active media choice per uplink | Expansion support | Up to two Cisco IE 3000 expansion modules with supported combinations |
| DC input range | 18-60 VDC | Maximum power consumption | 15.1 W |
| Switching fabric | 16 Gbps | Forwarding rate | 6.5 Mpps with 64-byte packets |
| DRAM | 128 MB | Compact flash memory | 64 MB |
| Layer 2 MAC addresses | Configurable up to 8000 MAC addresses | Layer 2 multicast groups | Configurable up to 256 IGMP multicast groups |
| Jumbo frames | Up to 9018 bytes on Gigabit uplink port | SFP options | 100BASE-LX, 100BASE-FX, 1000BASE-SX, 1000BASE-LX, and 1000BASE-ZX options |
| SFP connector type | LC fiber connectors for listed SFP-based ports | Mounting | DIN rail, wall, and 19 in rack mount options |
| Cooling design | Convection cooling | Dimensions | 6.0 in W x 5.8 in H x 4.4 in D (152 x 147 x 112 mm) |
| Weight | 2.0 kg (4.4 lb) | Operating temperature | -40C to +75C |
| Operating humidity | 10% to 95% non-condensing | Operating altitude | Up to 13,000 ft (3963 m) |
| MTBF | 363,942 |
Quality Certifications
Customer Reviews
Questions & Answers
-
What operating temperature does IE-3000-4TC support?
-
What input voltage does IE-3000-4TC accept?
-
How much power do the expansion modules add to IE-3000-4TC?
-
Does IE-3000-4TC need a power module on an AC feed?
-
Does IE-3000-4TC accept two IEM-3000-8SM= modules at the same time?
-
Where does the PoE power come from for IEM-3000-4PC= modules fitted to IE-3000-4TC?
