IEM-3400-8T – 8xGE Copper Ports – IE3400 Expansion Module – Non-PoE
1/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
IEM-3400-8T Description

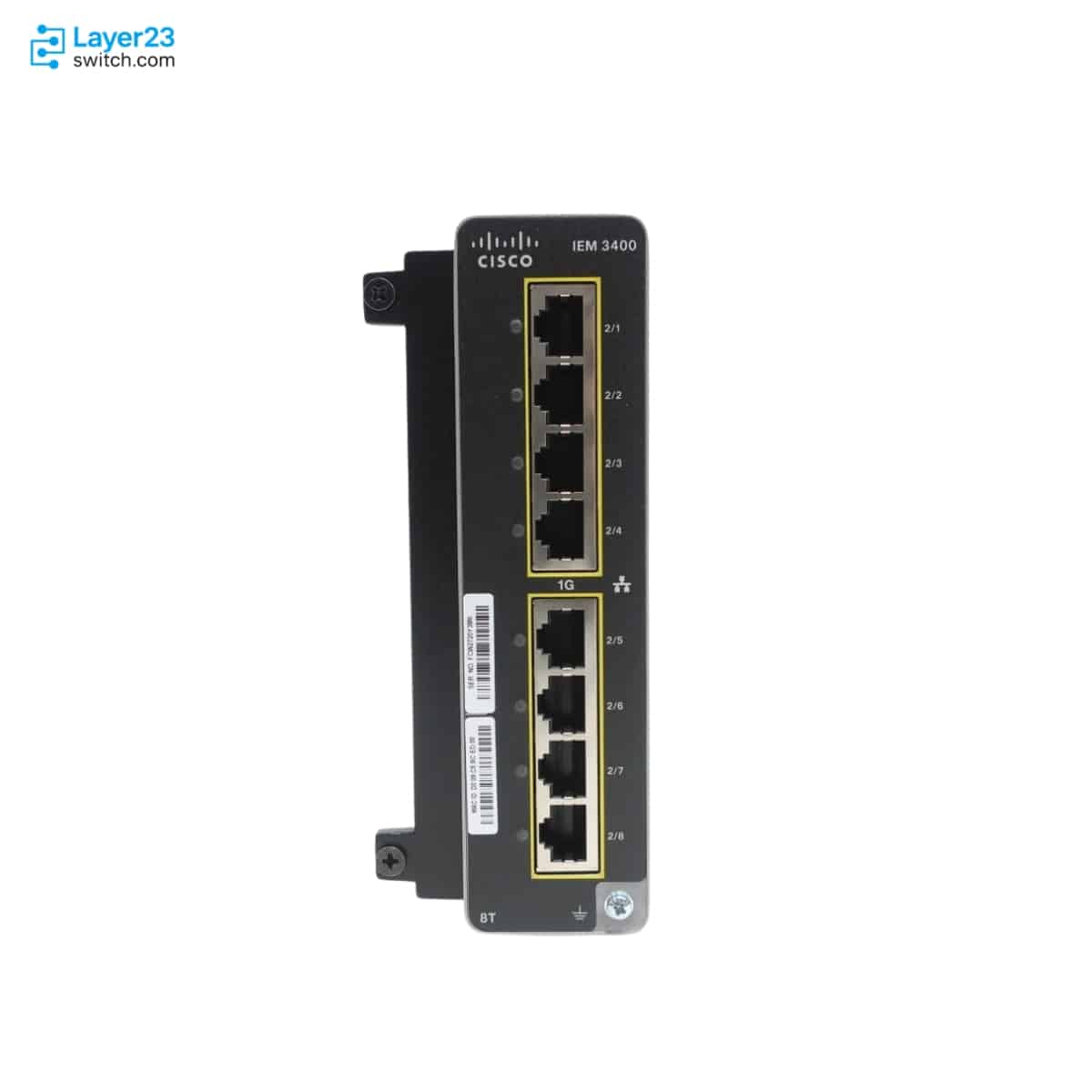

IEM-3400-8T is a Cisco Catalyst IE3400 Rugged Series advanced expansion module for adding eight Gigabit Ethernet copper ports to supported IE3400 industrial switch base systems. It is used when an IE-3400-8T2S or IE-3400-8P2S base switch needs additional non-PoE copper connectivity at the industrial edge, with Cisco documentation identifying the module as an 8-port GE copper expansion module, non-PoE, with advanced hardware features, one expansion-module position per base system, 12 W module power consumption, and an 18-port total system profile when attached to the compatible base switch.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
IEM-3400-8T |
|
Cisco ordering PID |
IEM-3400-8T= |
|
Product type |
Expansion module |
|
Compatible base switch |
Cisco IE-3400-8T2S or IE-3400-8P2S |
|
Expansion module count |
One module attached to a base system |
|
Added port count |
8 ports |
|
Port media |
Gigabit Ethernet copper |
|
PoE/PoE+ support |
No |
|
90-W PoE support |
No |
|
Advanced hardware features |
Yes |
|
Total system ports with module |
18 ports |
|
Module power consumption |
12 W |
Application Scenarios
IEM-3400-8T fits DIN-rail IE3400 sites where the base switch already matches the design and the added eight ports need to remain RJ-45 copper data interfaces.
Select the 8T module when the BOM needs copper connectivity without endpoint power. IEM-3400-8P is the related copper PoE/PoE+ option, and IEM-3400-8S moves the added ports to SFP media.
The module line should be staged for a planned shutdown because Cisco documents one expansion module per base system and states that expansion modules are not hot-swappable.
Product Comparison
|
Parameter |
IEM-3400-8T | |||
|---|---|---|---|---|
|
Product type |
Expansion module |
Expansion module |
Expansion module |
Expansion module |
|
Cisco ordering PID |
IEM-3400-8T= |
IEM-3400-8S= |
IEM-3400-8P= |
IEM-3300-8T= |
|
Compatible base switch |
IE-3400-8T2S or IE-3400-8P2S |
IE-3400-8T2S or IE-3400-8P2S |
IE-3400-8P2S |
IE-3300-8T2C, IE-3300-8P2S, IE-3300-8T2X, IE-3300-8U2X, IE-3400-8T2S, or IE-3400-8P2S |
|
Total system ports with module |
18 ports |
18 ports |
18 ports |
18 ports |
|
Expansion port count |
8 ports |
8 ports |
8 ports |
8 ports |
|
Port media |
Gigabit Ethernet copper |
Gigabit Ethernet SFP |
Gigabit Ethernet copper |
Gigabit Ethernet copper |
|
PoE/PoE+ support |
No |
No |
Yes |
No |
|
90-W PoE support |
No |
No |
No |
No |
|
Advanced hardware features |
Yes |
Yes |
Yes |
No |
|
Module power consumption |
12 W |
27 W |
20 W |
6 W |
- In an IEM-3400-8T vs IEM-3400-8S comparison, both are IE3400 eight-port expansion modules, but the table difference is media: IEM-3400-8T adds copper ports and IEM-3400-8S adds SFP ports.
- The IEM-3400-8T vs IEM-3400-8P difference is PoE/PoE+ support and base-switch scope; IEM-3400-8T is non-PoE copper for IE-3400-8T2S or IE-3400-8P2S, while IEM-3400-8P is PoE copper for IE-3400-8P2S.
- For an IEM-3400-8T vs IEM-3300-8T comparison, both provide eight copper Gigabit ports, but Cisco marks advanced hardware features as Yes on the IE3400 module and No on the IE3300 module.
- Buyers deciding which model to choose should compare the base switch, media type, PoE requirement, and advanced-hardware row before adding the expansion module to the order.
Selection Guide
1. Choose IEM-3400-8T for non-PoE copper expansion
Match this SKU to an IE3400 BOM that needs eight added Gigabit Ethernet copper ports without PoE or PoE+ endpoint power.
2. Move to IEM-3400-8S for fiber media
Select IEM-3400-8S instead when the expansion slot must provide SFP interfaces rather than copper RJ-45 connections.
3. Keep IEM-3400-8P for powered copper endpoints
Order IEM-3400-8P only when the IE-3400-8P2S base switch and the endpoint plan require PoE/PoE+ copper expansion.
4. Verify the service-window constraint
Confirm the single-module limit and powered-down installation plan before the module is staged for a cabinet refresh or spare replacement.
Ordering Checklist
|
Check item |
What to confirm |
Why it matters |
|---|---|---|
|
Exact order line |
Page SKU IEM-3400-8T and Cisco ordering PID IEM-3400-8T= |
Keeps the IE3400 copper module separate from SFP and PoE expansion lines |
|
Base switch |
Cisco IE-3400-8T2S or IE-3400-8P2S |
Cisco lists these IE3400 base systems for the 8T expansion module |
|
Port role |
Eight added Gigabit Ethernet copper ports |
Prevents a media mismatch with IEM-3400-8S |
|
PoE boundary |
No PoE/PoE+ and no 90-W PoE on this module |
Prevents using a data-only copper module for powered endpoints |
|
Advanced hardware row |
Advanced hardware features marked Yes for the IE3400 module |
Separates this line from the IE3300 8T module when the feature set matters |
|
Installation state |
Switch powered down before attaching or removing the module |
Cisco warns against attaching an expansion module while the switch is energized |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | IEM-3400-8T | Cisco ordering PID | IEM-3400-8T= |
| Product type | Expansion module | Compatible base switch | IE-3400-8T2S or IE-3400-8P2S |
| Total system ports with module | 18 ports | Expansion module count | One module attached to a base system |
| Expansion port count | 8 ports | Port media | Gigabit Ethernet copper |
| PoE/PoE+ support | No | 90-W PoE support | No |
| Advanced hardware features | Yes | Module power consumption | 12 W |
| Dimensions | 6 x 2.6 x 5.3 in. (15.2 x 6.6 x 13.5 cm) | Weight | 2.0 lb (0.9 kg) |
| Mounting | DIN rail | Hot-swap support | Not hot-swappable |
| Primary comparison SKUs | IEM-3400-8S, IEM-3400-8P, IEM-3300-8T |
