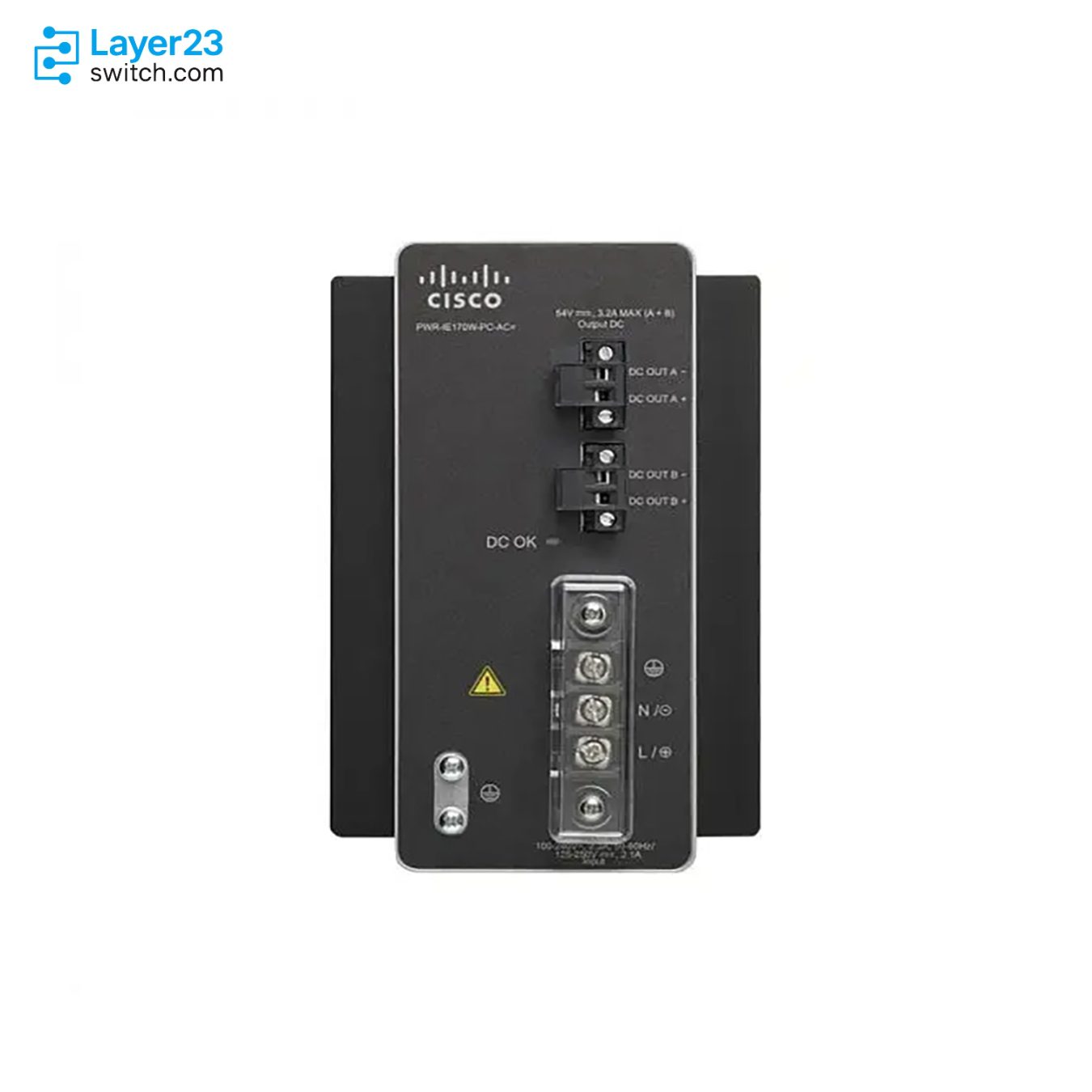

PWR-IE170W-PC-AC – 170W AC/DC PSU – 54V PoE Output – DIN-Rail
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
PWR-IE170W-PC-AC Description
PWR-IE170W-PC-AC is a Cisco Industrial DIN-Rail 170W power supply for PoE-capable industrial Ethernet switch deployments, listed as PWR-IE170W-PC-AC= for AC-to-DC or high-DC-to-DC input. It uses a hardwired input, supports AC 100-240V at 2.3A or DC 125-250V at 2.1A, and provides 54VDC output at 3.2A with a 170W maximum output rating. The supply fits industrial PoE power designs for Cisco IE 4000 and IE 2000U environments where the switch and PoE ports must stay within the available power budget, with an IP20 enclosure rating and a -40C to +75C operating range for DIN-rail cabinet deployments.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-IE170W-PC-AC |
|
Cisco ordering part |
PWR-IE170W-PC-AC= |
|
Product type |
170W AC-to-DC or high-DC-to-DC PoE power supply |
|
Input connection type |
Hardwired |
|
PoE support |
Yes |
|
Rated nominal input |
AC 100-240V/2.3A, 50-60Hz or DC 125-250V/2.1A |
|
Supported input range |
AC 90-264V or DC 106-300V |
|
Output rating |
54VDC, 3.2A |
|
Maximum output power |
170W |
|
Holdup time |
20ms at 100% load |
|
Operating temperature |
-40C to +75C |
|
IP rating |
IP20 |
Application Scenarios
PWR-IE170W-PC-AC fits IE 2000U PoE designs where Cisco maps the 170W module to maximum PoE and PoE+ port support in an AC or high-DC environment.
Cisco lists this 170W AC or high-DC supply in the IE 4000 Series power-supply table, where the switch and PoE load must remain within the supply budget.
Service teams can keep this SKU for hardwired AC or high-DC cabinets and reserve PWR-IE170W-PC-DC= for sites built around low-voltage DC input.
Product Comparison
|
Parameter |
PWR-IE170W-PC-AC | |||
|---|---|---|---|---|
|
Cisco ordering part |
PWR-IE170W-PC-AC= |
PWR-IE170W-PC-DC= |
PWR-IE65W-PC-AC= |
PWR-IE240W-PCAC-L= |
|
Product type |
AC-to-DC or high-DC-to-DC PoE power supply |
Low-DC-to-DC PoE power supply |
AC-to-DC or high-DC-to-DC PoE power supply |
AC-to-DC PoE power supply |
|
Input connection type |
Hardwired |
Hardwired |
Hardwired |
Hardwired |
|
Rated nominal input |
AC 100-240V/2.3A, 50-60Hz or DC 125-250V/2.1A |
DC 12-54V/23A |
AC 100-240V/1.4A, 50-60Hz or DC 125-250V/1.0A |
AC 100-240V/3.5A, 50-60Hz |
|
Supported input range |
AC 90-264V or DC 106-300V |
DC 10.8-60V |
AC 90-264V or DC 106-300V |
AC 90-264V |
|
Output rating |
54VDC, 3.2A |
54VDC, 3.2A |
54VDC, 1.2A |
54VDC / 48-56VDC, 4.5A |
|
Maximum output power |
170W |
170W |
65W |
240W |
|
Holdup time at 100% load |
20ms |
9ms at 10.8VDC to 25.9ms at 60VDC |
10ms |
20ms |
|
Typical efficiency |
88% |
88% |
85% |
91% |
|
PoE support |
Yes |
Yes |
Yes |
Yes |
|
IP rating |
IP20 |
IP20 |
IP20 |
IP20 |
|
Operating temperature |
-40C to +75C |
-40C to +75C |
-40C to +75C |
-40C to +80C with derating rules |
|
Unit weight |
3.88 lb (1.76 kg) |
3.68 lb (1.67 kg) |
2.64 lb (1.2 kg) |
2.11 lb (0.96 kg) |
- In a PWR-IE170W-PC-AC vs PWR-IE170W-PC-DC comparison, the main difference is input range: PWR-IE170W-PC-AC accepts AC or high-voltage DC input, while PWR-IE170W-PC-DC is the low-voltage DC input version.
- The PWR-IE170W-PC-AC difference from PWR-IE65W-PC-AC is output class. Both support AC or high-DC input and PoE, but the 170W unit provides 54VDC at 3.2A while the 65W unit provides 54VDC at 1.2A.
- In a PWR-IE170W-PC-AC vs PWR-IE240W-PCAC-L comparison, both are hardwired DIN-rail PoE supplies, but PWR-IE240W-PCAC-L moves to a 240W output class and a different AC-only input profile.
- For buyers comparing which model to choose, the order check should start with cabinet input voltage, required output wattage, and whether the industrial site requires the same compliance profile listed for PWR-IE170W-PC-AC.
Selection Guide
1. Match the cabinet feed first
Select PWR-IE170W-PC-AC when the cabinet power source is AC 100-240V or high-voltage DC 125-250V and the installation needs a hardwired DIN-rail supply.
2. Keep low-voltage DC sites on the DC variant
Move the order to PWR-IE170W-PC-DC only when the documented input source is low-voltage DC. The two 170W units share the output class but not the input design.
3. Do not replace 170W planning with the 65W line
Use PWR-IE65W-PC-AC only where the lower 65W output class fits the PoE plan. Cisco IE 2000U documentation separates the 65W and 170W PoE support roles.
4. Check industrial compliance before receiving
Review Class 1 Div 2 or Zone 2, CSA, IEC 61850-3, IEEE 1613, cabinet temperature, and hardwired termination requirements before the supply is released to a field kit.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Fact |
Quote Check |
|---|---|---|
|
Output class |
54VDC, 3.2A with 170W maximum output |
Size the PoE plan against the 170W supply class |
|
IE 2000U PoE role |
Cisco lists PWR-IE170W modules for four PoE or PoE+ ports |
Keep the 65W and 170W PoE supply lines separate |
|
IE 4000 power budget |
The switch and PoE ports must stay within the power-supply budget |
Confirm connected powered-device demand before sourcing |
|
Input environment |
AC 90-264V or DC 106-300V supported input range |
Verify facility feed and breaker design before staging |
Ordering Checklist
|
Check Area |
Evidence to Confirm |
Risk Controlled |
|---|---|---|
|
PID format |
Base PID PWR-IE170W-PC-AC and Cisco ordering part PWR-IE170W-PC-AC= |
Keeps catalog records aligned with Cisco ordering notation |
|
Input source |
AC 100-240V/2.3A at 50-60Hz or DC 125-250V/2.1A |
Prevents a low-DC supply from being ordered for a high-DC or AC cabinet |
|
Output requirement |
54VDC at 3.2A and 170W maximum output |
Confirms the unit is sized for the expected PoE power path |
|
Termination method |
Hardwired DIN-rail power supply |
Avoids expecting an IEC plug-in corded supply |
|
Industrial environment |
IP20, -40C to +75C operating temperature, and no derating |
Matches the power supply to cabinet temperature and enclosure assumptions |
|
Compliance profile |
Class 1 Div 2 or Zone 2, CSA, IEC 61850-3, and IEEE 1613 entries in Cisco data |
Supports industrial and utility documentation review |
|
Platform context |
Cisco IE 2000U PoE module use and IE 4000 power-supply table |
Keeps the accessory tied to documented Cisco industrial switch contexts |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-IE170W-PC-AC | Cisco ordering part | PWR-IE170W-PC-AC= |
| Product type | 170W AC-to-DC or high-DC-to-DC PoE power supply | Ordering description | 170W AC to DC power supply |
| Input connection type | Hardwired | PoE support | Yes |
| Rated nominal input | AC 100-240V/2.3A, 50-60Hz or DC 125-250V/2.1A | Supported input range | AC 90-264V or DC 106-300V |
| Typical efficiency | 88% | Inrush current | <35A at 115VAC and 70A at 230VAC |
| Output rating | 54VDC, 3.2A | Maximum output power | 170W |
| Holdup time at 100% load | 20ms | IP rating | IP20 |
| Operating temperature | -40C to +75C | Storage temperature | -40C to +85C |
| Power derating | No derating | Operating humidity | <95% RH, non-condensing |
| Dimensions | 96 x 150 x 146 mm; 3.77 x 5.90 x 5.74 in. | Unit weight | 3.88 lb (1.76 kg) |
| MTBF | 2,384,975 hours | Hazardous-location entry | Class 1 Div 2 or Zone 2 |
| Safety certification note | UL60950-1 and CSA60950-1 certified | Industrial standards entries | IEC 61850-3, IEEE 1613, EN50121-4:2016 |
| IE 4000 context | Listed in Cisco IE 4000 Series power-supply table | IE 2000U PoE context | Listed as a PoE 170W DC- or AC-input module |
| Closest 170W DC variant | PWR-IE170W-PC-DC= |
