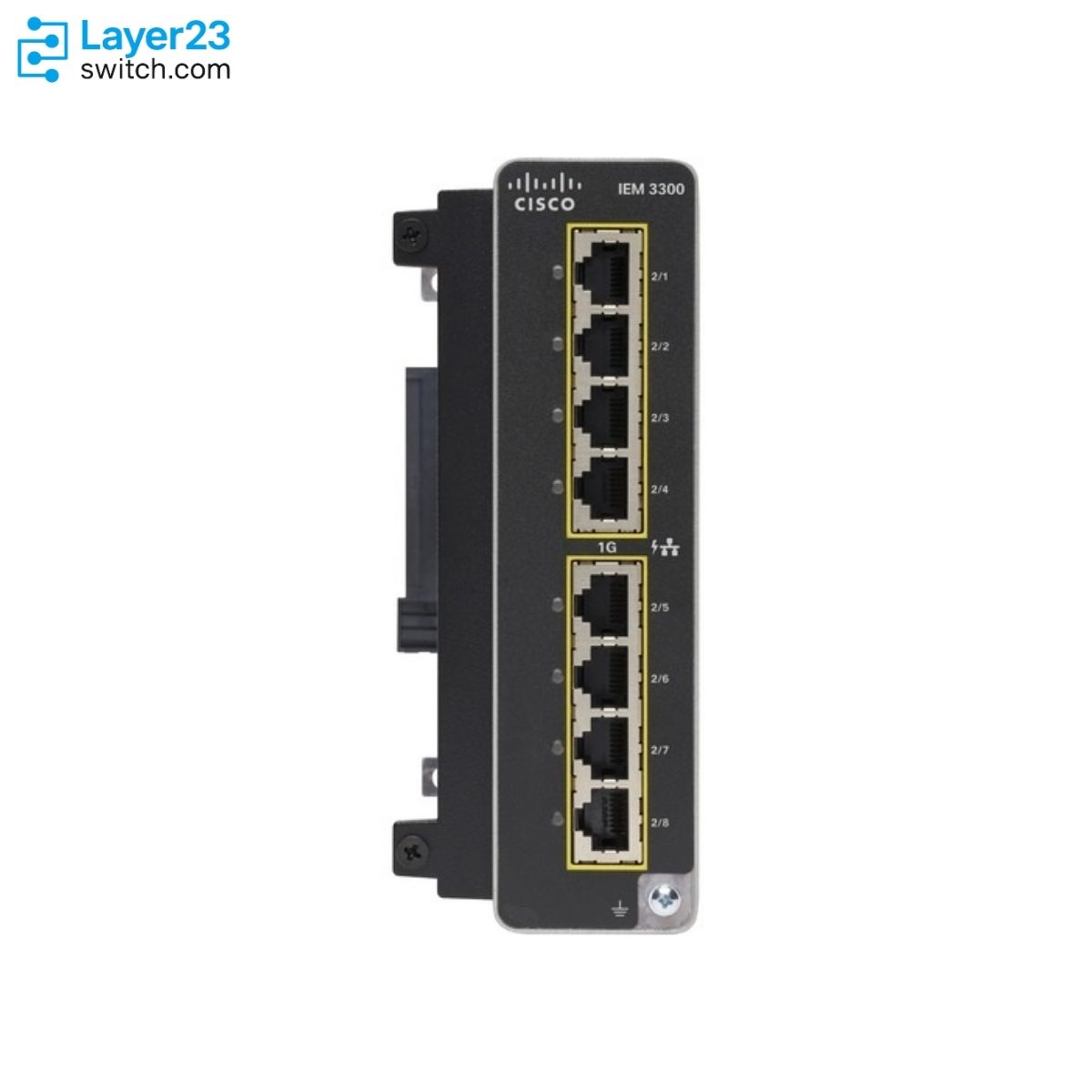

IEM-3300-8T – 8x1G Copper Ports – IE3300 Expansion Module – Non-PoE
3/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
IEM-3300-8T Description
IEM-3300-8T is a Cisco Catalyst IE3300 copper expansion module for supported IE3300 and IE3400 modular industrial switch base systems. It adds eight 100/1000 Mbps RJ45 Gigabit Ethernet data ports for non-PoE industrial edge expansion, bringing the listed total system port count to 18 when installed with a compatible base switch. Cisco lists the module with 6W power consumption, DIN-rail installation, and a single-expansion-module system boundary, so it fits BOMs that need additional copper access ports without PoE, SFP, or advanced hardware feature requirements on the expansion module itself.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IEM-3300-8T |
|
Cisco ordering PID |
IEM-3300-8T= |
|
Product type |
Copper expansion module |
|
Expansion ports |
8 x Gigabit Ethernet copper ports |
|
Port media |
100/1000Mbps RJ45 copper |
|
Compatible base systems |
Cisco-listed IE3300 and IE3400 modular industrial switch base systems |
|
Total system ports |
18 including expansion module |
|
PoE support |
No PoE or PoE+ ports on this module |
|
Advanced hardware features |
No |
|
Module power consumption |
6W |
|
Dimensions |
6 x 2.6 x 5.3 in. / 15.2 x 6.6 x 13.5 cm |
|
Weight |
2.0 lb / 0.91 kg |
Application Scenarios
Use IEM-3300-8T when an IE3300 or IE3400 modular base switch needs eight added copper data ports and the endpoint map does not require PoE power or SFP fiber.
This module fits refresh work where existing field wiring terminates on RJ45 copper and the bill of materials must keep powered endpoints on a separate PoE switch or PoE expansion module.
IEM-3300-8T should be staged with a planned maintenance window because Cisco documents one expansion module per base system and states that expansion modules are not hot-swappable.
Product Comparison
|
Parameter |
IEM-3300-8T | |||
|---|---|---|---|---|
|
Product type |
Copper expansion module |
PoE/PoE+ copper expansion module |
SFP expansion module |
Copper expansion module |
|
Total ports on expansion module |
8 |
8 |
8 |
16 |
|
100/1000Mbps data-only copper ports |
8 |
0 listed |
0 listed |
16 |
|
100/1000Mbps PoE/PoE+ ports |
0 listed |
8 |
0 listed |
0 listed |
|
100/1000Mbps SFP ports |
0 listed |
0 listed |
8 |
0 listed |
|
Total system ports including module |
18 |
18 |
18 |
26 |
|
Cisco ordering PID |
IEM-3300-8T= |
IEM-3300-8P= |
IEM-3300-8S= |
IEM-3300-16T= |
|
Advanced hardware features |
No |
No |
No |
No |
|
Module power consumption |
6W |
14W |
19W |
12W |
- In an IEM-3300-8T vs IEM-3300-8P comparison, both modules keep the eight-port expansion count, but IEM-3300-8T is data-only copper while IEM-3300-8P provides PoE/PoE+ copper ports.
- The IEM-3300-8T difference from IEM-3300-8S is media type: IEM-3300-8T adds RJ45 copper ports and IEM-3300-8S adds SFP ports while the total system-port count remains 18.
- For IEM-3300-8T vs IEM-3300-16T, the comparison is port density because IEM-3300-16T doubles the expansion count to 16 copper ports and raises the total system count to 26.
- Buyers deciding which model to choose should keep IEM-3300-8T on non-PoE copper designs and move only when the table facts call for PoE, SFP media, or 16-port copper density.
Selection Guide
1. Choose it for eight data-only copper ports
Select IEM-3300-8T when the approved IE3300 or IE3400 base switch needs eight Gigabit Ethernet copper expansion ports without PoE.
2. Move powered endpoints to 8P
Use IEM-3300-8P instead when the expansion ports must supply PoE/PoE+ because IEM-3300-8T has no Cisco-listed PoE ports.
3. Separate copper and SFP expansion lines
Keep IEM-3300-8T on RJ45 copper endpoint maps. Choose IEM-3300-8S when the expansion requirement changes to eight SFP fiber ports.
4. Verify the module count before staging
Confirm the host switch has only one expansion module attached because Cisco documents a single-module limit and does not support hot-swapping these expansion modules.
Ordering Checklist
|
Check Item |
What to Confirm |
Procurement Risk Controlled |
|---|---|---|
|
Exact module PID |
IEM-3300-8T in the site SKU and IEM-3300-8T= in Cisco ordering notation |
Prevents a trailing-equals Cisco spare notation from being treated as a different product |
|
Host base system |
Cisco-listed IE3300 or IE3400 modular industrial switch base system |
Avoids adding the module to a fixed or unsupported industrial switch |
|
Port media |
Eight Gigabit Ethernet copper expansion ports |
Keeps the order separate from SFP and mixed-media expansion modules |
|
PoE boundary |
No PoE or PoE+ ports on this module |
Prevents a data-only copper module from being ordered for powered endpoints |
|
Expansion count |
One expansion module attached to the base system |
Blocks a cabinet plan that tries to stack expansion modules |
|
Installation state |
Switch powered down before the expansion module is attached |
Aligns field work with Cisco installation handling guidance |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IEM-3300-8T | Cisco ordering PID | IEM-3300-8T= |
| Product type | Copper expansion module | Cisco ordering description | Catalyst IE3300 with 8 GE Copper ports, Expansion Module |
| Total ports on expansion module | 8 | Copper RJ45 ports | 8 x 100/1000Mbps |
| PoE/PoE+ ports | 0 listed for this module | SFP ports | 0 listed for this module |
| Total system ports | 18 including expansion module | Module power consumption | 6W |
| Compatible base systems | Cisco-listed IE3300 and IE3400 modular industrial switch base systems | Advanced hardware features | No |
| 90-W PoE support | No | PoE/PoE+ support | No |
| Dimensions | 6 x 2.6 x 5.3 in. / 15.2 x 6.6 x 13.5 cm | Weight | 2.0 lb / 0.91 kg |
| Mounting | DIN rail | MTBF | 3,041,040 hours |
| Expansion-module limit | One expansion module at a time | Hot-swap support | Not hot-swappable |
| Installation handling | Do not attach an expansion module while the switch is energized | Primary comparison SKUs | IEM-3300-8P, IEM-3300-8S, IEM-3300-16T |
