PWR-IE480W-PCAC-L – 480W AC PSU – 54V PoE Output – DIN-Rail
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
PWR-IE480W-PCAC-L Description

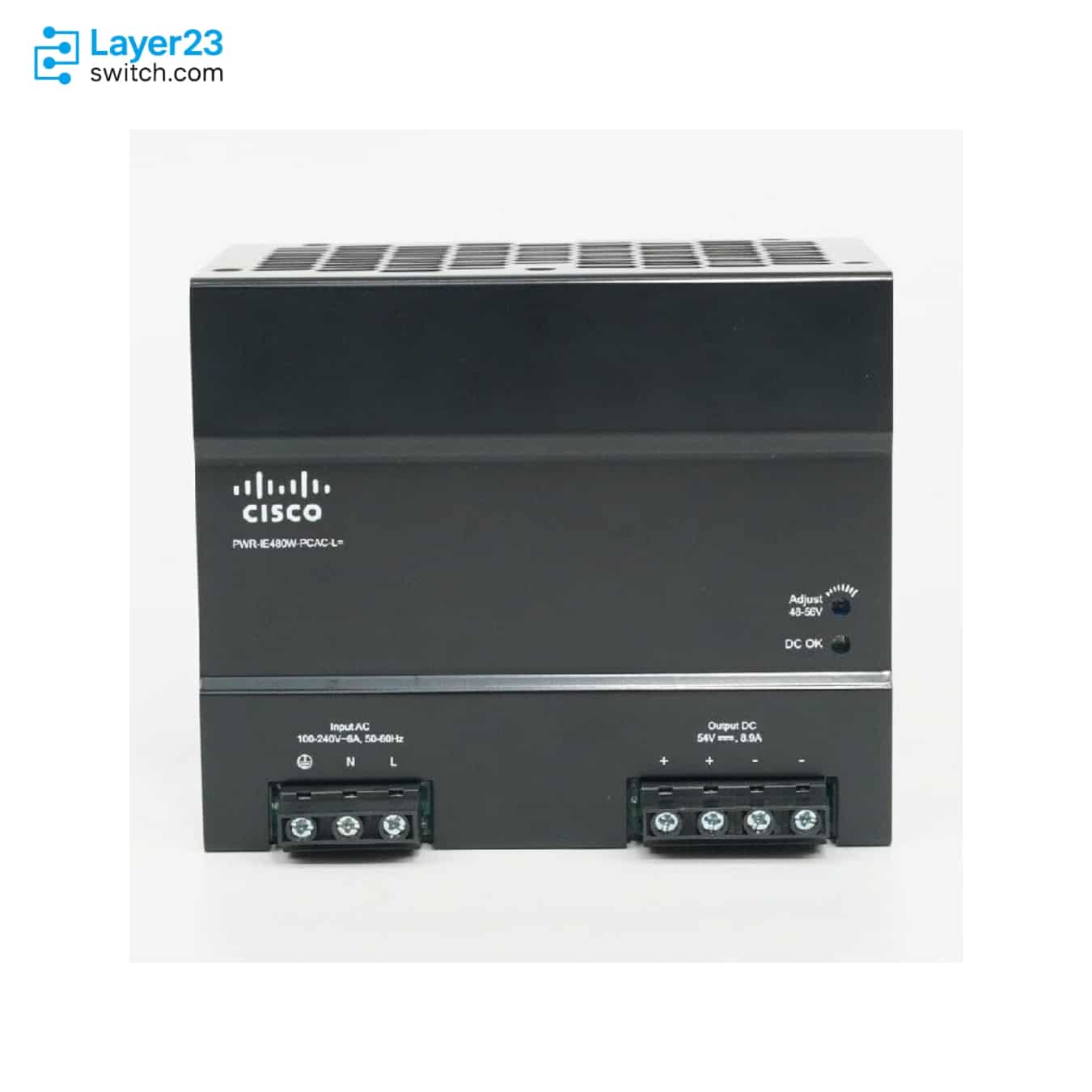

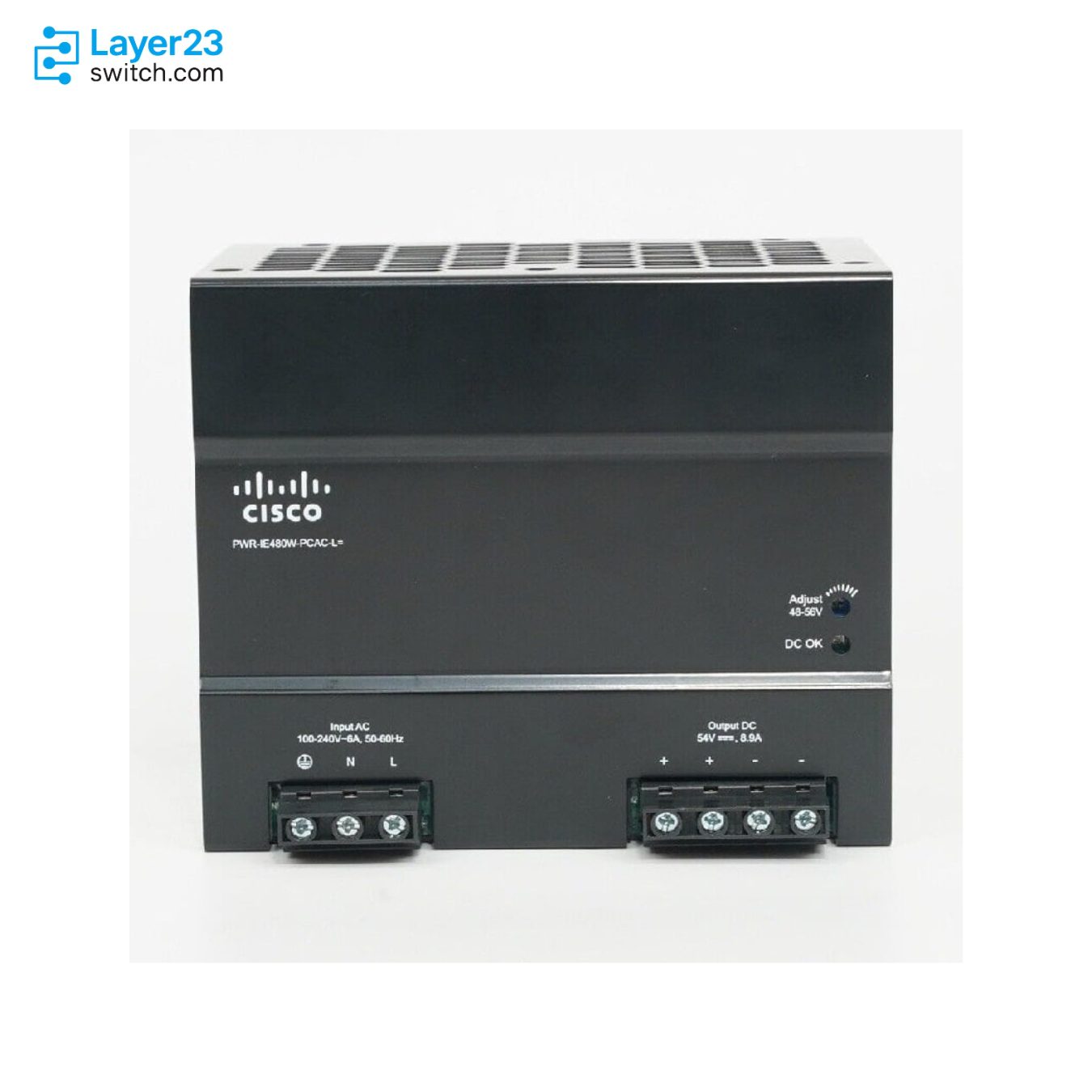

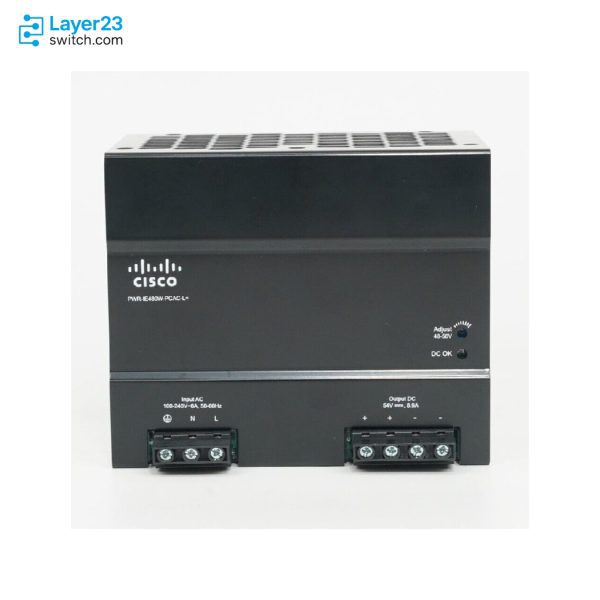

PWR-IE480W-PCAC-L is a Cisco Industrial DIN-rail 480W AC-to-DC PoE power supply for powering compatible industrial Ethernet switch installations, with Cisco platform context for IE 4000, Catalyst IE3400, and IE3500 deployments. It uses a hardwired AC input, accepts a 90-264VAC input range, provides 54VDC output at 8.9A with 480W maximum output power, and is specified as an IP20 supply for -40C to +75C operating environments with derating rules.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-IE480W-PCAC-L |
|
Cisco ordering part |
PWR-IE480W-PCAC-L= |
|
Product type |
480W AC-to-DC PoE power supply |
|
Input connection type |
Hardwired |
|
PoE support |
Yes |
|
Rated nominal input |
AC 100-240V/6A, 50-60Hz |
|
Supported input range |
AC 90-264V |
|
Output rating |
54VDC / 48-56VDC, 8.9A |
|
Maximum output power |
480W |
|
Holdup time |
20ms at 100% load |
|
Operating temperature |
-40C to +75C with derating rules |
|
IP rating |
IP20 |
Application Scenarios
PWR-IE480W-PCAC-L fits industrial PoE cabinets where the power design needs the 480W AC-input DIN-rail supply class rather than the lower 240W or 170W lines.
Cisco lists PWR-IE480W-PCAC-L= in the IE 4000 power-supply table with 480W output and PoE/PoE+ support, with the switch and powered-device load kept inside the supply budget.
For ruggedized access builds, Cisco IE3400, IE3500, and MS130R documentation provide accessory or power-supply context for this 480W unit, so the quote should tie the spare to the documented platform rather than a generic PSU pool.
Product Comparison
|
Parameter |
PWR-IE480W-PCAC-L |
PWR-IE400W-AC-IEC | ||
|---|---|---|---|---|
|
Cisco ordering part |
PWR-IE480W-PCAC-L= |
PWR-IE240W-PCAC-L= |
PWR-IE400W-AC-IEC= |
PWR-IE170W-PC-AC= |
|
Product type |
AC-to-DC PoE power supply |
AC-to-DC PoE power supply |
AC-to-DC PoE power supply with IEC connector |
AC-to-DC or high-DC-to-DC PoE power supply |
|
Input connection type |
Hardwired |
Hardwired |
Plug-in |
Hardwired |
|
Rated nominal input |
AC 100-240V/6A, 50-60Hz |
AC 100-240V/3.5A, 50-60Hz |
AC 100-240V/5A, 50-60Hz |
AC 100-240V/2.3A, 50-60Hz or DC 125-250V/2.1A |
|
Supported input range |
AC 90-264V |
AC 90-264V |
AC 90-264V |
AC 90-264V or DC 106-300V |
|
Output rating |
54VDC / 48-56VDC, 8.9A |
54VDC / 48-56VDC, 4.5A |
55VDC, 7.3A |
54VDC, 3.2A |
|
Maximum output power |
480W |
240W |
400W |
170W |
|
Holdup time at 100% load |
20ms |
20ms |
20ms |
20ms |
|
Typical efficiency |
92% |
91% |
91% |
88% |
|
PoE support |
Yes |
Yes |
Yes |
Yes |
|
IP rating |
IP20 |
IP20 |
IP20 |
IP20 |
|
Hazardous-location approval |
Not approved |
Not approved |
Not approved |
Class 1 Div 2 or Zone 2 |
|
Operating temperature |
-40C to +75C with derating rules |
-40C to +80C with derating rules |
-40C to +85C with derating rules |
-40C to +75C with no derating |
|
Unit weight |
3.02 lb (1.37 kg) |
2.11 lb (0.96 kg) |
3.10 lb (1.41 kg) |
3.88 lb (1.76 kg) |
- In a PWR-IE480W-PCAC-L vs PWR-IE240W-PCAC-L comparison, both are hardwired AC-input DIN-rail PoE supplies, but the 480W model doubles the maximum output class from 240W to 480W.
- The PWR-IE480W-PCAC-L difference from PWR-IE400W-AC-IEC is termination and output class: the 480W model is hardwired, while the 400W model uses an IEC plug-in connector and a 400W output rating.
- For a PWR-IE480W-PCAC-L vs PWR-IE170W-PC-AC comparison, the main difference is power capacity. PWR-IE480W-PCAC-L is a 480W AC-input supply, while PWR-IE170W-PC-AC is a 170W AC or high-DC input supply.
- Buyers comparing which model to choose should verify input wiring, output wattage, connector style, IP20 envelope, and hazardous-location approval status in the comparison table.
Selection Guide
1. Choose the 480W line for larger PoE budgets
Select PWR-IE480W-PCAC-L when the Cisco industrial switch power plan requires the 480W AC-input supply class and the cabinet is wired for hardwired DIN-rail power.
2. Use the 240W hardwired model for smaller loads
Move the order to PWR-IE240W-PCAC-L only when the documented power budget fits the 240W AC-input class and the same hardwired DIN-rail style is required.
3. Keep IEC plug-in requirements separate
Compare PWR-IE400W-AC-IEC when the installation expects an IEC 60320 C16 plug-in power supply rather than the hardwired PWR-IE480W-PCAC-L design.
4. Check the installation approval boundary
Review IP20 enclosure assumptions, derating above Cisco’s temperature thresholds, and the no hazardous-location or smart-grid certification note before adding this SKU to the quote.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Fact |
Quote Check |
|---|---|---|
|
Output class |
54VDC / 48-56VDC, 8.9A with 480W maximum output |
Size the switch and powered-device draw against the 480W supply class |
|
IE 4000 budget rule |
Cisco states the switch and PoE ports need to remain within the power-supply budget |
Confirm the switch model and attached PoE load before sourcing |
|
Lower-wattage alternative |
PWR-IE240W-PCAC-L= provides 240W maximum output |
Use the 480W unit only when the BOM requires the larger output class |
|
Installation environment |
IP20 supply with derating above 50C and above 70C for vertical mounting |
Check cabinet temperature and enclosure assumptions before shipment |
Ordering Checklist
|
Part-number capture |
PWR-IE480W-PCAC-L base PID and PWR-IE480W-PCAC-L= ordering part |
Keep the receiving record aligned with Cisco spare notation |
Mixing base SKU and equals-suffixed orderable form |
|---|---|---|---|
|
Cabinet input |
AC 100-240V/6A at 50-60Hz with AC 90-264V supported input range |
Confirm the site feed is AC and not low-voltage DC |
Ordering a DC-input or high-DC variant for the wrong cabinet |
|
Output requirement |
54VDC / 48-56VDC at 8.9A and 480W maximum output |
Compare switch and powered-device demand against the supply class |
Treating 240W or 170W supplies as equivalent |
|
Environmental fit |
IP20, -40C to +75C operation, and vertical derating above Cisco thresholds |
Match the supply to enclosure and thermal assumptions |
Assigning the spare outside its documented operating envelope |
|
Approval boundary |
Cisco notes no hazardous-location or smart-grid certification for this supply |
Keep it out of projects that require those approvals |
Releasing the wrong industrial compliance profile |
|
Platform context |
IE 4000, IE3400, IE3500, industrial PoE, and MS130R accessory documentation |
Tie the spare to a documented Cisco switch family |
Treating it as a generic 54VDC converter |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-IE480W-PCAC-L | Cisco ordering part | PWR-IE480W-PCAC-L= |
| Product type | 480W AC-to-DC PoE power supply | Ordering description | 480W AC to DC power supply |
| Input connection type | Hardwired | PoE support | Yes |
| Rated nominal input | AC 100-240V/6A, 50-60Hz | Supported input range | AC 90-264V |
| Typical efficiency | 92% | Inrush current | <35A at 115VAC and 230VAC |
| Output rating | 54VDC / 48-56VDC, 8.9A | Maximum output power | 480W |
| Holdup time at 100% load | 20ms | IP rating | IP20 |
| Operating temperature | -40C to +75C | Storage temperature | -40C to +85C |
| Power derating | Vertical mounting: above 50C derate 2.5% per C; above 70C derate 5% per C | Operating humidity | 5 to 95% RH, non-condensing |
| Dimensions | 144 x 121 x 118.6 mm; 5.66 x 4.76 x 4.66 in. | Unit weight | 3.02 lb (1.37 kg) |
| MTBF | 1,058,750 hours | Conformal coating | Yes |
| Hazardous-location note | Not approved for hazardous-location installations | Safety entries | UL/cUL recognized to UL 60950-1 and UL 62368-1; UL 508 and CSA C22.2 No. 107.1-01 |
| EMC entries | EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61204-3, EN 55024, CISPR 32, EN 55032, CISPR35, EN55035, FCC 47 CFR Part 15B | IE 4000 context | Listed as a 480W PoE/PoE+ power supply option |
| Closest lower hardwired AC variant | PWR-IE240W-PCAC-L= |
