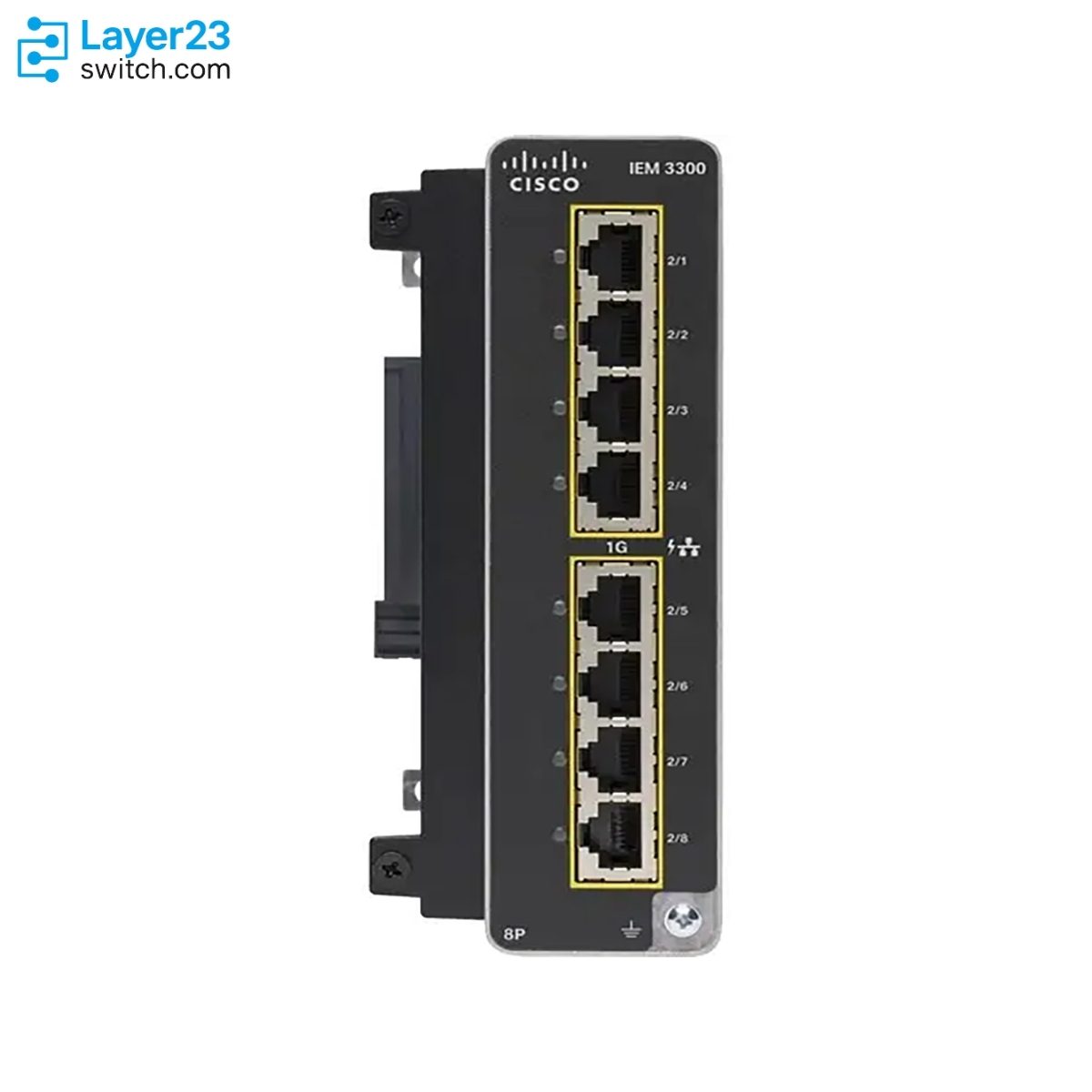

IEM-3300-8P – 8x1G PoE+ Copper Ports – IE3300 Expansion Module
2/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
IEM-3300-8P Description
IEM-3300-8P is a Cisco Catalyst IE3300 expansion module that adds eight Gigabit Ethernet PoE/PoE+ copper ports to supported Cisco industrial Ethernet base switches. It fits the IE-3300-8P2S, IE-3300-8U2X, and IE-3400-8P2S platforms when a field cabinet needs additional powered RJ45 endpoints, with the expansion module bringing the system to 18 total ports while consuming 14W. Cisco documentation identifies it as a PoE/PoE+ copper module rather than a 90W PoE module, and the single-module, non-hot-swappable design makes it a targeted port-expansion option for rugged access deployments that need more standard Gigabit PoE/PoE+ device connections.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IEM-3300-8P |
|
Cisco ordering PID |
IEM-3300-8P= |
|
Product type |
PoE/PoE+ copper expansion module |
|
Expansion ports |
8 x Gigabit Ethernet PoE/PoE+ copper ports |
|
Port media |
100/1000Mbps RJ45 PoE/PoE+ copper |
|
Compatible base systems |
IE-3300-8P2S, IE-3300-8U2X, and IE-3400-8P2S |
|
Total system ports |
18 including expansion module |
|
90-W PoE support |
No |
|
Advanced hardware features |
No |
|
Module power consumption |
14W |
|
Dimensions |
6 x 2.6 x 5.3 in. / 15.2 x 6.6 x 13.5 cm |
|
Weight |
2.0 lb / 0.91 kg |
Application Scenarios
Use IEM-3300-8P when a compatible IE3300 or IE3400 PoE base switch needs eight additional 100/1000Mbps RJ45 ports that supply PoE or PoE+.
This module fits cabinet layouts where the single expansion position must be reserved for powered copper endpoints rather than the non-PoE copper block of IEM-3300-8T or the SFP fiber block of IEM-3300-8S.
Stage the order with the host power plan, because Cisco ties PoE capacity to the base-switch system and documents 360W or 480W system budget contexts with expansion modules.
Product Comparison
|
Parameter |
IEM-3300-8P | |||
|---|---|---|---|---|
|
Product type |
PoE/PoE+ copper expansion module |
PoE/PoE+ copper expansion module |
Copper expansion module |
1GE/2.5G 4PPoE copper expansion module |
|
Total ports on expansion module |
8 |
16 |
8 |
4 |
|
100/1000Mbps PoE/PoE+ ports |
8 |
16 |
0 listed |
0 listed |
|
100/1000Mbps data-only copper ports |
0 listed |
0 listed |
8 |
0 listed |
|
1GE/2.5G copper ports with up to 802.3bt type 4 PoE |
0 listed |
0 listed |
0 listed |
4 |
|
Total system ports including module |
18 |
26 |
18 |
14 |
|
Cisco ordering PID |
IEM-3300-8P= |
IEM-3300-16P= |
IEM-3300-8T= |
IEM-3300-4MU= |
|
90-W PoE support |
No |
No |
No |
Yes |
|
Module power consumption |
14W |
21W |
6W |
20W |
- In an IEM-3300-8P vs IEM-3300-16P comparison, both are PoE/PoE+ copper expansion modules, but IEM-3300-16P raises the expansion count from 8 to 16 ports and the total system count from 18 to 26.
- The IEM-3300-8P difference from IEM-3300-8T is powered copper: the two modules share the eight-port count, while only IEM-3300-8P supplies PoE/PoE+ ports.
- For IEM-3300-8P vs IEM-3300-4MU, the comparison centers on power class and speed because IEM-3300-4MU is the four-port 1GE/2.5G 802.3bt type 4 option with 90-W PoE support.
- Buyers deciding which model to choose should keep IEM-3300-8P on standard eight-port PoE/PoE+ copper expansion and move only when the table calls for 16 powered ports, data-only copper, or 4PPoE 2.5G copper.
Selection Guide
1. Choose it for eight PoE copper ports
Select IEM-3300-8P when the bill of materials needs eight additional 100/1000Mbps RJ45 ports with PoE/PoE+ on a supported PoE base switch.
2. Move to 16P for powered port density
Use IEM-3300-16P when the endpoint count requires 16 PoE/PoE+ expansion ports and the larger 26-port system total is part of the approved design.
3. Keep 8T separate for data-only copper
Choose IEM-3300-8T instead when the same eight-port expansion count is needed without PoE. Substituting IEM-3300-8T removes the powered-port function from the order.
4. Verify 4PPoE needs before substituting 4MU
Move to IEM-3300-4MU only when the design requires four 1GE/2.5G copper ports with 802.3bt type 4 power; IEM-3300-8P is not the 90-W PoE expansion module.
PoE Power Planning
|
Planning Item |
Cisco-confirmed boundary |
Procurement impact |
|---|---|---|
|
Compatible PoE base systems |
IEM-3300-8P is listed with IE-3300-8P2S, IE-3300-8U2X, and IE-3400-8P2S |
Prevents the module from being ordered for a non-PoE base switch |
|
IE3300 all-Gigabit PoE system |
Up to 360W PoE/PoE+ with expansion module |
Keeps endpoint count tied to the documented shared system budget |
|
IE3300 10G PoE system |
Up to 480W with expansion module |
Separates the higher power-budget path from the all-Gigabit base-switch plan |
|
IE3400 PoE base use |
Cisco lists IE-3400-8P2S compatibility and a 480W PoE budget with expansion module |
Requires a base-platform and feature-impact review before mixed IE3300-module use |
|
90-W PoE boundary |
FAQ marks 90-W PoE support as No for IEM-3300-8P |
Prevents use of this SKU for endpoints that require 4PPoE type 4 power |
Ordering Checklist
|
Check Item |
What to Confirm |
Procurement Risk Controlled |
|---|---|---|
|
Exact module PID |
IEM-3300-8P in the site SKU and IEM-3300-8P= in Cisco ordering notation |
Avoids treating Cisco’s trailing-equals ordering format as a different product |
|
PoE base switch |
IE-3300-8P2S, IE-3300-8U2X, or IE-3400-8P2S |
Blocks accidental attachment to a data-only base system |
|
Powered port requirement |
8 x 100/1000Mbps PoE/PoE+ copper expansion ports |
Separates this module from IEM-3300-8T and SFP expansion modules |
|
System power budget |
360W all-Gigabit IE3300 context or 480W 10G IE3300 / IE3400 PoE context |
Prevents endpoint power assumptions from exceeding the documented host plan |
|
90-W endpoint requirement |
No 90-W PoE support on IEM-3300-8P |
Sends 4PPoE type 4 requirements to the correct expansion option |
|
Installation state |
Switch powered down before the expansion module is attached |
Aligns field work with Cisco installation handling guidance |
|
Expansion count |
One expansion module attached to a base system at a time |
Stops a design that tries to stack multiple expansion modules |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IEM-3300-8P | Cisco ordering PID | IEM-3300-8P= |
| Product type | PoE/PoE+ copper expansion module | Cisco ordering description | Catalyst IE3300 w/ 8 GE PoE/PoE+ Copper ports, Expansion Module |
| Total ports on expansion module | 8 | PoE/PoE+ copper ports | 8 x 100/1000Mbps |
| Total system ports | 18 including expansion module | Module power consumption | 14W |
| Compatible base systems | IE-3300-8P2S, IE-3300-8U2X, IE-3400-8P2S | 90-W PoE support | No |
| Advanced hardware features | No | IE3400 platform note | IE3400 base system provides advanced hardware features through its additional FPGA |
| IE3300 all-Gigabit PoE budget context | Up to 360W with expansion module | IE3300 10G PoE budget context | Up to 480W with expansion module |
| IE3400 PoE budget context | 480W with expansion module on IE-3400-8P2S | Copper cable category | Category 5 or higher for 1000BASE-T-compatible devices |
| Dimensions | 6 x 2.6 x 5.3 in. / 15.2 x 6.6 x 13.5 cm | Weight | 2.0 lb / 0.91 kg |
| Mounting | DIN rail | MTBF | 2,931,233 hours |
| Expansion-module limit | One expansion module at a time | Hot-swap support | Not hot-swappable |
| Installation handling | Do not attach an expansion module while the switch is energized | Primary comparison SKUs | IEM-3300-16P, IEM-3300-8T, IEM-3300-4MU |
Get More Information
Need pricing, stock, or shipping details for the IEM-3300-8P ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What does IEM-3300-8P= add to IE3300?
-
Which devices fit IEM-3300-8P= ports?
-
How is IEM-3300-8P= different from IEM-3300-8T?
-
What power planning matters for IEM-3300-8P=?
-
Can IEM-3300-8P= power every port at maximum draw?
-
Why do IEM-3300-8P= questions mention rugged cabinets?
-
What software check applies to IEM-3300-8P=?
-
When is IEM-3300-8P= the wrong expansion choice?
