IEM-3300-6T2S – 6x1G Copper Ports – 2x1G SFP Ports – IE3300 Module
2/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
IEM-3300-6T2S Description

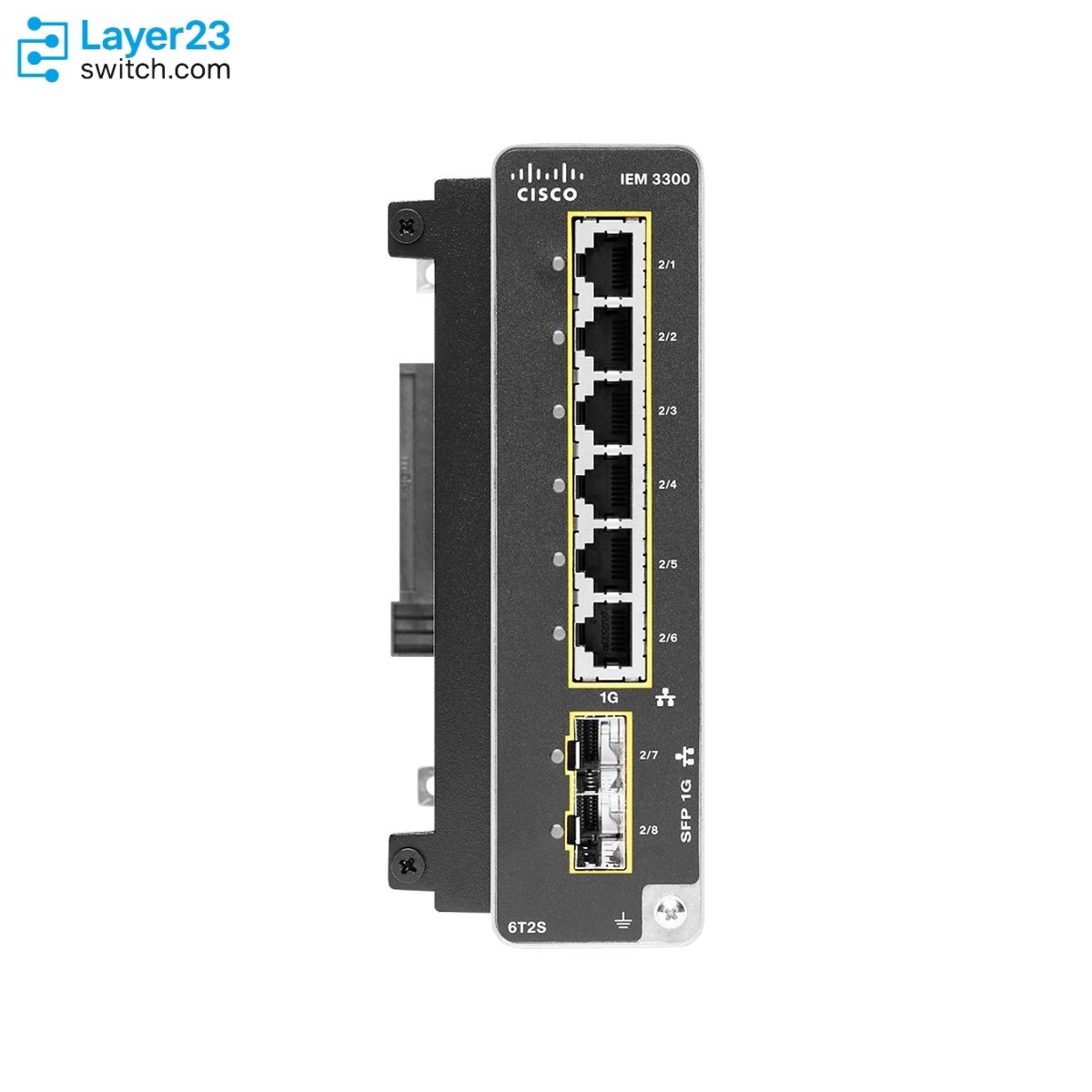

IEM-3300-6T2S is a Cisco Catalyst IE3300 Rugged Series expansion module that adds mixed Gigabit Ethernet copper and SFP connectivity to supported industrial switch base systems. It provides 8 expansion-module ports, with 6 100/1000Mbps RJ45 copper ports and 2 100/1000Mbps SFP ports, and Cisco lists the module for IE3300 base systems and for IE3400 base switches with the documented SGT/SGACL caveat. The module is used when an industrial Ethernet deployment needs additional copper device connections plus fiber or SFP uplinks in the same expansion slot, with 9W module power consumption, DIN-rail installation, and a non-hot-swappable expansion-module boundary confirmed in Cisco documentation.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IEM-3300-6T2S |
|
Cisco ordering PID |
IEM-3300-6T2S= |
|
Product type |
Mixed copper and SFP expansion module |
|
Expansion ports |
8 total ports |
|
Copper ports |
6 x 100/1000Mbps RJ45 copper ports |
|
SFP ports |
2 x 100/1000Mbps SFP ports |
|
Total system ports |
18 including expansion module |
|
PoE support |
No PoE, PoE+, or 90W PoE support on this module |
|
Compatible base systems |
Cisco-listed IE3300 and IE3400 modular industrial switch base systems |
|
Module power consumption |
9W |
|
Dimensions |
6 x 2.6 x 5.3 in. / 15.2 x 6.6 x 13.5 cm |
|
Weight |
2.0 lb / 0.91 kg |
Application Scenarios
IEM-3300-6T2S fits a compact industrial cabinet where the expansion side needs mostly copper device links but still reserves two Gigabit SFP fiber ports.
Use this module when neither the all-copper IEM-3300-8T nor the all-SFP IEM-3300-8S matches the field media map. The port count stays at eight while the media split changes to six copper and two SFP.
Cisco also lists IE3300 expansion modules with IE3400 modular base switches, so this SKU can appear in IE3400 planning when the SGT/SGACL caveat is acceptable for the target design.
Product Comparison
|
Parameter |
IEM-3300-6T2S | |||
|---|---|---|---|---|
|
Product type |
Mixed copper and SFP expansion module |
Copper expansion module |
SFP expansion module |
Mixed copper and SFP expansion module |
|
Total ports on expansion module |
8 |
8 |
8 |
16 |
|
100/1000Mbps copper RJ45 ports |
6 |
8 |
0 listed |
14 |
|
100/1000Mbps SFP ports |
2 |
0 listed |
8 |
2 |
|
PoE/PoE+ ports |
0 listed |
0 listed |
0 listed |
0 listed |
|
90W PoE support |
No |
No |
No |
No |
|
Total system ports including module |
18 |
18 |
18 |
26 |
|
Cisco ordering PID |
IEM-3300-6T2S= |
IEM-3300-8T= |
IEM-3300-8S= |
IEM-3300-14T2S= |
|
Module power consumption |
9W |
6W |
19W |
16W |
|
Physical size |
6 x 2.6 x 5.3 in. |
6 x 2.6 x 5.3 in. |
6 x 2.6 x 5.3 in. |
6 x 3.6 x 5.3 in. |
|
Weight |
2.0 lb / 0.91 kg |
2.0 lb / 0.91 kg |
2.0 lb / 0.91 kg |
2.7 lb / 1.2 kg |
|
MTBF |
3,729,130 hours |
3,041,040 hours |
6,810,960 hours |
1,865,300 hours |
- In an IEM-3300-6T2S vs IEM-3300-8T comparison, both modules keep the eight-port expansion count and 18 total system ports, but IEM-3300-6T2S reserves two ports for SFP while IEM-3300-8T stays all copper.
- The IEM-3300-6T2S difference from IEM-3300-8S is the copper allocation: IEM-3300-6T2S provides six RJ45 copper ports, while IEM-3300-8S assigns all eight expansion ports to SFP.
- For IEM-3300-6T2S vs IEM-3300-14T2S, the comparison is mainly density because IEM-3300-14T2S keeps two SFP ports but expands copper from six to fourteen and raises the total system-port count to 26.
- The which model to choose check should start with the endpoint media map, then confirm whether the order needs eight expansion ports or the larger 16-port mixed-media module.
Selection Guide
1. Choose the compact mixed-media layout
Choose IEM-3300-6T2S when the host switch needs an eight-port expansion module with six 100/1000Mbps copper links and two 100/1000Mbps SFP links.
2. Keep copper-only branches on 8T
Use IEM-3300-8T when every expansion endpoint terminates on RJ45 copper and the BOM does not need SFP ports on the module.
3. Move fiber-heavy plans away from 6T2S
Select IEM-3300-8S when all eight expansion ports must be SFP, or IEM-3300-14T2S when the same two-SFP design needs a larger 14-port copper block.
4. Verify the host and IE3400 caveat
Confirm the base system before finalizing the order because Cisco lists IE3300 expansion-module use with IE3400 bases but also documents an SGT/SGACL support caveat for that combination.
Ordering Checklist
|
Check Item |
What to Confirm |
Procurement Risk Controlled |
|---|---|---|
|
Exact module PID |
IEM-3300-6T2S in the site SKU and IEM-3300-6T2S= in Cisco ordering notation |
Prevents a trailing-equals Cisco spare PID from being treated as a different SKU |
|
Mixed port map |
6 x 100/1000Mbps copper RJ45 ports and 2 x 100/1000Mbps SFP ports |
Blocks substitution with all-copper, all-SFP, or 16-port mixed modules |
|
Host base system |
Cisco-listed IE3300 or IE3400 modular base system |
Avoids attaching the expansion module to an unsupported industrial switch platform |
|
Expansion count |
One expansion module is planned for the host switch |
Keeps the layout within Cisco’s documented one-module limit |
|
SFP selection |
SFP modules and fiber cabling are checked separately from the expansion module line |
Prevents assuming optics are included with the module SKU |
|
IE3400 security impact |
SGT/SGACL support caveat is reviewed before using this IE3300 module with an IE3400 base |
Protects designs that require advanced security features on IE3400 |
|
Installation state |
The module is attached while the switch is not energized |
Reduces replacement risk during field installation or service work |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IEM-3300-6T2S | Cisco ordering PID | IEM-3300-6T2S= |
| Product type | Mixed copper and SFP expansion module | Cisco ordering description | Catalyst IE3300 with 6GE Copper + 2GE SFP, Expansion Module |
| Total ports on expansion module | 8 | Copper RJ45 ports | 6 x 100/1000Mbps |
| SFP ports | 2 x 100/1000Mbps | PoE/PoE+ ports | 0 listed for this module |
| 90W PoE support | No | Advanced hardware features | No |
| Total system ports | 18 including expansion module | Module power consumption | 9W |
| Compatible IE3300 base systems | IE-3300-8T2C, IE-3300-8P2S, IE-3300-8T2X, IE-3300-8U2X | Compatible IE3400 base systems | IE-3400-8T2S, IE-3400-8P2S |
| IE3400 attachment note | IE3300 expansion modules can be used with IE3400 base switches with SGT/SGACL caveat | Expansion-module limit | One expansion module at a time |
| Hot-swap support | Not hot-swappable | Installation handling | Do not attach an expansion module while the switch is energized |
| Dimensions | 6 x 2.6 x 5.3 in. / 15.2 x 6.6 x 13.5 cm | Weight | 2.0 lb / 0.91 kg |
| Mounting | DIN rail | MTBF | 3,729,130 hours |
| Copper cable guidance | Category 5 or higher for 1000BASE-T-compatible devices | SFP planning | Use Cisco-supported SFP modules and matching fiber cabling |
