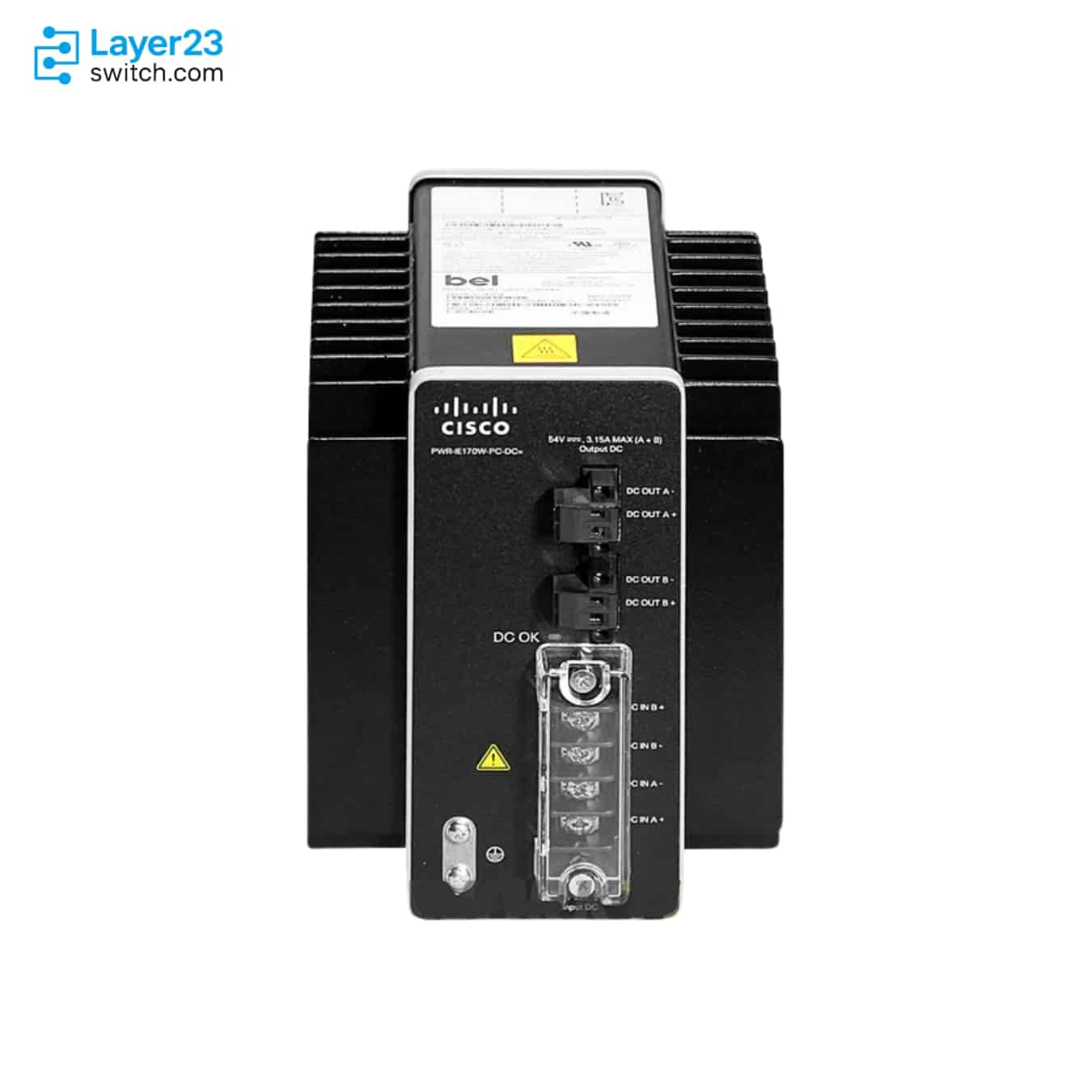

PWR-IE170W-PC-DC – 170W Low-DC PSU – 54V PoE Output – DIN-Rail
3/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
PWR-IE170W-PC-DC Description
PWR-IE170W-PC-DC is a Cisco Industrial DIN-Rail 170W low-DC-to-DC power supply for industrial Ethernet PoE power designs that need a hardwired DC input source. It is listed as the Cisco ordering PID PWR-IE170W-PC-DC= and provides 54VDC, 3.2A output with 170W maximum output power from a DC 12-54V/23A nominal input, supporting a DC 10.8-60V input range for cabinet and DIN-rail deployments. The unit is IP20 rated, operates from -40C to +75C without derating, and appears in Cisco industrial switch power contexts including IE 2000U PoE/PoE+ DC environments and Catalyst IE3100 power-supply option tables where the documented unsupported-model footnote applies.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-IE170W-PC-DC |
|
Cisco ordering part |
PWR-IE170W-PC-DC= |
|
Product type |
170W low-DC-to-DC PoE power supply |
|
Input connection type |
Hardwired |
|
PoE support |
Yes |
|
Rated nominal input |
DC 12-54V/23A |
|
Supported input range |
DC 10.8-60V |
|
Output rating |
54VDC, 3.2A |
|
Maximum output power |
170W |
|
Holdup time |
9ms at 10.8VDC to 25.9ms at 60VDC |
|
Operating temperature |
-40C to +75C |
|
IP rating |
IP20 |
Application Scenarios
PWR-IE170W-PC-DC belongs in industrial cabinets where the available feed is low-voltage DC and the switch design still needs the 170W PoE output class.
Cisco IE 2000U documentation maps the 170W DC supply to maximum PoE and PoE+ port support in a DC environment, with separate outputs feeding the base unit and PoE input.
Operations teams can keep this SKU separate from PWR-IE170W-PC-AC= so a low-DC cabinet is not mistakenly staged with the AC or high-DC version.
Product Comparison
|
Parameter |
PWR-IE170W-PC-DC | |||
|---|---|---|---|---|
|
Cisco ordering part |
PWR-IE170W-PC-DC= |
PWR-IE170W-PC-AC= |
PWR-IE65W-PC-DC= |
PWR-IE240W-PCAC-L= |
|
Product type |
Low-DC-to-DC PoE power supply |
AC-to-DC or high-DC-to-DC PoE power supply |
Low-DC-to-DC PoE power supply |
AC-to-DC PoE power supply |
|
Input connection type |
Hardwired |
Hardwired |
Hardwired |
Hardwired |
|
Rated nominal input |
DC 12-54V/23A |
AC 100-240V/2.3A, 50-60Hz or DC 125-250V/2.1A |
DC 24-48VDC/4.5A |
AC 100-240V/3.5A, 50-60Hz |
|
Supported input range |
DC 10.8-60V |
AC 90-264V or DC 106-300V |
DC 18-60V |
AC 90-264V |
|
Output rating |
54VDC, 3.2A |
54VDC, 3.2A |
54VDC, 1.2A |
54VDC / 48-56VDC, 4.5A |
|
Maximum output power |
170W |
170W |
65W |
240W |
|
Holdup time at 100% load |
9ms at 10.8VDC to 25.9ms at 60VDC |
20ms |
Not specified by Cisco in the output table |
20ms |
|
Typical efficiency |
88% |
88% |
92% |
91% |
|
PoE support |
Yes |
Yes |
Yes |
Yes |
|
IP rating |
IP20 |
IP20 |
IP20 |
IP20 |
|
Operating temperature |
-40C to +75C |
-40C to +75C |
-40C to +75C |
-40C to +80C with derating rules |
|
Unit weight |
3.68 lb (1.67 kg) |
3.88 lb (1.76 kg) |
2.60 lb (1.18 kg) |
2.11 lb (0.96 kg) |
- In a PWR-IE170W-PC-DC vs PWR-IE170W-PC-AC comparison, the key difference is input design: the DC model accepts DC 12-54V input, while the AC model accepts AC or high-voltage DC input.
- The PWR-IE170W-PC-DC difference from PWR-IE65W-PC-DC is output class. Both are low-DC PoE supplies, but the 170W model provides 54VDC at 3.2A while the 65W model provides 54VDC at 1.2A.
- For a PWR-IE170W-PC-DC vs PWR-IE240W-PCAC-L comparison, the 240W unit is an AC-input supply with a larger output class, so it does not replace the low-DC input role of PWR-IE170W-PC-DC.
- Buyers comparing which model to choose should start with input voltage, output wattage, hardwired installation, and the documented PoE power plan.
Selection Guide
1. Start with the cabinet voltage
Choose PWR-IE170W-PC-DC when the installation provides a low-voltage DC feed and the design requires a hardwired DIN-rail supply.
2. Keep the AC sibling out of low-DC BOMs
Use PWR-IE170W-PC-AC only when the cabinet is built for AC or high-voltage DC input. Matching the 170W output class does not make the input side interchangeable.
3. Separate 65W and 170W PoE planning
Select PWR-IE65W-PC-DC only where the lower 65W output class satisfies the switch and powered-device plan. Cisco separates the 65W and 170W PoE supply rows.
4. Confirm industrial compliance before assignment
Check Class 1 Div 2 or Zone 2, UL 508, IEC 61850-3, IEEE 1613, IP20, and temperature requirements before the supply is released for an industrial cabinet.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Fact |
Quote Check |
|---|---|---|
|
Output class |
54VDC, 3.2A with 170W maximum output |
Size the PoE load against the 170W supply class |
|
IE 2000U DC role |
Cisco maps the 170W DC supply to maximum PoE and PoE+ port support in a DC environment |
Route one output to the base unit and the other to the PoE input when following IE 2000U guidance |
|
Platform power budget |
Cisco states the switch and PoE ports must stay within the power-supply budget in industrial switch power tables |
Check switch consumption and powered-device demand before sourcing |
|
Input environment |
DC 10.8-60V supported input range |
Verify the site feed before choosing the DC or AC 170W variant |
Ordering Checklist
|
Part-number capture |
PWR-IE170W-PC-DC base PID and PWR-IE170W-PC-DC= orderable part |
Keep the receiving record on the DC spare part |
Mixing base SKU and Cisco spare notation |
|---|---|---|---|
|
Facility feed |
DC 12-54V/23A nominal input with DC 10.8-60V supported range |
Confirm the cabinet is a low-DC installation before sourcing |
Ordering the AC or high-DC 170W version for the wrong feed |
|
PoE load sizing |
54VDC, 3.2A output and 170W maximum output power |
Compare switch and powered-device draw against the supply class |
Treating the 65W DC supply as an equivalent substitute |
|
Environmental fit |
IP20 rating, -40C to +75C operation, and no derating |
Match cabinet temperature and enclosure assumptions |
Assigning the spare outside its documented operating envelope |
|
Industrial approvals |
Class 1 Div 2 or Zone 2, UL 508, IEC 61850-3, and IEEE 1613 entries |
Attach the correct compliance evidence to site documentation |
Releasing the part before hazardous-location review |
|
Switch context |
IE 2000U DC PoE guidance and IE3100 power-supply table with Cisco unsupported-model footnote |
Tie the spare to the documented Cisco industrial switch family and support boundary |
Using the supply as a generic cross-platform DC converter |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-IE170W-PC-DC | Cisco ordering part | PWR-IE170W-PC-DC= |
| Product type | 170W low-DC-to-DC PoE power supply | Ordering description | 170W DC to DC power supply |
| Input connection type | Hardwired | PoE support | Yes |
| Rated nominal input | DC 12-54V/23A | Supported input range | DC 10.8-60V |
| Typical efficiency | 88% | Inrush current | 17.3A at 12VDC |
| Output rating | 54VDC, 3.2A | Maximum output power | 170W |
| Holdup time at 100% load | 9ms at 10.8VDC to 25.9ms at 60VDC | IP rating | IP20 |
| Operating temperature | -40C to +75C | Storage temperature | -40C to +85C |
| Power derating | No derating | Operating humidity | <95% RH, non-condensing |
| Dimensions | 114 x 150 x 146 mm; 4.48 x 5.90 x 5.74 in. | Unit weight | 3.68 lb (1.67 kg) |
| MTBF | 2,164,641 hours | Hazardous-location entry | Class 1 Div 2 or Zone 2 |
| Electric safety entries | EN 60950-1 and UL 508 | Industrial standards entries | IEC 61850-3, IEEE 1613, EN 61000-6-4, EN 61000-6-2 |
| IE 2000U PoE context | Listed as a 170W DC supply for maximum PoE/PoE+ support in a DC environment | IE3100 table context | Listed in Catalyst IE3100 power-supply options with Cisco unsupported footnote for IE-3100-4P2S-E, IE-3100-8P2C-E, IE-3100-3P1U2S-E, and IE-3100-6P2U2C-E |
| Closest 170W AC variant | PWR-IE170W-PC-AC= |
