PWR-IE50W-AC-L Description

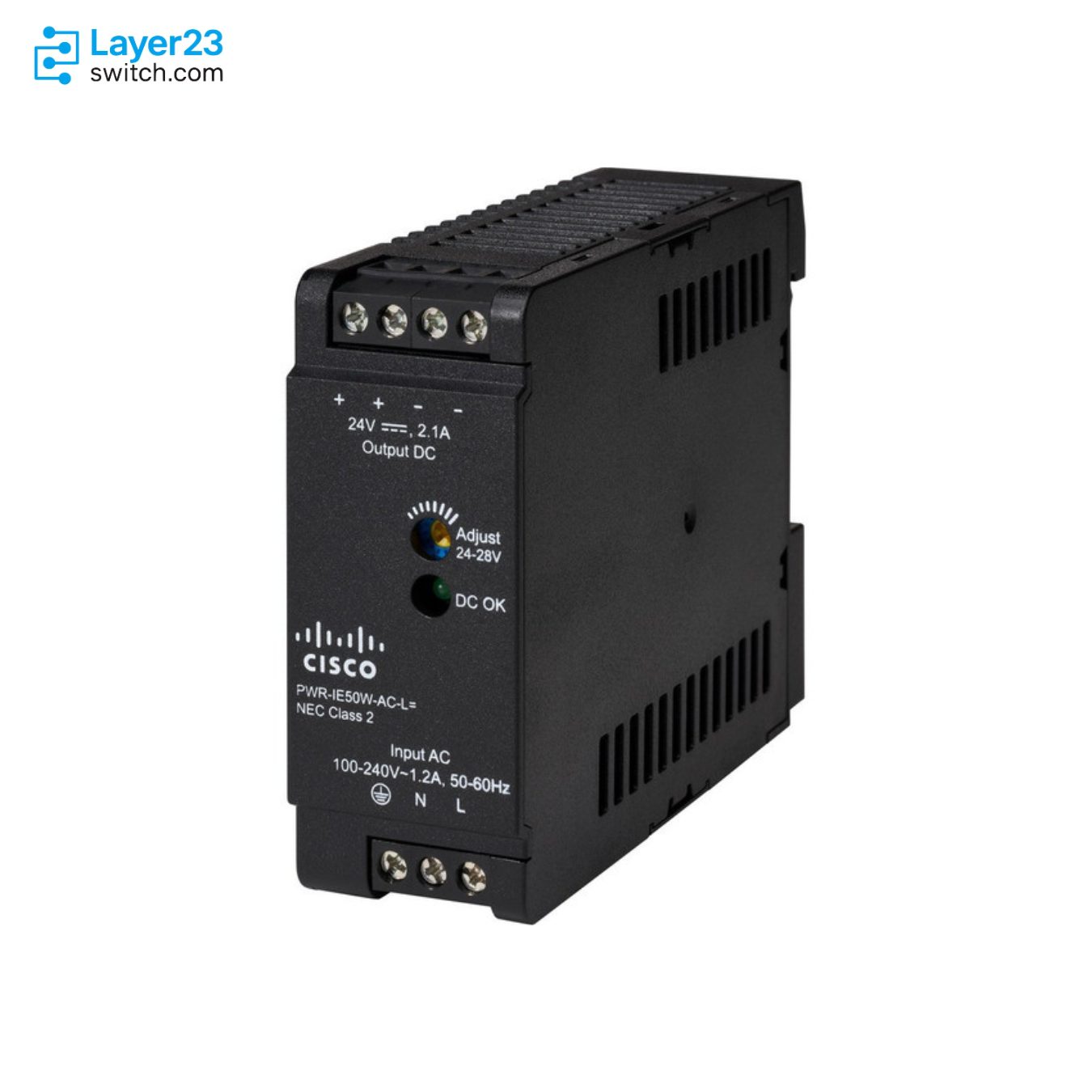

The PWR-IE50W-AC-L is a Cisco Industrial DIN-Rail 50W AC-to-DC power supply for industrial Ethernet switch cabinets fed from an AC line. It takes AC 100-240V (AC 90-264V supported), delivers 24VDC at 2.1A for 50W maximum output, and is rated for -20°C to +70°C operation at IP20, with power derating above 55°C and below -10°C. The supply is hardwired, carries no PoE support, and is not approved for hazardous location installations.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-IE50W-AC-L |
|
Cisco ordering part |
PWR-IE50W-AC-L= |
|
Product type |
50W AC-to-DC power supply |
|
Input connection type |
Hardwired |
|
PoE support |
No |
|
Rated nominal input |
AC 100-240V/1.2A, 50-60Hz |
|
Supported input range |
AC 90-264V |
|
Output rating |
24VDC / 24-28VDC, 2.1A |
|
Maximum output power |
50W |
|
Holdup time |
20ms at 100% load |
|
Operating temperature |
-20C to +70C, with power derating above 55C (3.33% per C) and below -10C (2% per C) |
|
Hazardous-location status |
Not approved for hazardous location installations |
Application Scenarios
In a DIN-rail control cabinet with an AC feed, the supply converts line voltage to 24VDC for an industrial Ethernet switch that does not need PoE. Its 0.18 kg body leaves room on a crowded rail.
On a factory-floor IE 1000 or IE 2000 switch with no PoE load, the supply provides the 24VDC switch input from a hardwired AC source. The installation stays outside hazardous areas, since the unit carries no hazardous-location approval.
Product Comparison
|
Parameter |
PWR-IE50W-AC-L | |||
|---|---|---|---|---|
|
Input connection type |
Hardwired |
Hardwired |
Plug-in |
Hardwired |
|
Supported input voltage operating range |
AC 90-264V |
AC 90-264V or DC 106-300V |
AC 90-264V |
AC 90-264V or DC 106-300V |
|
Nominal output voltage / adjustment range |
24VDC / 24-28VDC, 2.1A |
24VDC, 2.1A |
24VDC, 2.1A |
54VDC, 1.2A |
|
Max output power |
50W |
50W |
50W |
65W |
|
PoE / PoE+ /4PPoE support |
No |
No |
No |
Yes |
|
Operating temperature |
-20°C to +70°C, derated above 55°C and below -10°C |
-40°C to +75°C |
-20°C to +70°C, no derating |
-40°C to +75°C |
PWR-IE50W-AC-L is the AC-only 50W model of this group, with hardwired terminals, 24VDC output, no PoE and no hazardous-location approval, and it derates above 55C and below -10C. Cabinets fed by 125-250VDC, or sites that need Class 1 Div 2 or Zone 2 approval and operation from -40C to +75C without derating, need PWR-IE50W-AC. Where the supply must have a plug-in input instead of hardwired terminals, PWR-IE50W-AC-IEC keeps the same 50W, 24VDC output and the same -20C to +70C range without derating. Loads that need PoE require PWR-IE65W-PC-AC, which delivers 54VDC at 1.2A and 65W.
Ordering Checklist
- IE 1000 hosts: Match the supply to Industrial Ethernet 1000 series switches such as IE-1000-4T1T-LM and IE-1000-6T2T-LM. The IE 1000 data sheet lists PWR-IE50W-AC-L= for that series; a host outside the list is not a supported pairing.
- IE 3300 hosts: Match the supply to Catalyst IE3300 switches such as IE-3300-8T2S-E and IE-3300-8T2X-A. The IE3300 data sheet lists PWR-IE50W-AC-L= among its DIN-rail power supplies, tying the order to a documented host.
- IE 3400 hosts: Match the supply to Catalyst IE3400 switches such as IE-3400-8T2S-E and IE-3400-8T2S-A. The IE3400 data sheet lists PWR-IE50W-AC-L= among its power options; Catalyst IE3400H uses a different supply.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-IE50W-AC-L | Cisco ordering part | PWR-IE50W-AC-L= |
| Product type | 50W AC-to-DC power supply | Cisco ordering description | 50W AC to DC power supply |
| Input connection type | Hardwired | PoE support | No |
| Rated nominal input | AC 100-240V/1.2A, 50-60Hz | Supported input range | AC 90-264V |
| Typical efficiency | 88% | Inrush current | <35A at 115VAC and 70A at 230VAC |
| Output rating | 24VDC / 24-28VDC, 2.1A | Maximum output power | 50W |
| Holdup time at 100% load | 20ms | Protections | Over temperature protection; short circuit protection |
| IP rating | IP20 | Operating temperature | -20C to +70C, with power derating outside -10C to +55C (see Power derating) |
| Storage temperature | -40C to +85C | Power derating | >55C de-rate by 3.33% per C; <-10C de-rate by 2% per C |
| Operating humidity | 5 to 95% RH, non-condensing | Dimensions | 30 x 75 x 89.5 mm; 1.18 x 2.95 x 3.52 in. |
| Weight | 0.18 kg (0.39 lb) | MTBF | 2,255,613 hours |
| Hazardous-location status | Not approved for hazardous location installations | Safety entries | CE, UL/cUL to UL 60950-1, UL/cUL to UL 62368-1, UL/cUL to UL 508, CB scheme to IEC 60950-1, NEC Class 2 |
| EMC entries | EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, CISPR 32, EN 55032, CISPR 11, EN 55011, FCC 47 CFR part 15B | Listed platform context | Cisco IE 1000, IE 2000, Catalyst IE3100, Catalyst IE3400, IE3500, and IE4000 power-supply tables list PWR-IE50W-AC-L= |
