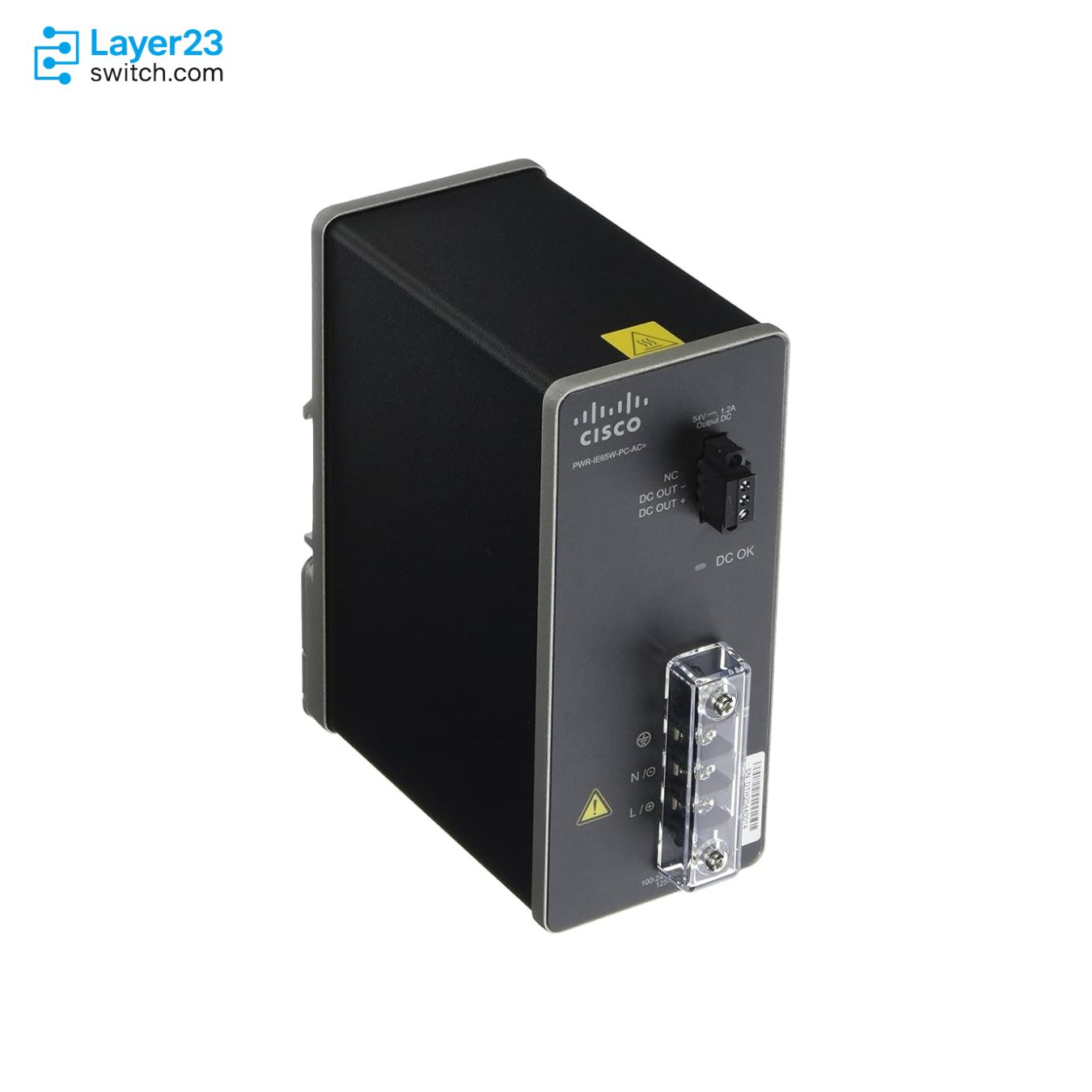

PWR-IE65W-PC-AC – 65W AC/DC PSU – 54V PoE Output – DIN-Rail
1/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
PWR-IE65W-PC-AC Description
PWR-IE65W-PC-AC is a Cisco Industrial DIN-Rail 65W PoE power supply for Cisco Industrial Ethernet switch deployments that need a hardwired AC or high-voltage DC input source. Listed by Cisco as ordering part PWR-IE65W-PC-AC=, it provides 54VDC at 1.2A with 65W maximum output, supports AC 90-264V or DC 106-300V input, operates from -40C to +75C, and fits rugged DIN-rail power designs where Cisco industrial switch power tables call for a compact PoE-capable supply.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-IE65W-PC-AC |
|
Cisco ordering part |
PWR-IE65W-PC-AC= |
|
Product type |
65W AC-to-DC or high-DC-to-DC PoE power supply |
|
Input connection type |
Hardwired |
|
PoE support |
Yes |
|
Rated nominal input |
AC 100-240V/1.4A, 50-60Hz or DC 125-250V/1.0A |
|
Supported input range |
AC 90-264V or DC 106-300V |
|
Output rating |
54VDC, 1.2A |
|
Maximum output power |
65W |
|
Holdup time |
10ms at 100% load |
|
Operating temperature |
-40C to +75C |
|
IP rating |
IP20 |
Application Scenarios
PWR-IE65W-PC-AC fits IE 2000U PoE designs where Cisco documents a 65W DC- or AC-input PoE power supply module for the PoE DC-input connector.
Cisco lists PWR-IE65W-PC-AC= in the IE3500 and IE4000 power-supply tables with 65W rating, AC or high-DC nominal input, and PoE or PoE+ support.
Operations teams can reserve this SKU for hardwired AC or high-DC cabinets and keep PWR-IE65W-PC-DC= for low-voltage DC sites that still require the 65W PoE output class.
Product Comparison
|
Parameter |
PWR-IE65W-PC-AC | |||
|---|---|---|---|---|
|
Cisco ordering part |
PWR-IE65W-PC-AC= |
PWR-IE65W-PC-DC= |
PWR-IE170W-PC-AC= |
PWR-IE50W-AC= |
|
Product type |
AC-to-DC or high-DC-to-DC PoE power supply |
Low-DC-to-DC PoE power supply |
AC-to-DC or high-DC-to-DC PoE power supply |
AC-to-DC or high-DC-to-DC power supply |
|
Input connection type |
Hardwired |
Hardwired |
Hardwired |
Hardwired |
|
Rated nominal input |
AC 100-240V/1.4A, 50-60Hz or DC 125-250V/1.0A |
DC 24-48VDC/4.5A |
AC 100-240V/2.3A, 50-60Hz or DC 125-250V/2.1A |
AC 100-240V/1.25A, 50-60Hz or DC 125-250V/1.25A |
|
Supported input range |
AC 90-264V or DC 106-300V |
DC 18-60V |
AC 90-264V or DC 106-300V |
AC 90-264V or DC 106-300V |
|
Output rating |
54VDC, 1.2A |
54VDC, 1.2A |
54VDC, 3.2A |
24VDC, 2.1A |
|
Maximum output power |
65W |
65W |
170W |
50W |
|
Holdup time at 100% load |
10ms |
Not specified by Cisco in the DIN-rail table |
20ms |
20ms |
|
Typical efficiency |
85% |
92% |
88% |
80% |
|
PoE support |
Yes |
Yes |
Yes |
No |
|
IP rating |
IP20 |
IP20 |
IP20 |
IP20 |
|
Hazardous-location approval |
Class 1 Div 2 or Zone 2 |
Class 1 Div 2 or Zone 2 |
Class 1 Div 2 or Zone 2 |
Class 1 Div 2 or Zone 2 |
|
Operating temperature |
-40C to +75C |
-40C to +75C |
-40C to +75C |
-40C to +75C |
|
Unit weight |
2.64 lb (1.2 kg) |
2.60 lb (1.18 kg) |
3.88 lb (1.76 kg) |
1.41 lb (0.64 kg) |
- In a PWR-IE65W-PC-AC vs PWR-IE65W-PC-DC comparison, both are 65W hardwired PoE supplies with 54VDC output, but PWR-IE65W-PC-AC accepts AC or high-voltage DC input while PWR-IE65W-PC-DC is the low-voltage DC input version.
- The PWR-IE65W-PC-AC difference from PWR-IE170W-PC-AC is output capacity. Both use AC or high-DC input and support PoE, but PWR-IE65W-PC-AC provides 65W while PWR-IE170W-PC-AC provides 170W.
- For a PWR-IE65W-PC-AC vs PWR-IE50W-AC comparison, the key difference is output role: PWR-IE65W-PC-AC provides 54VDC PoE output, while PWR-IE50W-AC provides 24VDC output with no PoE support.
- Buyers comparing which model to choose should verify input voltage class, PoE requirement, output wattage, and whether the Cisco platform document lists the supply for the target industrial switch.
Selection Guide
1. Match the AC or high-DC cabinet feed
Select PWR-IE65W-PC-AC when the site power source is AC 100-240V or high-voltage DC 125-250V and the BOM requires a hardwired 65W PoE DIN-rail supply.
2. Keep low-voltage DC orders on the DC variant
Move the order to PWR-IE65W-PC-DC only when the cabinet source is a low-voltage DC feed. The two 65W units share the 54VDC 1.2A output class but not the input design.
3. Separate 65W and 170W PoE planning
Use PWR-IE170W-PC-AC instead of this SKU when Cisco platform planning requires the larger 170W AC or high-DC PoE supply class.
4. Check platform and compliance records
Verify the Cisco industrial switch table, IP20 enclosure assumptions, operating temperature range, and Class 1 Div 2 or Zone 2 requirement before releasing the purchase record.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Fact |
Quote Check |
|---|---|---|
|
Output class |
54VDC, 1.2A with 65W maximum output |
Size the PoE plan against the 65W supply class |
|
IE 2000U PoE role |
Cisco documents PWR-IE65W-PC-AC= as a 65W DC- or AC-input PoE module |
Confirm the switch is using the PoE power input path |
|
IE 2000U PoE port note |
Cisco states PWR-IE65W modules can power four PoE ports or two PoE+ ports in that IE 2000U context |
Avoid applying the 170W PoE planning note to this SKU |
|
IE 3500 and IE 4000 budget boundary |
Cisco notes the selected power supply must cover the switch and connected PoE load |
Check attached powered-device demand before sourcing |
Ordering Checklist
|
Procurement Gate |
Cisco Evidence to Match |
Ordering Error Avoided |
|---|---|---|
|
Cisco spare notation |
DIN-rail power-supply ordering table lists PWR-IE65W-PC-AC= |
Avoids receiving the base SKU without the Cisco orderable spare suffix |
|
Source power class |
AC 100-240V/1.4A at 50-60Hz or DC 125-250V/1.0A |
Keeps AC and high-DC cabinets separate from the low-DC PWR-IE65W-PC-DC option |
|
PoE output sizing |
54VDC, 1.2A, 65W maximum output with 10ms holdup |
Prevents 170W PoE assumptions from being applied to the 65W supply |
|
IE 2000U PoE use |
Cisco documents the module for the PoE DC-input path and notes four PoE or two PoE+ ports in that context |
Confirms the order is for PoE input power rather than the main 24VDC system supply |
|
Industrial approval packet |
Class 1 Div 2 or Zone 2, CSA, UL 508, IEC 61850-3, and IEEE 1613 entries |
Keeps hazardous-location and utility documentation attached to the correct 65W AC/high-DC SKU |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-IE65W-PC-AC | Cisco ordering part | PWR-IE65W-PC-AC= |
| Product type | 65W AC-to-DC or high-DC-to-DC PoE power supply | Ordering description | 65W AC to DC power supply |
| Input connection type | Hardwired | PoE support | Yes |
| Rated nominal input | AC 100-240V/1.4A, 50-60Hz or DC 125-250V/1.0A | Supported input range | AC 90-264V or DC 106-300V |
| Typical efficiency | 85% | Inrush current | <35A at 115VAC and 70A at 230VAC |
| Output rating | 54VDC, 1.2A | Maximum output power | 65W |
| Holdup time at 100% load | 10ms | IP rating | IP20 |
| Operating temperature | -40C to +75C | Storage temperature | -40C to +85C |
| Power derating | No derating | Operating humidity | <95% RH, non-condensing |
| Dimensions | 66 x 148 x 118 mm; 2.5 x 5.82 x 4.64 in. | Unit weight | 2.64 lb (1.2 kg) |
| MTBF | 2,488,401 hours | Hazardous-location entry | Class 1 Div 2 or Zone 2 |
| Safety certification note | UL60950-1 and CSA60950-1 certified | Industrial standards entries | UL 508, IEC 61850-3, IEEE 1613, EN 61000-6-4, EN 61000-6-2 |
| IE 2000U PoE context | Listed as a 65W DC- or AC-input PoE power supply module | IE3500 power-supply context | Listed as 65W AC or high-DC PoE supply |
| IE 4000 power-supply context | Listed as 65W AC or high-DC PoE supply |
