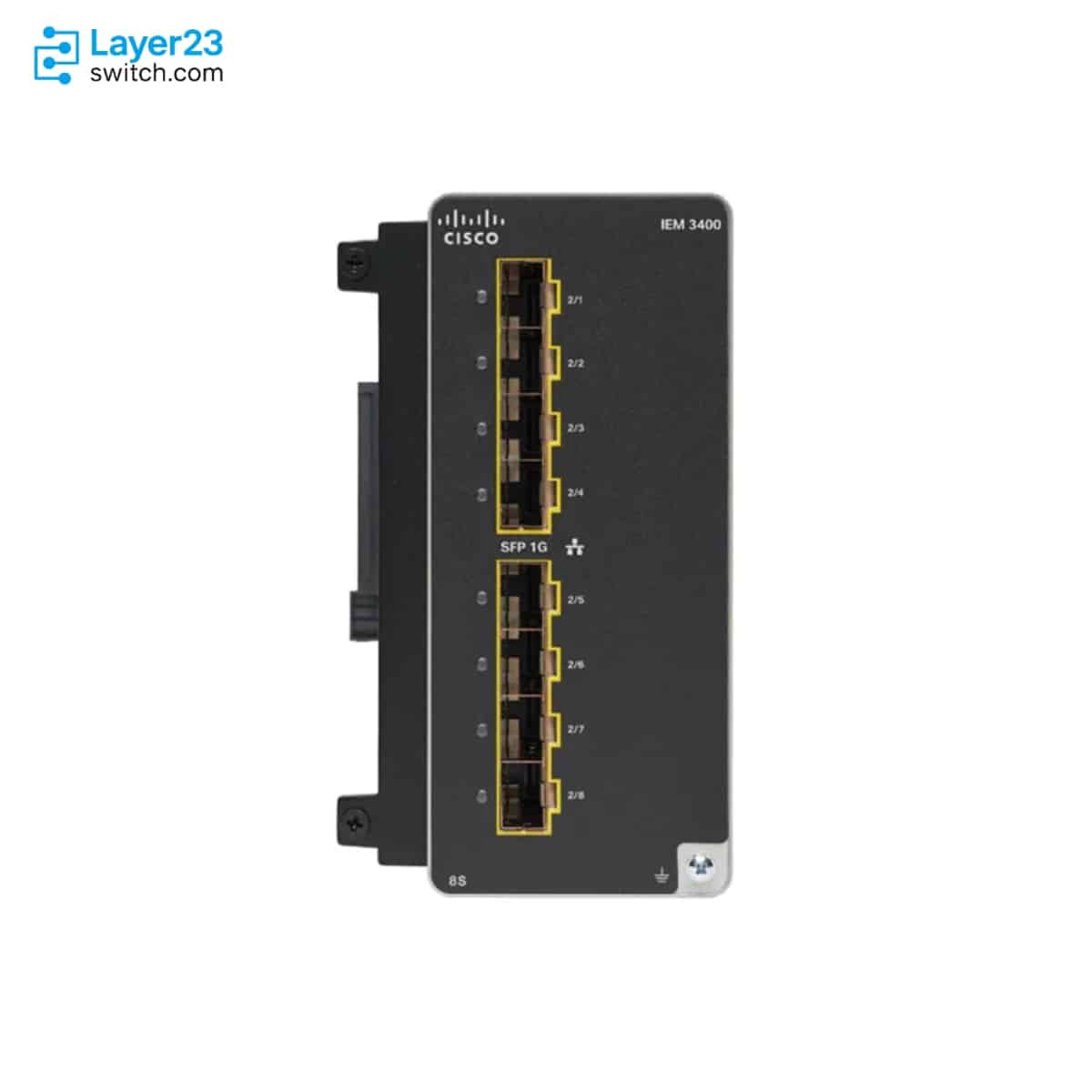

IEM-3400-8S – 8xGE SFP Ports – IE3400 Expansion Module – Non-PoE
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
IEM-3400-8S Description
IEM-3400-8S is a Cisco Catalyst IE3400 Rugged Series expansion module for IE-3400-8T2S and IE-3400-8P2S industrial switch base systems, adding eight Gigabit Ethernet SFP ports when a deployment needs fiber-facing access or uplink interfaces instead of copper expansion. Cisco identifies this module as a non-PoE add-on, documents support for advanced hardware features on the IE3400 platform, and states in the IE3x00 hardware installation guide that expansion modules are installed with the switch de-energized rather than hot swapped.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
IEM-3400-8S |
|
Cisco ordering PID |
IEM-3400-8S= |
|
Product type |
Expansion module |
|
Compatible base switch |
Cisco IE-3400-8T2S or IE-3400-8P2S |
|
Added port count |
8 ports |
|
Port media |
Gigabit Ethernet SFP |
|
PoE support |
No |
|
90-W PoE support |
No |
|
Advanced hardware features |
Yes |
|
Total system ports with module |
18 ports |
|
Module power consumption |
27 W |
|
Hot-swap support |
Expansion modules are not hot-swappable |
Application Scenarios
IEM-3400-8S fits IE3400 installations that need eight additional SFP-based Gigabit links for uplink separation or media plans that should not use copper expansion ports.
Use the 8S module when the endpoint or uplink plan requires SFP interfaces; IEM-3400-8T stays in the data-only copper role, and IEM-3400-8P is the PoE copper alternative.
Schedule the expansion-module work with the switch de-energized, because Cisco documents the IE3x00 expansion modules as not hot-swappable and warns against attaching them while powered.
Product Comparison
|
Parameter |
IEM-3400-8S | |||
|---|---|---|---|---|
|
Product type |
Expansion module |
Expansion module |
Expansion module |
Expansion module |
|
Cisco ordering PID |
IEM-3400-8S= |
IEM-3400-8T= |
IEM-3400-8P= |
IEM-3300-8S= |
|
Compatible base switch |
IE-3400-8T2S or IE-3400-8P2S |
IE-3400-8T2S or IE-3400-8P2S |
IE-3400-8P2S |
IE-3300-8T2S, IE-3300-8P2S, IE-3300-8U2X, or IE-3400-8T2S |
|
Total system ports with module |
18 ports |
18 ports |
18 ports |
18 ports |
|
Expansion port count |
8 ports |
8 ports |
8 ports |
8 ports |
|
Port media |
Gigabit Ethernet SFP |
Gigabit Ethernet copper |
Gigabit Ethernet copper |
Gigabit Ethernet SFP |
|
PoE/PoE+ support |
No |
No |
Yes |
No |
|
90-W PoE support |
No |
No |
No |
No |
|
Advanced hardware features |
Yes |
Yes |
Yes |
No |
|
Module power consumption |
27 W |
12 W |
20 W at 54 V, excluding powered-device load |
10 W |
- In an IEM-3400-8S vs IEM-3400-8T comparison, both are IE3400 8-port expansion modules, but the confirmed difference is port media: IEM-3400-8S uses GE SFP ports and IEM-3400-8T uses GE copper ports.
- The IEM-3400-8S vs IEM-3400-8P difference is both media and PoE role, because the current SKU is non-PoE SFP expansion while IEM-3400-8P adds PoE/PoE+ copper ports.
- For an IEM-3400-8S vs IEM-3300-8S comparison, the table separates the IE3400 and IE3300 families and shows advanced hardware features as Yes for IEM-3400-8S and No for IEM-3300-8S.
- Buyers deciding which model to choose should verify the base switch first, then use the media, PoE, and advanced-hardware rows to keep the expansion module aligned with the cabinet design.
Selection Guide
1. Select IEM-3400-8S for SFP expansion
Choose this SKU when the IE3400 base system needs eight added Gigabit Ethernet SFP ports instead of RJ-45 copper expansion.
2. Keep copper expansion out of SFP BOMs
Use IEM-3400-8T only when the additional eight ports should be data-only copper, and use IEM-3400-8P only when PoE or PoE+ copper endpoint power is required.
3. Confirm the IE3400 base switch
Match IEM-3400-8S with an IE-3400-8T2S or IE-3400-8P2S base switch before releasing the quote or spare-module line.
4. Plan SFP media and installation timing together
Review the SFP module list, single-module mechanical position, and powered-down service window before the module is staged for the site.
Ordering Checklist
|
Check item |
What to confirm |
Why it matters |
|---|---|---|
|
Exact order line |
Page SKU IEM-3400-8S and Cisco ordering PID IEM-3400-8S= |
Separates the IE3400 SFP module from IE3300 and copper IE3400 expansion modules |
|
Base switch |
IE-3400-8T2S or IE-3400-8P2S |
Cisco lists these IE3400 base systems for the 8S expansion module |
|
Media plan |
Eight added Gigabit Ethernet SFP ports |
The SKU does not provide RJ-45 copper ports or PoE endpoint power |
|
SFP media plan |
SFP module type and link media matched to the site design |
Cisco identifies the expansion interfaces as GE SFP ports rather than RJ-45 copper ports |
|
Installation state |
Switch powered down before adding or removing the module |
Cisco states expansion modules are not hot-swappable |
|
Expansion position |
One expansion module attached to a base system at a time |
Final port count depends on the base switch plus the selected expansion module |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | IEM-3400-8S | Cisco ordering PID | IEM-3400-8S= |
| Product type | Expansion module | Compatible base switch | IE-3400-8T2S or IE-3400-8P2S |
| Total system ports with module | 18 ports | Expansion port count | 8 ports |
| Port media | Gigabit Ethernet SFP | PoE support | No |
| 90-W PoE support | No | Advanced hardware features | Yes |
| Module power consumption | 27 W | Expansion module count | One expansion module attached to a base system at a time |
| Hot-swap support | Not hot-swappable | Installation warning | Do not attach the expansion module while the switch is energized |
| Primary comparison SKUs | IEM-3400-8T, IEM-3400-8P, IEM-3300-8S |
