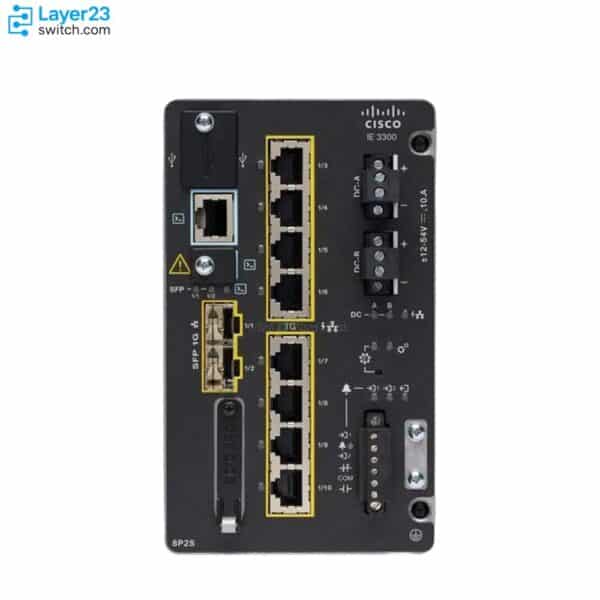

IE-3300-8P2S-A – 8x1G PoE+ Ports – 2x1G SFP Uplinks – 240W PoE Budget
Cisco IE-3300-8P2S-A Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco IE-3300-8P2S-A. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.-
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$70.00Current price is: $70.00. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $5,329.57.$205.00Current price is: $205.00. Condition: New Factory Sealed -
GLC-ZX-SMD
1000BASE-ZX SFP - 70km SMF - EXT DOMOriginal price was: $10,672.47.$215.70Current price is: $215.70. Condition: New Factory Sealed
-
IEM-3300-8T
8x1G Copper Ports - IE3300 Expansion Module - Non-PoEOriginal price was: $5,342.54.$932.00Current price is: $932.00. Condition: New Factory Sealed -
IEM-3300-8S
8x1G SFP Ports - IE3300 Expansion ModuleOriginal price was: $6,378.03.$1,184.00Current price is: $1,184.00. Condition: New Factory Sealed -
IEM-3300-16P
16x1G PoE+ Copper Ports - IE3300 Expansion ModuleOriginal price was: $23,801.28.$4,576.00Current price is: $4,576.00. Condition: New Factory Sealed
-
PWR-IE65W-PC-AC
65W AC/DC PSU - 54V PoE Output - DIN-RailOriginal price was: $1,322.38.$475.23Current price is: $475.23. Condition: New Factory Sealed -
PWR-IE65W-PC-DC
65W Low-DC PSU - 54V PoE Output - DIN-RailOriginal price was: $1,482.67.$400.26Current price is: $400.26. Condition: New Factory Sealed -
PWR-IE170W-PC-AC
170W AC/DC PSU - 54V PoE Output - DIN-RailOriginal price was: $4,407.90.$782.13Current price is: $782.13. Condition: New Factory Sealed -
PWR-IE170W-PC-DC
170W Low-DC PSU - 54V PoE Output - DIN-RailOriginal price was: $4,407.90.$1,233.18Current price is: $1,233.18. Condition: New Factory Sealed -
PWR-IE240W-PCAC-L
240W AC PSU - 54V PoE Output - Hardwired DIN-RailOriginal price was: $4,407.90.$814.00Current price is: $814.00. Condition: New Factory Sealed -
PWR-IE480W-PCAC-L
480W AC PSU - 54V PoE Output - DIN-RailOriginal price was: $6,665.30.$1,388.49Current price is: $1,388.49. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
IE-3300-8P2S-A Description
The IE-3300-8P2S-A is a Cisco Catalyst IE3300 Rugged Series modular industrial PoE switch that powers and connects 8 Gigabit PoE/PoE+ copper downlinks behind 2 Gigabit SFP uplinks, ordered with the perpetual Network Advantage license. Its 240W base PoE budget rises to 360W when a PoE expansion module joins the single IEM-3300 bay, letting one fanless DIN rail unit carry the cameras, access points, phones, and sensors of an industrial zone while IOS XE provides REP and MRP rings, PROFINET and EtherNet/IP (CIP), IEEE 1588 PTPv2 in both Default and Power Profile, and IOx edge compute for Cyber Vision. The Advantage tier layers OSPF, BGP, EIGRP, VRF-lite, MACsec-256, and multicast routing over that baseline, and dual 9.6-60VDC feeds, a -40°C to +70°C vented range, and substation, rail, and Class I Div 2 approvals keep the powered edge running in plants, corridors, and yards.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3300-8P2S-A |
|
Downlink ports |
8x 10/100/1000M RJ45, PoE/PoE+ |
|
Uplink ports |
2x 100/1000M SFP |
|
PoE power budget |
240W base, 360W with PoE expansion module |
|
Network license |
Network Advantage (perpetual) |
|
Expansion |
1x IEM-3300 bay, up to 26 GE system ports |
|
Forwarding |
Line rate on all ports and packet sizes |
|
Unicast MAC addresses |
16K |
|
Input power |
Dual DC inputs, 9.6-60VDC (48V for PoE, 54V for PoE+) |
|
Power consumption |
32W (excluding PoE output) |
|
Operating temperature |
-40°C to +70°C (40 LFM vented enclosure) |
|
Alarm and console |
2 alarm in / 1 alarm out; RJ-45 + USB Mini-B console |
|
Mounting |
DIN rail |
Product Performance
Key Features
Eight PoE/PoE+ Gigabit downlinks under a 240W budget expand through the module bay to 16 or 24 powered ports at 360W, so a growing camera or access point estate stays on one switch line item.
Pairing the PoE base with IEM-3300-4MU= adds four 2.5G ports at 802.3bt Type 4, covering high-draw endpoints such as Wi-Fi 6 access points without stepping up to the 10G-uplink 8U2X base.
VRF-lite, OSPF/BGP/EIGRP, and policy-based routing arrive in this SKU’s perpetual license, so camera VLANs and OT segments route at the powered edge instead of hair-pinning through a core.
The GE-uplink base runs IEEE 1588 PTPv2 in Default and Power Profile (IEEE C37.238), keeping the powered edge eligible for substation and ITS timing designs; note the 4MU module itself carries no PTP.
MACsec-256 from the Advantage tier protects uplinks that traverse public or shared pathways, a step beyond the MACsec-128 ceiling of the Essentials variant.
IEEE 1613, IEC 61850-3, EN50121/EN50155 rail, NEMA TS 2, DNV marine, and Class I Div 2 approvals let the same powered switch serve substations, corridors, vessels, and process areas.
Application Scenarios
Deployed along transportation corridors and perimeters where each cabinet powers a cluster of PTZ and fixed cameras over PoE+ and backhauls the video across the two SFP uplinks.
Installed at manufacturing cells that mix PoE endpoints – access points, phones, HMI panels – with machine controllers, keeping power and data on one DIN unit inside the cell cabinet.
Positioned in IEC 61850-3 environments to power IP cameras and wireless links around the yard while distributing PTP Power Profile timing from the same GE-uplink base.
Product Comparison
|
Parameter |
IE-3300-8P2S-A | ||
|---|---|---|---|
|
Downlink ports |
8x GE PoE/PoE+ |
8x GE copper |
8x GE copper, 4PPoE (802.3bt Type 3) |
|
Uplink ports |
2x 100/1000M SFP |
2x 100/1000M SFP |
2x 1G/10G SFP+ |
|
Network license |
Network Advantage |
Network Advantage |
Network Advantage |
|
PoE power budget |
240W base, 360W with module |
Not a PoE switch (data only) |
Up to 480W including module |
|
PTP profiles |
Default and Power Profile |
Default and Power Profile |
Default Profile only |
|
Power consumption |
32W |
23W |
42W |
|
Maximum input current |
10.5A |
3.8A |
10.5A |
|
MTBF |
611,350 hours |
633,420 hours |
436,034 hours (predicted) |
- The IE-3300-8P2S-A earns its place over IE-3300-8T2S-A only when endpoints draw power over Ethernet: the two share GE uplinks, the Advantage license, and dual-profile PTP, so a data-only cabinet buys the 8T2S and skips the PoE supply class entirely.
- Against IE-3300-8U2X-A the split is power class and uplink speed together: the 8U2X reaches 802.3bt Type 3 on its downlinks, a 480W ceiling, and 10G uplinks, but gives up PTP Power Profile, which this GE-uplink PID retains at 240W/360W and PoE+ power levels.
- For deciding which SKU to order, classify the endpoint power draw first: standard PoE/PoE+ estates fit IE-3300-8P2S-A, bt-class or 10G-backhaul designs move to IE-3300-8U2X-A unless C37.238 timing forbids the 10G base, and zero PoE sends the order to IE-3300-8T2S-A.
Selection Guide
1. Size The Budget Against The Device List
A cabinet of PoE+ cameras and access points totaling under 240W fits the base switch alone; plan the 360W module path when the endpoint roadmap crosses that line, and check per-port classes rather than nameplate counts.
2. When Standard PoE+ Is Not Enough
Endpoints negotiating above 30W – 802.3bt Type 3 access points, heated PTZ housings – sit outside this PID’s PoE+ class; IE-3300-8U2X-A covers them natively, or IEM-3300-4MU= adds four Type 4 2.5G ports to this base at 360W system budget.
3. Timing Versus Bandwidth On The Uplink
Designs that must distribute PTP Power Profile (IEEE C37.238) stay on this GE-uplink base; if the same cabinet instead needs 10G backhaul and only Default Profile timing, IE-3300-8U2X-A takes the slot.
4. Essentials Variant And The Upgrade Path
A pure L2 powered ring member can start on IE-3300-8P2S-E and adopt this SKU’s routing, VRF-lite, and MACsec-256 later through the perpetual IE3300-NW-A= upgrade license, so choose -A up front only when those features land at deployment.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE standards |
IEEE 802.3af (PoE) and 802.3at (PoE+) on 8 downlinks; 802.3bt Type 4 only via IEM-3300-4MU= module ports |
|
PoE power budget |
240W base switch; 360W system with PoE expansion module |
|
Input voltage for PoE |
48VDC minimum for PoE; 54VDC for PoE+ |
|
Powered-device count |
Up to 8 base ports (24 with 16P module); sum per-port class draw against the active budget |
|
Supply sizing rule |
Switch consumption (32W) plus PoE budget must stay within the external supply wattage per the datasheet minimum power requirements |
|
Supply pairing |
PWR-IE480W-PCAC-L= carries the full 360W system budget; PWR-IE240W-PCAC-L= covers base-budget deployments; 65W/170W units serve partial PoE loads |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
PoE-class supply |
Order a PoE-capable DIN supply sized for 32W switch draw plus the planned PoE budget (240W or 360W path). |
An undersized supply drops PoE loads under peak draw, which surfaces as endpoint reboots in the field. |
|
54V for PoE+ |
Wire 54VDC input when any port must deliver PoE+ (30W class). |
A 48V feed caps ports at PoE class and starves PoE+ endpoints. |
|
Module compatibility |
Choose PoE expansion modules only (8P/16P/4MU) for budget growth, and allow the added DIN width. |
Data modules never raise the budget, and PoE modules will not power up on a data-only base ordered by mistake. |
|
PTP on module ports |
Keep timing-critical devices on base ports when IEM-3300-4MU= is fitted. |
The 4MU module does not support PTP, so timing endpoints on its ports silently lose sync. |
|
Classified-area parts |
Avoid -L supplies in Class I Div 2 / Zone 2 areas and plan the required enclosure. |
The -L units are IP20 and uncertified for hazardous locations, failing site acceptance. |
|
SD card for SwapDrive |
Add SD-IE-16GB= when zero-touch replacement is in the operations plan. |
The card is optional and not shipped by default; SwapDrive has nothing to restore without it. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
8x GE PoE/PoE+ expansion module (system budget 360W on this base) | |
|
16x GE PoE/PoE+ expansion module (system budget 360W on this base) | |
|
4x 1GE/2.5G copper expansion module with 802.3bt Type 4 PoE | |
|
240W PoE-capable DIN rail power supply, AC input, IP20 light-duty variant | |
|
480W PoE-capable DIN rail power supply, AC input, IP20 light-duty variant | |
|
170W PoE-capable DIN rail power supply, AC/DC input, hazardous-location certified | |
|
Industrial-grade 1000BASE-SX SFP, multimode, 220-550 m | |
|
GLC-LX-SM-RGD= |
Industrial-grade 1000BASE-LX/LH SFP, 550 m MMF / 10 km SMF |
|
SD-IE-16GB= |
16GB SD card for configuration and SwapDrive replacement |
|
STK-RACK-DINRAIL= |
19-inch rack mount kit for DIN rail switches |

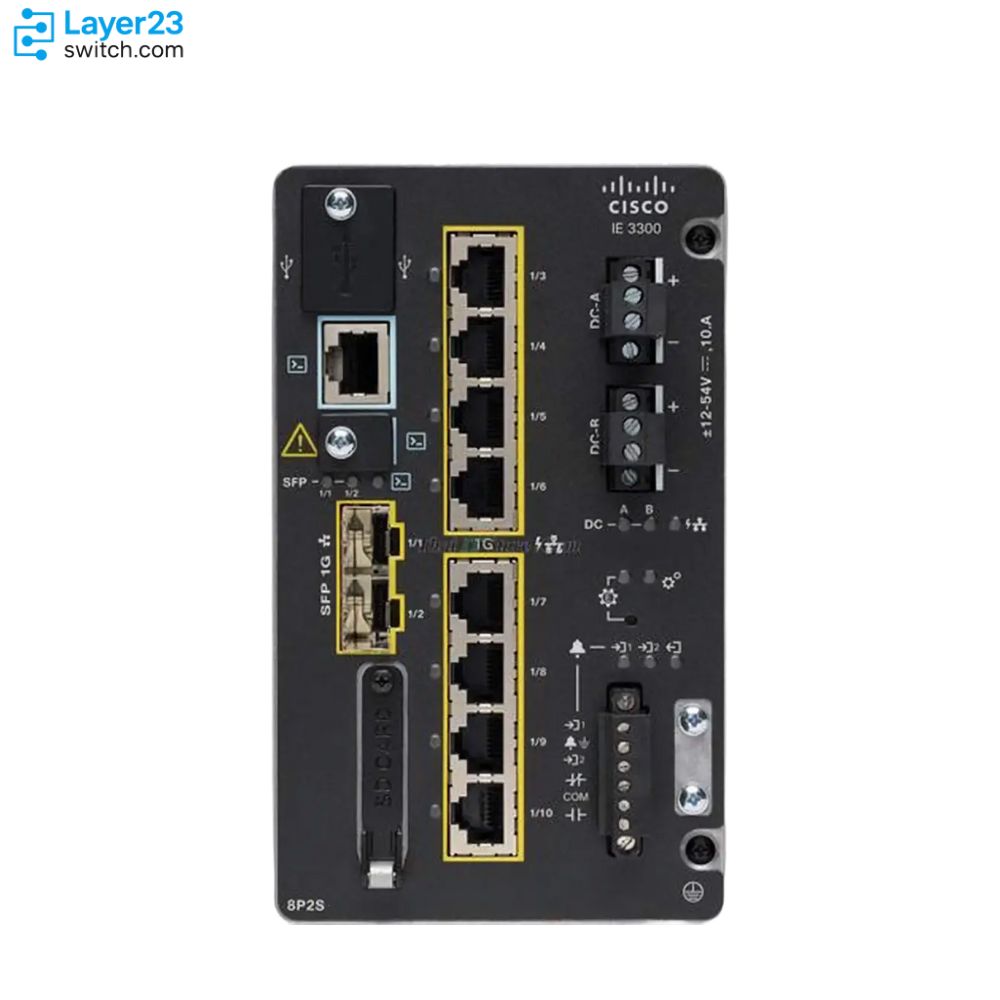

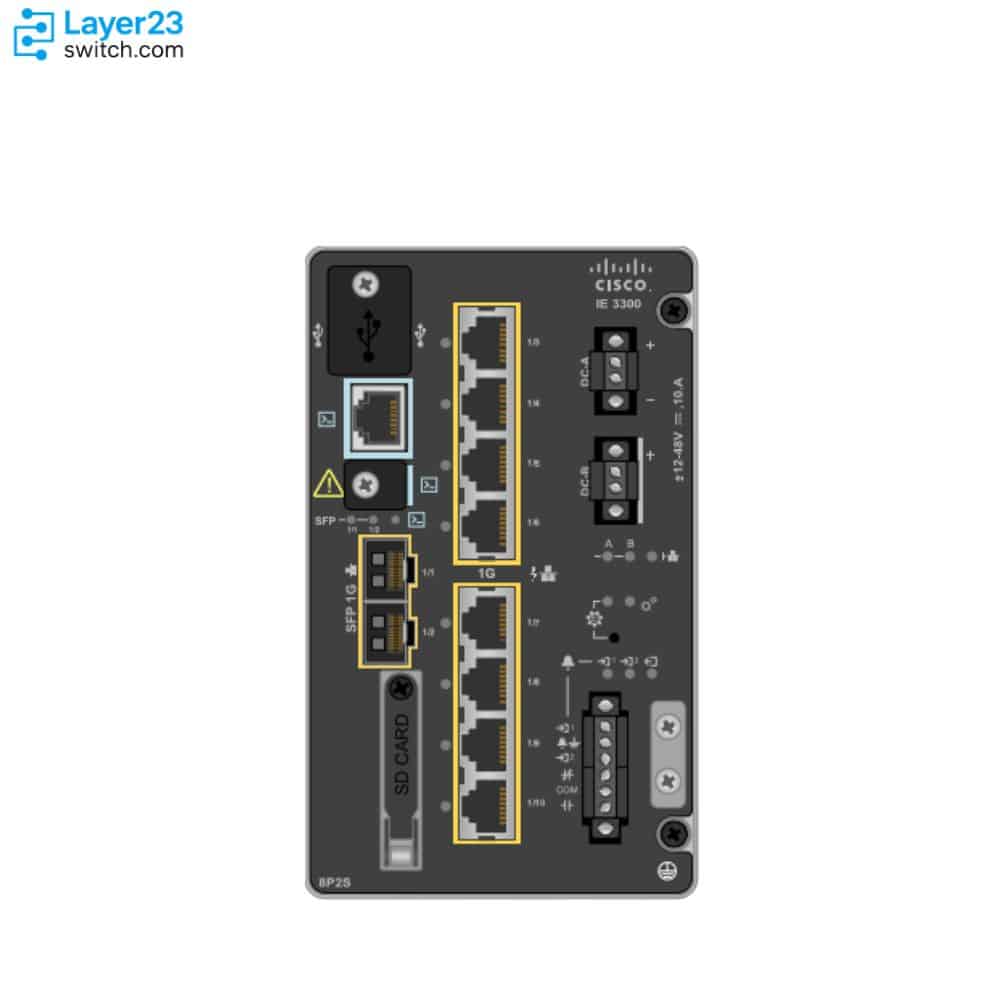

IE-3300-8P2S-A Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
10/100/1000 Copper Ethernet ports (downlink ports) |
7 |
Flash memory card slot |
|---|---|---|---|
|
2 |
Power connector DC-B |
8 |
SFP module slots (uplink ports) |
|
3 |
Power connector DC-A |
9 |
USB mini-Type B (console) port |
|
4 |
Protective ground connection |
10 |
RJ-45 console port |
|
5 |
Alarm connector |
11 |
USB mini-Type A port |
|
6 |
10/100/1000 Copper Ethernet ports (downlink ports) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3300-8P2S-A | Network license | Network Advantage, perpetual (upgrade PID for -E units: IE3300-NW-A=) |
| Downlink ports | 8x 10/100/1000M RJ45, PoE/PoE+ | Uplink ports | 2x 100/1000M SFP |
| PoE power budget | 240W base; 360W with PoE expansion module | PoE input requirement | 48VDC for PoE; 54VDC for PoE+ |
| Expansion | 1x IEM-3300 bay; up to 26 GE system ports; 4x 802.3bt Type 4 2.5G ports via IEM-3300-4MU= | Forwarding | Line rate, all ports and packet sizes; 8 egress queues |
| MAC / routes | 16K MAC; 3000 IPv4 + 512 IPv6 indirect routes | VLANs / ACL | 256 VLANs; 128 STP instances; 3K ACL entries |
| Memory | 4 GB DRAM; 1.5 GB user flash; optional 4/16 GB SD | Jumbo frames | 8996 bytes |
| Advantage features | OSPF/BGP/RIP/ISIS/EIGRP (v4+v6), PBR, VRRP/HSRP, BFD, VRF-lite, MACsec-256, PIM multicast routing | Essentials baseline | L2 switching, REP/Fast REP, MRP, PROFINET, CIP, L2NAT, MACsec-128, FIPS 140-2, IOx (Cyber Vision, Secure Equipment Access) |
| PTP timing | IEEE 1588 PTPv2, Default and Power Profile (C37.238:2011); no PTP on IEM-3300-4MU ports | Management | WebUI, Cisco Catalyst Center, SNMP/NETCONF/RESTCONF/YANG, Full Flexible NetFlow |
| Input power | Dual redundant DC, 9.6-60VDC; 10.5A max | Power consumption | 32W at 54V, excluding PoE output |
| Compatible DIN rail supplies | PoE-capable 65W/170W/240W/480W external units, ordered separately | Alarms / console | 2 alarm in, 1 alarm out; RS-232 RJ-45 + USB Mini-B console; optional USB storage |
| Operating temperature | -40°C to +70°C vented; +60°C sealed; +75°C at 200 LFM; +85°C type-tested 16 h | Altitude / humidity | To 15,000 ft; 5-95% non-condensing; storage -40°C to +85°C |
| Dimensions (H x W x D) | 6 x 3.6 x 5.3 in (15.2 x 9.1 x 13.5 cm) | Weight / MTBF | 3.8 lbs (1.7 kg); 611,350 hours |
| Industrial compliance | IEC 62443-4-1/-4-2, IEEE 1613, EN/IEC 61850-3, ODVA CIP, NEMA TS 2-2016, AREMA C&S 11/19, DNV Marine, EN50121/EN50155, IP30 | Safety / hazloc | UL/CSA 60950-1, 62368-1, 61010-2-201; UL121201/CSA 213 Class I Div 2 A-D; Class I Zone 2 ATEX/IECEx (cabinet required) |
| Warranty | 5-year limited hardware warranty (all IE3300 PIDs and IE power supplies) | Cooling | Fanless, convection-cooled |
