GLC-SX-MM-RGD Description

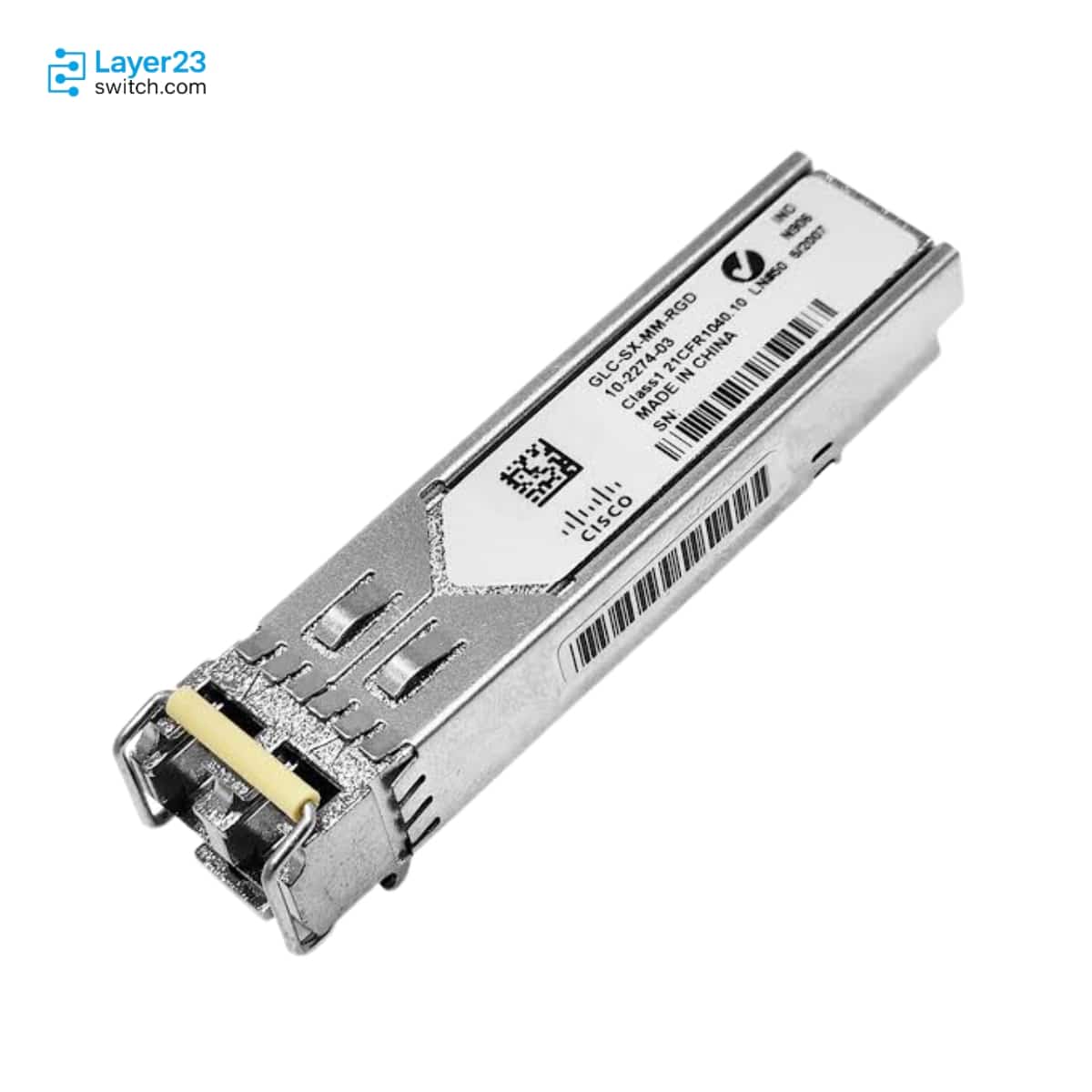

The GLC-SX-MM-RGD is a Cisco 1000BASE-SX rugged SFP transceiver for 1G links over multimode fiber in industrial enclosures. The module transmits at 850 nm on dual LC/PC connectors, reaches 220 m to 550 m depending on the multimode fiber type, supports DOM and operates from -40 to 85°C. The module does not run on single-mode fiber.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
GLC-SX-MM-RGD |
|
Product type |
1000BASE-SX rugged SFP optical transceiver |
|
Ethernet standard |
1000BASE-SX |
|
SFP type |
GE |
|
Cable media |
Multimode fiber |
|
Operating distance |
220 m to 550 m depending on fiber grade |
|
Wavelength |
850 nm class |
|
Connector type |
Dual LC/PC |
|
Temperature class |
Industrial |
|
DOM support |
Yes |
|
Cisco ordering description |
1000BASE-SX short wavelength; rugged |
|
Wavelength class |
850 nm |
|
Transmit and receive wavelength range |
770 to 860 nm |
Application Scenarios
In a factory cabinet where a rugged switch connects to a control room over multimode fiber, the module carries Gigabit Ethernet at 850 nm across runs of 220 m to 550 m depending on the fiber grade.
Cisco Embedded Service 9300 and Cisco IC3000 supported-module tables list the module, so it fits the Gigabit SFP ports of those rugged platforms for short multimode links.
Product Comparison
|
Parameter |
GLC-SX-MM-RGD |
GLC-ZX-SM-RGD | ||
|---|---|---|---|---|
|
Operating distance |
220 m to 550 m depending on MMF type |
220 m to 1000 m depending on MMF type |
10,000 m over G.652 SMF; 550 m over MMF |
Approximately 70 km depending on link loss |
|
Fiber type |
Multimode fiber |
Multimode fiber |
Single-mode fiber and multimode fiber |
Single-mode fiber |
|
Wavelength |
850 nm |
850 nm |
1310 nm |
1550 nm |
|
Maximum channel insertion loss |
2.4 dB to 5 dB depending on MMF type |
2.4 dB to 5 dB depending on MMF type |
6 dB on G.652 SMF; 2.4 dB on any MMF |
21 dB on any SMF |
|
Operating temperature |
-40 to 85 C |
-5 to 85 C |
-40 to 85 C |
-40 to 85 C |
|
DOM support |
Yes |
Yes |
Yes |
Yes |
GLC-SX-MM-RGD and GLC-SX-MMD are both 850 nm 1000BASE-SX multimode optics with DOM, but GLC-SX-MM-RGD reaches 220 m to 550 m where GLC-SX-MMD reaches 220 m to 1000 m depending on fiber grade, and GLC-SX-MM-RGD carries the industrial temperature class where GLC-SX-MMD is extended, so enclosures that stay above -5°C can use GLC-SX-MMD. Reach on multimode fiber is set by the fiber grade, up to 550 m for GLC-SX-MM-RGD. GLC-LX-SM-RGD also stops at 550 m on multimode fiber, so a longer multimode run needs a higher fiber grade for the SX optic, and a link on single-mode fiber needs GLC-LX-SM-RGD, a 1310 nm optic that keeps the industrial rating and reaches 10 km. Spans of approximately 70 km, depending on link loss, move to GLC-ZX-SM-RGD, a 1550 nm single-mode optic that is also industrial.
Ordering Checklist
- Multimode fiber grade: Confirm the installed multimode grade: 220 m on FDDI-grade and 275 m on OM1 62.5 um fiber, and up to 550 m on 50 um fiber depending on grade. A span planned at the longest 850 nm SX figure can be out of reach on older fiber.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | GLC-SX-MM-RGD | Cisco ordering PID | GLC-SX-MM-RGD= |
| Product type | 1000BASE-SX rugged SFP optical transceiver | Cisco ordering description | 1000BASE-SX short wavelength; rugged |
| Ethernet standard | 1000BASE-SX | SFP type | GE |
| Cable media | Multimode fiber | Operating distance | 220 m to 550 m depending on fiber grade |
| Connector type | Dual LC/PC | Wavelength class | 850 nm |
| Wavelength range | 770 to 860 nm | Transmit power range | -3 to -9.5 dBm |
| Receive power range | 0 to -17 dBm | Temperature class | Industrial |
| Operating temperature | -40 to 85°C | Storage temperature | -40 to 85°C |
| DOM support | Yes | Typical power consumption | Up to 1W per SFP port |
| Dimensions | 8.5 x 13.4 x 56.5 mm | Weight | 75 grams or less |
| Safety certifications | Laser Class I | Standards reference | IEEE 802.3z |
| Confirmed Cisco host examples | Cisco Embedded Service 9300 and Cisco IC3000 supported-module tables list GLC-SX-MM-RGD= | Compatibility reference | Cisco Transceiver Modules Compatibility Information |
