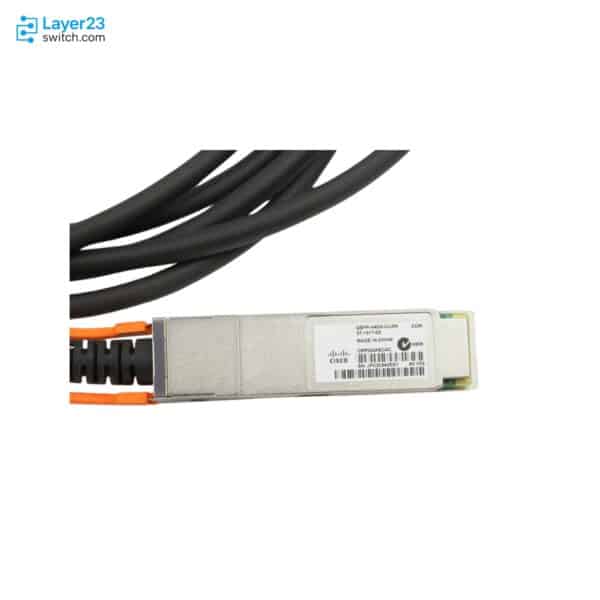

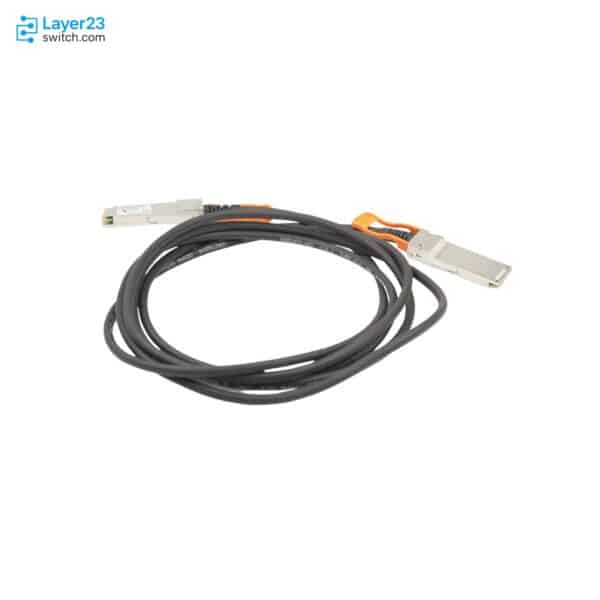

QSFP-H40G-CU3M – 40G QSFP DAC – 3m Length – Passive Copper Cable
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
QSFP-H40G-CU3M Description
The QSFP-H40G-CU3M is a Cisco 40GBASE-CR4 QSFP+ passive direct-attach copper cable for 40 Gigabit Ethernet links between QSFP ports in the same rack or in adjacent racks. The 3 m cable uses 30 AWG conductors, a 7 mm QSFP-end diameter and a 50 mm bend radius, with a 0 to 70 C operating range. Passive copper lengths in this family stop at 5 m, so longer runs need an active copper or optical cable.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
QSFP-H40G-CU3M |
|
Product type |
40GBASE-CR4 QSFP+ passive direct-attach copper cable |
|
Interface role |
QSFP-to-QSFP 40G copper cable |
|
Data rate |
40 Gigabit Ethernet |
|
Cable length |
3 meters |
|
Host interface |
Cisco QSFP 40G port |
|
Pull tab color |
Orange |
|
AWG |
30 |
|
QSFP-end cable diameter |
7 mm |
|
QSFP-end bend radius |
50 mm |
|
Cisco ordering description |
Cisco 40GBASE-CR4 QSFP+ passive direct-attach copper transceiver module assembly, 3 meter |
|
Cable assembly type |
Direct-attach copper cable assembly |
|
QSFP-end face plate distance |
100 mm |
Application Scenarios
In a server rack, the cable links a top-of-rack switch to an aggregation switch in the next rack, giving a 40 Gigabit Ethernet connection without separate optics or fiber patching.
Between a Nexus switch and a nearby storage or compute chassis with a QSFP port, the 3 m passive copper assembly provides a short 40G path that needs no power beyond the host ports.
Product Comparison
|
Parameter |
QSFP-H40G-CU3M |
QSFP-H40G-CU1M |
QSFP-H40G-ACU7M | |
|---|---|---|---|---|
|
Cable type |
Passive copper direct-attach |
Passive copper direct-attach |
Passive copper direct-attach |
Active copper direct-attach |
|
Cable length |
3 meters |
1 meter |
5 meters |
7 meters |
|
AWG |
30 |
30 |
26 |
26 |
|
QSFP-end cable diameter |
7 mm |
7 mm |
9 mm |
9 mm |
|
Power consumption |
Not published |
Not published |
Not published |
1.5 W at each end |
|
Operating temperature |
0 to 70 C |
0 to 70 C |
0 to 70 C |
0 to 70 C |
QSFP-H40G-CU3M is the 3 m passive 40GBASE-CR4 copper cable of this group, with the thin 30 AWG and 7 mm QSFP-end diameter it shares with QSFP-H40G-CU1M, while QSFP-H40G-CU5M and QSFP-H40G-ACU7M use 26 AWG and a 9 mm diameter. A run of 1 m or less fits QSFP-H40G-CU1M, and a run between 3 m and 5 m needs QSFP-H40G-CU5M. Passive copper ends at 5 m, so a 7 m run needs the active QSFP-H40G-ACU7M, which draws 1.5 W at each end, and a 10 m run moves to QSFP-H40G-ACU10M. One QSFP port feeding four SFP+ ports needs a QSFP-4SFP10G-CU3M breakout cable.
Ordering Checklist
- Host support: Confirm the target Cisco switch or line card and its QSFP+ port are listed for QSFP-H40G-CU3M in the Cisco Optics-to-Device Compatibility Matrix. A cable that fits the QSFP cage can still be unsupported on a given host.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | QSFP-H40G-CU3M | Cisco ordering ID | QSFP-H40G-CU3M= |
| Product type | 40GBASE-CR4 QSFP+ passive direct-attach copper cable | Cisco ordering description | Cisco 40GBASE-CR4 QSFP+ passive direct-attach copper transceiver module assembly, 3 meter |
| Cable assembly type | Direct-attach copper cable assembly | Interface role | QSFP-to-QSFP 40G copper cable |
| Data rate | 40 Gigabit Ethernet | Cable length | 3 meters |
| Host interface | Cisco QSFP 40G port | Pull tab color | Orange |
| AWG | 30 | QSFP-end cable diameter | 7 mm |
| QSFP-end bend radius | 50 mm | QSFP-end face plate distance | 100 mm |
| Jacket material | PVC | Jacket color | Black |
| QSFP connector module dimensions | 13.5 x 18.4 x 72.4 mm maximum outer dimensions | QSFP connector module weight | 100 grams or less |
| Operating temperature | 0 to 70°C | Storage temperature | -40 to 85°C |
| Standards references | IEEE 802.3ba and QSFP+ MSA SFF-8436 | Copper cable jacket safety | UL E116441 compliant |
| Copper cable electrical safety | ELV compliant | Compatibility reference | Cisco 40-Gigabit Ethernet Transceiver Modules Compatibility Matrix |
