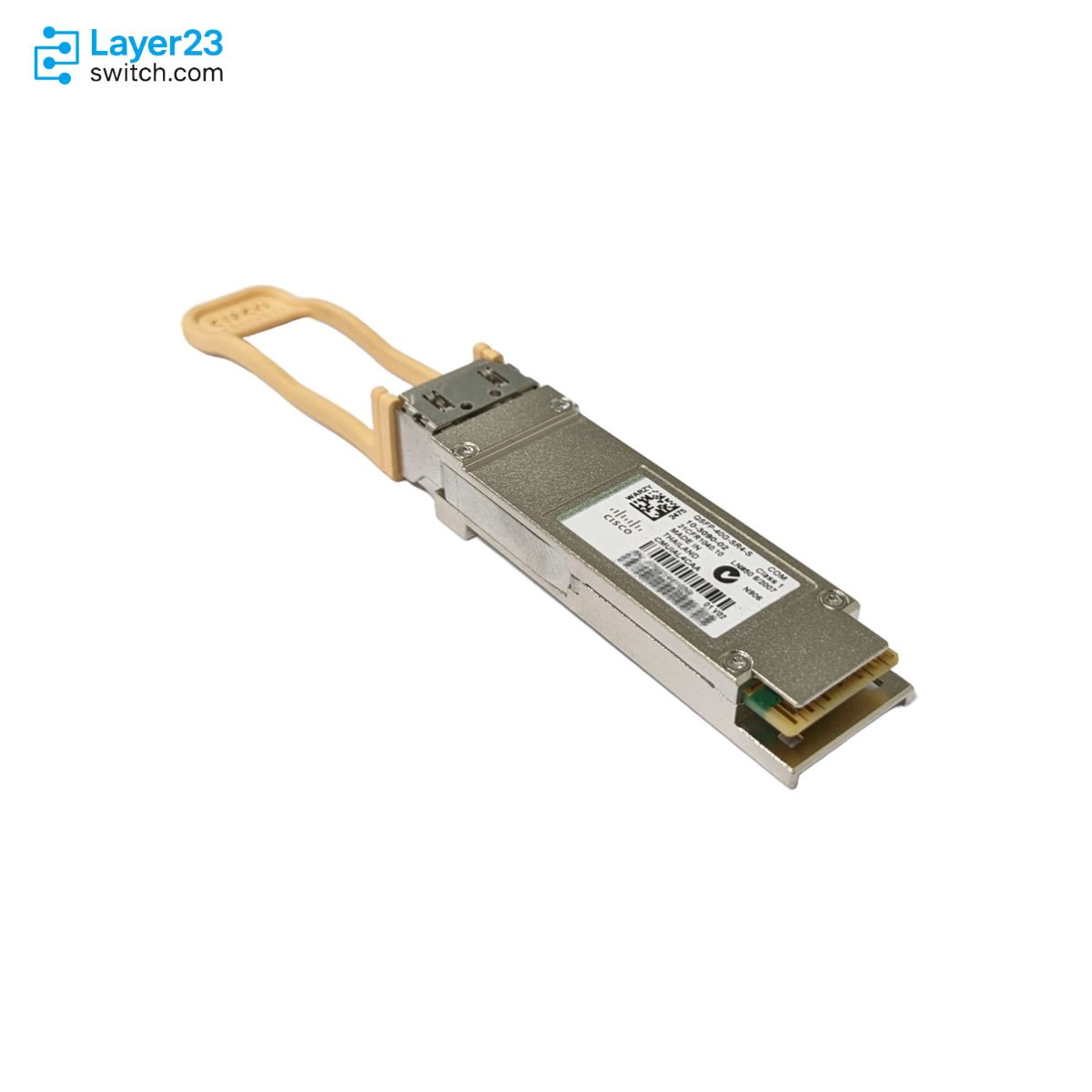

QSFP-40G-SR4-S – 40G SR4 S-Class QSFP – MPO-12 MMF – No Breakout
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
QSFP-40G-SR4-S Description
The QSFP-40G-SR4-S is a Cisco 40GBASE-SR4 S-Class QSFP transceiver for native 40G links over parallel multimode fiber in data centers. The module uses an MPO-12 connector with four 10G lanes at 840 to 860 nm, reaches 100 m on OM3 and 150 m on OM4 or OM5, and draws 1.5W from 0 to 70°C. The S-Class module does not support 4x10G breakout or FCoE.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
QSFP-40G-SR4-S |
|
Product type |
40GBASE-SR4 S-Class QSFP optical transceiver |
|
Data rate |
40 Gigabit Ethernet |
|
Connector type |
MPO-12 |
|
Fiber type |
Multimode fiber |
|
Optical lane design |
Four 10G optical lanes |
|
Wavelength range |
840 to 860 nm |
|
Reach on OM3 |
100m |
|
Reach on OM4 or OM5 |
150m |
|
Breakout support |
4x10G breakout not supported |
|
Power consumption |
1.5W |
Application Scenarios
Two data center switches cabled with 12-fiber MPO trunks can be joined by a single 40G link of up to 100 m on OM3 or 150 m on OM4 or OM5, with one module in each QSFP port.
A leaf switch whose QSFP 40G ports connect one-to-one to spine ports over multimode trunks, with no 10G servers fanned out from the port, runs the module as a plain 40GBASE-SR4 uplink.
Product Comparison
|
Parameter |
QSFP-40G-SR4-S | |||
|---|---|---|---|---|
|
Connector type |
MPO-12 |
MPO-12 |
MPO-12 |
Duplex LC |
|
Wavelength |
840 to 860 nm |
840 to 860 nm |
840 to 860 nm |
832 to 918 nm |
|
Reach on OM3 |
100m |
100m |
300m |
100m |
|
Reach on OM4 or OM5 |
150m |
150m |
400m |
150m |
|
4x10G breakout support |
Not supported |
Supported with external parallel-to-duplex breakout cable |
Supported with parallel-to-duplex breakout cable |
Not applicable |
|
Power consumption |
1.5W |
1.5W |
1.5W |
3.5W |
QSFP-40G-SR4-S and QSFP-40G-SR4 share the MPO-12 connector, 1.5W power and the same 100m OM3 and 150m OM4 or OM5 reach, but the S-Class part does not support 4x10G breakout or FCoE. A design that breaks one 40G port out to four 10G links needs QSFP-40G-SR4 or QSFP-40G-CSR4. CSR4 also extends the MPO-12 path to 300m on OM3 and 400m on OM4 or OM5. Sites cabled with two-strand duplex LC fiber move to QSFP-40G-SR-BD, which matches the 100m and 150m reach but draws 3.5W and is not an SR4 breakout optic.
Ordering Checklist
- Host support: Confirm the target platform is a listed host for this optic, for example Nexus 3000 N3K-C3064PQ, Nexus 5500 N5K-C55XX, Nexus 6000 N6004-96Q, Nexus 7000 N7K-M206FQ-23L, Nexus 9000 N9K-X9636PQ or NCS 5500 NC55-36X100G. A host can reject an optic that fits the QSFP cage but is not on its compatibility list.
- Fiber connector: Order 12-fiber MPO/MTP female trunk or patch cords, not duplex LC. The module has an MPO-12 interface, so an LC-terminated link cannot connect to it.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | QSFP-40G-SR4-S | Product type | 40GBASE-SR4 S-Class QSFP optical transceiver |
| Cisco ordering description | Cisco 40GBASE-SR4 QSFP Module for MMF | Form factor | QSFP |
| Host interface | Cisco QSFP 40G port | Data rate | 40 Gigabit Ethernet |
| Connector type | MPO-12 | Fiber type | Multimode fiber |
| Fiber core size | 50 microns | Modal bandwidth | 2000 MHz*km on OM3; 4700 MHz*km on OM4 or OM5 |
| Reach on OM3 | 100m | Reach on OM4 | 150m |
| Reach on OM5 | 150m | Breakout support | 4x10G breakout not supported |
| FCoE support | Not supported by QSFP-40G-SR4-S | Optical lane design | Four 10G lanes |
| Transmit wavelength range | 840 to 860 nm | Receive wavelength range | 840 to 860 nm |
| Transmit power per lane | -7.6 to +2.4 dBm | Receive power per lane | -9.5 to +2.4 dBm |
| Power consumption | 1.5W | Pull tab color | Beige |
| Operating temperature | 0 to 70°C | Storage temperature | -40 to 85°C |
| QSFP module dimensions | 13.5 x 18.4 x 72.4 mm maximum outer dimensions | QSFP module weight | 100 grams or less |
| IEEE relationship | Aligned to IEEE 40GBASE-SR4 optical specifications | Compatibility reference | Cisco Optics-to-Device Compatibility Matrix |
Get More Information
Need pricing, stock, or shipping details for the QSFP-40G-SR4-S ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What modal bandwidth does QSFP-40G-SR4-S need from the fiber?
-
What per-lane optical power does QSFP-40G-SR4-S use?
-
What are the physical dimensions of QSFP-40G-SR4-S?
-
What storage temperature applies to QSFP-40G-SR4-S?
