SFP-10/25G-LR-S Description

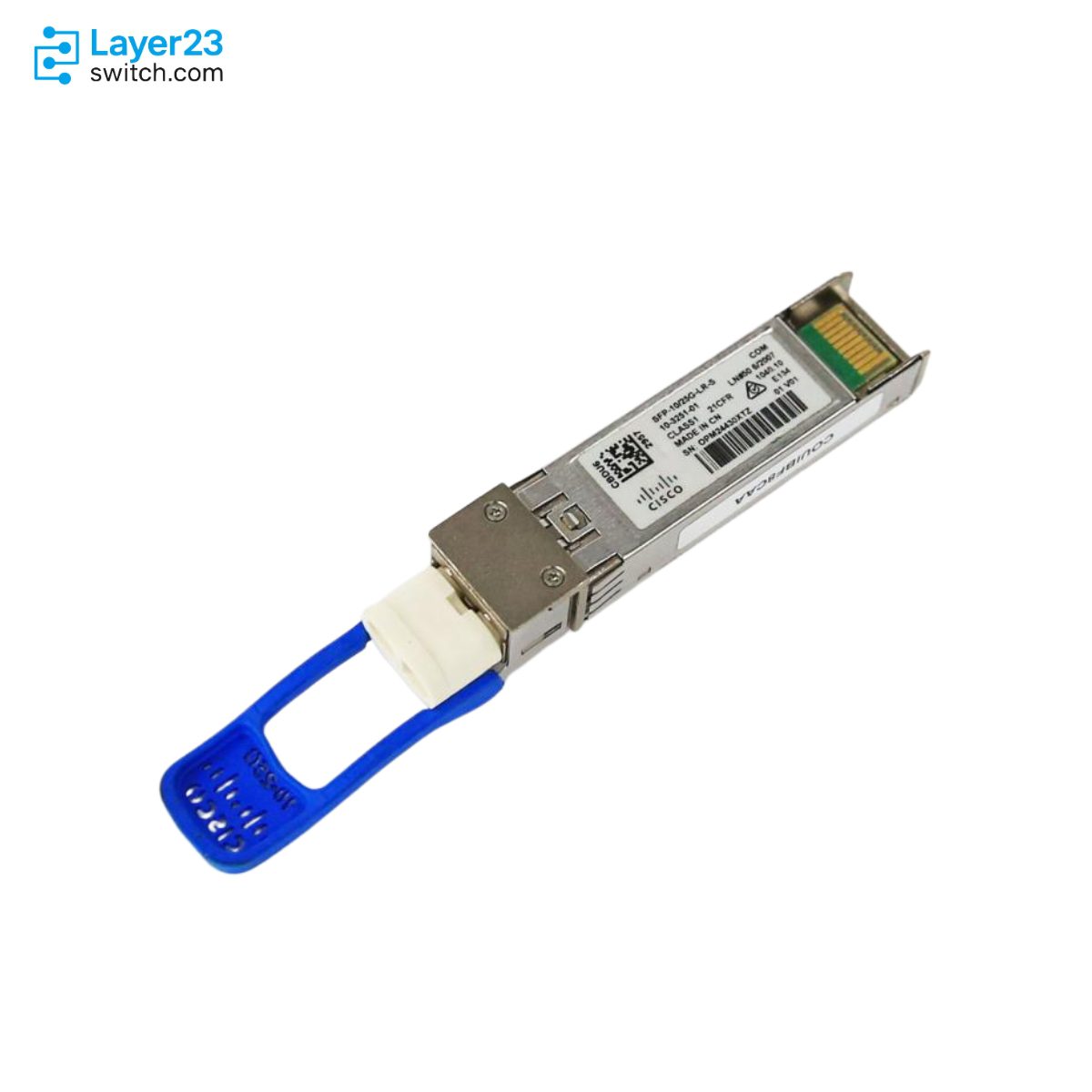

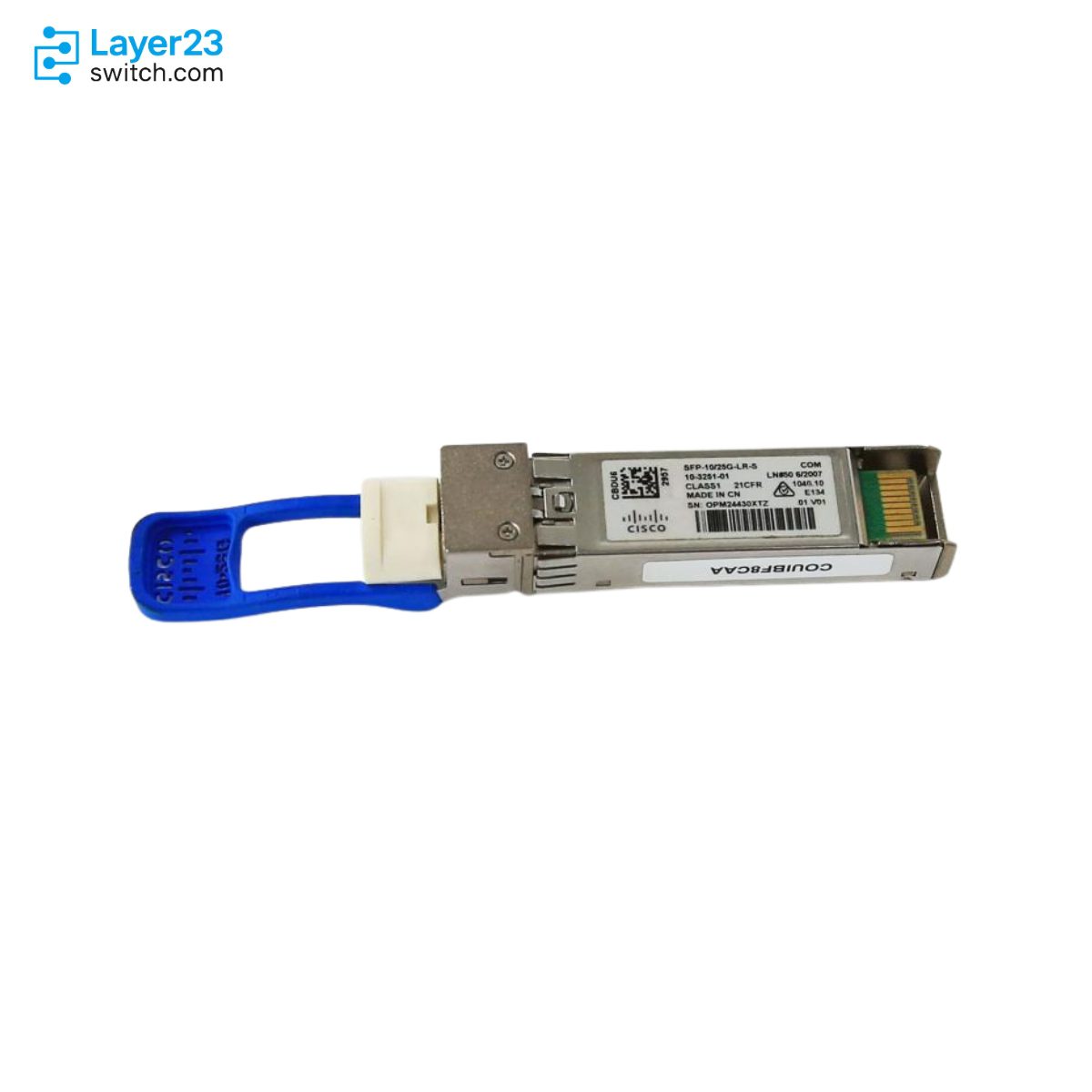

The SFP-10/25G-LR-S is a Cisco 10/25GBASE-LR SFP28 transceiver for single-mode fiber links between buildings and equipment rooms. The module reaches 10 km at both 10G and 25G over G.652 single-mode fiber at 1310 nm on a dual LC/PC connector, with a 0 to 70°C case rating and 1.3W maximum power draw. The 25G rate requires RS-FEC on the host port, and patch cords must have PC or UPC end faces because APC is not supported.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Optic type |
10/25GBASE-LR SFP28 |
|
Data rate |
10G or 25G |
|
Reach |
10 km at 10G and 25G |
|
Fiber |
G.652 single-mode fiber |
|
Wavelength |
1310 nm |
|
Connector type |
Dual LC/PC |
|
Host FEC at 25G |
RS-FEC required |
|
Operating case temperature |
0 to 70°C (commercial) |
|
Maximum power consumption |
1.3W |
Application Scenarios
Between two campus buildings, a Catalyst 9300 or Catalyst 9500 switch uses the module on an SFP28 port to carry 10G or 25G traffic over single-mode fiber runs of up to 10 km.
A data center with Nexus 9300 leaf switches in one hall can run 25G links to Nexus 9500 spine switches in another hall over single-mode fiber, with one module at each end.
Product Comparison
|
Parameter |
SFP-10/25G-LR-S | |||
|---|---|---|---|---|
|
Cable type |
G.652 single-mode |
G.652 single-mode |
Multimode (OM3/OM4) |
G.652 single-mode |
|
Cable distance |
10 km |
10 km; up to 15 km as an engineered link below 9.3 dB insertion loss with RS-FEC |
300 m on OM3, 400 m on OM4 |
40 km; links beyond 30 km are engineered links |
|
Wavelength |
1310 nm |
1310 nm |
850 nm |
1310 nm |
|
FEC at 25G |
RS-FEC required for 25G operation |
RS-FEC for full reach; 3.5 km with BASE-R FEC, 1.5 km without FEC |
RS-FEC for full reach; 70/100 m on OM3/OM4 with BASE-R FEC, 30/50 m without FEC |
RS-FEC for full reach |
|
Operating case temperature |
0 to 70°C |
-40 to 85°C |
0 to 70°C |
-40 to 85°C |
|
Maximum power consumption |
1.3W |
1.3W |
1.2W |
1.5W |
SFP-10/25G-LR-S and SFP-10/25G-LR-I share the same 1310 nm optics and 10 km of G.652 single-mode reach, but SFP-10/25G-LR-S is rated 0 to 70°C while SFP-10/25G-LR-I is rated -40 to 85°C. Sites outside 0 to 70°C, CPRI rates 7 to 10, or spans of up to 15 km as an engineered link below 9.3 dB insertion loss with RS-FEC need the industrial module, which Cisco’s TMG host list shows for no Catalyst 9000 family, while SFP-10/25G-LR-S is listed for eight. Multimode plant on OM3 or OM4 calls for SFP-10/25G-CSR-S, which keeps both rates to 300 m or 400 m. Single-mode spans beyond 15 km, up to 40 km, call for SFP-25G-ER-I, which is 25G only.
Ordering Checklist
- Host support: Confirm the target switch or router lists SFP-10/25G-LR-S in the Cisco TMG matrix, with its minimum software release. TMG lists hosts per transceiver PID, so support for another 25G optic does not cover this one.
- Fiber and connector: Use duplex G.652 single-mode fiber with LC patch cords that have PC or UPC end faces, not APC. The optic uses a dual LC/PC connector and does not support APC patch cords.
- RS-FEC on 25G ports: Enable RS-FEC on both host ports of a 25G link. The datasheet requires RS-FEC on the host ports for 25G operation.
- Temperature rating: Keep the module case within 0 to 70°C where it is installed. TMG lists this optic at 0 to 70°C case temperature, the commercial range.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SFP-10/25G-LR-S | Cisco ordering description | 10/25GBASE-LR SFP28 Module for SMF |
| Form factor | SFP28 | Data rate | 10G and 25G |
| Cable type | SMF | Fiber standard | G.652 |
| Wavelength | 1310 nm | Cable distance | 10 km at 10G and 25G |
| Connector type | Dual LC/PC | Patch cord connectors | PC or UPC only; APC not supported |
| Host FEC requirement | RS-FEC on host ports for 25G operation | Max power consumption | 1.3W |
| Pull tab / bail latch color | Blue | Transmit power (10G) | +0.5 dBm maximum, -8.2 dBm minimum |
| Receive power (10G) | +0.5 dBm maximum, -14.4 dBm minimum | Wavelength range (10G) | 1260 to 1355 nm |
| Transmit power (25G) | +2.0 dBm maximum, -7.0 dBm minimum | Receive power (25G) | +2.0 dBm maximum, -13.3 dBm minimum |
| Wavelength range (25G) | 1295 to 1325 nm | Operating case temperature | 0°C to 70°C (32°F to 158°F), commercial range |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) | DOM | DOM hardware capable |
| FCoE | Supported with host software support | Platform support | Cisco switches; host list in the Cisco Transceiver Module Group (TMG) Compatibility Matrix |
| Standards | SFF-8402, SFF-8472, IEEE 802.3-2015, IEEE P802.3by, IEEE P802.3cc | Safety certifications | Laser Class 1 21CFR-1040 LN#50 7/2001; Laser Class 1 IEC60825-1 |
| Environmental compliance | RoHS 6 |
Get More Information
Need pricing, stock, or shipping details for the SFP-10/25G-LR-S ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Does SFP-10/25G-LR-S support FCoE?
-
How does SFP-10/25G-LR-S connect to a QSFP-100G-PSM4-S port at 25G?
-
Which 10G optic is the listed link partner of SFP-10/25G-LR-S at 10G?
-
What operating temperature and power draw does SFP-10/25G-LR-S have?
