SFP-10/25G-CSR-S – 10/25GBASE-CSR SFP28 – 850nm MMF – 300 m OM3 / 400 m OM4 – 0 to 70°C
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
SFP-10/25G-CSR-S Description

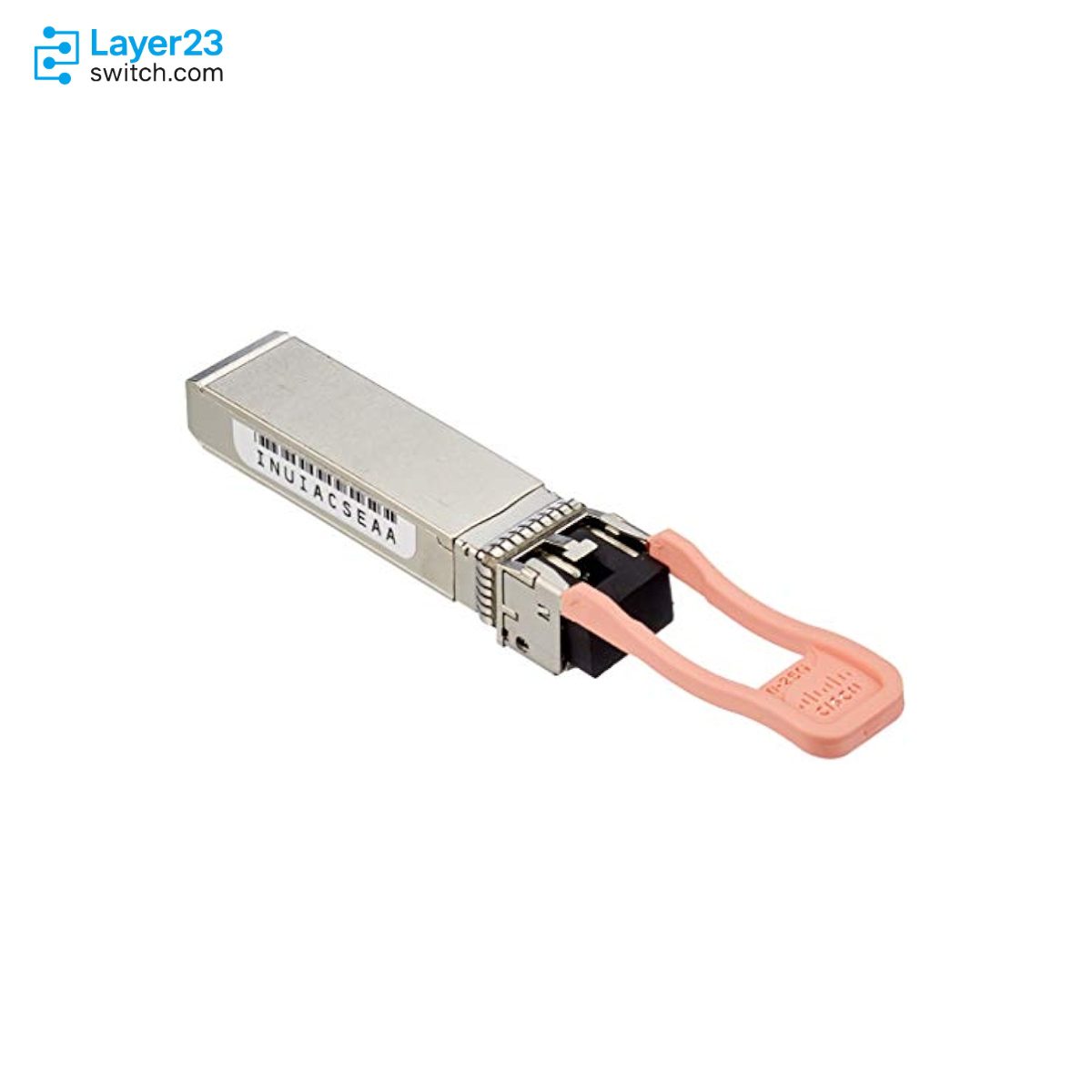

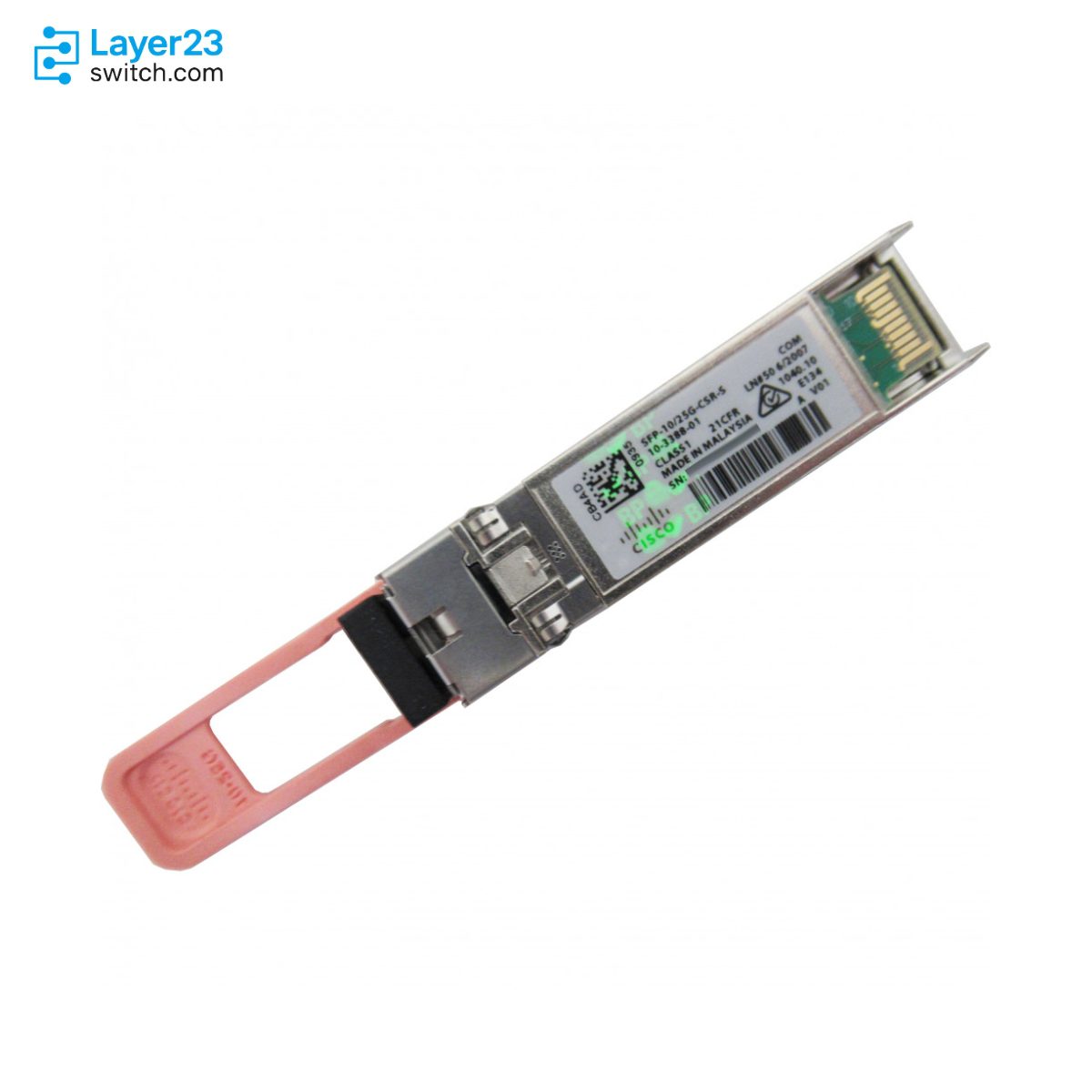

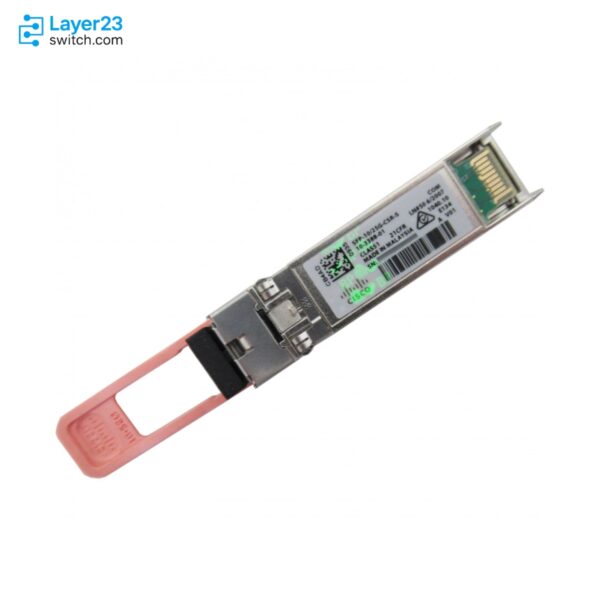

The SFP-10/25G-CSR-S is a Cisco 10/25GBASE-CSR SFP28 transceiver for 10G and 25G multimode fiber links within data centers and campus buildings. The module transmits at 850 nm on a dual LC/PC connector and reaches 300 m on OM3 or 400 m on OM4 and OM5 at both rates, with a 0 to 70°C case rating. At 25G that reach depends on fiber quality and needs RS-FEC on the host port, and pairing with an IEEE 10G-SR optic may overload the receiver.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Optic type |
10/25GBASE-CSR SFP28 |
|
Data rate |
10G or 25G |
|
Fiber |
Multimode fiber, 50.0 micron core |
|
Wavelength |
850 nm |
|
Reach |
300 m on OM3; 400 m on OM4 and OM5 |
|
Connector type |
Dual LC/PC |
|
Host FEC at 25G |
RS-FEC for full reach; not required at 10G |
|
Operating case temperature |
0 to 70°C (commercial) |
|
Maximum power consumption |
1.2W |
Application Scenarios
In a data hall cabled with OM4 trunks, Nexus 9300 leaf switches reach Nexus 9500 spine switches several rows away, and the module carries those 25G links over runs of up to 400 m with RS-FEC on the switch ports.
A campus building with an OM3 multimode riser links Catalyst 9300 access closets to a Catalyst 9500 distribution switch, and the module runs those links at 10G or 25G over the same fiber.
Product Comparison
|
Parameter |
SFP-10/25G-CSR-S | |||
|---|---|---|---|---|
|
Data rate |
10G and 25G |
25G |
25G |
10G and 25G |
|
Cable type |
MMF |
MMF |
MMF |
G.652 SMF |
|
Cable distance |
300 m on OM3; 400 m on OM4 and OM5 |
70 m on OM3; 100 m on OM4 and OM5 |
20 m on OM3; 30 m on OM4 and OM5 |
10 km |
|
Wavelength |
850 nm |
850 nm |
850 nm |
1310 nm |
|
Host FEC at 25G |
RS-FEC for full reach; 70/100 m on OM3/OM4 with BASE-R FEC, 30/50 m without FEC |
RS-FEC required |
RS-FEC required |
RS-FEC required |
|
Maximum power consumption |
1.2W |
1.2W |
1.2W |
1.3W |
SFP-10/25G-CSR-S reaches 300 m on OM3 and 400 m on OM4 at 10G or 25G with RS-FEC, while SFP-25G-SR-S on the same 850 nm multimode fiber is 25G only and stops at 70 m and 100 m. On hosts that run only BASE-R FEC at 25G, SFP-10/25G-CSR-S drops to the same 70 m and 100 m. SFP-25G-SL stops at 20 m on OM3 and 30 m on OM4 or OM5, so it suits only 25G runs that stay within those lengths. Links on G.652 single-mode fiber need SFP-10/25G-LR-S, which keeps both rates over 10 km at 1310 nm.
Ordering Checklist
- Host support: The target switch, such as a Catalyst 9300, Catalyst 9500 or Nexus 9300 model, lists SFP-10/25G-CSR-S in the Cisco TMG matrix. Support for another 25G optic does not cover this PID.
- Fiber and patch cords: The run is OM3, OM4 or OM5 multimode fiber with LC patch cords that have PC or UPC end faces. APC patch cords are not supported on this optic.
- Far-end optic: Check the far-end optic against SFP-10/25G-CSR-S in the Cisco Optics-to-Optics interoperability matrix. Pairing with an IEEE 10G-SR optic may overload the receiver.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SFP-10/25G-CSR-S | Cisco ordering description | 10/25GBASE-CSR SFP28 Module for MMF |
| Form factor | SFP28 | Data rate | 10G and 25G |
| Cable type | MMF | Core size | 50.0 microns |
| Wavelength | 850 nm | Wavelength range | 840 to 860 nm at 10G and 25G |
| Cable distance (OM3) | 300 m at 10G and 25G; 2000 MHz*km modal bandwidth | Cable distance (OM4) | 400 m at 10G and 25G; 4700 MHz*km modal bandwidth |
| Cable distance (OM5) | 400 m; 4700 MHz*km modal bandwidth | Cable distance (OM2) | 82 m at 10G, 70 m at 25G; 500 MHz*km modal bandwidth |
| 25G reach condition | OM3 and OM4 reach at 25G depends on fiber quality | Host FEC requirement | RS-FEC for full reach at 25G; FEC not required at 10G |
| 25G reach with BASE-R FEC | 70 m on OM3, 100 m on OM4 | 25G reach without FEC | 30 m on OM3, 50 m on OM4 |
| Connector type | Dual LC/PC | Patch cord connectors | PC or UPC only; APC not supported |
| Transmit power (10G) | +2.4 dBm maximum, -7.3 dBm minimum | Receive power (10G) | +2.4 dBm maximum, -9.9 dBm minimum |
| Transmit power (25G) | +2.4 dBm maximum, -6 dBm minimum | Receive power (25G) | +2.4 dBm maximum, -8.7 dBm minimum |
| Interoperability | Interoperating with IEEE 10G-SR may overload the receiver | Max power consumption | 1.2W |
| Pull tab / bail latch color | Peach | Operating case temperature | 0°C to 70°C (32°F to 158°F), commercial range |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) | DOM | DOM hardware capable |
| FCoE | Supported with host software support | Platform support | Cisco switches including Catalyst 9200 to 9610 and Nexus 9300 and 9500 families; host list in the Cisco TMG Compatibility Matrix |
| Standards | SFF-8402, SFF-8472, IEEE 802.3-2015, IEEE P802.3by, IEEE P802.3cc | Safety certifications | Laser Class 1 21CFR-1040 LN#50 7/2001; Laser Class 1 IEC60825-1 |
| Environmental compliance | RoHS 6 |
