SFP-25G-SL – 25GBASE-SL SFP28 – 850nm MMF – 20m OM3 / 30m OM4 Short Link
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
SFP-25G-SL Description

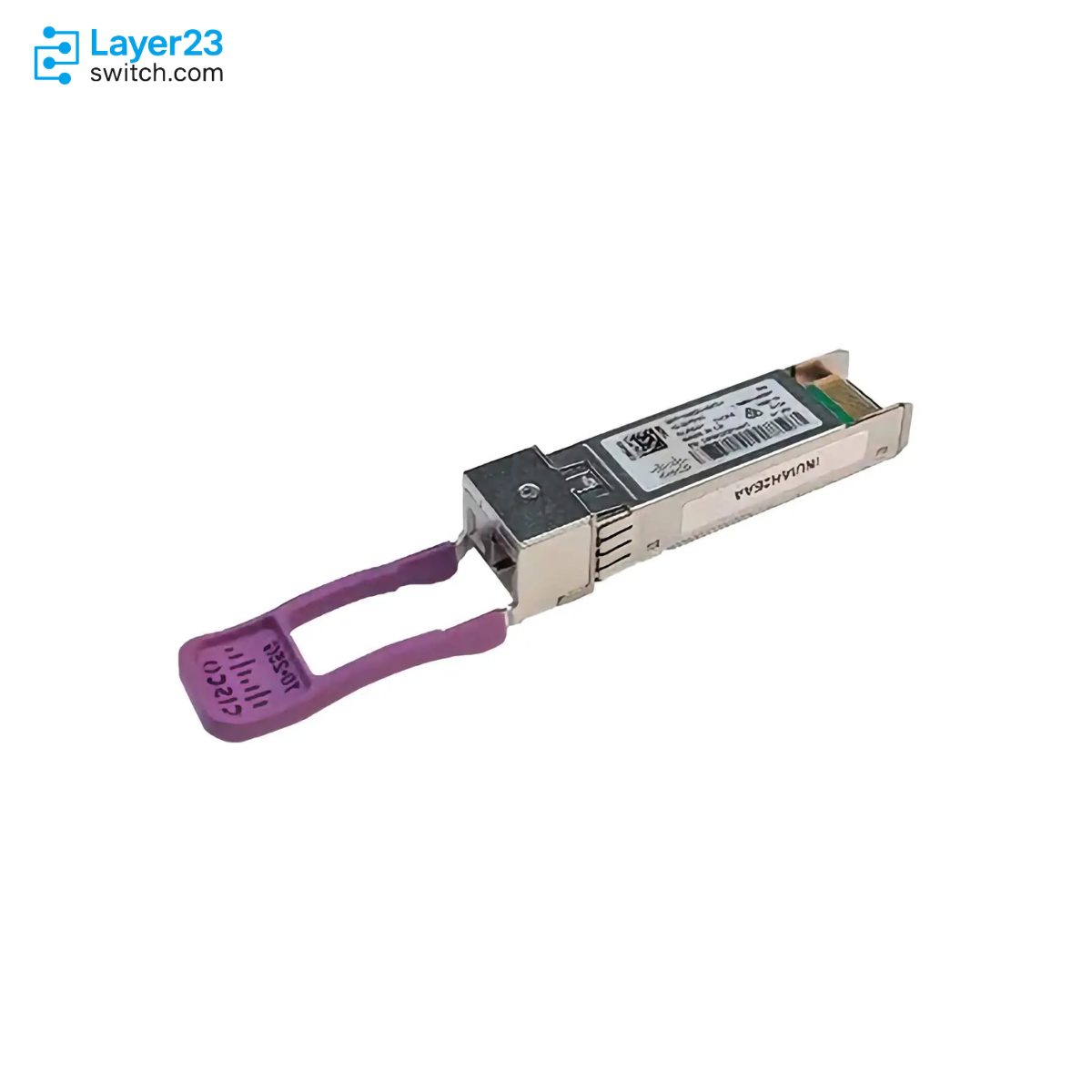

The SFP-25G-SL is a Cisco 25GBASE-SL SFP28 short-link transceiver for 25G multimode fiber connections of 30 m or less. The module transmits at 850 nm over a duplex LC connector, covers 20 m on OM3 or 30 m on OM4 and OM5 fiber, and draws up to 1.2W within a 0 to 70°C case rating. RS-FEC must be enabled on the host port, and patch cords need PC or UPC end faces because APC is not supported.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
SFP-25G-SL |
|
Optical type |
25GBASE-SL SFP28 |
|
Fiber type |
Multimode fiber |
|
Nominal wavelength |
850 nm |
|
Cable distance |
20 m on OM3; 30 m on OM4 or OM5 |
|
Connector type |
LC (UPC), duplex fiber |
|
Host FEC requirement |
RS-FEC required on host ports |
|
Maximum power consumption |
1.2W |
|
Case temperature |
0 to 70°C |
Application Scenarios
In a data center rack, a Nexus 9300 leaf switch connects 25G server adapters such as Intel E810 or Mellanox ConnectX-5 cards over OM4 multimode patching that stays within 30 m.
Inside a Cisco UCS domain, the module links fabric interconnects to blade chassis I/O modules or X-Series fabric modules over 850 nm multimode runs of up to 30 m on OM4.
Product Comparison
|
Parameter |
SFP-25G-SL | ||
|---|---|---|---|
|
Optical type |
25GBASE-SL |
25GBASE-SR |
10/25GBASE-CSR |
|
Cable distance |
20 m on OM3; 30 m on OM4 or OM5 |
70 m on OM3; 100 m on OM4 or OM5 |
300 m on OM3; 400 m on OM4 or OM5 |
|
Cable type and connector |
MMF, LC (UPC) |
MMF, LC (UPC) |
MMF, LC (UPC) |
|
Wavelength |
850 nm |
850 nm |
850 nm |
|
Host FEC at 25G |
RS-FEC required |
RS-FEC required |
RS-FEC for full reach |
|
Case temperature |
0 to 70°C |
0 to 70°C |
0 to 70°C |
SFP-25G-SL and SFP-25G-SR-S use the same 850 nm multimode optics, LC connectors and RS-FEC requirement, but SFP-25G-SL stops at 20 m on OM3 and 30 m on OM4 or OM5, against 70 m and 100 m for SFP-25G-SR-S. Runs of 20 m to 70 m on OM3, or 30 m to 100 m on OM4 or OM5, need SFP-25G-SR-S. Multimode runs beyond 100 m move to SFP-10/25G-CSR-S, which reaches 300 m on OM3 and 400 m on OM4 or OM5 with RS-FEC, with 25G reach depending on fiber quality. SFP-10/25G-CSR-S also runs at 10G, which suits ports that have not yet moved to 25G.
Ordering Checklist
- Supported hosts: The host appears for SFP-25G-SL in the Cisco TMG matrix, which lists Nexus 9300, Nexus 3000, Nexus 9500, UCS fabric interconnects, NCS 540, NCS 560, Cisco 8000 and Catalyst 1300X platforms. No Catalyst 9200, 9300, 9400, 9500 or 9600 host is listed.
- Fiber and patch cords: The run is OM3 multimode fiber up to 20 m, or OM4 or OM5 up to 30 m, with LC patch cords that have PC or UPC end faces. APC patch cords are not supported.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SFP-25G-SL | Cisco ordering description | 25GBASE-SL SFP28 Module for MMF |
| Form factor | SFP28 | Optical type | 25GBASE-SL 850nm MMF |
| Data rate | 25 Gbps | Cable type | Multimode fiber, duplex |
| Core size | 50.0 microns | Nominal wavelength | 850 nm |
| Wavelength range | 840 to 860 nm | OM3 reach | 20 m with 2000 MHz*km modal bandwidth |
| OM4 reach | 30 m with 4700 MHz*km modal bandwidth | OM5 reach | 30 m with 4700 MHz*km modal bandwidth |
| Connector type | LC (UPC) | Patch cord end face | PC or UPC supported; APC not supported |
| Host FEC requirement | RS-FEC required on host ports | Transmit power | +2.4 dBm maximum; -8.4 dBm minimum (average) |
| Receive power | +2.4 dBm maximum; -10.3 dBm minimum (average) | Maximum power consumption | 1.2W |
| Pull tab or bail latch color | Purple | Digital optical monitoring | DOM hardware capable |
| Case temperature | 0 to 70°C (commercial range) | Storage temperature | -40 to 85°C |
| Standards | SFF-8402 (SFP28); SFF-8472 (Diagnostic Monitoring Interface); IEEE 802.3-2015; IEEE P802.3by | Laser safety | Laser Class 1 21CFR-1040 LN#50 7/2001; Laser Class 1 IEC60825-1 |
| RoHS compliance | RoHS 6 | Supported host families | Nexus 9300, Nexus 9500, Nexus 9800, Nexus 3000, Cisco UCS (UCSB, UCSC and UCSX families), NCS 540, NCS 560, Cisco 8000 and 8010 Series, Catalyst 1300X |
Get More Information
Need pricing, stock, or shipping details for the SFP-25G-SL ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Does Cisco's data sheet list FCoE support for SFP-25G-SL?
-
What receive power margin must SFP-25G-SL keep on a 25G link?
-
What fiber grades and distances does SFP-25G-SL support?
-
Does SFP-25G-SL need RS-FEC on the host port?
