SFP-25G-AOC3M – 25G SFP28 AOC – 3m Length – Active Optical Cable
12/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
SFP-25G-AOC3M Description

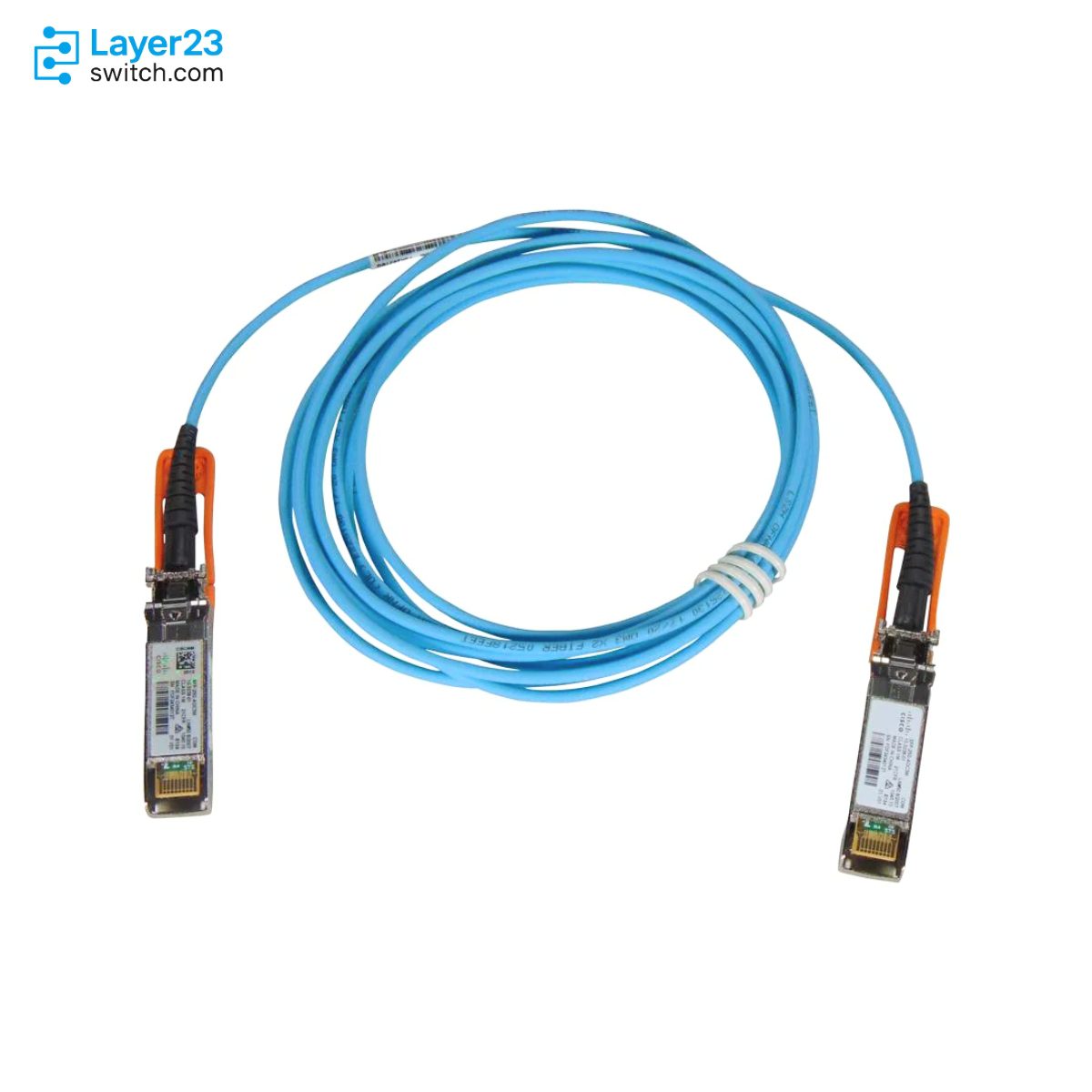

SFP-25G-AOC3M is a Cisco 25GBASE-AOC SFP28 active optical cable assembly for 25 Gigabit Ethernet links between supported Cisco SFP28 host ports. It provides a fixed 3-meter SFP28-to-SFP28 optical cable connection with an orange pull tab, 1W maximum power consumption, commercial 0 to 70 degrees C operating temperature, and host-port FEC requirements of BASE-R FEC or RS-FEC, making it a BOM-specific 25G cable option for Cisco switching, wireless controller, and UCS fabric interconnect environments where Cisco compatibility documentation confirms support.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
SFP-25G-AOC3M |
|
Product type |
25GBASE-AOC SFP28 active optical cable assembly |
|
Cable assembly type |
Active optical cable assembly |
|
Interface role |
SFP28 to SFP28 25G cable |
|
Supported Ethernet rate |
25 Gigabit Ethernet |
|
Cable length |
3 meters |
|
Pull tab color |
Orange |
|
Maximum power consumption |
1W |
|
Host FEC requirement |
BASE-R FEC or RS-FEC on host ports |
|
Operating temperature class |
Commercial 0 to 70 degrees C |
|
Compatibility reference |
Cisco Transceiver Module Group Compatibility Matrix |
Application Scenarios
SFP-25G-AOC3M fits short Cisco SFP28 cabling paths where a 2-meter AOC does not reach cleanly through the cable manager and a 4-meter assembly would add unnecessary slack.
Cisco lists SFP-25G-AOC3M in the supported 25GBASE SFP model table for the Catalyst CW9800M Wireless Controller, giving buyers a documented controller-side support example before the cable is ordered.
Cisco UCS 6400 Series documentation includes SFP-25G-AOC3M in its SFP28 25G cable table. Keep that server-access line item distinct from 25G copper DACs because the part family and FEC planning are different.
Product Comparison
|
Parameter |
SFP-25G-AOC3M | ||
|---|---|---|---|
|
Product type |
25GBASE-AOC SFP28 active optical cable |
25GBASE-AOC SFP28 active optical cable |
25GBASE-CR1 SFP28 passive copper cable |
|
Cable assembly type |
Active optical cable assembly |
Active optical cable assembly |
Direct-attach copper cable assembly |
|
Interface role |
SFP28 to SFP28 25G cable |
SFP28 to SFP28 25G cable |
SFP28 to SFP28 25G cable |
|
Supported Ethernet rate |
25 Gigabit Ethernet |
25 Gigabit Ethernet |
25 Gigabit Ethernet |
|
Cable length |
3 meters |
2 meters |
3 meters |
|
Pull tab color |
Orange |
Brown |
Orange |
|
Maximum power consumption |
1W |
1W |
0.1W |
|
Host FEC requirement |
BASE-R FEC or RS-FEC |
BASE-R FEC or RS-FEC |
BASE-R FEC |
- In a SFP-25G-AOC3M vs SFP-25G-AOC2M comparison, the table difference is fixed length: SFP-25G-AOC3M is the orange-tab 3-meter AOC and SFP-25G-AOC2M is the brown-tab 2-meter AOC.
- The SFP-25G-AOC3M difference from SFP-H25G-CU3M is the cable family at the same 3-meter length, because the current SKU is active optical cable while SFP-H25G-CU3M is passive copper.
- For buyers deciding which model to choose, first keep the media family aligned with the Cisco host record, then choose the length and FEC behavior shown in the comparison table.
Selection Guide
1. Choose the 3-meter AOC for measured short routes
Select SFP-25G-AOC3M when the cabling schedule calls for Cisco 25GBASE-AOC SFP28 media and the installed path has been measured for a fixed 3-meter assembly.
2. Drop to 2 meters only when the route is tight
Use SFP-25G-AOC2M when the same Cisco AOC family is required but cable management leaves no practical need for the extra meter.
3. Separate same-length copper from the AOC order
SFP-H25G-CU3M shares the 3-meter length and orange receiving cue, but it changes the BOM to 25GBASE-CR1 passive copper and should not be substituted for this AOC without design review.
4. Confirm the Cisco host and FEC settings
Verify the target Cisco platform, port type, software context, and BASE-R FEC or RS-FEC support before releasing SFP-25G-AOC3M for quote or receiving.
Ordering Checklist
|
Review Area |
Confirmation |
Procurement Risk |
|---|---|---|
|
Media family |
Design records call for 25GBASE-AOC SFP28 active optical cable |
Avoids replacing the AOC with a same-length 25GBASE-CR1 copper DAC |
|
Three-meter path |
Rack route, cable manager path, and service loop are checked against a fixed 3-meter assembly |
Reduces length mismatch during installation staging |
|
Cisco host support |
Cisco compatibility documentation or platform documentation covers the intended host, port, and software context |
Keeps the cable inside Cisco’s support boundary for the selected SFP28 endpoint |
|
FEC planning |
Host ports support BASE-R FEC or RS-FEC as required for Cisco SFP-25G AOC links |
Aligns link turn-up with Cisco’s documented AOC FEC requirement |
|
Power and temperature |
Port planning accepts 1W maximum consumption and commercial 0 to 70 degrees C operation |
Avoids use outside Cisco’s published electrical or temperature range |
|
Receiving cue |
Orange pull tab is checked after the exact PID has been scanned |
Color is useful for visual inspection but cannot replace part-number verification |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SFP-25G-AOC3M | Product type | 25GBASE-AOC SFP28 active optical cable assembly |
| Ordering description | 25GBASE-AOC SFP28 Active Optical Cable, 3-meter | Cable assembly type | Active optical cable assembly |
| Interface role | SFP28 to SFP28 25G cable | Supported Ethernet rate | 25 Gigabit Ethernet |
| Cable length | 3 meters | Pull tab color | Orange |
| Maximum power consumption | 1W | Host FEC requirement | BASE-R FEC or RS-FEC on host ports |
| FEC standard reference | IEEE 802.3by Clause 110 for RS-FEC in Cisco FEC guidance | FCoE support | Supported with appropriate host software support |
| Operating temperature class | Commercial | Commercial operating temperature | 0 to 70 degrees C |
| Storage temperature range | -40 to 85 degrees C | CW9800M support example | Cisco lists SFP-25G-AOC3M as a supported 25GBASE SFP model |
| Catalyst 9300 support example | Cisco IOS XE Fuji 16.9.1 release notes list SFP-25G-AOC3M under supported 25GBASE SFP28 module numbers | UCS 6400 support example | Cisco lists SFP-25G-AOC3M in the SFP28 25G cable table |
| Standard warranty | 5 years | Standards references | SFF-8402, SFF-8472, IEEE 802.3, IEEE P802.3by |
| Official compatibility boundary | Cisco host support must be verified per platform and software release |
