QSFP-4X10G-AOC10M – 40G QSFP+ Breakout – 4x10G SFP+ AOC – 10m Length
0/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
QSFP-4X10G-AOC10M Description

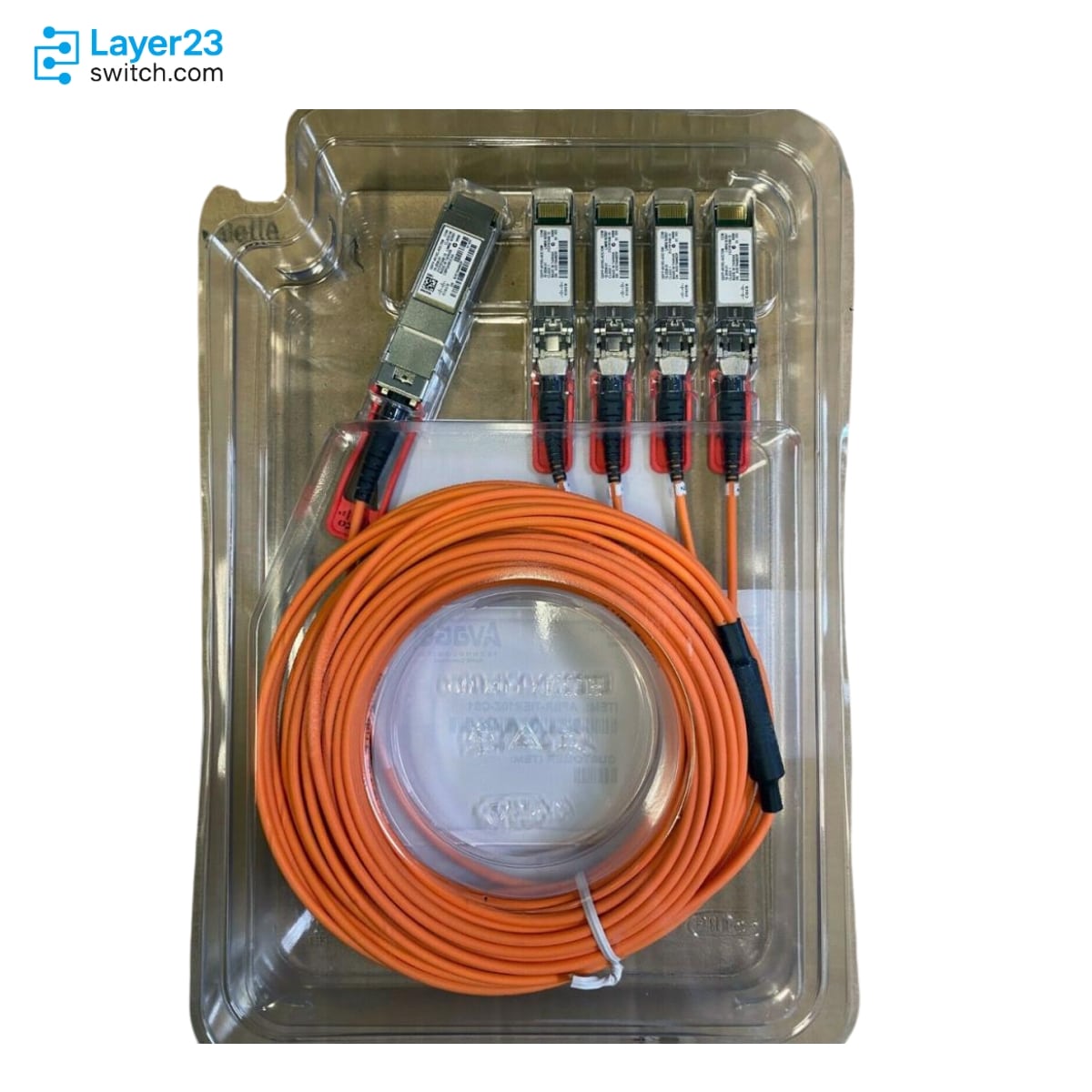

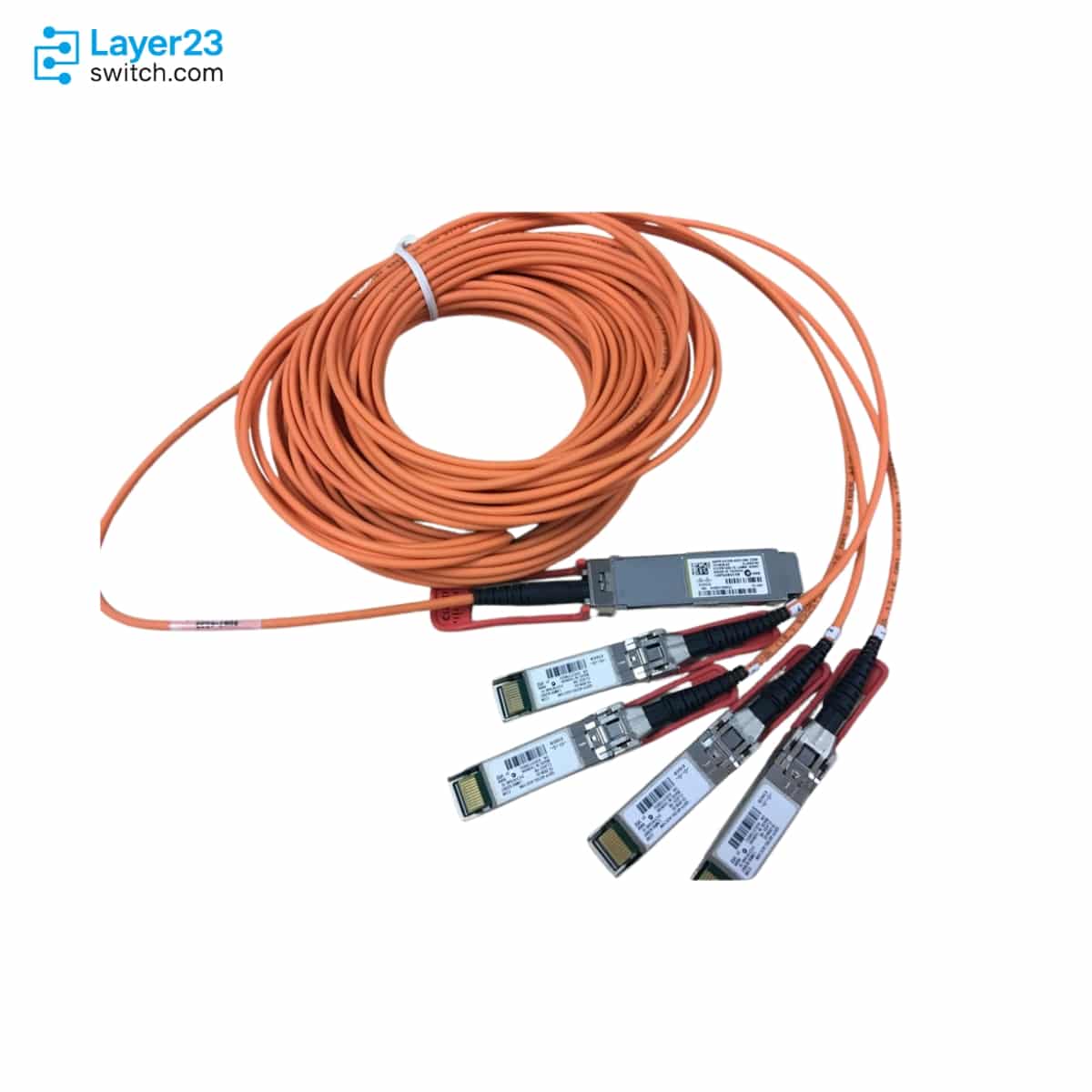

QSFP-4X10G-AOC10M is the Cisco 10-meter QSFP-to-4xSFP+ active optical breakout cable for one 40G port to four 10G links.
This part belongs in a breakout design, not a normal QSFP-to-QSFP 40G link. It is useful when the port plan needs four SFP+ endpoints from one Cisco QSFP port while avoiding separate optics and patch cords.
Before ordering, confirm the host platform, breakout mode, software support, 10-meter route, and SFP+ endpoint layout. Layer23-Switch can help check price, stock, warranty support, shipping timing, and Cisco compatibility for the exact breakout cable.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
QSFP-4X10G-AOC10M |
|
Brand |
Cisco |
|
Product family |
Cisco 40GBASE QSFP modules |
|
Product type |
40GBASE-AOC QSFP to 4 SFP+ active optical breakout cable |
|
Cable assembly type |
Active optical cable assembly |
|
Interface form factor |
QSFP to four SFP+ breakout |
|
Ethernet role |
40 Gigabit Ethernet to four 10 Gigabit Ethernet breakout |
|
Cable length |
10 meters |
|
Breakout location |
7 meters from 40G end |
|
Pull tab color |
Red |
|
QSFP connector module dimensions |
13.5 x 18.4 x 72.4 mm maximum outer dimensions |
|
QSFP connector module weight |
100 grams or less |
|
QSFP-end cable diameter |
3.5 mm |
|
QSFP-end bend radius |
60 mm |
|
QSFP-end face plate distance |
100 mm |
|
SFP-end cable diameter |
3 mm |
|
SFP-end bend radius |
30 mm |
|
SFP-end face plate distance |
80 mm |
Application Scenarios
Use QSFP-4X10G-AOC10M when the design calls for one compatible Cisco 40G QSFP interface to connect to four Cisco 10G SFP+ interfaces. It fits aggregation, fabric extender, or migration projects where the upstream port is 40G and the downstream devices still use 10G SFP+ links.
The 10-meter active optical format is useful when the route is longer than the shorter 1-meter to 7-meter breakout AOC options. Check the actual cable path through managers and trays so the 7-meter breakout point, bend radius, and SFP-end fanout all have enough space.
This model helps standardize a Cisco breakout line item when a BOM needs a fixed 10-meter QSFP-to-4xSFP+ active optical cable. Buyers should quote the full SKU to avoid receiving a QSFP-to-QSFP AOC or an active copper breakout cable with a similar part number.
Product Comparison
|
Parameter |
QSFP-4X10G-AOC10M |
QSFP-4X10G-AOC7M |
QSFP-4X10G-AC10M |
|---|---|---|---|
|
Product family |
Cisco 40GBASE QSFP modules |
Cisco 40GBASE QSFP modules |
Cisco 40GBASE QSFP modules |
|
Product type |
QSFP to 4 SFP+ active optical breakout cable |
QSFP to 4 SFP+ active optical breakout cable |
QSFP to 4 SFP+ active copper breakout cable |
|
Interface form factor |
QSFP to four SFP+ breakout |
QSFP to four SFP+ breakout |
QSFP to four SFP+ breakout |
|
Ethernet role |
40G to four 10G breakout |
40G to four 10G breakout |
40G to four 10G breakout |
|
Cable length |
10 meters |
7 meters |
10 meters |
|
Breakout location from 40G end |
7 meters |
4 meters |
7 meters |
|
Pull tab color |
Red |
Blue |
Red |
|
QSFP-end cable diameter |
3.5 mm |
3.5 mm |
9 mm |
|
QSFP-end bend radius |
60 mm |
60 mm |
50 mm |
|
QSFP-end face plate distance |
100 mm |
100 mm |
100 mm |
|
SFP-end cable diameter |
3 mm |
3 mm |
5 mm |
|
SFP-end bend radius |
30 mm |
30 mm |
45 mm |
|
SFP-end face plate distance |
80 mm |
80 mm |
70 mm |
|
Jacket material |
PVC |
PVC |
PVC |
|
Jacket color |
Orange |
Orange |
Black |
- Choose the 10-meter AOC breakout SKU when a 7-meter optical breakout cable is short for the routed path but the design still needs optical rather than active copper cable.
- QSFP-4X10G-AOC10M and QSFP-4X10G-AC10M have the same listed cable length and breakout location, but Cisco identifies one as active optical and the other as active copper.
- The optical breakout cable uses smaller listed cable diameters at both the QSFP and SFP ends than the active copper 10-meter breakout option.
- Pull tab color helps receiving and installation teams separate nearby cable lengths, but the purchase request should still use the exact product ID.
Selection Guide
1. Use this SKU only for a real 40G-to-4x10G breakout requirement
QSFP-4X10G-AOC10M is not a QSFP-to-QSFP direct-attach cable. Select it when one 40G QSFP host port must fan out to four 10G SFP+ ports, and confirm the Cisco platform supports breakout operation on the target ports.
2. Measure the cable path before approving the 10-meter length
The 10-meter length should be checked against the routed path, not just the straight cabinet distance. The breakout point is 7 meters from the 40G end, so the rack layout must leave enough distance for the four SFP+ legs to reach their target ports cleanly.
3. Validate platform and software compatibility
Cisco compatibility documentation should be checked for the exact switch, controller, line card, and software release. A valid Cisco cable SKU can still be wrong for a specific chassis, port group, or release train.
4. Separate optical and copper breakout choices in the quote
When asking for price and stock, state whether the requirement is QSFP-4X10G-AOC10M active optical or QSFP-4X10G-AC10M active copper. The names are close, but the cable construction and physical routing values are different.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
QSFP-4X10G-AOC10M |
Prevents substitution with QSFP-to-QSFP AOC or active copper breakout variants |
|
Interface requirement |
One 40G QSFP port to four 10G SFP+ ports |
Confirms the order matches a breakout design rather than a direct 40G link |
|
Cable length |
10-meter routed path |
Avoids short runs that cannot reach or excess cable in dense racks |
|
Breakout point |
7 meters from the 40G end |
Helps installers plan which side of the rack should receive the QSFP connector |
|
Platform support |
Host device, port group, line card, and software release |
Cisco compatibility support varies by platform and release |
|
Physical clearance |
3.5 mm QSFP-end diameter, 3 mm SFP-end diameter, and listed bend radii |
Helps validate tray, port-side, and fanout clearance before shipment |
|
Procurement details |
Quote, stock, warranty support, and shipping window |
Keeps receiving and deployment timing aligned with the project schedule |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | QSFP-4X10G-AOC10M | Brand | Cisco |
| Product family | Cisco 40GBASE QSFP modules | Product type | 40GBASE-AOC QSFP to 4 SFP+ active optical breakout cable |
| Cable assembly type | Active optical cable assembly | Interface form factor | QSFP to four SFP+ breakout |
| Ethernet role | 40 Gigabit Ethernet to four 10 Gigabit Ethernet breakout | Cable length | 10 meters |
| Breakout location | 7 meters from 40G end | Pull tab color | Red |
| QSFP connector module dimensions | 13.5 x 18.4 x 72.4 mm maximum outer dimensions | QSFP connector module weight | 100 grams or less |
| QSFP-end cable diameter | 3.5 mm | QSFP-end bend radius | 60 mm |
| QSFP-end face plate distance | 100 mm | SFP-end cable diameter | 3 mm |
| SFP-end bend radius | 30 mm | SFP-end face plate distance | 80 mm |
| Jacket material | PVC | Jacket color | Orange |
| Operating temperature range | 0 to 70 degrees C (32 to 158 degrees F) | Storage temperature range | -40 to 85 degrees C (-40 to 185 degrees F) |
