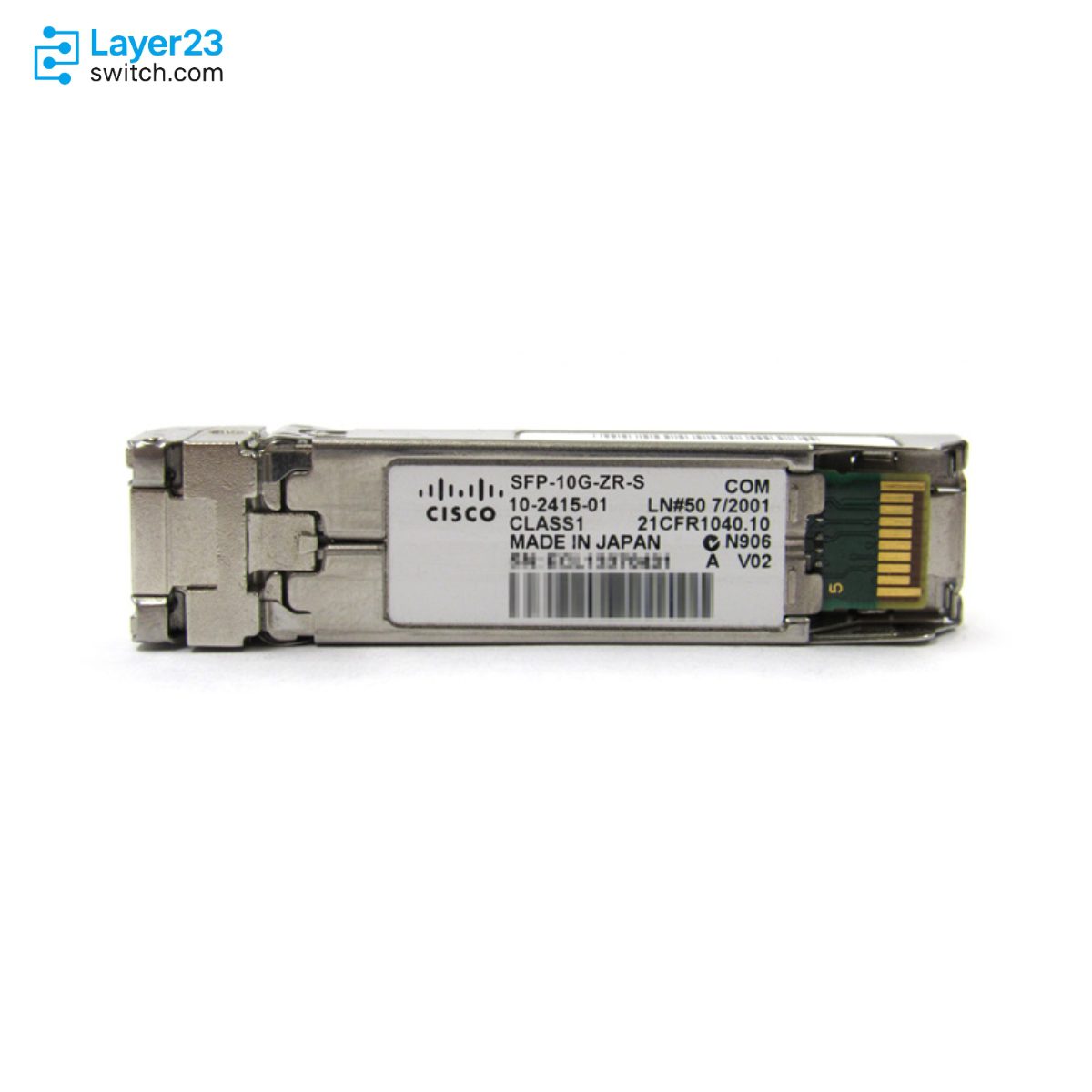

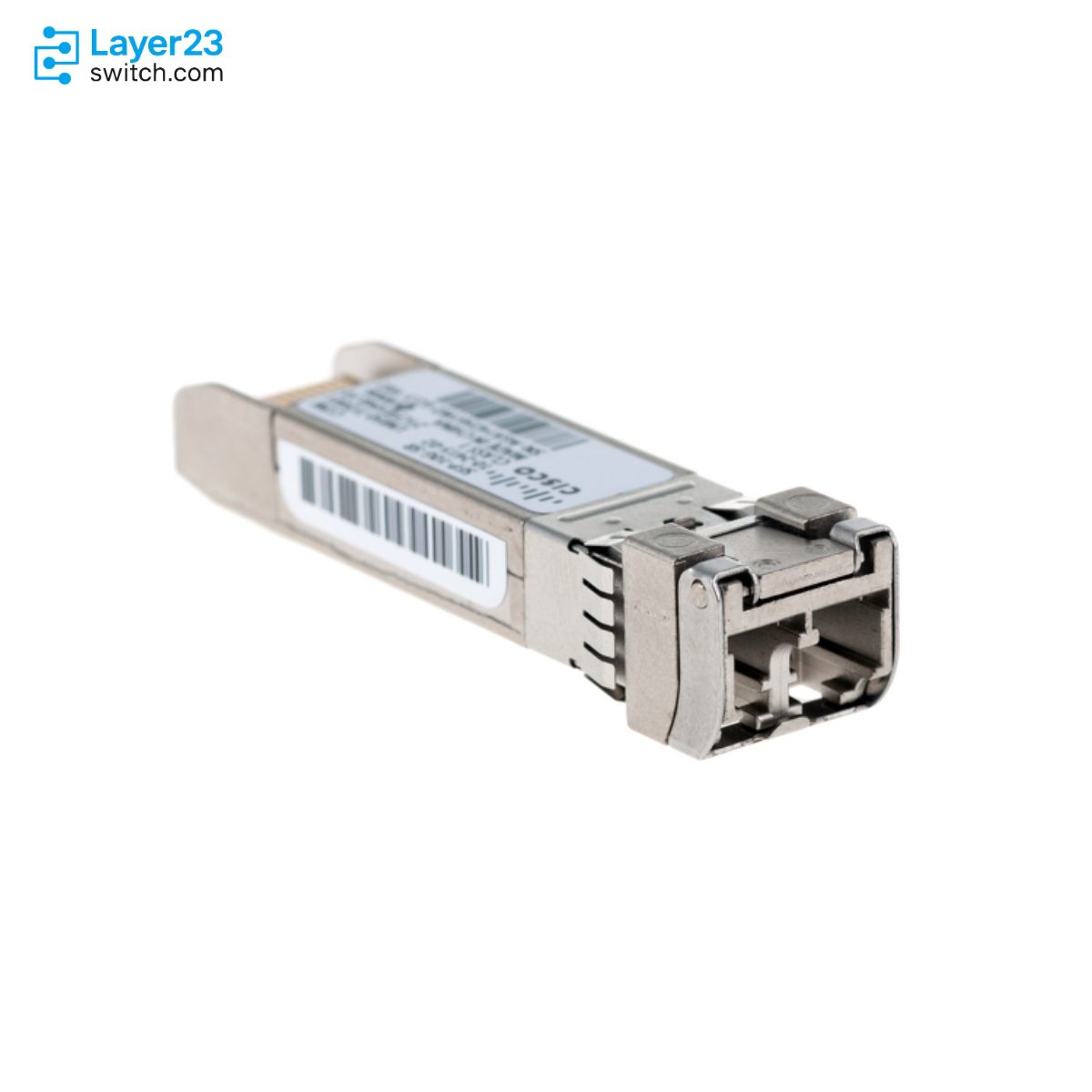

SFP-10G-ZR-S – 10GBASE-ZR SFP+ – S-Class – 80km SMF
13/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
SFP-10G-ZR-S Description
SFP-10G-ZR-S is a Cisco S-Class 10GBASE-ZR SFP+ transceiver for 10 Gigabit Ethernet optical links over ITU-T G.652 single-mode fiber. It is built for long-reach 1550 nm SMF connections up to about 80 km using dual LC/PC connectors, with green bail latch identification, commercial 0 to 70 degrees C operation, 1.5W maximum power consumption, and no Fibre Channel over Ethernet support.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
SFP-10G-ZR-S |
|
Product type |
10GBASE-ZR S-Class SFP+ transceiver |
|
Module class |
S-Class |
|
Ethernet protocol |
10GBASE-ZR |
|
Fiber type |
Single-mode fiber |
|
SMF reference |
ITU-T G.652 |
|
Wavelength |
1550 nm |
|
Operating distance |
Up to about 80 km |
|
Connector |
Dual LC/PC |
|
FCoE support |
Not supported |
|
Maximum power consumption |
1.5W |
|
Operating temperature class |
Commercial 0 to 70 degrees C |
Application Scenarios
Specify SFP-10G-ZR-S when the approved Cisco bill of materials names an S-Class 10GBASE-ZR optic for a 1550 nm G.652 single-mode fiber run in the 80 km reach class.
Keep this SKU tied to 10G Ethernet links that do not require FCoE. Cisco marks the S-Class ZR PID with no FCoE support, so storage-converged traffic needs a different approved optics review.
Reserve SFP-10G-ZR-S separately from SFP-10G-ZR and SFP-10G-ZR-I. Receiving and maintenance teams should preserve the S-Class suffix, commercial temperature class, and Cisco host-support evidence instead of grouping all green-latch ZR optics together.
Product Comparison
|
Parameter |
SFP-10G-ZR-S |
SFP-10G-ZR-I | ||
|---|---|---|---|---|
|
Product type |
10GBASE-ZR S-Class SFP+ transceiver |
Multirate 10GBASE-ZR SFP+ transceiver |
Industrial-temperature multirate 10GBASE-ZR SFP+ transceiver |
10GBASE-ER S-Class SFP+ transceiver |
|
Ordering description |
10GBASE-ZR SFP+ Module for SMF S-Class |
Multirate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF |
Multirate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF |
10GBASE-ER SFP+ Module for SMF S-Class |
|
Module position |
S-Class ZR listing |
Standard multirate ZR listing |
Industrial-temperature ZR listing |
S-Class ER listing |
|
Supported media |
SMF |
Standard SMF |
Standard SMF |
SMF |
|
Fiber reference |
G.652 |
G.652 |
G.652 |
G.652 |
|
Nominal wavelength |
1550 nm |
1550 nm |
1550 nm |
1550 nm |
|
Documented reach |
Up to about 80 km |
Up to about 80 km |
Up to 70 km |
Up to 40 km |
|
Protocol scope |
10GBASE-ZR with no FCoE support |
10GBASE-ZR, 10GBASE-ZW, OTU2/OTU2e |
10GBASE-ZR, 10GBASE-ZW, OTU2/OTU2e |
10GBASE-ER with no FCoE support |
|
Operating temperature class |
Commercial |
Commercial |
Industrial |
Commercial |
|
Maximum power consumption |
1.5W |
1.5W |
2W |
1.5W |
|
Bail latch color |
Green |
Green |
Green |
Red |
|
Short-span attenuation |
15 dB below 5 km, 10 dB from 5 km to 25 km, 5 dB from 25 km to 45 km |
15 dB below 5 km, 10 dB from 5 km to 25 km, 5 dB from 25 km to 45 km |
Inline attenuator required below 40 km |
5 dB attenuator below 20 km |
- In a SFP-10G-ZR-S vs SFP-10G-ZR comparison, both entries share the Cisco 1550 nm ZR distance class, G.652 SMF medium, green latch, commercial temperature class, and 1.5W power rating; SFP-10G-ZR-S is the S-Class 10GBASE-ZR order line with no FCoE support.
- The SFP-10G-ZR-S difference from SFP-10G-ZR-I is temperature and reach, because SFP-10G-ZR-I is the industrial-temperature ZR listing with a 70 km reach statement and 2W power rating.
- SFP-10G-ZR-S vs SFP-10G-ER-S is a reach-class comparison: the current SKU is the S-Class ZR option at up to about 80 km, while SFP-10G-ER-S is the S-Class ER option at up to 40 km.
- For which model to choose, match the order to S-Class requirement, service protocol, temperature class, attenuation plan, and Cisco compatibility result for the target host.
Selection Guide
1. Use it only for S-Class ZR demand
Select SFP-10G-ZR-S when the quote or replacement plan specifically calls for Cisco’s S-Class 10GBASE-ZR SFP+ PID on 1550 nm G.652 single-mode fiber.
2. Keep multirate requirements separate
Use SFP-10G-ZR instead when the design depends on Cisco’s multirate ZR, ZW, or OTU2/OTU2e ordering description rather than the S-Class ZR line.
3. Move to industrial ZR for temperature needs
Choose SFP-10G-ZR-I only when the site requires Cisco’s industrial-temperature ZR optic and the 70 km reach statement fits the link design.
4. Check host and link budget together
Approve the SKU after the Cisco device support record, SFP+ port, software entry, single-mode path loss, and ZR attenuator value have all been checked.
Ordering Checklist
|
Check Item |
What to Confirm |
Procurement Risk Controlled |
|---|---|---|
|
FCoE exclusion |
The service design is 10GBASE-ZR Ethernet and does not require FCoE |
Keeps the order inside Cisco’s S-Class ZR support note |
|
Host compatibility record |
Cisco compatibility documentation covers the target device, SFP+ port, and operating system |
Avoids approving the optic from form factor and wavelength alone |
|
Fiber plant |
The path uses G.652 single-mode fiber and fits the ZR reach design |
Keeps the 80 km class tied to the actual cable plant instead of distance wording only |
|
Patch-cord connector |
LC/PC or LC/UPC patch cords are specified and APC connectors are excluded |
Matches Cisco’s connector rule for the SFP+ optical family |
|
Attenuator bands |
15 dB, 10 dB, or 5 dB attenuation is planned for the applicable sub-45 km ZR distance band |
Reduces receiver overload risk during short-span staging or migration |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SFP-10G-ZR-S | Product type | 10GBASE-ZR S-Class SFP+ transceiver |
| Ordering description | 10GBASE-ZR SFP+ Module for SMF S-Class | Module class | S-Class |
| Ethernet protocol | 10GBASE-ZR | FCoE support | Not supported |
| Fiber type | Single-mode fiber | SMF reference | ITU-T G.652 |
| Nominal wavelength | 1550 nm | Transmitter wavelength range | 1530 to 1565 nm |
| Receiver input wavelength range | 1260 to 1565 nm | Receiver sensitivity wavelength note | Specified over 1530 to 1565 nm with 3 dB degradation from 1260 to 1530 nm |
| Operating distance | Up to about 80 km | Engineered-link note | Links longer than 30 km are engineered links |
| Transmitter optical output power | 0 to +4.0 dBm | Receiver overload | -7 dBm |
| 10GE receiver sensitivity | -24 dBm | Receiver damage threshold | +5 dBm |
| Maximum chromatic dispersion | 1600 ps/nm | Short-distance attenuation note | Cisco ZR notes call for inline attenuation on shorter SMF distances |
| Short-span attenuation | 15 dB below 5 km, 10 dB from 5 km to 25 km, 5 dB from 25 km to 45 km | Attenuator spare parts | 15216 ATT LC 5=, 15216 ATT LC 10=, 15216 ATT LC 15= |
| Connector | Dual LC/PC | Patch-cord rule | PC or UPC connectors supported |
| Bail latch color | Green | Maximum power consumption | 1.5W |
| Operating temperature class | Commercial | Commercial operating temperature | 0 to 70 degrees C |
| Storage temperature range | -40 to 85 degrees C | SFP+ connector dimensions | 8.5 x 13.4 x 56.5 mm |
| SFP+ connector weight | 75 grams or less | Platform support boundary | Cisco compatibility documentation required for exact host and software support |
| Standard warranty | 5 years | Cisco ID feature | Cisco platform identification validates Cisco-certified modules |
Get More Information
Need pricing, stock, or shipping details for the SFP-10G-ZR-S ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is SFP-10G-ZR-S used for?
-
What wavelength and fiber type does SFP-10G-ZR-S use?
-
Is SFP-10G-ZR-S an IEEE 10GBASE standard optic?
-
What does S-Class mean for SFP-10G-ZR-S?
-
What padding rule applies to short ZR-S spans?
-
How is SFP-10G-ZR-S different from SFP-10G-ER-S?
-
Can SFP-10G-ZR-S replace SFP-10G-ZR?
-
What design check matters most for SFP-10G-ZR-S?
