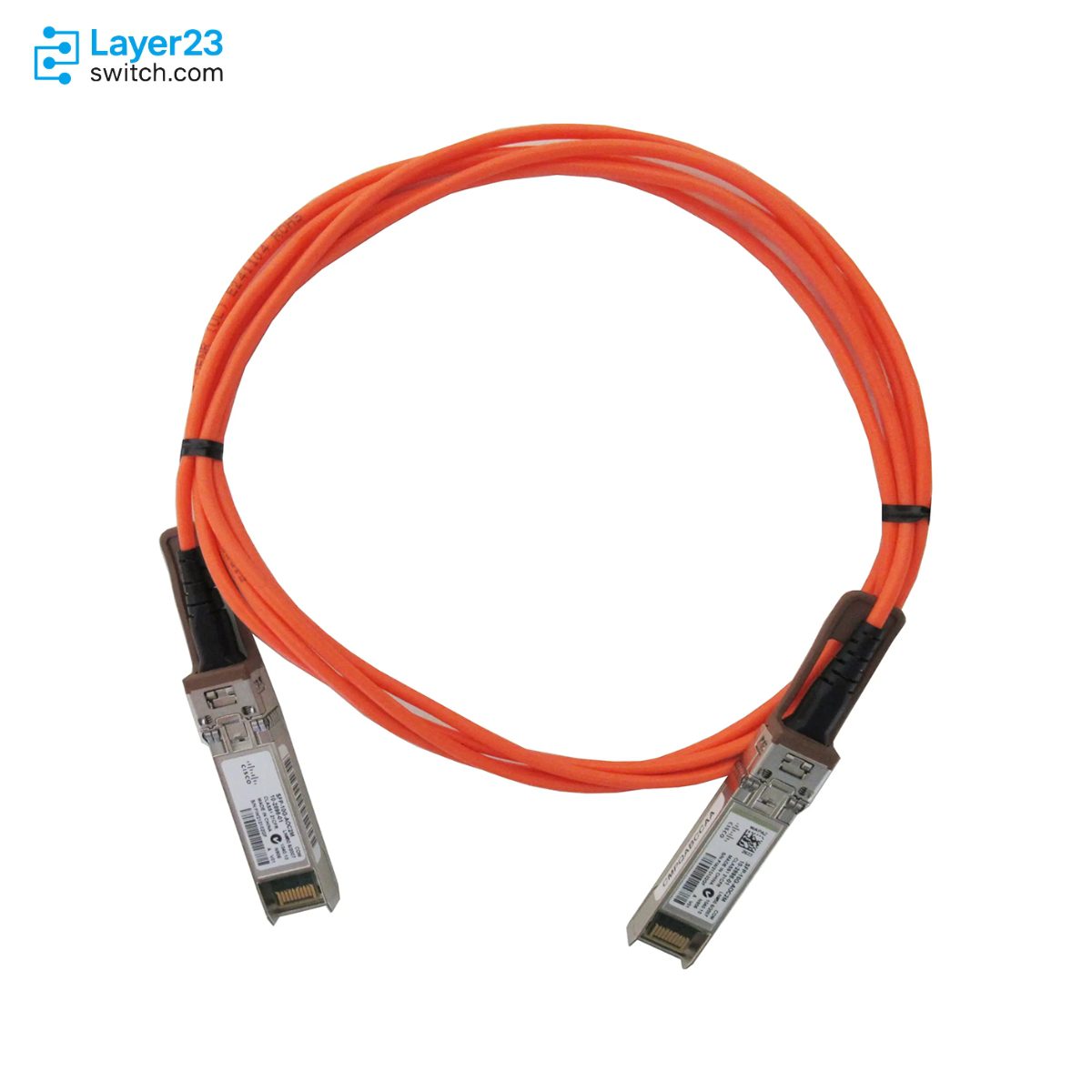

SFP-10G-AOC2M – 10G SFP+ AOC – 2m Length – Active Optical Cable
9/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
SFP-10G-AOC2M Description
SFP-10G-AOC2M is a Cisco 10GBASE-AOC SFP+ active optical cable assembly for short 10 Gigabit Ethernet links between supported SFP+ ports. It provides a 2 m SFP+ to SFP+ active optical connection with brown bail latches, 1W maximum power consumption, and commercial 0 to 70 degrees C operating temperature, making it a compact Cisco cable option for switch, server, or fabric-interconnect BOMs that require an official Cisco 10G active optical cable rather than separate optical transceivers and fiber jumpers.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
SFP-10G-AOC2M |
|
Product type |
10GBASE-AOC SFP+ active optical cable assembly |
|
Cable assembly type |
Active optical cable assembly |
|
Interface role |
SFP+ to SFP+ 10G cable |
|
Supported Ethernet rate |
10 Gigabit Ethernet |
|
Cable length |
2 meters |
|
Bail latch color |
Brown |
|
Maximum power consumption |
1W |
|
Operating temperature class |
Commercial 0 to 70 degrees C |
|
Compatibility reference |
Cisco Transceiver Module Group Compatibility Matrix |
Application Scenarios
Use SFP-10G-AOC2M when two supported Cisco SFP+ ports need a fixed 2-meter 10G active optical cable after patch-panel position, bend control, and service slack are accounted for.
Cisco release notes list SFP-10G-AOC2M among supported active optical cable product numbers for C9200L Multigigabit Ethernet models with 10G uplinks and for high-performance Catalyst 9500 models. Confirm the exact platform, port role, and software support in Cisco compatibility documentation before purchase.
The Cisco UCS 6300 hardware guide lists SFP-10G-AOC2M in its supported SFP+ cable table. For UCS 6332 QSFP+ ports, the same guide requires the CVR-QSFP-SFP10G QSA module when 10G SFP+ cables operate in a 40G QSFP+ port.
Product Comparison
|
Parameter |
SFP-10G-AOC2M | |||
|---|---|---|---|---|
|
Product type |
10GBASE-AOC SFP+ active optical cable |
10GBASE-AOC SFP+ active optical cable |
10GBASE-AOC SFP+ active optical cable |
10GBASE-CU SFP+ passive twinax copper cable |
|
Cable assembly type |
Active optical cable assembly |
Active optical cable assembly |
Active optical cable assembly |
Passive twinax cable assembly |
|
Interface role |
SFP+ to SFP+ 10G cable |
SFP+ to SFP+ 10G cable |
SFP+ to SFP+ 10G cable |
SFP+ to SFP+ 10G cable |
|
Supported Ethernet rate |
10 Gigabit Ethernet |
10 Gigabit Ethernet |
10 Gigabit Ethernet |
10 Gigabit Ethernet |
|
Cable length |
2 meters |
1 meter |
3 meters |
2 meters |
|
Bail latch color |
Brown |
Beige |
Orange |
Brown |
|
Maximum power consumption |
1W |
1W |
1W |
0.1W |
|
Operating temperature class |
Commercial |
Commercial |
Commercial |
Commercial |
- In a SFP-10G-AOC2M vs SFP-10G-AOC1M comparison, the table-confirmed difference is fixed AOC length: 2 meters for SFP-10G-AOC2M and 1 meter for SFP-10G-AOC1M.
- SFP-10G-AOC2M vs SFP-10G-AOC3M is another same-family length comparison, with the current SKU using a brown bail latch at 2 meters and SFP-10G-AOC3M using an orange bail latch at 3 meters.
- The SFP-10G-AOC2M difference from SFP-H10GB-CU2M is media type at the same 2-meter length: active optical cable for SFP-10G-AOC2M and passive twinax copper for SFP-H10GB-CU2M.
- For which model to choose, confirm the required 10G SFP+ cable medium first, then match the fixed length and Cisco host-support entry.
Selection Guide
1. Use it for a measured 2-meter active optical path
Select SFP-10G-AOC2M when the installed Cisco SFP+ route needs a 2-meter fixed AOC and the design does not call for copper twinax cabling.
2. Shorten or lengthen only within the AOC family
Choose SFP-10G-AOC1M or SFP-10G-AOC3M only when the same 10GBASE-AOC cable family is required but the measured route fits those documented lengths better.
3. Do not substitute passive copper by length alone
SFP-H10GB-CU2M matches the 2-meter length but changes the order to passive twinax copper, so keep it separate from active optical BOM lines.
4. Tie host support to the exact port
Check Cisco compatibility documentation for the switch or fabric interconnect model, SFP+ port type, and software release before adding SFP-10G-AOC2M to the purchase list.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Fixed length |
2-meter route after cable managers and service slack |
Avoids ordering a cable that is too short or leaves avoidable excess |
|
Cable medium |
10GBASE-AOC active optical cable assembly |
Keeps the BOM separate from the SFP-H10GB-CU2M passive copper SKU |
|
Host compatibility |
Cisco platform, SFP+ port, and software support in official compatibility documentation |
Confirms the target hardware supports the exact cable SKU |
|
Power and environment |
1W maximum power and commercial 0 to 70 degrees C class |
Keeps the link within Cisco power and temperature limits |
|
Receiving cue |
Brown bail latch on the 2-meter AOC |
Helps staging teams catch accidental swaps with another fixed-length cable |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SFP-10G-AOC2M | Product type | 10GBASE-AOC SFP+ active optical cable assembly |
| Ordering description | Cisco 10GBASE-AOC Active Optical Cable SFP+ assembly, 2 meters | Cable assembly type | Active optical cable assembly |
| Interface role | SFP+ to SFP+ 10G cable | Supported Ethernet rate | 10 Gigabit Ethernet |
| Cable length | 2 meters | Bail latch color | Brown |
| Maximum power consumption | 1W | Operating temperature class | Commercial |
| Commercial operating temperature | 0 to 70 degrees C | Storage temperature range | -40 to 85 degrees C |
| SFP+ connector dimensions | 8.5 x 13.4 x 56.5 mm | SFP+ connector weight | 75 grams or less |
| Catalyst 9200L support example | Cisco release notes list SFP-10G-AOC2M for C9200L Multigigabit Ethernet models with 10G uplinks | Catalyst 9500 support example | C9500-24Y4C, C9500-32C, C9500-32QC, and C9500-48Y4C list SFP-10G-AOC2M as a supported Direct-Attach Active Optical Cable |
| UCS support example | Cisco UCS 6300 Series Fabric Interconnect supported SFP+ cable table lists SFP-10G-AOC2M | Compatibility reference | Cisco Transceiver Module Group Compatibility Matrix |
| Standard warranty | 5 years |
Get More Information
Need pricing, stock, or shipping details for the SFP-10G-AOC2M ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is SFP-10G-AOC2M?
-
When is SFP-10G-AOC2M selected?
-
What separates SFP-10G-AOC2M from SFP-H10GB-CU2M?
-
Does SFP-10G-AOC2M need separate SR transceivers?
-
Can SFP-10G-AOC2M run through patch panels?
-
What host support check applies to SFP-10G-AOC2M?
-
How can SFP-10G-AOC2M be damaged during handling?
-
Which verification steps matter for SFP-10G-AOC2M?
