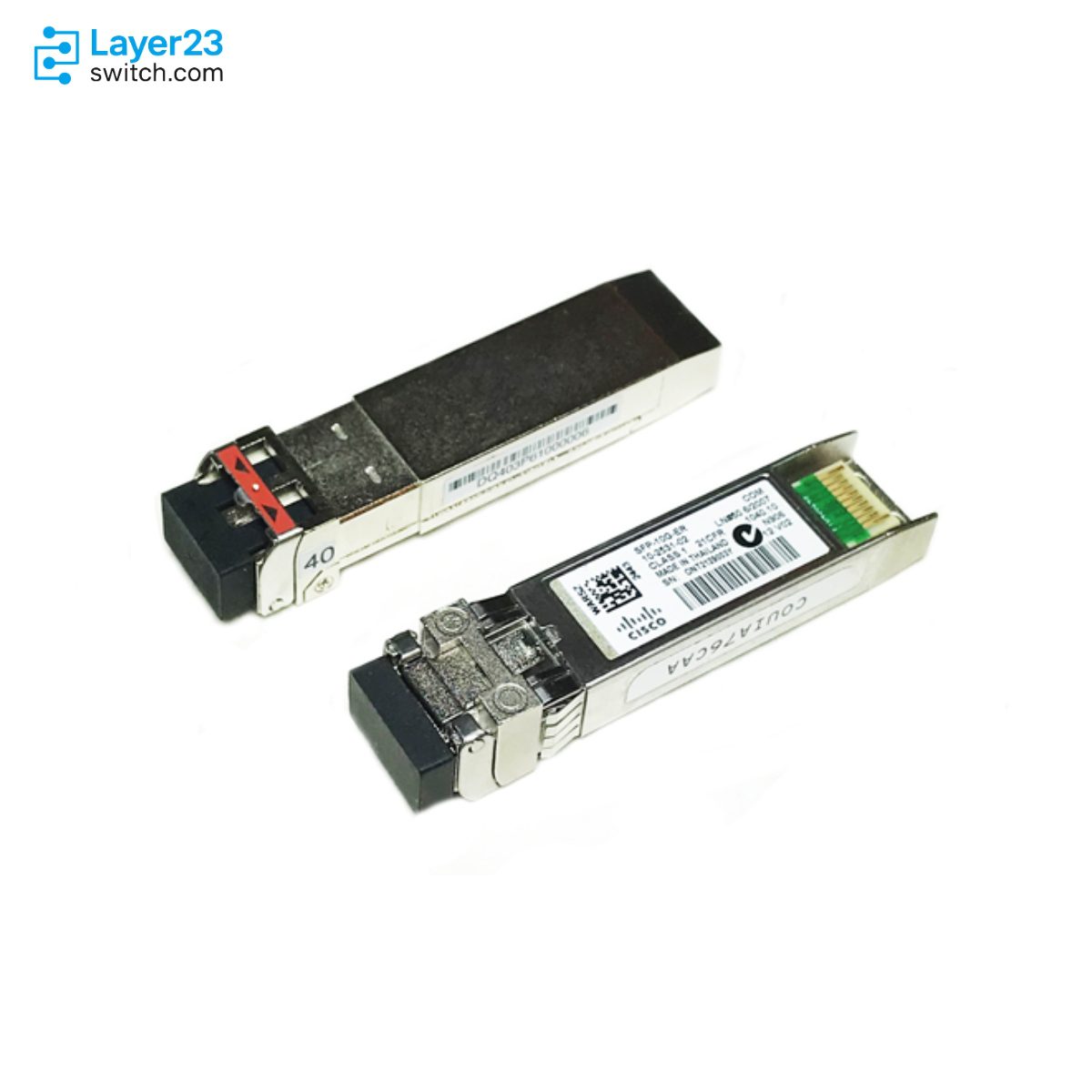

SFP-10G-ER-I – 10GBASE-ER SFP+ – Industrial Temp – 40km SMF
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
SFP-10G-ER-I Description
The SFP-10G-ER-I is a Cisco multirate 10GBASE-ER SFP+ transceiver for 40 km single-mode fiber links in industrial-temperature environments. The module carries 10GBASE-ER, 10GBASE-EW and OTU2/2e at 1550 nm, draws up to 1.5W and operates from -40 to 85°C. The receiver electrical interface is limiting, and links shorter than 20 km need a 5 dB 1550 nm fixed-loss attenuator.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
SFP-10G-ER-I |
|
Product type |
Industrial-temperature 10GBASE-ER SFP+ transceiver |
|
Protocol support |
10GBASE-ER, 10GBASE-EW, OTU2/2e |
|
Data rate |
10 Gigabit Ethernet |
|
Fiber type |
Standard single-mode fiber |
|
SMF reference |
ITU-T G.652 |
|
Wavelength |
1550 nm |
|
Operating distance |
Up to 40 km |
|
Connector type |
Dual LC/PC |
|
Maximum power consumption |
1.5W |
|
Operating temperature class |
Industrial -40 to 85°C |
|
Short-link attenuation |
5 dB 1550 nm fixed-loss attenuator for links under 20 km |
Application Scenarios
In an unheated roadside or remote-site cabinet, the module carries a 10G Ethernet uplink over 1550 nm single-mode fiber across -40 to 85°C where a commercial-temperature ER optic would fall outside its range.
In Remote-PHY, Carrier Ethernet and mobile backhaul links, the module serves 40 km spans that carry 10GBASE-EW or OTU2/2e signals as well as 10GBASE-ER.
Product Comparison
|
Parameter |
SFP-10G-ER-I |
SFP-10G-ZR-I | ||
|---|---|---|---|---|
|
Protocol support |
10GBASE-ER, 10GBASE-EW, OTU2/2e |
10GBASE-ER |
10GBASE-ER |
10GBASE-ZR, 10GBASE-ZW, OTU2/2e |
|
Fiber type |
Standard single-mode fiber (G.652) |
Standard single-mode fiber (G.652) |
Standard single-mode fiber (G.652) |
Standard single-mode fiber (G.652) |
|
Wavelength |
1550 nm |
1550 nm |
1550 nm |
1550 nm |
|
Operating distance |
Up to 40 km |
Up to 40 km |
Up to 40 km |
Up to 70 km |
|
Operating temperature |
-40 to 85°C |
0 to 70°C |
0 to 70°C |
-40 to 85°C |
|
Maximum power consumption |
1.5W |
1.5W |
1.5W |
2W |
|
Bail latch color |
Red |
Red |
Red |
Green |
SFP-10G-ER-I differs from SFP-10G-ER in temperature and protocol scope: it is rated -40 to 85 degrees C industrial and carries 10GBASE-ER, 10GBASE-EW and OTU2/2e, while SFP-10G-ER is a commercial 10GBASE-ER module. Both reach 40 km at 1.5W on 1550 nm G.652 fiber, so cabinets that fall below 0 degrees C need SFP-10G-ER-I and commercial sites can use SFP-10G-ER. SFP-10G-ER-S is the commercial S-Class ER module and does not support FCoE, so it does not cover an industrial or OTU2/2e requirement. Spans beyond 40 km, up to 70 km, move to SFP-10G-ZR-I, which stays industrial but draws 2W and uses a green latch.
Ordering Checklist
- Fiber type: Use standard G.652 single-mode fiber carrying 1550 nm. The 40 km ER class is specified only for 1550 nm single-mode fiber.
- Short-link attenuator: For links under 20 km, add a 5 dB 1550 nm fixed-loss attenuator, spare part 15216 ATT LC 5=. Without it the receiver can be overloaded on a short ER span.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | SFP-10G-ER-I | Product type | Industrial-temperature 10GBASE-ER SFP+ transceiver |
| Cisco ordering description | Multirate 10GBASE-ER, 10GBASE-EW and OTU2e SFP+ Module for SMF, Industrial Temperature range | Data rate | 10 Gigabit Ethernet |
| Supported protocol scope | 10GBASE-ER, 10GBASE-EW, OTU2/2e | Receiver electrical interface | Limiting |
| Fiber type | Standard single-mode fiber | SMF reference | ITU-T G.652 |
| Wavelength | 1550 nm | Transmit wavelength range | 1530 to 1565 nm |
| Receive wavelength range | 1530 to 1565 nm | Operating distance | Up to 40 km |
| Engineered-link note | Links longer than 30 km are engineered links | Transmit power range | +4.0 to -4.7 dBm |
| Receive power range | -1.0 to -15.8 dBm | Connector type | Dual LC/PC |
| Patch-cord rule | PC or UPC connectors supported | Bail latch color | Red |
| Maximum power consumption | 1.5W | Operating temperature class | Industrial |
| Industrial operating temperature | -40 to 85°C | Storage temperature | -40 to 85°C |
| Minimum cabling distance | 2 m | Short-link attenuation | 5 dB 1550 nm fixed-loss attenuator for links under 20 km |
| Attenuator spare part | 15216 ATT LC 5= | SFP+ connector dimensions | 8.5 x 13.4 x 56.5 mm |
| SFP+ connector weight | 75 grams or less | Platform support boundary | Cisco compatibility documentation required for exact host and software support |
Get More Information
Need pricing, stock, or shipping details for the SFP-10G-ER-I ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
