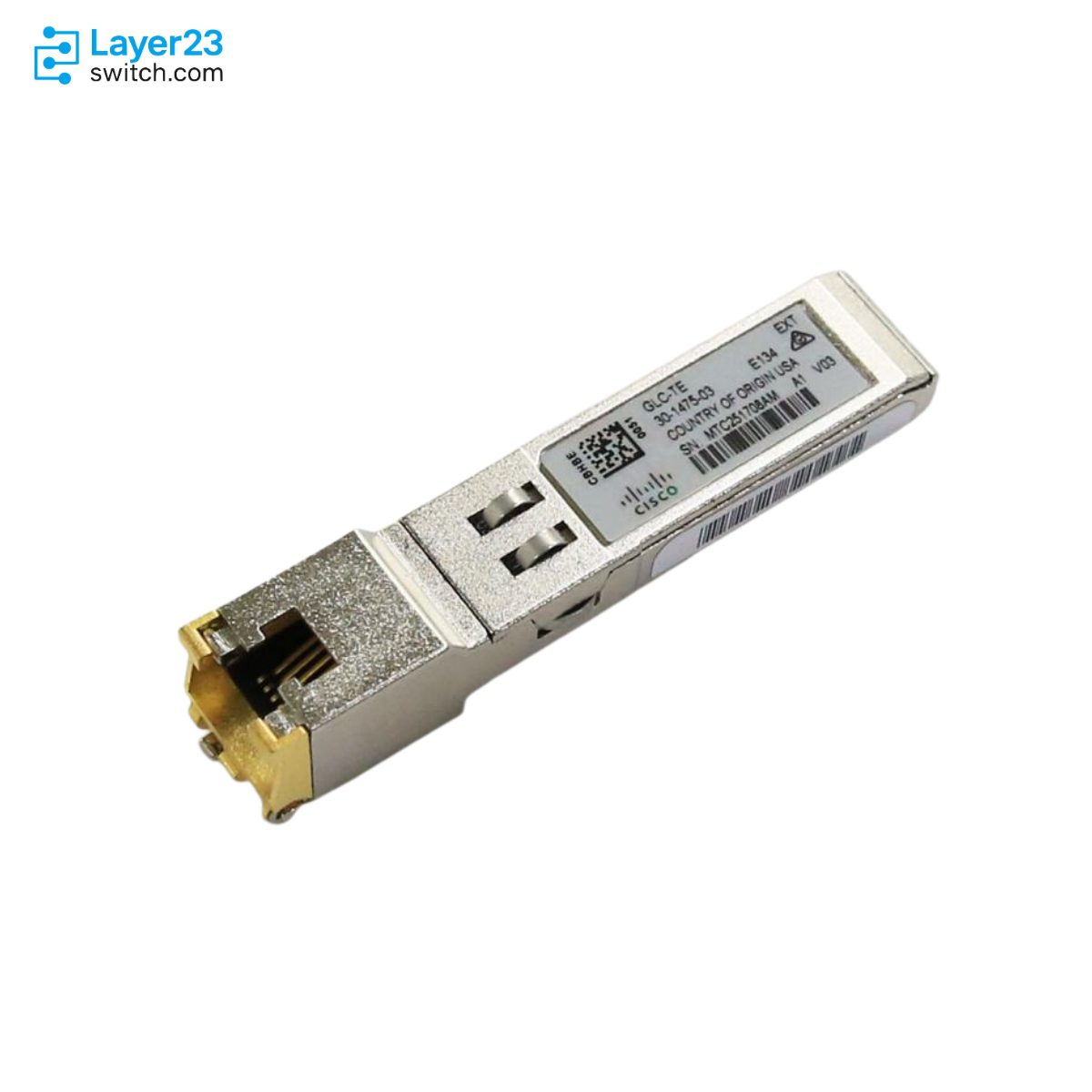

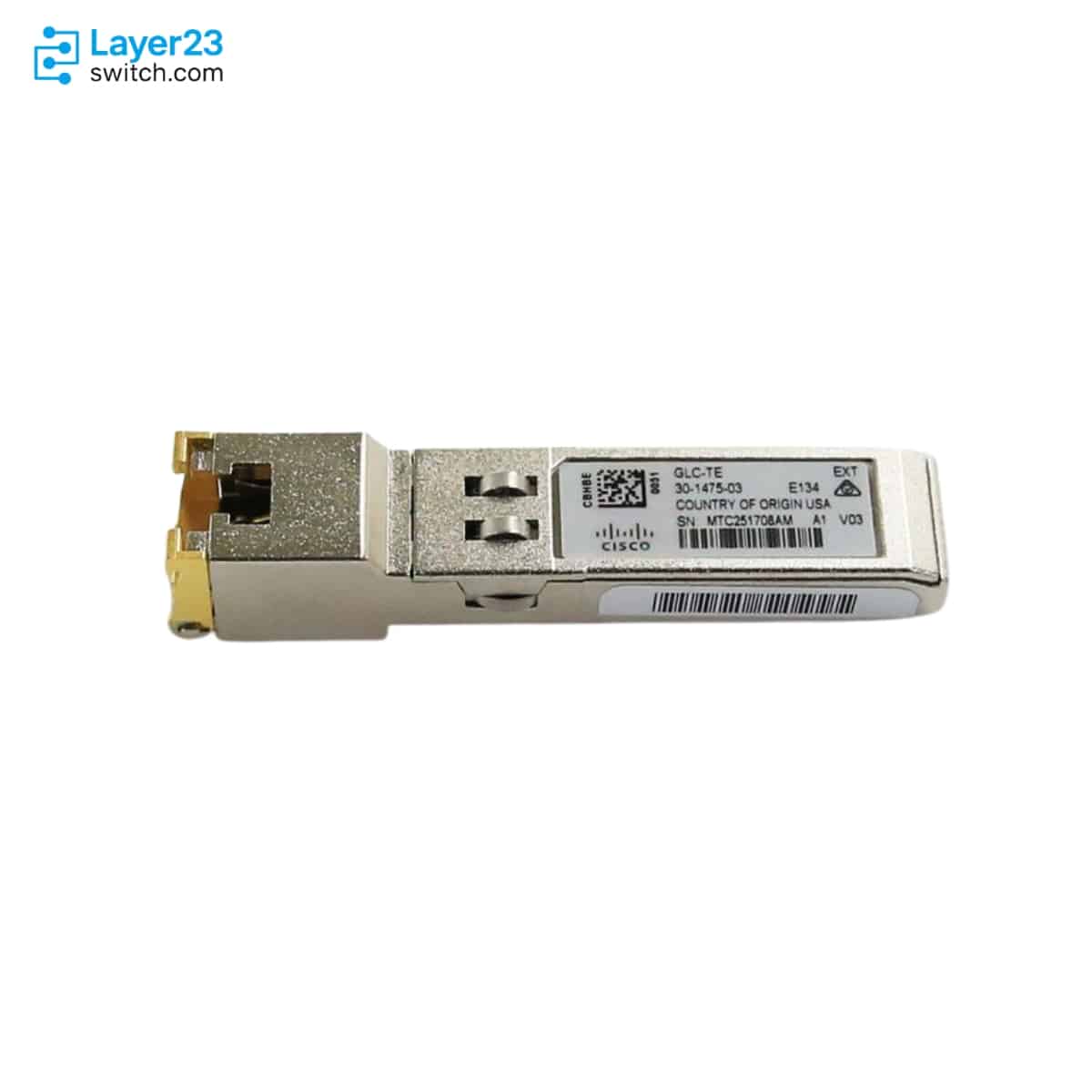

GLC-TE – 1000BASE-T SFP – RJ-45 Cat5 Copper – 100m Reach
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
GLC-TE Description
GLC-TE is a Cisco 1000BASE-T copper SFP transceiver for Gigabit Ethernet RJ-45 links where a supported Cisco host needs twisted-pair connectivity instead of fiber. It provides 10/100/1000 auto negotiation over Category 5 UTP or better cabling up to 100 m, uses a four twisted-pair copper interface with Auto MDI/MDIX support, carries Cisco's EXT temperature rating with a -5 to 85 C operating range, and lists DOM support as not applicable for this copper module.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
GLC-TE |
|
Product type |
1000BASE-T copper SFP transceiver |
|
Interface standard |
1000BASE-T |
|
Speed profile |
10/100/1000 auto negotiation |
|
Media |
Four twisted-pair copper |
|
Cable type |
Category 5 UTP or better |
|
Maximum reach |
100 m |
|
Connector |
RJ-45 |
|
Temperature range |
Extended temperature range -5 to 85 C |
|
DOM support |
Not applicable |
|
Maximum power |
1.0 W for 100M or 1G BASE-T operation |
Application Scenarios
Select GLC-TE for a Cisco SFP slot when the approved handoff is RJ-45 copper and the link can stay within the 100 m 1000BASE-T cabling limit.
Keep GLC-TE separate from GLC-T when the receiving site requires the EXT temperature-rated 1000BASE-T SFP rather than the commercial-temperature copper part.
GLC-TE fits 100M or 1G copper connectivity on supported Cisco switch or router ports. Review SFP-10G-T-X only when the host and cable plan require a 10GBASE-T SFP+ option instead of a 1G copper SFP order line.
Product Comparison
|
Parameter |
GLC-TE |
GLC-T |
SFP-GE-T |
GLC-T-RGD |
|---|---|---|---|---|
|
Product type |
1000BASE-T copper SFP transceiver |
1000BASE-T copper SFP transceiver |
1000BASE-T copper SFP transceiver |
1000BASE-T rugged copper SFP transceiver |
|
Cisco ordering description |
1000BASE-T standard |
1000BASE-T standard |
1000BASE-T NEBS 3 ESD |
1000BASE-T standard |
|
Module form factor |
SFP |
SFP |
SFP |
SFP |
|
Connector and media |
RJ-45 copper |
RJ-45 copper |
RJ-45 copper |
RJ-45 copper |
|
Supported speed profile |
10/100/1000 auto negotiation |
10/100/1000 auto negotiation |
10/100/1000 auto negotiation |
10/100/1000 auto negotiation |
|
Cable and reach |
Category 5 UTP up to 100 m |
Category 5 UTP up to 100 m |
Category 5 UTP up to 100 m |
Category 5 UTP up to 100 m |
|
Temperature rating |
EXT |
COM |
EXT |
IND |
|
DOM support |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
|
Power note |
Typical SFP power consumption up to 1 W |
Typical SFP power consumption up to 1 W |
Typical SFP power consumption up to 1 W |
Typical SFP power consumption up to 1 W |
- In a GLC-TE vs GLC-T comparison, the confirmed difference is temperature rating: GLC-TE is the EXT 1000BASE-T standard SKU, while GLC-T is the COM 1000BASE-T standard SKU.
- The GLC-TE difference from SFP-GE-T is the NEBS 3 ESD ordering role. Both are extended-temperature 1000BASE-T copper SFP choices, but SFP-GE-T is the Cisco NEBS 3 ESD line item.
- In a GLC-TE vs GLC-T-RGD comparison, which model to choose depends on the temperature requirement: GLC-TE is the EXT copper SFP, while GLC-T-RGD is the IND rugged copper SFP.
Selection Guide
1. Choose it for extended-temperature 1G copper SFP links
Select GLC-TE when the BOM calls for a Cisco 1000BASE-T SFP, RJ-45 copper cabling, and the EXT temperature rating.
2. Keep GLC-T for commercial-temperature orders
Use GLC-T only when the official order line accepts the commercial-temperature 1000BASE-T standard part instead of the GLC-TE EXT SKU.
3. Specify SFP-GE-T for NEBS 3 ESD requirements
Move the order to SFP-GE-T when Cisco NEBS 3 ESD positioning is required, or to GLC-T-RGD when the BOM requires the IND rugged 1000BASE-T copper SFP.
4. Validate the target host before purchase
Confirm the Cisco switch, router, line card, SFP slot, operating-system support, and device-specific copper SFP speed behavior in Cisco compatibility documentation.
Ordering Checklist
|
Check Item |
What to Confirm |
Procurement Risk Controlled |
|---|---|---|
|
Host compatibility |
Cisco platform, line card, SFP port, and operating-system support |
Keeps the copper SFP tied to Cisco support data |
|
Speed behavior |
Whether the target device supports 10, 100, or 1000 Mbps with this copper SFP |
Avoids assuming every host supports every copper SFP speed |
|
Copper cabling |
Category 5 UTP or better RJ-45 cabling within 100 m |
Matches the order to the Cisco 1000BASE-T cabling limit |
|
Temperature rating |
EXT requirement for the deployment site |
Separates GLC-TE from commercial-temperature GLC-T orders |
|
10G requirement |
Whether the project actually needs SFP-10G-T-X instead |
Prevents ordering a 1G copper SFP for a 10GBASE-T requirement |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | GLC-TE | Product type | 1000BASE-T copper SFP transceiver |
| Cisco ordering description | 1000BASE-T standard | Interface standard | 1000BASE-T |
| Speed profile | 10/100/1000 auto negotiation | Auto MDI/MDIX | Supported |
| Connector | RJ-45 | Media | Four twisted-pair copper |
| Cable type | Category 5 UTP or better | Maximum cable distance | 100 m (328 ft) |
| Temperature rating | EXT | Operating temperature range | -5 to 85 C |
| Storage temperature range | -40 to 85 C | DOM support | Not applicable |
| Maximum power | 1.0 W for 100M or 1G BASE-T operation | Module dimensions | 8.5 x 13.4 x 56.5 mm |
| Module weight | 75 g or less | Hot-swappable role | Plugs into a Cisco Gigabit Ethernet port or slot |
| Related standard SKU | GLC-T commercial-temperature 1000BASE-T standard | Related NEBS SKU | SFP-GE-T 1000BASE-T NEBS 3 ESD |
| 10G BASE-T alternative | SFP-10G-T-X for 10GBASE-T SFP+ requirements | Compatibility check | Cisco Transceiver Modules Compatibility Information for host and operating-system support |
Get More Information
Need pricing, stock, or shipping details for the GLC-TE ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is GLC-TE used for?
-
Does GLC-TE use copper or fiber?
-
How far can GLC-TE reach?
-
Does GLC-TE support 10/100/1000 auto negotiation?
-
How is GLC-TE different from GLC-T?
-
Does GLC-TE have DOM?
-
Can GLC-TE replace a fiber SFP?
-
What matters before buying GLC-TE?
