QDD-400G-SR4.2-BD Description

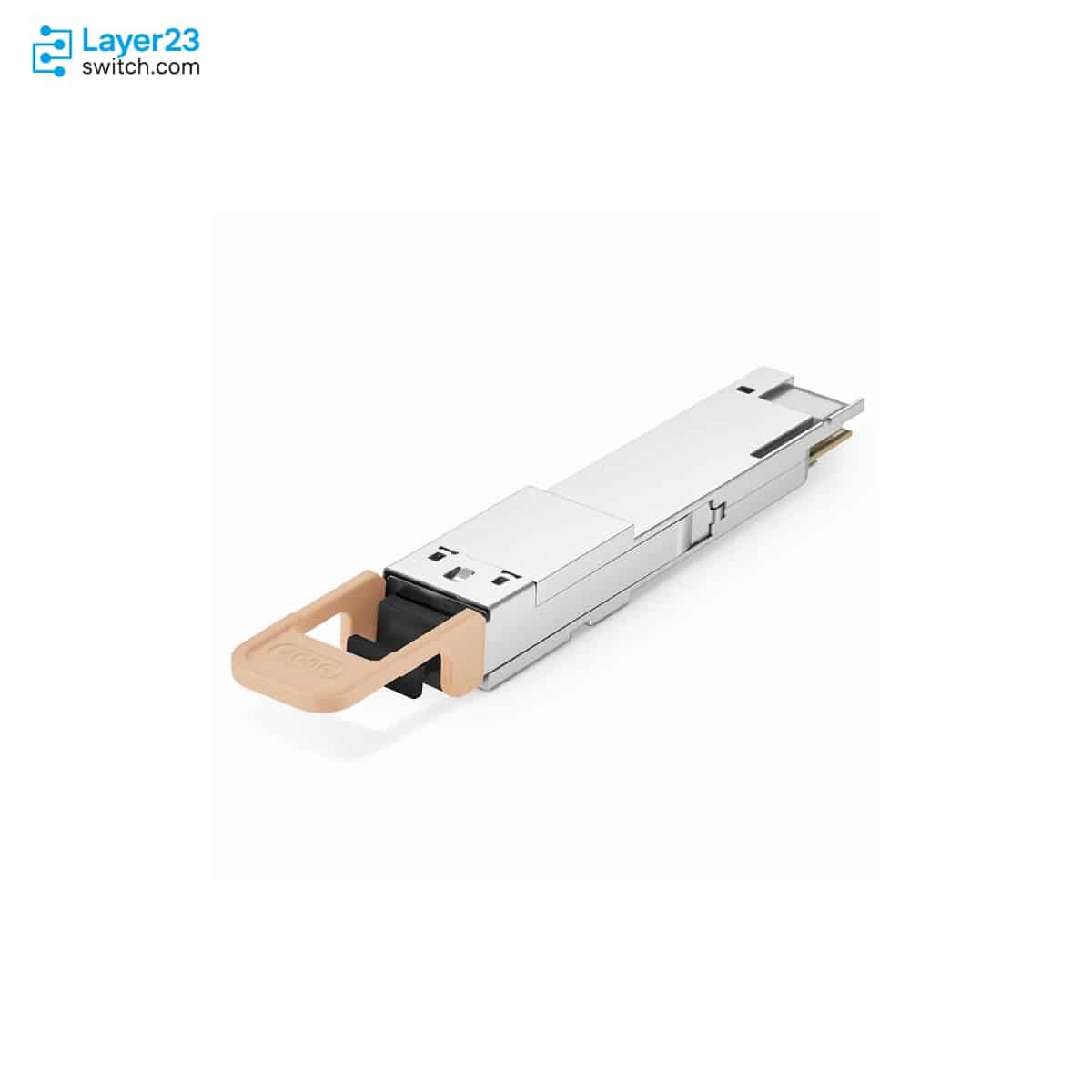

The QDD-400G-SR4.2-BD is a Cisco 400GBASE-SR4.2 QSFP-DD optical transceiver for short-reach 400GE data center links over parallel multimode fiber. The module reaches 70 m on OM3, 100 m on OM4 and 150 m on OM5 through an MPO-12 UPC connector, transmits at 855 nm and 908 nm, and operates from 0 to 75°C. In a 4 x 100GE breakout the 100G side must use QSFP-100G-SR1.2 modules, and the host platform performs FEC.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
QDD-400G-SR4.2-BD |
|
Product type |
400GBASE-SR4.2 QSFP-DD optical transceiver |
|
Form factor |
QSFP-DD |
|
Data rate |
400 Gigabit Ethernet |
|
Breakout support |
Up to 4 x 100GE breakout |
|
Peer breakout optic |
QSFP-100G-SR1.2 |
|
Connector type |
MPO-12 UPC |
|
Fiber type |
Multimode fiber |
|
Reach on OM3 |
70m |
|
Reach on OM4 |
100m |
|
Reach on OM5 |
150m |
|
High-speed electrical interface |
400GAUI-8/CEI-56G-VSR-PAM4 |
|
Maximum power consumption |
12 W |
Application Scenarios
In a data hall, the module joins 400G leaf and spine ports over MPO-12 multimode trunk cabling, with up to 100 m of reach on OM4 fiber.
At the end of a server row, a 400G switch port can split into four 100GE links toward QSFP-100G-SR1.2 modules, as supported on 400Gb ports in Cisco ACI fabrics.
Product Comparison
|
Parameter |
QDD-400G-SR4.2-BD |
QDD-400G-BD |
QDD-400G-SR8-S | |
|---|---|---|---|---|
|
Product type |
400GBASE-SR4.2 QSFP-DD transceiver |
400G QSFP-DD BiDi transceiver |
400GBASE-SR8 QSFP-DD transceiver |
400GBASE-DR4 QSFP-DD transceiver |
|
Fiber type |
Parallel multimode fiber |
Duplex multimode fiber |
Parallel multimode fiber |
Parallel single-mode fiber |
|
Connector type |
MPO-12 UPC |
LC UPC |
MPO-16 APC |
MPO-12 APC |
|
Native link reach |
70m OM3; 100m OM4; 150m OM5 |
50m OM3; 70m OM4; 100m OM5 |
70m OM3; 100m OM4 |
500m |
|
Breakout capability |
4 x 100GE to QSFP-100G-SR1.2 |
Not published |
2 x 200GE or 8 x 50GE |
4 x 100G to QSFP28 100G-DR, QSFP-100G-FR, or QSFP-100G-LR |
|
Maximum power consumption |
12 W |
12 W |
12 W |
12 W |
QDD-400G-SR4.2-BD runs 400G over parallel multimode fiber on an MPO-12 UPC connector and reaches 70 m on OM3, 100 m on OM4 and 150 m on OM5, while QDD-400G-BD uses a duplex LC UPC connector and reaches only 50 m, 70 m and 100 m on the same fiber grades, so a duplex LC patch plant moves the order to QDD-400G-BD. Links that must split into 2 x 200GE or 8 x 50GE need QDD-400G-SR8-S, which uses an MPO-16 APC connector, whereas QDD-400G-SR4.2-BD breaks out to 4 x 100GE toward QSFP-100G-SR1.2. Runs beyond 150 m, or any single-mode plant, call for QDD-400G-DR4-S, which reaches 500 m over MPO-12 APC single-mode fiber.
Ordering Checklist
- Cisco ACI hosts: Use the optic in Cisco ACI fabrics with 400Gb ports, which support QDD-400G-SR4.2-BD. Other hosts are not confirmed by the data sheet and need a check in the Transceiver Module Group compatibility matrix.
- Patch cords: Order MPO-12 multimode patch cords with PC or UPC polish, not APC. Only QDD-400G-SR8-S, QDD-400G-VR4, QDD-400G-DR4-S, QDD-4X100G-FR-S and QDD-4X100G-LR-S take APC MPO cords.
- Breakout far end: Fit QSFP-100G-SR1.2 on each 100G port, and do not fit QDD-400G-SR4.2-BD on both ends of a breakout link. The link does not come up with QDD-400G-SR4.2-BD on both sides of a breakout.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | QDD-400G-SR4.2-BD | Product type | 400GBASE-SR4.2 QSFP-DD optical transceiver |
| Form factor | QSFP-DD | Cisco ordering description | 400G QSFP-DD Transceiver, MPO-12 UPC, 100m OM4 MMF, 400GBASE-SR4.2, Can be used for 4X breakout to QSFP-100G-SR1.2 |
| Data rate | 400 Gigabit Ethernet | Breakout support | Up to 4 x 100GE breakout |
| Peer breakout optic | QSFP-100G-SR1.2 | Connector type | MPO-12 UPC |
| Fiber type | Multimode fiber | Fiber pairs | Four pairs of MMF |
| Fiber core size | 50 micron | Modal bandwidth | 2000 MHz*km on OM3; 4700 MHz*km on OM4 and OM5 |
| Reach on OM3 | 70m | Reach on OM4 | 100m |
| Reach on OM5 | 150m | Nominal data rate | 425 Gbps |
| High-speed electrical interface | 400GAUI-8/CEI-56G-VSR-PAM4 | Signal lane structure | Four parallel fiber pairs with two 50Gbps bidirectional wavelengths per fiber |
| Wavelengths | 855 nm and 908 nm | Average transmit power per lane | -6.2 to +4 dBm |
| Average receive power per lane | -8.2 to +4 dBm | Maximum supported insertion loss | 1.9 dB |
| Pre-FEC bit error ratio | 2.4 x 10^-4 | Maximum power consumption | 12 W |
| Pull tab color | Gray | Module operating temperature | 0 to 75°C |
| Storage temperature | -40 to 85°C | Laser class | Class 1 |
| Compliance reference | RoHS 6 |
Quality Certifications
Customer Reviews
Questions & Answers
-
What reach does QDD-400G-SR4.2-BD support on each multimode fiber type?
-
What operating temperature range does QDD-400G-SR4.2-BD support?
-
From which Cisco ACI release do 400Gb ports support QDD-400G-SR4.2-BD?
-
How do I convert an ACI fabric port with QDD-400G-SR4.2-BD from non-breakout to breakout?
-
What insertion loss can a QDD-400G-SR4.2-BD link tolerate?
-
What per-lane optical power does QDD-400G-SR4.2-BD transmit and accept?
