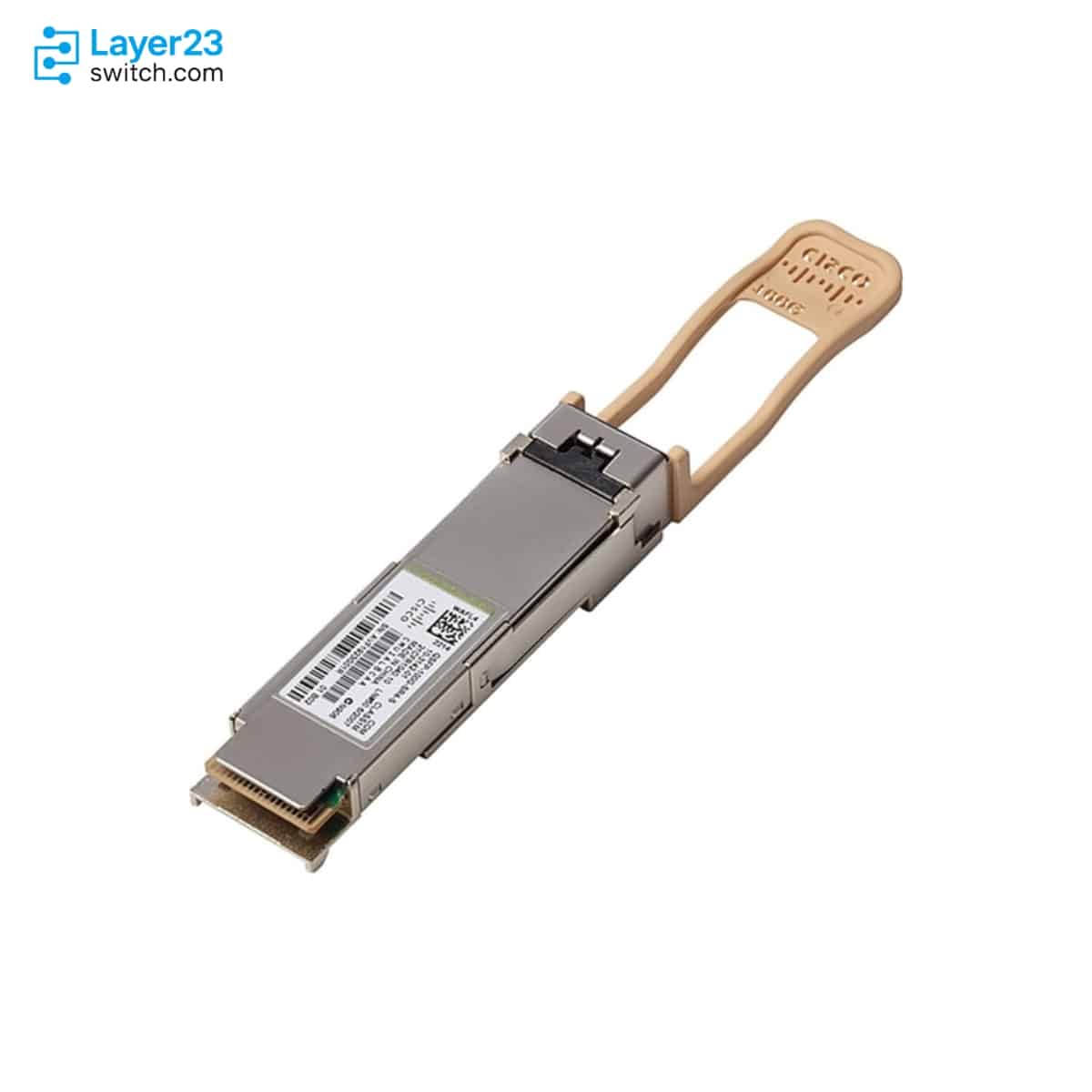

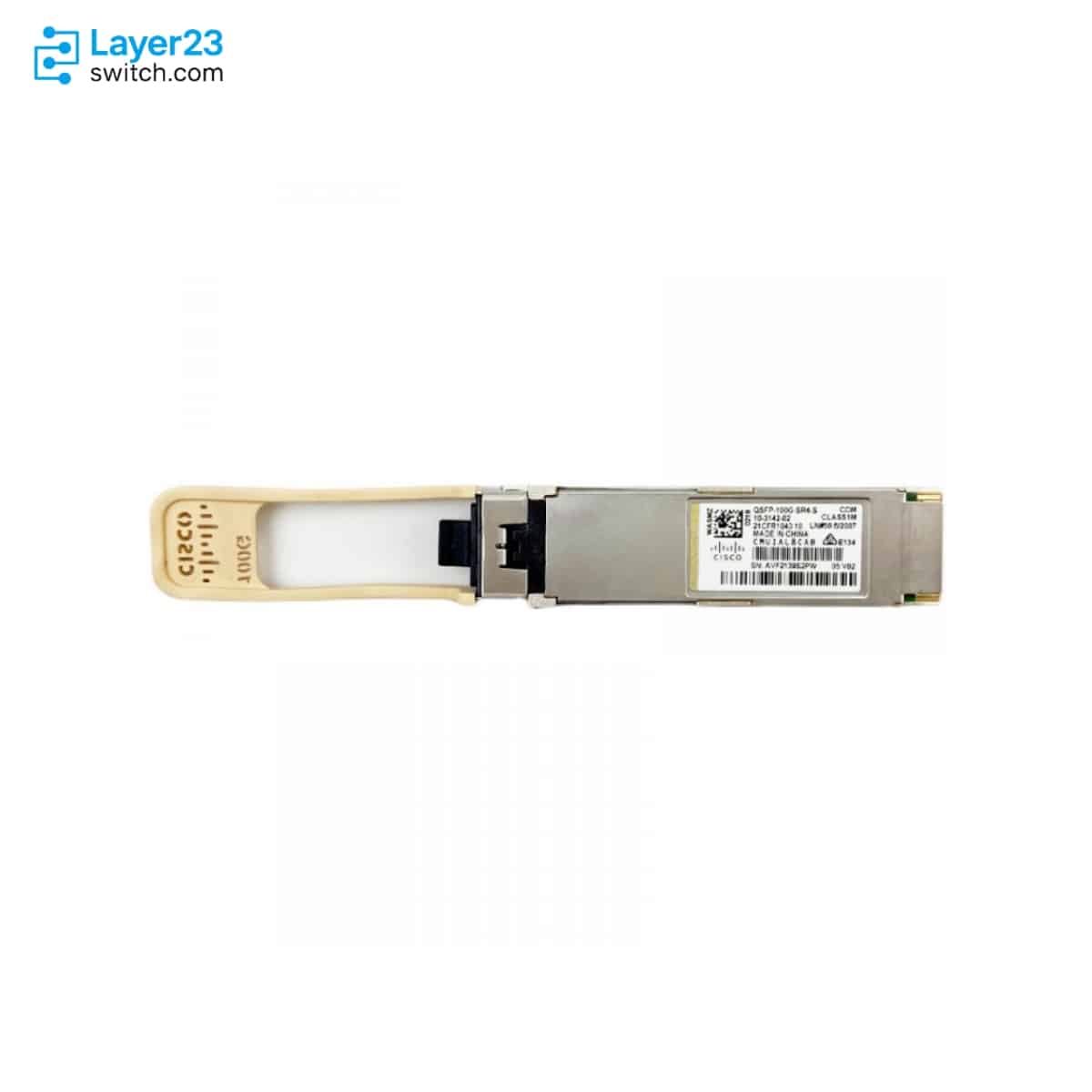

QSFP-100G-SR4-S – 100G SR4 QSFP – MPO-12 MMF – 100m OM4
0/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
QSFP-100G-SR4-S Description
QSFP-100G-SR4-S is the Cisco 100G SR4 QSFP transceiver for short 100G links over MPO-12 multimode fiber.
This optic fits data center links that already use parallel multimode cabling and need a Cisco-supported 100G QSFP module. It should not be substituted with LC BiDi or single-mode optics without checking connector type, fiber plant, reach, and far-end module.
Before purchase, confirm the host platform, MPO-12 cabling, OM3/OM4/OM5 distance, and matching remote optic. Layer23-Switch can help check QSFP-100G-SR4-S price, stock, warranty support, shipping timing, and compatibility.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
QSFP-100G-SR4-S |
|
Brand |
Cisco |
|
Product family |
Cisco 100GBASE QSFP-100G modules |
|
Product type |
100GBASE SR4 QSFP optical transceiver |
|
Ordering description |
100GBASE-SR4 QSFP Transceiver, MPO-12, 100m over OM4 MMF |
|
Connector type |
MPO-12, 12 fibers |
|
Fiber type |
Multimode fiber |
|
Supported Ethernet rate |
100 Gigabit Ethernet |
|
Reach on OM3 |
70m |
|
Reach on OM4 |
100m |
|
Reach on OM5 |
100m |
|
Nominal wavelength |
850 nm |
|
Optical transmit power per lane |
-8.4 to +2.4 dBm |
|
Optical receive power per lane |
-10.3 to +2.4 dBm |
|
Power consumption |
3.5W maximum |
|
Commercial operating temperature |
0 to 70 degrees C |
|
Laser class |
Class 1 |
|
Standard warranty |
5 years |
Application Scenarios
Select QSFP-100G-SR4-S when the cabling design uses 12-fiber MPO multimode trunks and the 100G link distance fits Cisco’s documented OM3, OM4, or OM5 reach limits.
This SKU fits refresh projects where SR4 MPO infrastructure is already in place and the buyer needs Cisco-qualified 100G optics for supported QSFP ports. Confirm the host platform, line card, software release, and remote optic before quote release.
Keep QSFP-100G-SR4-S separate from QSFP-100G-SR-S, QSFP-100G-SR1.2, and QSFP-40/100-SRBD during receiving and spares planning. The names are close, but Cisco documents different connector types, wavelength behavior, and reach profiles.
Product Comparison
|
Parameter |
QSFP-100G-SR4-S |
QSFP-100G-SL4 |
QSFP-100G-SR-S |
QSFP-100G-SR1.2 |
|---|---|---|---|---|
|
Product family |
Cisco 100GBASE QSFP-100G modules |
Cisco 100GBASE QSFP-100G modules |
Cisco 100GBASE QSFP-100G modules |
Cisco 100GBASE QSFP-100G modules |
|
Product type |
100GBASE SR4 QSFP transceiver |
100GBASE SL4 QSFP transceiver |
100GBASE SR1 QSFP transceiver |
100G SR1.2 BiDi QSFP transceiver |
|
Connector type |
MPO-12, 12 fibers |
MPO-12, 12 fibers |
Duplex LC |
Duplex LC |
|
Fiber type |
Multimode fiber |
Multimode fiber |
Multimode fiber |
Multimode fiber |
|
Supported Ethernet rate |
100G |
100G |
100G |
100G |
|
Nominal wavelength |
850 nm |
850 nm |
850 nm |
855 nm and 908 nm |
|
Reach on OM3 |
70m |
20m |
70m |
70m |
|
Reach on OM4 |
100m |
30m |
100m |
100m |
|
Reach on OM5 |
100m |
30m |
100m |
150m |
|
Maximum power consumption |
3.5W |
2.5W |
3.5W |
3.9W |
|
Pull tab color |
Beige |
Purple |
Beige |
Gray |
|
Commercial operating temperature |
0 to 70 degrees C |
0 to 70 degrees C |
0 to 70 degrees C |
+10 to +60 degrees C |
- QSFP-100G-SR4-S is the SR4 MPO option for 100G multimode links up to 100m on OM4 or OM5 cabling.
- QSFP-100G-SL4 uses the same MPO-12 connector style but is documented for shorter 20m OM3 and 30m OM4 or OM5 runs.
- QSFP-100G-SR-S and QSFP-100G-SR1.2 use duplex LC cabling, so they belong in a different patch-panel and fiber-count plan from SR4 MPO optics.
- Confirm the host compatibility result and remote optic before checking price, stock, warranty handling, or global shipping timing.
Selection Guide
1. Choose it for MPO SR4 multimode links
Use QSFP-100G-SR4-S when the requirement is a Cisco 100G SR4 optic and the installed fiber path is a 12-fiber MPO multimode run within the documented reach.
2. Do not substitute by speed alone
Other Cisco 100G short-reach optics may share the same 100G rate but use LC connectors, BiDi signaling, shorter reach, or different wavelength behavior. Match the fiber connector and remote transceiver before approving the line item.
3. Check the fiber grade and distance
Use Cisco’s documented reach values when reviewing the physical path: 70m on OM3, 100m on OM4, and 100m on OM5. Longer multimode requirements should be reviewed against a different Cisco optic family.
4. Validate platform support before release
Confirm the target Cisco switch, router, line card, port type, and software release in Cisco compatibility documentation before the purchasing team requests a final quote.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact Product ID |
QSFP-100G-SR4-S |
Prevents substitution with SL4, SR-S, SR1.2, or SR-BiDi optics |
|
Host compatibility |
Cisco platform, line card, QSFP port, and software release |
Confirms the optic is supported in the intended device |
|
Fiber connector |
MPO-12 multimode cabling with 12 fibers |
SR4 is not a duplex LC optic |
|
Fiber grade and length |
OM3 up to 70m, OM4 up to 100m, or OM5 up to 100m |
Keeps the planned link inside Cisco’s documented reach |
|
Remote transceiver |
Matching Cisco-supported 100G SR4 optic at the far end |
Avoids interoperability mistakes between similar short-reach modules |
|
Procurement support |
Price, stock status, warranty support, and shipping destination |
Aligns the order with the deployment or maintenance window |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | QSFP-100G-SR4-S | Brand | Cisco |
| Product family | Cisco 100GBASE QSFP-100G modules | Product type | 100GBASE SR4 QSFP optical transceiver |
| Ordering description | 100GBASE-SR4 QSFP Transceiver, MPO-12, 100m over OM4 MMF | Host interface | 100G Gigabit Ethernet Cisco QSFP port |
| Connector type | MPO-12, 12 fibers | Fiber type | Multimode fiber |
| Core size | 50 micron | Modal bandwidth | 2000 MHz*km on OM3; 4700 MHz*km on OM4 and OM5 |
| Supported Ethernet rate | 100 Gigabit Ethernet | Reach on OM3 | 70m |
| Reach on OM4 | 100m | Reach on OM5 | 100m |
| Nominal wavelength | 850 nm | Transmit and receive wavelength range | 840 to 860 nm |
| Transmit power per lane | -8.4 to +2.4 dBm | Receive power per lane | -10.3 to +2.4 dBm |
| Power consumption | 3.5W maximum | Pull tab color | Beige |
| QSFP connector module dimensions | 13.5 x 18.4 x 72.4 mm maximum outer dimensions | QSFP connector module weight | 100 grams or less |
| Commercial operating temperature | 0 to 70 degrees C | Storage temperature range | -40 to +85 degrees C |
| Standards references | SFF-8665, SFF-8636, IEEE 802.3-2022, IEEE 802.3ba, IEEE 802.3bm | Laser class | Class 1 |
| Compliance reference | RoHS 6 | Standard warranty | 5 years |
