QSFP-100G-PSM4-S Description

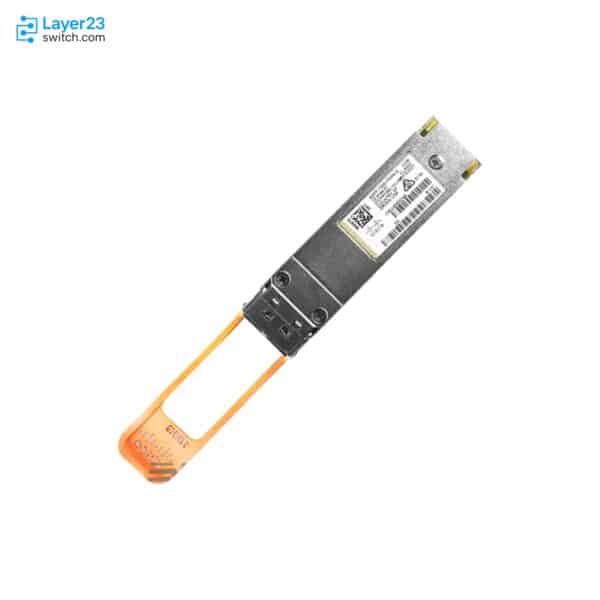

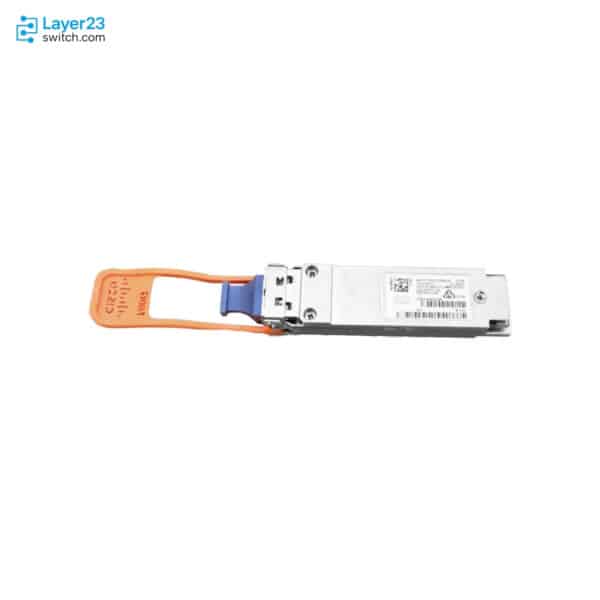

The QSFP-100G-PSM4-S is a Cisco 100GBASE PSM4 QSFP transceiver for 100G links of up to 500 m over parallel single-mode fiber in data centers. The module uses a 12-fiber MPO-12 connector at a nominal 1310 nm (1295 to 1325 nm), draws up to 3.5W and operates from 0 to 70°C. The module requires APC MPO patch cords rather than PC or UPC connectors.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
QSFP-100G-PSM4-S |
|
Product type |
100GBASE PSM4 QSFP optical transceiver |
|
Cisco ordering description |
100G PSM4 QSFP Transceiver, MPO-12, 500m over SMF |
|
Host interface |
Cisco 100G QSFP port |
|
Connector type |
MPO-12 |
|
Fiber type |
Single-mode fiber |
|
Fiber specification |
G.652 |
|
Data rate |
100 Gigabit Ethernet |
|
Maximum cable distance |
500m |
|
Nominal wavelength |
1310 nm |
|
Power consumption |
3.5W maximum |
|
Wavelength range |
1295 to 1325 nm |
|
Optical profile |
100GBASE PSM4 |
Application Scenarios
Between rows in a data hall, the module joins 100G QSFP ports on a leaf switch and a spine switch over a 12-fiber single-mode MPO trunk of up to 500 m.
In a cabling plant already built with MPO-12 single-mode trunks and APC connectors, the module plugs into 100G QSFP ports on routers and switches without a conversion to duplex LC.
Product Comparison
|
Parameter |
QSFP-100G-PSM4-S | |||
|---|---|---|---|---|
|
Maximum cable distance |
500m |
500m |
2km |
70m over OM3, 100m over OM4, 100m over OM5 |
|
Fiber type |
Single-mode fiber (G.652) |
Single-mode fiber (G.652) |
Single-mode fiber (G.652) |
Multimode fiber (OM3, OM4, or OM5) |
|
Connector type |
MPO-12, APC patch cords required |
Duplex LC, PC or UPC patch cords |
Duplex LC, PC or UPC patch cords |
MPO-12, PC or UPC patch cords |
|
Wavelength |
1310 nm |
1304.5 to 1317.5 nm |
1271, 1291, 1311, and 1331 nm |
850 nm |
|
Signal method |
12-fiber parallel single-mode signaling |
Single wavelength with onboard PAM4 modulation and FEC |
Four wavelengths with internal multiplexing and demultiplexing |
Parallel multimode signaling |
|
Maximum power consumption |
3.5W |
4.3W |
3.5W |
3.5W |
QSFP-100G-PSM4-S is the parallel-fiber single-mode optic of this group: it reaches 500 m over a 12-fiber MPO-12 connection on G.652 fiber, and it is the only QSFP-100G module that requires APC MPO patch cords. QSFP-100G-DR-S also reaches 500 m over single-mode fiber but on duplex LC with PAM4 and FEC at 4.3W, so a plant already cabled with LC pairs should use it instead. Links beyond 500 m on LC single-mode move to QSFP-100G-CWDM4-S, which reaches 2 km on four wavelengths at 3.5W. Multimode MPO-12 plants with runs up to 100 m on OM4 or OM5 take QSFP-100G-SR4-S, which is also PC or UPC rather than APC.
Ordering Checklist
- Host support: Confirm the target switch or router, line card and QSFP28 port are on Cisco’s 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for this optic. A host can reject an optic that fits the cage but is not on its compatibility list.
- Patch cords: Order APC MPO-12 patch cords. Every other QSFP-100G optic uses PC or UPC jumpers, so a PC or UPC MPO cord is the wrong polish for this module.
- Fiber and connector: Provide a 12-fiber single-mode MPO-12 path on G.652 fiber, 500 m or shorter. A duplex LC pair or multimode MPO trunk cannot carry this optic.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | QSFP-100G-PSM4-S | Product type | 100GBASE PSM4 QSFP optical transceiver |
| Cisco ordering description | 100G PSM4 QSFP Transceiver, MPO-12, 500m over SMF | Host interface | Cisco 100G QSFP port |
| Connector type | MPO-12 | Fiber type | Single-mode fiber |
| Fiber specification | G.652 | Data rate | 100 Gigabit Ethernet |
| Maximum cable distance | 500m | Nominal wavelength | 1310 nm |
| Wavelength range | 1295 to 1325 nm | Optical profile | 100GBASE PSM4 |
| Signal method | 12-fiber parallel single-mode signaling | Patch-cord connector policy | APC MPO patch cords required |
| Transmit power range | +2.0 to -9.4 dBm | Receive power range | +2.0 to -12.66 dBm |
| Maximum power consumption | 3.5W maximum | Pull tab color | Orange |
| Operating temperature | 0 to 70°C | Storage temperature | -40 to +85°C |
| QSFP connector module dimensions | 13.5 x 18.4 x 72.4 mm maximum outer dimensions | QSFP connector module weight | 100 grams or less |
| Standards references | SFF-8665, SFF-8636, IEEE 802.3-2022, IEEE 802.3ba, IEEE 802.3bm | Safety classification | Laser Class 1 |
| Compliance reference | RoHS 6 | Compatibility reference | Cisco Optics Compatibility Matrix |
| Ordering information source | Cisco 100GBASE QSFP-100G Modules Data Sheet |
Quality Certifications
Customer Reviews
Questions & Answers
-
What role does QSFP-100G-PSM4-S play?
-
What fiber and reach does QSFP-100G-PSM4-S support?
-
Which wavelength range does QSFP-100G-PSM4-S use?
-
Which difference separates QSFP-100G-PSM4-S from QSFP-100G-DR-S?
-
Does QSFP-100G-PSM4-S use an MPO-12 connector?
