QSFP-100G-DR-S – 100G DR QSFP – LC SMF – 500m Reach
0/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
QSFP-100G-DR-S Description

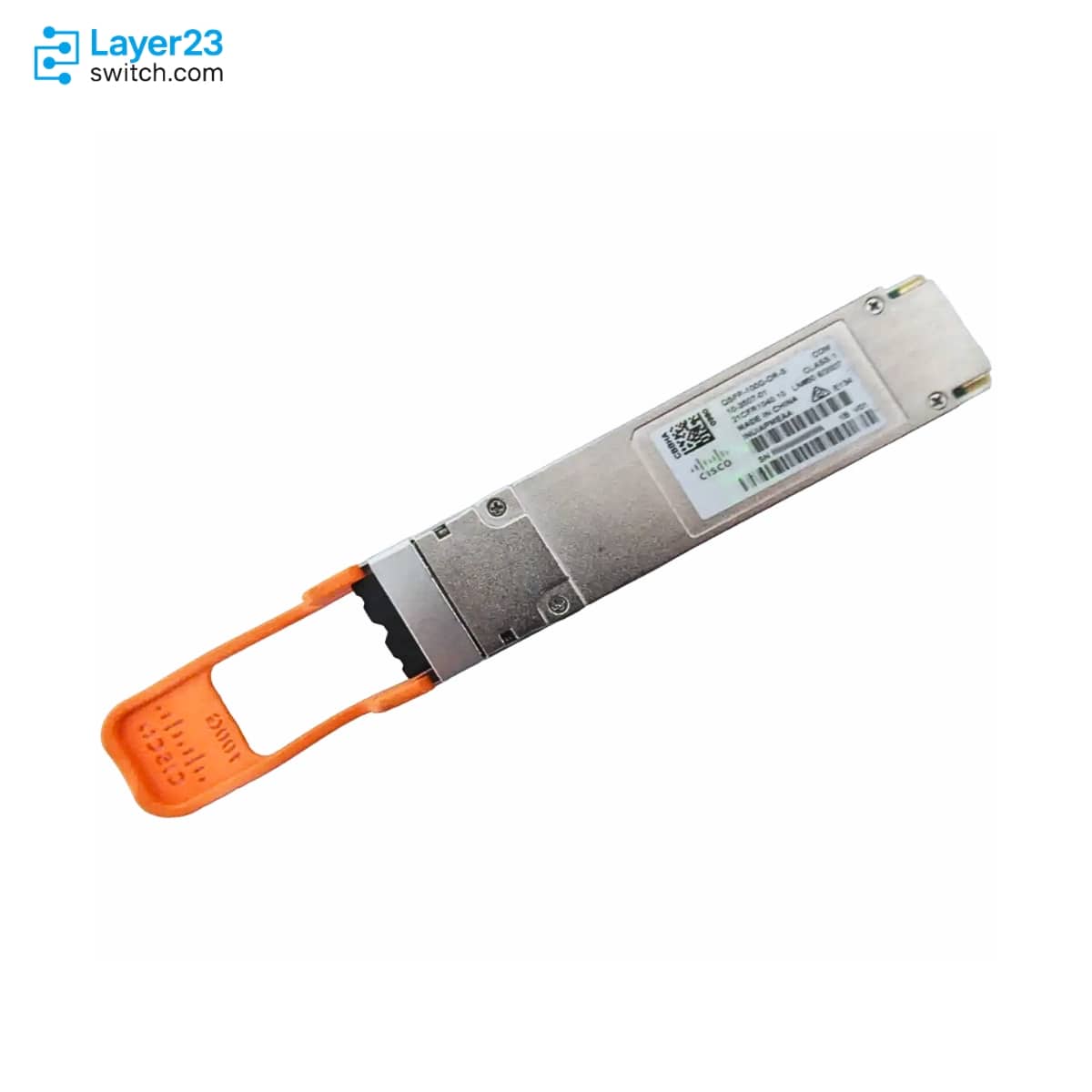

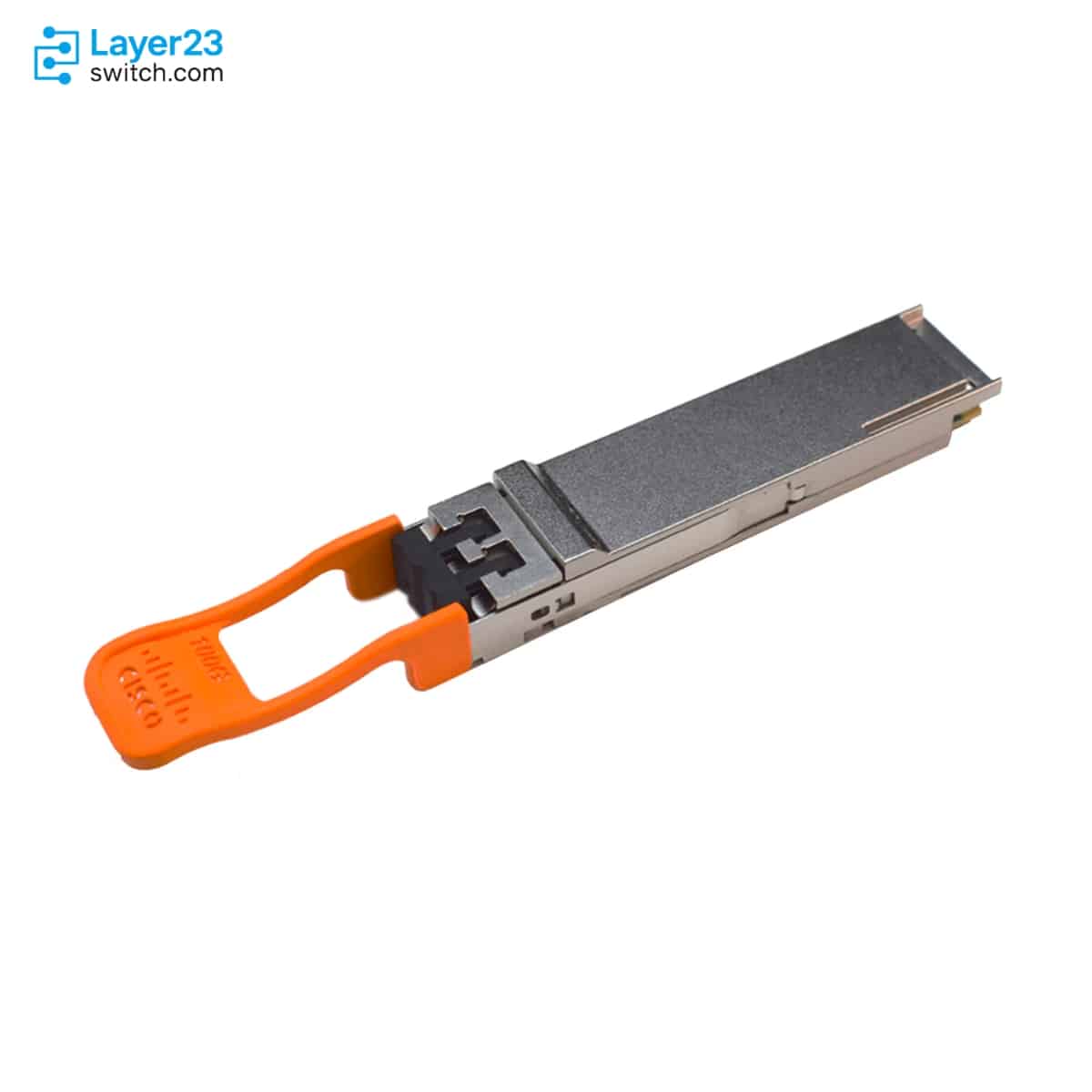

QSFP-100G-DR-S is the Cisco 100GBASE-DR QSFP transceiver for 500-meter single-mode links using duplex LC connectors.
It is a good fit when the design needs a short single-mode 100G DR link and wants LC patching instead of MPO parallel fiber. Compare it carefully with PSM4, FR, and LR optics, since those modules differ by connector, reach, optical specification, and power profile.
Before ordering, confirm the Cisco host platform, G.652 fiber path, far-end optic, and whether the link is a straight 100G DR connection or part of a 400G DR4 breakout design. Layer23-Switch can help check price, stock, warranty support, shipping timing, and compatibility.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
QSFP-100G-DR-S |
|
Brand |
Cisco |
|
Product family |
Cisco 100GBASE QSFP-100G modules |
|
Product type |
100GBASE-DR QSFP optical transceiver |
|
Ordering description |
100GBASE-DR QSFP Transceiver, 500m over SMF |
|
Host interface |
Cisco 100G QSFP port |
|
Connector type |
Duplex LC |
|
Fiber type |
Single-mode fiber |
|
Fiber specification |
G.652 |
|
Supported Ethernet rate |
100 Gigabit Ethernet |
|
Maximum cable distance |
500m |
|
Nominal wavelength |
1310 nm |
|
Optical specification |
IEEE 802.3 100GBASE-DR |
|
Signal method |
Single wavelength with onboard PAM4 modulation and FEC |
|
400G breakout interoperability |
Interoperates with IEEE 400GBASE-DR4 transceivers such as Cisco QSFP-400G-DR4-S through fiber breakout cables |
|
Power consumption |
4.3W maximum |
|
Pull tab color |
Orange |
|
Operating temperature range |
0 to 70 degrees C |
Application Scenarios
Deploy QSFP-100G-DR-S where the 100G path uses duplex LC single-mode cabling and the measured fiber route is within Cisco’s 500 m DR reach.
This module can be part of a breakout plan from a Cisco-supported 400GBASE-DR4 optic to four 100G DR links. Confirm the breakout cabling and the remote transceiver before the quote is finalized.
Keep QSFP-100G-DR-S distinct from PSM4, FR, LR, CWDM4, and SR optics in receiving and maintenance stock. The product names look close, but the connector, reach, host support, and far-end optic requirements can change the bill of materials.
Product Comparison
|
Parameter |
QSFP-100G-DR-S |
QSFP-100G-PSM4-S |
QSFP-100G-FR-S |
QSFP-100G-LR-S |
|---|---|---|---|---|
|
Product family |
Cisco 100GBASE QSFP-100G modules |
Cisco 100GBASE QSFP-100G modules |
Cisco 100GBASE QSFP-100G modules |
Cisco 100GBASE QSFP-100G modules |
|
Product type |
100GBASE-DR QSFP transceiver |
100G PSM4 QSFP transceiver |
100GBASE-FR1 QSFP transceiver |
100GBASE-LR1 QSFP transceiver |
|
Connector type |
Duplex LC |
MPO |
Duplex LC |
Duplex LC |
|
Fiber type |
Single-mode fiber |
Single-mode fiber |
Single-mode fiber |
Single-mode fiber |
|
Fiber specification |
G.652 |
G.652 |
G.652 |
G.652 |
|
Supported Ethernet rate |
100G |
100G |
100G |
100G |
|
Maximum cable distance |
500m |
500m |
2km |
10km |
|
Nominal wavelength |
1310 nm |
1310 nm |
1310 nm |
1310 nm |
|
Optical specification |
100GBASE-DR |
PSM4 |
100GBASE-FR1 |
100GBASE-LR1 |
|
Maximum power consumption |
4.3W |
3.5W |
4.3W |
4.0W |
|
Pull tab color |
Orange |
Orange |
Green |
Blue |
|
Operating temperature range |
0 to 70 degrees C |
0 to 70 degrees C |
0 to 70 degrees C |
0 to 70 degrees C |
- QSFP-100G-DR-S is the LC single-mode option for 500 m Cisco 100G DR links.
- QSFP-100G-PSM4-S also reaches 500 m over single-mode fiber, but its MPO connector and parallel fiber design require a different patching plan.
- QSFP-100G-FR-S keeps the LC single-mode connector style while extending the documented reach to 2 km.
- QSFP-100G-LR-S belongs in 10 km single-mode planning and should not be substituted when the order specifically calls for 100GBASE-DR optics.
Selection Guide
1. Choose it for LC 100G DR links inside 500 m
Select QSFP-100G-DR-S when the deployment requires Cisco 100GBASE-DR, duplex LC cabling, G.652 single-mode fiber, and a short-reach 500 m optical path.
2. Do not treat all 500 m 100G optics as interchangeable
PSM4 and DR can share the same published reach, but the cabling layout is different. Confirm whether the site uses duplex LC or MPO fiber before approving the part number.
3. Confirm the remote optic and breakout plan
For 400G-to-100G breakout, verify that the far end follows Cisco-supported 400GBASE-DR4 interoperability and that the breakout cable maps correctly to the intended 100G port.
4. Validate host support before purchase
Check Cisco compatibility data for the exact platform, port, and software release, then confirm Layer23-Switch quote, stock availability, warranty support, and shipping destination.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact Product ID |
QSFP-100G-DR-S |
Prevents substitution with PSM4, FR, LR, CWDM4, or SR optics |
|
Host compatibility |
Cisco device, line card, QSFP port, and software release |
Confirms the optic is supported in the installed hardware |
|
Fiber plant |
G.652 single-mode fiber with duplex LC patching |
Matches Cisco’s cabling requirement for this SKU |
|
Link distance |
500 m maximum planned reach |
Keeps the optical path inside the documented DR range |
|
Remote transceiver |
Cisco-supported 100G DR optic or 400G DR4 breakout endpoint |
Reduces link-up and interoperability risk |
|
Cable connector type |
PC or UPC patch cords where required by Cisco documentation |
Avoids connector-type mismatch during installation |
|
Procurement support |
Price, stock status, warranty support, and shipping destination |
Aligns the order with the installation window |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | QSFP-100G-DR-S | Brand | Cisco |
| Product family | Cisco 100GBASE QSFP-100G modules | Product type | 100GBASE-DR QSFP optical transceiver |
| Ordering description | 100GBASE-DR QSFP Transceiver, 500m over SMF | Host interface | Cisco 100G QSFP port |
| Connector type | Duplex LC | Fiber type | Single-mode fiber |
| Fiber specification | G.652 | Supported Ethernet rate | 100 Gigabit Ethernet |
| Maximum cable distance | 500m | Nominal wavelength | 1310 nm |
| Optical specification | IEEE 802.3 100GBASE-DR | Signal method | Single wavelength with onboard PAM4 modulation and FEC |
| 400G breakout interoperability | Interoperates with IEEE 400GBASE-DR4 transceivers such as Cisco QSFP-400G-DR4-S through fiber breakout cables | Power consumption | 4.3W maximum |
| Pull tab color | Orange | QSFP connector module dimensions | 13.5 x 18.4 x 72.4 mm maximum outer dimensions |
| QSFP connector module weight | 100 grams or less | Commercial operating temperature | 0 to 70 degrees C |
| Storage temperature range | -40 to +85 degrees C | Standards references | SFF-8665, SFF-8636, IEEE 802.3-2022, IEEE 802.3ba, IEEE 802.3bm |
| Safety classification | Laser Class 1 | Compliance reference | RoHS 6 |
| Standard warranty | 5 years |
Get More Information
Need pricing, stock, or shipping details for the QSFP-100G-DR-S ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
