QSFP-100G-CU3M Description

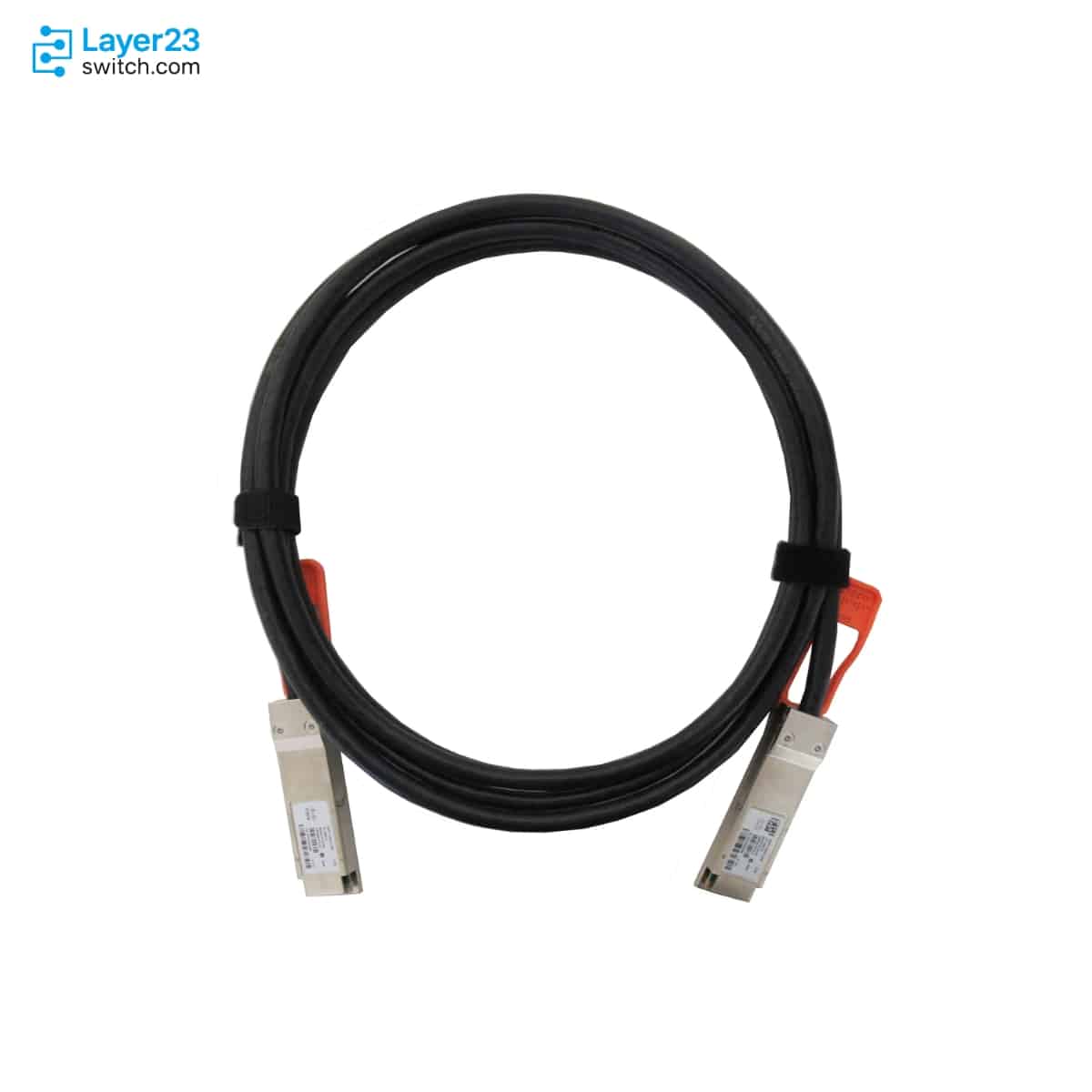

The QSFP-100G-CU3M is a Cisco 100GBASE-CR4 QSFP passive copper cable for 100G links inside a rack or between adjacent racks. The 3-meter cable draws 1.5W per end, has a 7 mm cable diameter and a 50 mm bend radius, and carries an orange pull tab. The cable is passive, with no optics, so its reach is set by copper and the commercial operating range of 0 to 70°C.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
QSFP-100G-CU3M |
|
Product type |
100GBASE-CR4 QSFP passive copper cable |
|
Cisco ordering description |
Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 3-meter |
|
Cable assembly type |
Direct-attach copper cable assembly |
|
Interface role |
QSFP-to-QSFP 100G direct-attach cable |
|
Data rate |
100 Gigabit Ethernet |
|
Cable length |
3 meters |
|
Power consumption |
1.5W per end |
|
Pull tab color |
Orange |
|
QSFP connector module dimensions |
13.5 x 18.4 x 72.4 mm maximum outer dimensions |
|
QSFP connector module weight |
100 grams or less |
|
Commercial operating temperature |
0 to 70°C |
|
Storage temperature |
-40 to +85°C |
Application Scenarios
In a single rack, the cable connects a 100G QSFP port on a top-of-rack switch to a 100G server or storage adapter, using passive copper with no separate optical modules.
Two switches in neighboring racks can be joined over a 3-meter run of this passive copper cable, which carries 100 Gigabit Ethernet between their QSFP ports.
Product Comparison
|
Parameter |
QSFP-100G-CU3M |
QSFP-100G-CU1M |
QSFP-100G-CU2M | |
|---|---|---|---|---|
|
Cable type |
Passive copper (100GBASE-CR4) |
Passive copper (100GBASE-CR4) |
Passive copper (100GBASE-CR4) |
Passive copper (100GBASE-CR4) |
|
Cable length |
3 meters |
1 meter |
2 meters |
5 meters |
|
Power consumption |
1.5W per end |
1.5W per end |
1.5W per end |
1.5W per end |
|
Pull tab color |
Orange |
Beige |
Brown |
Gray |
|
Cable diameter |
7 mm |
7 mm |
7 mm |
9 mm |
|
Bend radius |
50 mm |
50 mm |
50 mm |
70 mm |
QSFP-100G-CU3M and QSFP-100G-CU2M are both 100GBASE-CR4 passive copper cables with a 7 mm diameter and 50 mm bend radius at 1.5W per end, and differ in length (3 m against 2 m) and pull tab color (orange against brown). A 1 m run fits QSFP-100G-CU1M (beige tab) and a 2 m run fits QSFP-100G-CU2M. A run of 3 m to 5 m needs QSFP-100G-CU5M, which has a gray tab and a thicker 9 mm diameter with 70 mm bend radius. Passive copper ends at 5 m in this family, so a longer run moves to an active optical cable such as QSFP-100G-AOC7M, and a 100G port feeding four 25G ports needs a QSFP-4SFP25G-CU3M breakout cable.
Ordering Checklist
- Host support: Confirm the target Cisco switch or router and its QSFP28 port are listed for QSFP-100G-CU3M in the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix. A cable that fits the cage can still be unsupported on a given host.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | QSFP-100G-CU3M | Product type | 100GBASE-CR4 QSFP passive copper cable |
| Cisco ordering description | Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 3-meter | Cable assembly type | Direct-attach copper cable assembly |
| Interface role | QSFP-to-QSFP 100G direct-attach cable | Data rate | 100 Gigabit Ethernet |
| Cable length | 3 meters | Power consumption | 1.5W per end |
| Pull tab color | Orange | Cable diameter | 7 mm |
| Bend radius | 50 mm | QSFP connector module dimensions | 13.5 x 18.4 x 72.4 mm maximum outer dimensions |
| QSFP connector module weight | 100 grams or less | Operating temperature | 0 to 70°C |
| Storage temperature | -40 to +85°C | Standards references | SFF-8665, SFF-8636, IEEE 802.3-2022, IEEE 802.3ba, IEEE 802.3bm |
| Compliance reference | RoHS 6 | Copper cable jacket safety | UL E116441 compliant |
| Copper cable electrical safety | ELV compliant |
Quality Certifications
Customer Reviews
Questions & Answers
-
What link length does QSFP-100G-CU3M support?
-
What operating temperature range does QSFP-100G-CU3M support?
-
Which safety approvals does QSFP-100G-CU3M carry?
-
Which standards does QSFP-100G-CU3M reference?
-
Does QSFP-100G-CU3M need separate optical modules?
-
What power does QSFP-100G-CU3M draw and what temperature range does it have?
