QSFP-100G-AOC7M Description

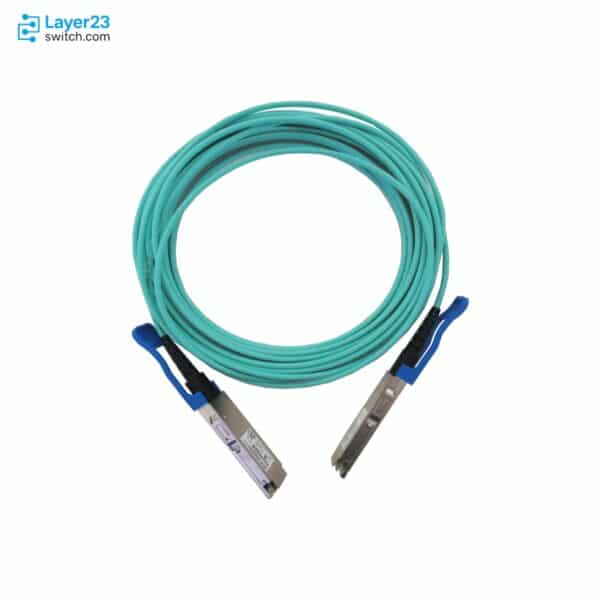

The QSFP-100G-AOC7M is a Cisco 100G QSFP active optical cable for rack-to-rack links of up to 7 meters between QSFP ports. The assembly draws 3.5W per end, measures 3.5 mm in cable diameter with a 30 mm bend radius, and has a blue pull tab. Both ends are fixed QSFP connectors on one cable, and the commercial operating range is 0 to 70°C.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
QSFP-100G-AOC7M |
|
Product type |
100GBASE QSFP active optical cable |
|
Cable assembly type |
Active optical cable assembly |
|
Interface form factor |
QSFP to QSFP direct attach |
|
Data rate |
100 Gigabit Ethernet |
|
Cable length |
7 meters |
|
Power consumption |
3.5W per end |
|
Pull tab color |
Blue |
|
Cable diameter |
3.5 mm |
|
QSFP connector module dimensions |
13.5 x 18.4 x 72.4 mm maximum outer dimensions |
|
QSFP connector module weight |
100 grams or less |
|
Commercial operating temperature |
0 to 70°C |
|
Storage temperature |
-40 to 85°C |
Application Scenarios
A server hall can run the cable across a hot aisle or between neighboring rows, linking a 100G QSFP port on one switch to a port on another switch up to 7 meters away.
When 100G links share overhead trays with many other runs, the optical cable’s 3.5 mm diameter takes far less tray space than a passive copper cable of similar length would.
Product Comparison
|
Parameter |
QSFP-100G-AOC7M |
QSFP-100G-AOC10M | ||
|---|---|---|---|---|
|
Cable type |
Active optical cable |
Passive copper (100GBASE-CR4) |
Passive copper (100GBASE-CR4) |
Active optical cable |
|
Cable length |
7 meters |
3 meters |
5 meters |
10 meters |
|
Power consumption |
3.5W per end |
1.5W per end |
1.5W per end |
3.5W per end |
|
Pull tab color |
Blue |
Orange |
Gray |
Red |
|
Cable diameter |
3.5 mm |
7 mm |
9 mm |
3.5 mm |
|
Bend radius |
30 mm |
50 mm |
70 mm |
30 mm |
QSFP-100G-AOC7M and QSFP-100G-AOC10M are both 100GBASE QSFP active optical cables at 3.5W per end with a 3.5 mm diameter and 30 mm bend radius, so they differ only in length (7 m against 10 m) and pull tab color (blue against red). A path longer than 7 m needs QSFP-100G-AOC10M. Passive copper tops out at 5 m in this family, so a route between 5 m and 7 m cannot use QSFP-100G-CU5M or QSFP-100G-CU3M; those two copper cables draw 1.5W per end but are thicker, at 7 mm and 9 mm with 50 mm and 70 mm bend radius, which suits short runs where cable bulk is not a concern.
Ordering Checklist
- Host support: Confirm the target Cisco switch or router and its QSFP28 port are listed for QSFP-100G-AOC7M in the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix. A cable that fits the cage can still be unsupported on a given host.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | QSFP-100G-AOC7M | Product type | 100GBASE QSFP active optical cable |
| Cisco ordering description | Cisco 100G QSFP Active Optical Cable, 7-meter | Cable assembly type | Active optical cable assembly |
| Interface form factor | QSFP to QSFP direct attach | Data rate | 100 Gigabit Ethernet |
| Cable length | 7 meters | Power consumption | 3.5W per end |
| Pull tab color | Blue | Cable diameter | 3.5 mm |
| Bend radius | 30 mm | QSFP connector module dimensions | 13.5 x 18.4 x 72.4 mm maximum outer dimensions |
| QSFP connector module weight | 100 grams or less | Operating temperature | 0 to 70°C |
| Storage temperature | -40 to 85°C | Standards references | SFF-8665, SFF-8636, IEEE 802.3-2022, IEEE 802.3ba, IEEE 802.3bm |
| Compliance reference | RoHS 6 |
