IE-3300-8T2X-A Description
The IE-3300-8T2X-A is a Cisco Catalyst IE3300 Rugged Series modular industrial switch that pairs 8 Gigabit copper downlinks with 2x 1G/10G SFP+ uplinks and ships with the perpetual Network Advantage license, making it the routed high-bandwidth variant of the fanless DIN rail line. The Advantage tier brings OSPF, BGP, EIGRP, VRF-lite segmentation, MACsec-256, and IP multicast routing to a 10G-uplinked access node, on top of the IOS XE baseline of REP and MRP rings, PROFINET and EtherNet/IP (CIP), IOx edge compute, and IEEE 1588 PTPv2 - noting that this 10G base runs PTP in Default Profile only and does not extend L2NAT to its uplink ports. One IEM-3300 expansion bay grows the system to 24 GE ports plus the two 10G uplinks, while dual 9.6-60VDC feeds, a -40°C to +70°C vented range, and substation, rail, and Class I Div 2 approvals put the bandwidth where industrial plants and yards actually need it.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3300-8T2X-A |
|
Downlink ports |
8x 10/100/1000M RJ45 copper |
|
Uplink ports |
2x 1G/10G SFP+ |
|
Network license |
Network Advantage (perpetual) |
|
Expansion |
1x IEM-3300 bay, up to 24 GE + 2x10G system ports |
|
Forwarding |
Line rate on all ports and packet sizes |
|
Unicast MAC addresses |
16K |
|
IPv4 indirect routes |
3000 |
|
Input power |
Dual DC inputs, 9.6-60VDC |
|
Power consumption |
28W |
|
Operating temperature |
-40°C to +70°C (40 LFM vented enclosure) |
|
Alarm and console |
2 alarm in / 1 alarm out; RJ-45 + USB Mini-B console |
|
Mounting |
DIN rail |
Product Performance
Key Features
The two SFP+ slots run at 1G or 10G, so aggregated camera, cell, and telemetry traffic leaves the cabinet at backbone speed instead of queuing behind Gigabit uplinks.
OSPF, BGP, EIGRP, PBR, and VRF-lite ship in the perpetual -A license, letting this node originate routed segments and advertise them upstream across its 10G links rather than bridging everything to a core.
As a 10G-uplink base the switch supports IEEE 1588 PTPv2 Default Profile only; designs built on the C37.238 Power Profile must use the GE-uplink IE3300 bases, so bandwidth and utility timing are an explicit trade on this PID.
L2NAT works on this platform but not on the 10G uplink ports, which matters when machine-IP translation is expected at the cabinet boundary – plan translation on downlinks or elsewhere in the path.

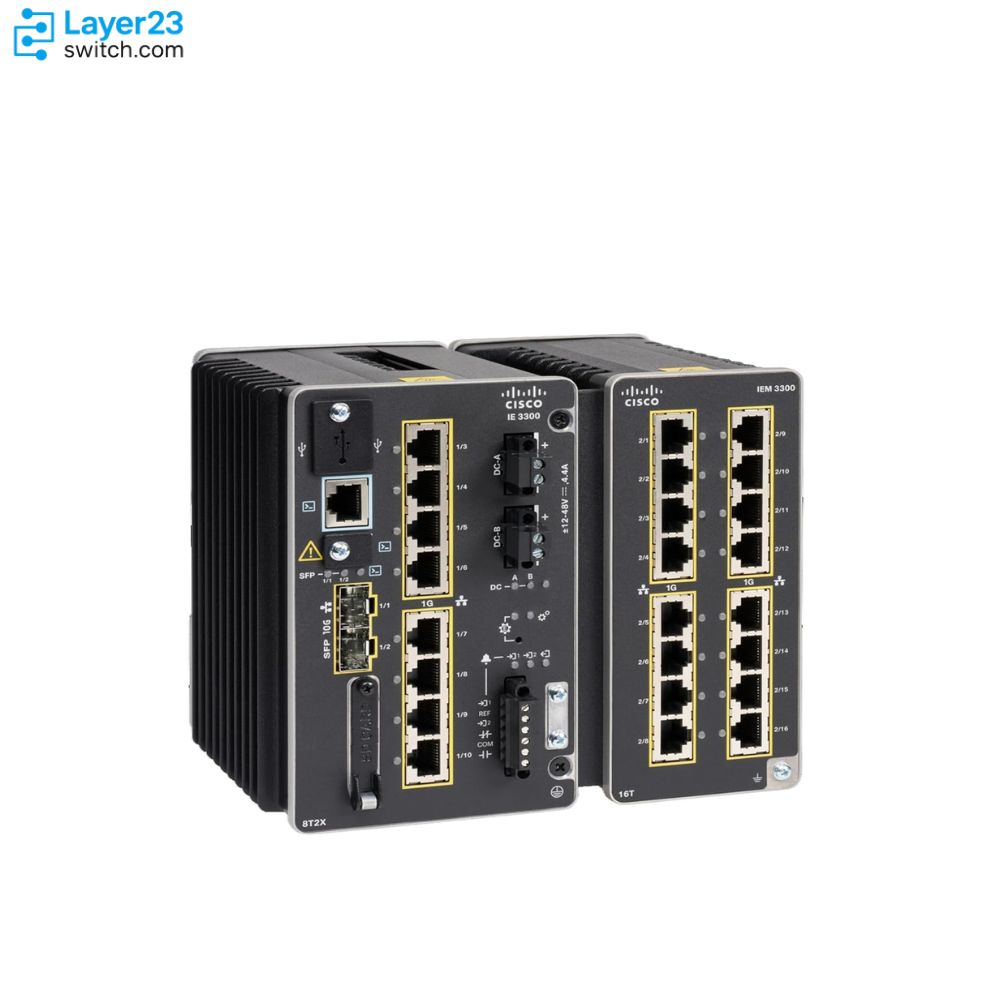

The IEM-3300 bay accepts copper and fiber data modules up to 16 ports, taking the system to 24 GE ports under the same two 10G uplinks as density arrives.
Advantage-tier 256-bit MACsec encrypts the exposed 10G runs between buildings or down a corridor, one tier above the MACsec-128 available to Essentials units.
Application Scenarios
Positioned where several machine cells converge, absorbing their Gigabit traffic on copper and handing consolidated flows to the plant core across dual 10G fiber uplinks.
Deployed at surveillance hubs where dozens of camera streams from downstream switches transit the cabinet, with 10G uplinks removing the bottleneck that GE-uplink models would impose.
Installed as the segmentation point of an industrial zone, terminating VRF-lite instances for process, safety, and enterprise traffic and routing them upstream with OSPF or BGP.
Product Comparison
|
Parameter |
IE-3300-8T2X-A | ||
|---|---|---|---|
|
Downlink ports |
8x GE copper |
8x GE copper |
8x GE copper, 4PPoE (802.3bt Type 3) |
|
Uplink ports |
2x 1G/10G SFP+ |
2x 1G/10G SFP+ |
2x 1G/10G SFP+ |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
|
PoE power budget |
Not a PoE switch (data only) |
Not a PoE switch (data only) |
Up to 480W including module |
|
Routing and segmentation |
OSPF/BGP/EIGRP, VRF-lite, PIM multicast |
Static and inter-VLAN routing |
OSPF/BGP/EIGRP, VRF-lite, PIM multicast |
|
MACsec |
MACsec-256 |
MACsec-128 |
MACsec-256 |
|
Power consumption |
28W |
28W |
42W |
|
MTBF |
463,629 hours (predicted) |
463,629 hours (predicted) |
436,034 hours (predicted) |
- IE-3300-8T2X-A and IE-3300-8T2X-E are the same 10G-uplink hardware split purely by license: the -A carries OSPF/BGP/EIGRP, VRF-lite, PIM multicast, and MACsec-256, while the -E stops at static and inter-VLAN routing with MACsec-128, so the feature list at deployment day decides the suffix.
- A design that starts on the -E side is not locked out: the perpetual IE3300-NW-A= upgrade license brings an installed IE-3300-8T2X-E up to this SKU’s feature set in place, which makes over-buying the -A defensible only when routing or 256-bit encryption is needed immediately.
- IE-3300-8U2X-A shares this PID’s 10G uplinks and Advantage license but adds 802.3bt Type 3 power under a 480W ceiling at higher draw and cost, so powered endpoints at the cabinet are the only reason to step from IE-3300-8T2X-A to the 8U2X.
Selection Guide
1. Buy -A When Routing Lands On Day One
Deployments that terminate VRF-lite segments, run routing adjacencies, or must encrypt uplinks at MACsec-256 from the start belong on this -A PID; a switch that will spend its first years as a Layer 2 ring member does the same work as IE-3300-8T2X-E and can take IE3300-NW-A= later.
2. Check The Timing Requirement First
This 10G base supports PTP Default Profile only; a substation or wide-area design that mandates IEEE C37.238 Power Profile cannot use any 10G-uplink IE3300 and should be planned on the GE-uplink bases instead.
3. PoE Moves The Order To 8U2X
Nothing on this PID powers endpoints; when the same cabinet must also drive bt-class access points or cameras, IE-3300-8U2X-A provides the identical 10G uplinks with a 480W PoE system.
4. Plan L2NAT Placement Early
Machine-IP translation runs on downlink ports but not on the 10G uplinks of this base, so architectures that translate at the cabinet boundary need the NAT hop placed before traffic reaches the uplink pair.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
External supply pairing |
Order a 50W-class DIN supply (PWR-IE50W-AC=) for this 28W non-PoE base plus any module. |
The switch ships without a supply; commissioning stalls without one on the same order. |
|
10G optic plan |
Select SFP+ optics per run (SR/LR/ER/ZR, BX, twinax) and prefer -I industrial grades in harsh cabinets. |
COM/EXT optics derate the operating range, and SFP-10G-ZR-I= itself derates the switch by 6°C. |
|
Corrosion-test status |
Note that salt-fog and mixed-gas approvals are pending on 10G variants when specifying corrosive sites. |
A coastal or chemical-plant spec that requires those certificates may need the GE-uplink bases today. |
|
Module width |
Allow 2-3 inches of extra DIN width for the chosen IEM-3300 module. |
An unplanned width increase can miss the enclosure cutout at install. |
|
SD card for SwapDrive |
Add SD-IE-16GB= when zero-touch field replacement is planned. |
The card is optional and not shipped by default. |
|
Classified-area parts |
Keep -L supplies out of Class I Div 2 / Zone 2 cabinets and plan the required enclosure. |
IP20 uncertified supplies fail acceptance in classified zones. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
8x GE copper expansion module | |
|
8x GE SFP fiber expansion module | |
|
16x GE copper expansion module | |
|
14x GE copper + 2x GE SFP expansion module | |
|
50W DIN rail power supply, AC/DC input, hazardous-location certified | |
|
10GBASE-SR SFP+, multimode, 400 m | |
|
10GBASE-LR SFP+, single-mode, 10 km | |
|
Industrial-grade 10GBASE-ER SFP+, single-mode, 40 km | |
|
SD-IE-16GB= |
16GB SD card for configuration and SwapDrive replacement |
|
STK-RACK-DINRAIL= |
19-inch rack mount kit for DIN rail switches |

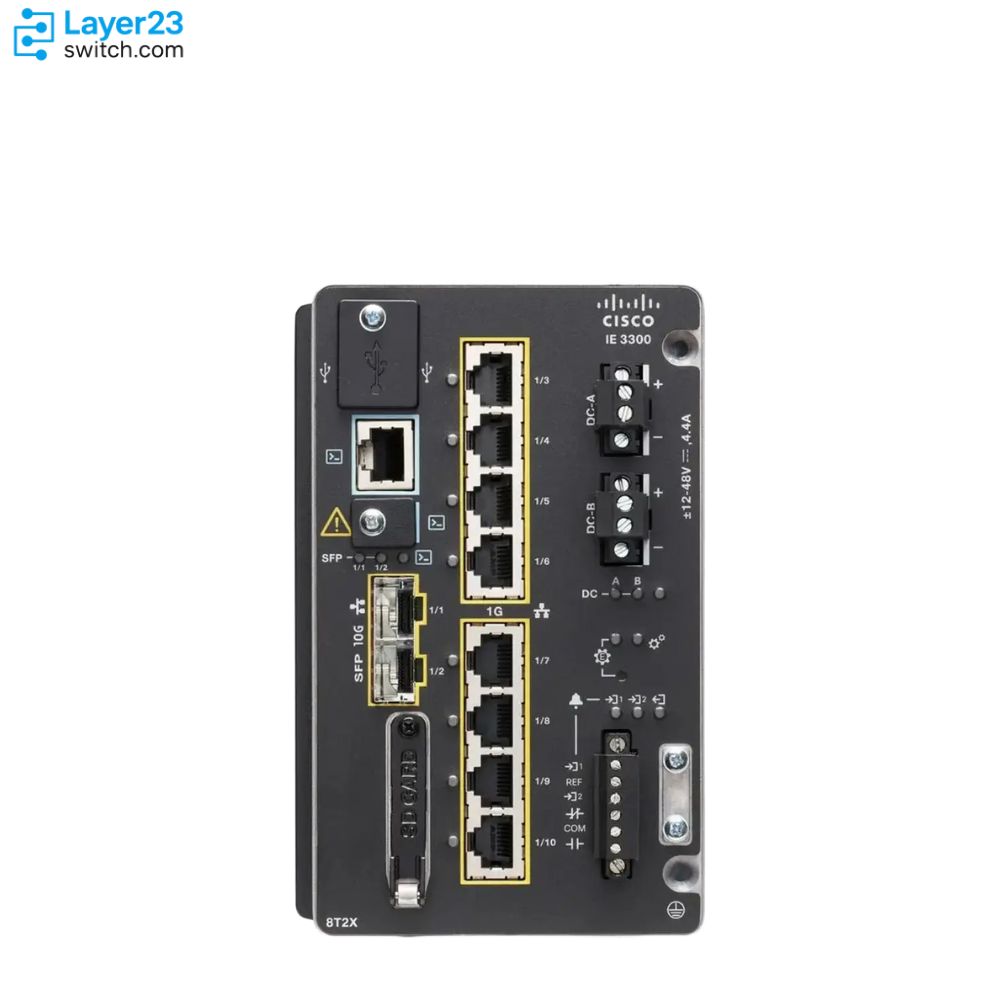

IE-3300-8T2X-A Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
10/100/1000 Copper Ethernet ports (downlink ports) |
7 |
Flash memory card slot |
|---|---|---|---|
|
2 |
Power connector DC-B |
8 |
SFP module slots (uplink ports) |
|
3 |
Power connector DC-A |
9 |
USB mini-Type B (console) port |
|
4 |
Protective ground connection |
10 |
RJ-45 console port |
|
5 |
Alarm connector |
11 |
USB mini-Type A port |
|
6 |
10/100/1000 Copper Ethernet ports (downlink ports) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3300-8T2X-A | Network license | Network Advantage, perpetual (upgrade PID for -E units: IE3300-NW-A=) |
| Downlink ports | 8x 10/100/1000M RJ45 | Uplink ports | 2x 1G/10G SFP+ |
| Expansion | 1x IEM-3300 bay; up to 24 GE + 2x10G system ports | Forwarding | Line rate, all ports and packet sizes; 8 egress queues |
| MAC / routes | 16K MAC; 3000 IPv4 + 512 IPv6 indirect routes | VLANs / ACL | 256 VLANs; 128 STP instances; 3K ACL entries |
| Memory | 4 GB DRAM; 1.5 GB user flash; optional 4/16 GB SD | Jumbo frames | 8996 bytes |
| Advantage features | OSPF/BGP/RIP/ISIS/EIGRP (v4+v6), PBR, VRRP/HSRP, BFD, VRF-lite, MACsec-256, PIM multicast routing | Essentials baseline | L2 switching, REP/Fast REP, MRP, PROFINET, CIP, L2NAT (not on 10G uplink ports), MACsec-128, FIPS 140-2, IOx |
| PTP timing | IEEE 1588 PTPv2, Default Profile only on this 10G base | Management | WebUI, Cisco Catalyst Center, SNMP/NETCONF/RESTCONF/YANG, Full Flexible NetFlow |
| Input power | Dual redundant DC, 9.6-60VDC; 4.5A max | Power consumption | 28W |
| Compatible DIN rail supplies | External units ordered separately: PWR-IE50W-AC=, PWR-IE50W-AC-IEC= (non-PoE class) | Alarms / console | 2 alarm in, 1 alarm out; RS-232 RJ-45 + USB Mini-B console; optional USB storage |
| Operating temperature | -40°C to +70°C vented; +60°C sealed; +75°C at 200 LFM; +85°C type-tested 16 h | Altitude / humidity | To 15,000 ft; 5-95% non-condensing; storage -40°C to +85°C |
| Dimensions (H x W x D) | 6 x 3.8 x 5.3 in (15.2 x 9.7 x 13.5 cm) | Weight / MTBF | 3.6 lbs (1.6 kg); 463,629 hours (predicted) |
| Supported uplink optics | 1G SFP plus 10G SFP+ (SR/LR/ER/ZR, -X and -I grades, BX bidirectional, twinax, CWDM/DWDM); COM/EXT grades derate temperature; SFP-10G-ZR-I= derates the switch 6°C | Industrial compliance | IEC 62443-4-1/-4-2, IEEE 1613, EN/IEC 61850-3, ODVA CIP, NEMA TS 2-2016, AREMA C&S 11/19, DNV Marine, EN50121/EN50155, IP30; corrosion approvals pending on 10G variants |
| Safety / hazloc | UL/CSA 60950-1, 62368-1, 61010-2-201; UL121201/CSA 213 Class I Div 2 A-D; Class I Zone 2 ATEX/IECEx (cabinet required) | Warranty | 5-year limited hardware warranty (all IE3300 PIDs and IE power supplies) |
