IE-3300-8T2S-E Description

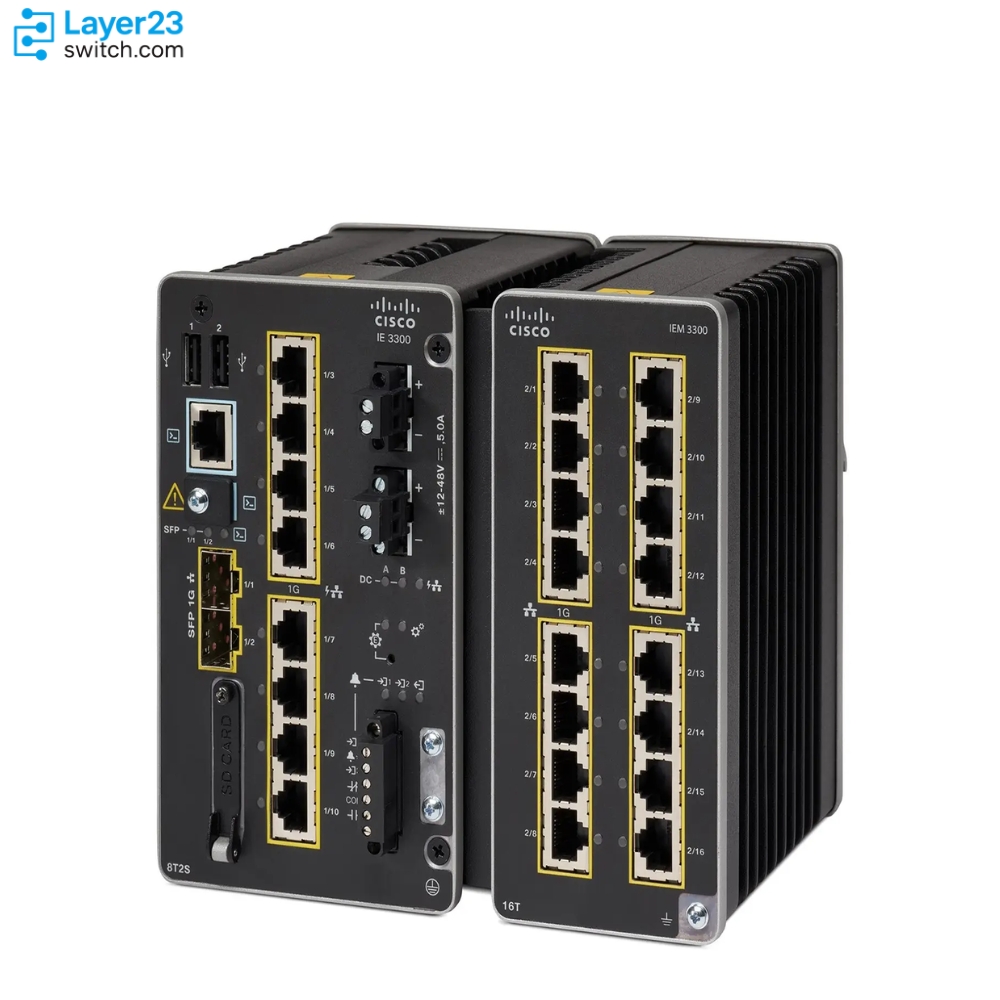

The IE-3300-8T2S-E is a Cisco Catalyst IE3300 Rugged Series industrial switch for DIN-rail cabinets that run Gigabit copper access on Network Essentials. The switch has eight 10/100/1000 RJ45 data-only ports and two 100/1000 SFP uplinks, draws 23W from dual 9.6 to 60VDC inputs and operates from -40°C to +70°C. The copper ports carry no PoE, and only the five non-PoE IEM-3300 modules fit the expansion bay.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3300-8T2S-E |
|
Downlink ports |
8x 10/100/1000 RJ45 copper |
|
Uplink ports |
2x 100/1000 SFP |
|
PoE budget |
Not applicable (data-only) |
|
Network license |
Network Essentials (perpetual) |
|
Expansion |
1 IEM-3300 module, up to 26 GE system ports |
|
Forwarding rate |
Line rate for all ports and packet sizes |
|
IEEE 1588 PTPv2 |
Default Profile and Power Profile (IEEE C37.238:2011) |
|
Input voltage |
Dual DC inputs, 9.6 to 60VDC |
|
Power consumption |
23W (measured at 12V) |
|
Operating temperature |
-40°C to +70°C (40 LFM vented enclosure) |
|
Hazardous locations |
Class I Div 2 Groups A-D; Class I Zone 2 IIC |
|
Mounting and cooling |
DIN rail; fanless, convection cooled |
Product Performance
Key Features
Both SFP uplinks accept 100M as well as 1G optics, so an older Fast Ethernet fiber run can stay in service on a module such as GLC-FE-100FX-RGD=. A new link to the control room runs at 1G and reaches 70 km on GLC-ZX-SM-RGD=.
IEEE 1588 PTPv2 runs in the Default Profile and in the Power Profile defined by IEEE C37.238:2011, so utility networks that distribute time under the power profile can carry it through this switch.
The perpetual license handles the Layer 2 side of a plant network: REP, Fast REP and PROFINET MRP rings, CIP EtherNet/IP, IGMP snooping and MACsec-128. Dynamic routing arrives later with the IE3300-NW-A= upgrade.
The switch draws 23W at 12V and no more than 3.8A from either of two DC inputs. Even with the 19W IEM-3300-8S= fitted, the 42W total stays inside a 50W DIN-rail supply.
One slot takes the five non-PoE IEM-3300 modules, in copper, fiber or mixed form. The 16-port modules bring the system to 26 Gigabit ports, while PoE modules plug only into PoE bases.
The chassis is certified for Class I Div 2 Groups A-D and Class I Zone 2 IIC, with ATEX installations placed in a cabinet. Salt fog and flowing mixed gas corrosion ratings also apply.
Application Scenarios
On an assembly line, the switch connects the PLC, HMI and drives of one machine cell over copper and joins the line’s PROFINET MRP ring through its SFP uplinks.
Traffic agencies mount the switch on the DIN rail of a NEMA TS 2 signal cabinet, where it links the intersection controller to the traffic management network over fiber.
Within an electric substation, protection relays and bay controllers plug into the switch, which meets IEC 61850-3 and IEEE 1613 for substation communications.
Product Comparison
|
Parameter |
IE-3300-8T2S-E | |||
|---|---|---|---|---|
|
Downlink ports |
8x 10/100/1000 RJ45 copper |
8x 10/100/1000 RJ45 copper |
8x 10/100/1000 RJ45, PoE/PoE+ |
8x 10/100/1000 RJ45 copper |
|
Uplink ports |
2x 100/1000 SFP |
2x 1G/10G SFP+ |
2x 100/1000 SFP |
2x 100/1000 SFP |
|
100M SFP support |
On base uplinks |
Expansion-module SFP ports only |
On base uplinks |
On base uplinks |
|
PoE budget |
Not applicable (data-only) |
Not applicable (data-only) |
240W base, 360W with PoE expansion module |
Not applicable (data-only) |
|
Input voltage |
9.6 to 60VDC |
9.6 to 60VDC |
9.6 to 60VDC; 48VDC for PoE, 54VDC for PoE+ |
9.6 to 60VDC |
|
Power consumption |
23W |
28W |
32W (excluding PoE output) |
23W |
|
IEEE 1588 PTPv2 |
Default Profile and Power Profile |
Default Profile only |
Default Profile and Power Profile |
Default Profile and Power Profile |
|
Mounting |
DIN rail |
DIN rail |
DIN rail |
DIN rail |
|
Network license |
Network Essentials |
Network Essentials |
Network Essentials |
Network Advantage |
IE-3300-8T2S-E has two 100/1000 SFP uplinks and PTP in Default and Power Profile, while IE-3300-8T2X-E has 1G/10G SFP+ uplinks, Default Profile PTP only, and 100M SFPs only on module ports, so any 10G backhaul needs IE-3300-8T2X-E. Copper ports that must power devices need IE-3300-8P2S-E, with 240W on the base and 360W with a PoE module, but it draws 32W and runs PoE from 48VDC against 23W here. OSPF, BGP and EIGRP come included on IE-3300-8T2S-A; an installed IE-3300-8T2S-E reaches them through the perpetual IE3300-NW-A= license with no hardware change. PRP, HSR-SAN or DLR designs call for IE-3400-8T2S-E, which keeps the same port layout and draws 36W.
Ordering Checklist
- DC power source: Confirm the cabinet delivers 9.6 to 60VDC to one or both DC inputs, or add a DIN rail supply such as PWR-IE50W-AC=. The combined load of the switch and its expansion module must stay within the supply wattage.
- Supply rating for hazardous locations: Class I Div 2 or Zone 2 cabinets need a supply other than PWR-IE50W-AC-L=. The -L supplies are IP20 rated and not certified for hazardous locations or smart grid sites.
- Expansion module type: Select IEM-3300-8T=, IEM-3300-8S=, IEM-3300-16T=, IEM-3300-6T2S= or IEM-3300-14T2S=. PoE modules plug only into PoE base switches.
- SFP temperature grade: Cabinets that reach the -40°C to +70°C limits need industrial optics such as GLC-SX-MM-RGD= or GLC-FE-100FX-RGD=. Commercial or extended-temperature SFPs force the switch to be derated.
- SD card for SwapDrive: Add SD-IE-16GB= when SwapDrive replacement is planned. The SD card is optional and not shipped with the switch by default.
- Catalyst Center license: Order IE3300-DNA-E or its 3, 5 or 7-year term; IE3300-DNA-A also needs IE3300-NW-A=. Catalyst Center Advantage requires Network Advantage on the switch.
- 19-inch rack mounting: Add STK-RACK-DINRAIL= when the switch goes into a 19-inch rack. The 19-inch DIN rail mount kit is a separate PID.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Expansion module, 8x GE copper ports (18 system ports) | |
|
Expansion module, 8x GE SFP ports (18 system ports) | |
|
Expansion module, 16x GE copper ports (26 system ports) | |
|
Expansion module, 6x GE copper + 2x GE SFP (18 system ports) | |
|
Expansion module, 14x GE copper + 2x GE SFP (26 system ports) | |
|
50W DIN rail power supply, 100-240VAC or 125-250VDC input | |
|
50W DIN rail power supply, 90-264VAC input | |
|
GLC-FE-100FX-RGD= |
Industrial 100BASE-FX SFP, 2 km over multimode fiber |
|
Industrial 1000BASE-SX SFP, 220-550 m over multimode fiber | |
|
Industrial 1000BASE-LX/LH SFP, 550 m MMF or 10 km SMF | |
|
GLC-ZX-SM-RGD= |
Industrial 1000BASE-ZX SFP, 70 km over single-mode fiber |
|
SD-IE-16GB= |
16GB SD card for configuration storage and SwapDrive |
|
STK-RACK-DINRAIL= |
19-inch DIN rail mount kit |
|
IE3300-NW-A= |
Network Advantage license for IE3300, perpetual |

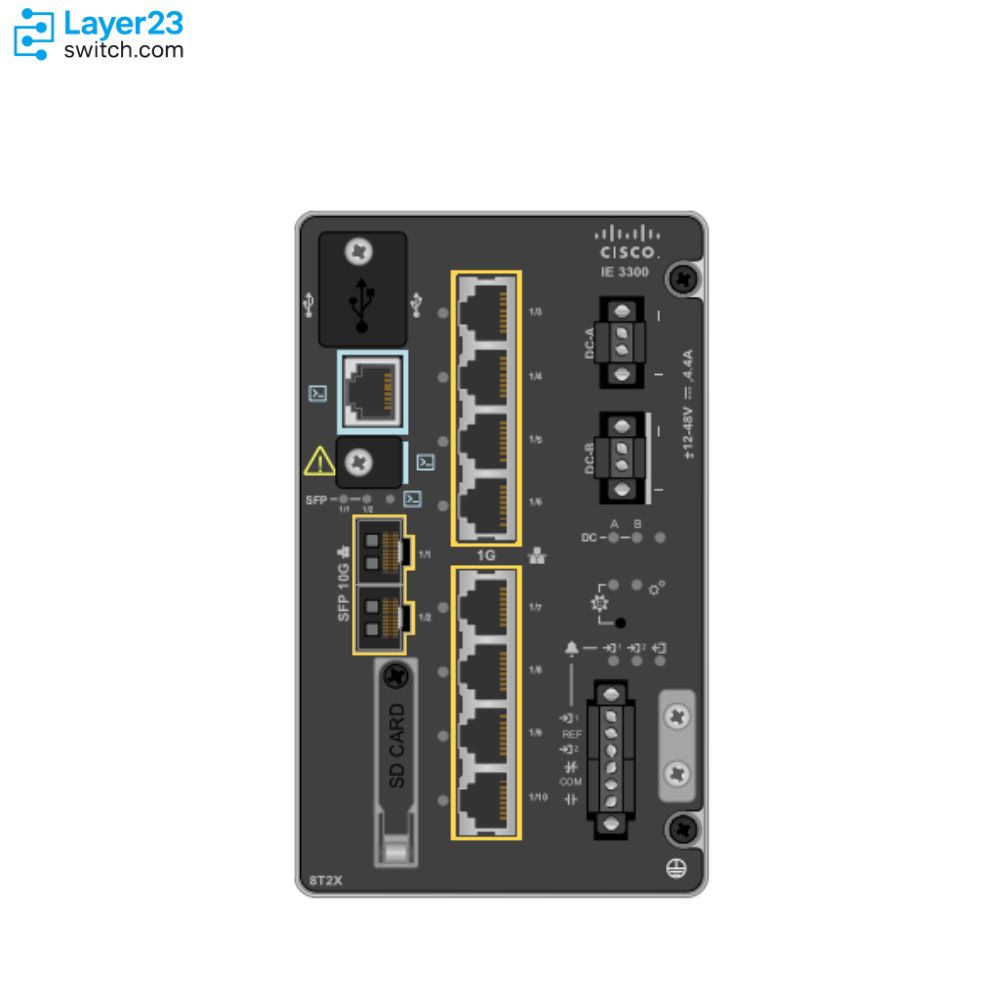

IE-3300-8T2S-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
10/100/1000 Copper Ethernet ports (downlink ports) |
7 |
Flash memory card slot |
|---|---|---|---|
|
2 |
Power connector DC-B |
8 |
SFP module slots (uplink ports) |
|
3 |
Power connector DC-A |
9 |
USB mini-Type B (console) port |
|
4 |
Protective ground connection |
10 |
RJ-45 console port |
|
5 |
Alarm connector |
11 |
USB mini-Type A port |
|
6 |
10/100/1000 Copper Ethernet ports (downlink ports) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3300-8T2S-E | Network license | Network Essentials (perpetual) |
| Network Advantage upgrade | IE3300-NW-A= (perpetual) | Total base ports | 10 |
| Downlink ports | 8x 10/100/1000 RJ45 copper | Uplink ports | 2x 100/1000 SFP |
| PoE power budget | Not applicable (data-only copper ports) | Expansion | 1 IEM-3300 expansion module; up to 26 GE system ports |
| Supported expansion modules | IEM-3300-8T=, IEM-3300-8S=, IEM-3300-16T=, IEM-3300-6T2S=, IEM-3300-14T2S= (non-PoE modules only) | Expansion module width | Single-wide module adds 2 in; double-wide module adds 3 in |
| Console port | 1 RS-232 (via RJ-45), 1 USB Mini Type B | Alarms | 2 alarm inputs, 1 alarm output |
| Removable storage | USB 2.0 and SD card (optional, not shipped by default) | Forwarding rate | Line rate for all ports and all packet sizes |
| Number of queues | 8 | MAC addresses | 16K |
| IGMP multicast groups | 1K | No. of VLANs | 256 |
| STP instances | 128 | Access control entries (PACL/VACL/RACL) | 3K |
| IPv4 indirect routes | 3000 (requires Network Advantage) | IPv6 indirect routes | 512 (requires Network Advantage) |
| DRAM | 4 GB | Flash (user accessible) | 1.5 GB |
| SD card capacity | 4 GB, 16 GB (optional) | Jumbo frames | 8996 bytes |
| Layer 2 switching | 802.1Q, RSTP, MSTP, LACP, Q-in-Q | Layer 3 routing | Inter-VLAN routing, static routing |
| Redundancy | REP ring, Fast REP, REP ZTP, PROFINET MRP | Industrial protocols | CIP EtherNet/IP, PROFINET; GOOSE and MODBUS TCP classification |
| IEEE 1588 PTPv2 | Default Profile and Power Profile (IEEE C37.238:2011) | Industrial management | Layer 2 switching with 1:1 L2NAT |
| Security | 802.1X, DHCP snooping, dynamic ARP inspection, IP source guard, MACsec-128, FIPS 140-2, SUDI 2099 | Network Advantage features (with IE3300-NW-A=) | OSPF, BGP, RIP, IS-IS, EIGRP, PBR, VRRP, HSRP, BFD, VRF-lite, MACsec-256, PIM multicast routing |
| IOx edge compute | Native Docker containers, Cisco Cyber Vision, Secure Equipment Access | Management | WebUI, Cisco Catalyst Center, SNMP, NETCONF, RESTCONF, YANG, Full Flexible NetFlow, SwapDrive |
| Input voltage range | Redundant DC input, 9.6 to 60VDC (dual DC power inputs) | Maximum input current | 3.8A |
| Power consumption | 23W (measured at 12V) | Cooling | Fanless, convection cooled |
| Operating temperature | -40°C to +70°C (40 LFM vented enclosure); -40°C to +60°C (sealed enclosure); -40°C to +75°C (min. 200 LFM fan or blower-equipped enclosure); +85°C type tested for 16 hours | Operating altitude | Up to 15,000 ft |
| Storage temperature | -40°C to +85°C | Operating humidity | 5% to 95% relative humidity, non-condensing |
| Dimensions (H x W x D) | 6 x 3.6 x 5.3 in (15.2 x 9.1 x 13.5 cm) | Weight | 1.7 kg (3.8 lb) |
| Mounting | DIN rail | Ingress protection | IP30 |
| MTBF | 633,420 hours (Telcordia Issue 3) | Industry standards | IEC 62443-4-1, IEC 62443-4-2, EN 61000-6-2, EN 61000-6-4, IEEE 1613, EN/IEC 61850-3, ODVA EtherNet/IP, NEMA TS 2-2016, AREMA C&S sections 11 and 19 |
| Electromagnetic emissions | FCC 47 CFR Part 15 Class A, EN 55032/CISPR 32 Class A, CISPR 11 Class A, ICES-003 Class A, VCCI Class A | Electromagnetic immunity | EN 55024/EN 55035, EN 61000-4 series |
| Safety certifications | UL/CSA 60950-1, UL/CSA 62368-1, IEC 62368-1 CB, UL/CSA 61010-2-201 | Hazardous locations | UL121201 and CSA 213 Class I Div 2 Groups A-D; UL/CSA, IECEx and ATEX 60079-0/-15 Class I Zone 2 Gc/IIC (ATEX requires a cabinet enclosure) |
| Railway | EN50125-1, EN50125-3, EN50121-4, EN50121-3-2/EN50155 | Marine | DNV-CG-0339, IEC 60945, IACS UR E10 |
| Shock | IEC 60068-2-27 (operational 50G, 3 ms; non-operational 65-80G) | Vibration | IEC 60068-2-6 (sinusoidal, 5-150 Hz); MIL-STD-810 Method 514.4 |
| Corrosion | IEC 60068-2-52 (salt fog), IEC 60068-2-60 (flowing mixed gas) | Supported SFPs | 100M: GLC-FE-100FX-RGD=, GLC-FE-100LX-RGD=; 1G: GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD=, GLC-T-RGD= |
