What operating temperature range does IE-3300-8U2X-A support?

IE-3300-8U2X-A operates from -40°C to +70°C in a vented enclosure with 40 LFM of airflow. The unit is fanless and convection-cooled, so the cabinet must supply the airflow that the 40 LFM rating assumes.

What DC input voltage does IE-3300-8U2X-A need for PoE?

IE-3300-8U2X-A takes dual redundant DC inputs from 9.6 to 60VDC, and PoE needs a 48VDC feed. PoE+ and 4PPoE need 54VDC, and a 48VDC feed does not power PoE+ or 802.3bt endpoints.

Which IOS XE release added IOx support on IE-3300-8U2X-A?

IE-3300-8U2X-A has supported IOx since Cisco IOS XE 17.4.1, per the Catalyst IE3x00 release notes. A site that runs IOx applications on this Network Advantage switch must therefore be on 17.4.1 or later.

Which IEM-3300 modules add no PoE to IE-3300-8U2X-A?

IEM-3300-8T adds 8 copper Gigabit ports and IEM-3300-8S adds 8 SFP Gigabit ports, and both are listed as compatible with the Network Advantage base IE-3300-8U2X-A in the Cisco Industrial Ethernet DIN rail FAQ. Neither provides PoE or PoE+, so use IEM-3300-8P= or IEM-3300-16P= when more powered ports are needed.

What temperature limits apply to IE-3300-8U2X-A in a sealed enclosure?

IE-3300-8U2X-A is rated to +60°C in a sealed enclosure and to +75°C with at least 200 LFM of forced airflow. It is also type tested at +85°C for 16 hours. The +70°C figure applies only to a 40 LFM vented enclosure.

What maximum input current does IE-3300-8U2X-A draw, and is a 65W supply listed?

IE-3300-8U2X-A draws up to 10.5A at its maximum input current. PWR-IE65W-PC-AC= and PWR-IE65W-PC-DC= are the 65W PoE-capable DIN rail supplies, so they suit only small PoE loads next to the 42W switch draw, which must stay within the supply wattage.

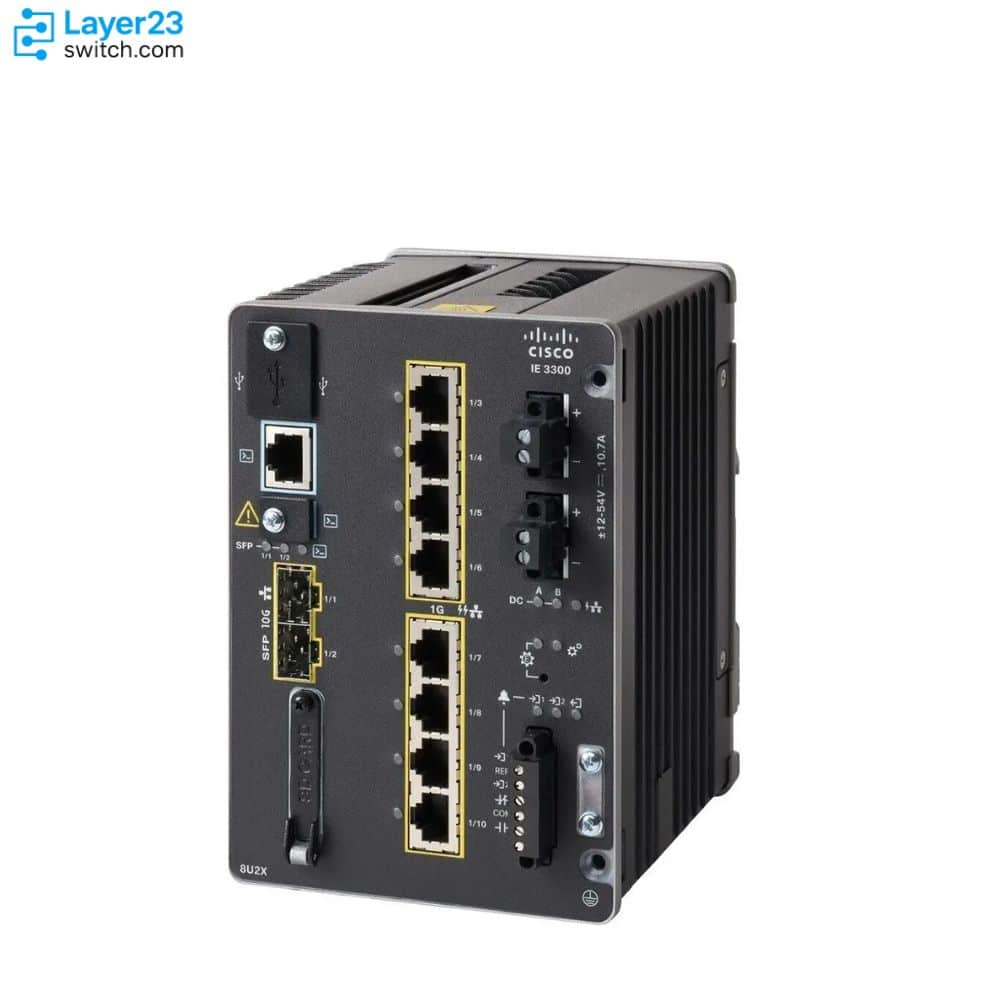

IE-3300-8U2X-A – 8x1G 4PPoE Ports – 2x10G SFP+ Uplinks – 480W PoE Budget

Name: IE-3300-8U2X-A - Cisco 8-Port 4PPoE Switch, 2x10G, 480W
Brand: Cisco
SKU: IE-3300-8U2X-A
Price: 7102.00 USD
Availability: InStock
Rating: 4.83 (6 reviews)

Brand: Cisco Category: Catalyst IE3300 Rugged Switches Model: IE-3300-8U2X-A

Rated 4.83 out of 5 based on 6 customer ratings

4.86 reviews6 Questions7 sold this month

List Price: ~~$18,174.23~~ 61% OFF

$7,102.00

Price Alert

In StockShips in as little as 1 business day Brand New

Related models

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policyExpress Shipping2-6 Business Daysvia UPS, FedEx, DHL and more

Trusted & Secure Payments

Shop Expert-Recommended Accessories for the IE-3300-8U2X-A

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.

SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4
Original price was: $1,213.85.Current price is: $91.68.
SFP-10G-SR-X
10GBASE-SR SFP+ - Extended Temp - 400m OM4 MMF
Original price was: $1,942.00.Current price is: $298.70.
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km Reach
Original price was: $4,873.66.Current price is: $149.00.
SFP-10G-LR-X
10GBASE-LR SFP+ - Extended Temp - 10km SMF
Original price was: $11,206.77.Current price is: $306.00.
SFP-10G-ER
10GBASE-ER SFP+ - 1550nm SMF - 40km Reach
Original price was: $12,199.39.Current price is: $298.00.
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
Original price was: $1,260.58.Current price is: $95.80.
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m Reach
Original price was: $570.10.Current price is: $70.00.
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOM
Original price was: $633.46.Current price is: $59.00.
IEM-3300-8T
8x1G Copper Ports - IE3300 Expansion Module - Non-PoE
Original price was: $2,533.64.Current price is: $1,350.00.
IEM-3300-8S
8x1G SFP Ports - IE3300 Expansion Module
Original price was: $3,024.71.Current price is: $1,200.80.
IEM-3300-16P
16x1G PoE+ Copper Ports - IE3300 Expansion Module
Original price was: $11,287.49.Current price is: $5,405.00.
PWR-IE65W-PC-AC
65W AC/DC PSU - 54V PoE Output - DIN-Rail
Original price was: $627.12.Current price is: $475.23.
PWR-IE65W-PC-DC
65W Low-DC PSU - 54V PoE Output - DIN-Rail
Original price was: $677.07.Current price is: $420.00.
PWR-IE170W-PC-AC
170W AC/DC PSU - 54V PoE Output - DIN-Rail
Original price was: $4,407.90.Current price is: $782.13.
PWR-IE170W-PC-DC
170W Low-DC PSU - 54V PoE Output - DIN-Rail
Original price was: $2,090.39.Current price is: $1,150.00.
PWR-IE240W-PCAC-L
240W AC PSU - 54V PoE Output - Hardwired DIN-Rail
Original price was: $4,407.90.Current price is: $1,098.70.
PWR-IE480W-PCAC-L
480W AC PSU - 54V PoE Output - DIN-Rail
Original price was: $3,160.94.Current price is: $1,388.49.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded

Customers

Units shipped

Countries

Inventory You Can See

Cisco stock on hand

Models ready to ship

Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

Advance replacement for in-stock models
New unit for dead-on-arrival
14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

IE-3300-8U2X-A Description

The IE-3300-8U2X-A is a Cisco Catalyst IE3300 Rugged Series industrial switch for DIN-rail cabinets that power cameras and access points over 10G uplinks. The switch has eight Gigabit copper ports with 802.3bt Type 3 4PPoE, two 1G/10G SFP+ uplinks, a PoE budget of up to 480W with an expansion module and dual DC inputs from 9.6 to 60VDC, under the Network Advantage license. PoE needs a 48VDC feed, PoE+ and 4PPoE need 54VDC, and PTP runs in Default Profile only on this 10G base.

Quick Specs

Parameter	Specification
Product ID	IE-3300-8U2X-A
Downlink ports	8x 10/100/1000M RJ45, 4PPoE (802.3bt Type 3)
Uplink ports	2x 1G/10G SFP+
PoE power budget	Up to 480W including expansion module
Network license	Network Advantage (perpetual)
Expansion	1x IEM-3300 bay, up to 24 GE + 2x10G system ports
Forwarding	Line rate on all ports and packet sizes
MAC addresses	16K
Input power	Dual DC inputs, 9.6-60VDC (48V PoE, 54V PoE+/4PPoE)
Power consumption	42W (excluding PoE output)
Operating temperature	-40°C to +70°C (40 LFM vented enclosure)
Alarm and console	2 alarm in / 1 alarm out; RJ-45 + USB Mini-B console
Mounting	DIN rail

Product Performance

Maximum System PoE Budget

Maximum Uplink Port Speed

Maximum GE Ports With Expansion

Key Features

Type 3 Power On The Copper Ports

The eight Gigabit ports support 802.3bt Type 3 alongside PoE and PoE+, so high-draw cameras and access points connect without injectors.

480W Budget And Input Voltage

The system budget reaches 480W with an expansion module, but only on the right feed: 48VDC supports PoE, while PoE+ and 4PPoE need 54VDC. Switch consumption of 42W plus the PoE load must stay within the external supply wattage.

Type 4 Through The 4MU Module

IEM-3300-4MU= adds four 2.5G ports with 802.3bt Type 4 power. The module does not support PTP.

Advantage Routing And Segmentation

Network Advantage adds OSPF, BGP, RIP, IS-IS and EIGRP, VRF-lite, PIM multicast routing and MACsec-256 to the Essentials baseline of Layer 2, REP rings and PROFINET.

Backhaul For A Powered Edge

Two 1G/10G SFP+ uplinks carry the video and wireless traffic of a PoE cabinet. L2NAT is not available on these uplink ports.

Timing Limits On The 10G Base

IEEE 1588 PTPv2 runs in Default Profile only. Power Profile (IEEE C37.238) designs use the Gigabit-uplink IE3300 bases.

Application Scenarios

Powered Wireless Coverage

In a production hall or warehouse, the switch powers 802.3bt access points from its copper ports and carries their combined traffic back over the 10G uplinks.

Multicast Video Aggregation

A surveillance cabinet that collects high-power PTZ cameras can use the switch to power them and route their multicast streams toward recording and monitoring networks with PIM.

Roadside ITS Cabinet

At a traffic intersection, the switch powers cameras and sensors in the cabinet and hands the corridor traffic upstream at 10G, within the NEMA TS 2 environmental range.

Product Comparison

Parameter	IE-3300-8U2X-A	IE-3300-8U2X-E	IE-3300-8T2X-A
10/100/1000 RJ45 copper ports	8	8	8
1GE/10G SFP+ ports	2	2	2
PoE power budget	Up to 480W (including expansion module)	Up to 480W (including expansion module)	Not applicable
Software license (default)	Network Advantage	Network Essentials	Network Advantage
Power consumption	42W	42W	28W
Input voltage range	9.6 to 60 VDC redundant DC input; 48 VDC for PoE, 54 VDC for PoE+/4PPoE	9.6 to 60 VDC redundant DC input; 48 VDC for PoE, 54 VDC for PoE+/4PPoE	9.6 to 60 VDC redundant DC input
Operating temperature	-40°C to +70°C (40 LFM vented enclosure)	-40°C to +70°C (40 LFM vented enclosure)	-40°C to +70°C (40 LFM vented enclosure)
Redundancy	REP, Fast REP, REP ZTP, PROFINET-MRP	REP, Fast REP, REP ZTP, PROFINET-MRP	REP, Fast REP, REP ZTP, PROFINET-MRP
Mounting	DIN rail	DIN rail	DIN rail

IE-3300-8U2X-A and IE-3300-8U2X-E are the same hardware with the same 480W PoE budget, 42W draw and 10G uplinks; the -A license adds OSPF, BGP, EIGRP, VRF-lite, PIM multicast and MACsec-256, so a cabinet that routes or encrypts uplinks at 256-bit should stay on IE-3300-8U2X-A. A Layer 2 powered edge can drop to IE-3300-8U2X-E and keep MACsec-128 and static routing, and can still reach Advantage later with the perpetual IE3300-NW-A= license. Cabinets with no powered endpoints fit IE-3300-8T2X-A at 28W. Designs that need IEEE C37.238 Power Profile timing move to a GE-uplink base such as IE-3300-8P2S-A, which has a 360W PoE budget.

PoE Power Planning

Planning Item	Value or Check
PoE standards	IEEE 802.3af/at and 802.3bt Type 3 on 8 downlinks; 802.3bt Type 4 via IEM-3300-4MU= module ports
PoE power budget	Up to 480W system budget including expansion module
Port configurations	Up to 24 PoE/PoE+ ports with module, or 8x bt Type 3, or 4x bt Type 4 (4MU)
Input voltage for PoE	48VDC for PoE; 54VDC for PoE+ and 4PPoE
Supply sizing rule	Switch consumption (42W) plus active PoE budget must stay within the external supply wattage
Supply pairing	PWR-IE480W-PCAC-L= covers the full budget; 170W/240W units serve partial loads; verify hazardous-location certification per site

Ordering Checklist

Power supply: For the full 480W budget order PWR-IE480W-PCAC-L=; PWR-IE170W-PC-AC=, PWR-IE170W-PC-DC= and PWR-IE240W-PCAC-L= cover partial PoE loads. Switch draw plus PoE load must stay within the supply wattage; an undersized supply cannot deliver the PoE budget, and -L units are not certified for smart grid or hazardous-location sites.
Input voltage: Feed 54VDC for PoE+ and 4PPoE ports; 48VDC supports basic PoE only. A 48VDC feed does not power PoE+ or 802.3bt endpoints.
Expansion module: Order one IEM-3300 module per base; IEM-3300-4MU= is the only route to 802.3bt Type 4 (4 ports) and does not support PTP, while IEM-3300-8P= and IEM-3300-16P= add PoE/PoE+ ports up to 24 in total. Type 4 endpoints and added PoE ports depend on the module chosen.
Catalyst Center license: Add IE3300-DNA-A or a term such as IE3300-DNA-A-3Y, only if Catalyst Center manages the switch. The license is an optional add-on, and Catalyst Center Advantage needs a Network Advantage switch like this one.
SD card: Add SD-IE-16GB= when SwapDrive replacement is planned. The card is optional and is not shipped by default.
Uplink optics: Select industrial-grade SFP+ for the 10G ports; SFP-10G-ZR-I= still derates the switch by 6°C. COM and EXT grade SFPs force a temperature derating of the whole switch.

Optional Add-ons

Model	Description
IEM-3300-4MU=	4x 1GE/2.5G copper expansion module with 802.3bt Type 4 PoE
IEM-3300-8P=	8x GE PoE/PoE+ expansion module
IEM-3300-16P=	16x GE PoE/PoE+ expansion module
PWR-IE480W-PCAC-L=	480W PoE-capable DIN rail power supply, AC input, IP20 light-duty variant
PWR-IE240W-PCAC-L=	240W PoE-capable DIN rail power supply, AC input, IP20 light-duty variant
PWR-IE170W-PC-AC=	170W PoE-capable DIN rail power supply, AC/DC input, hazardous-location certified
SFP-10G-SR=	10GBASE-SR SFP+, multimode, 400 m
SFP-10G-LR=	10GBASE-LR SFP+, single-mode, 10 km
SD-IE-16GB=	16GB SD card for configuration and SwapDrive replacement
STK-RACK-DINRAIL=	19-inch rack mount kit for DIN rail switches

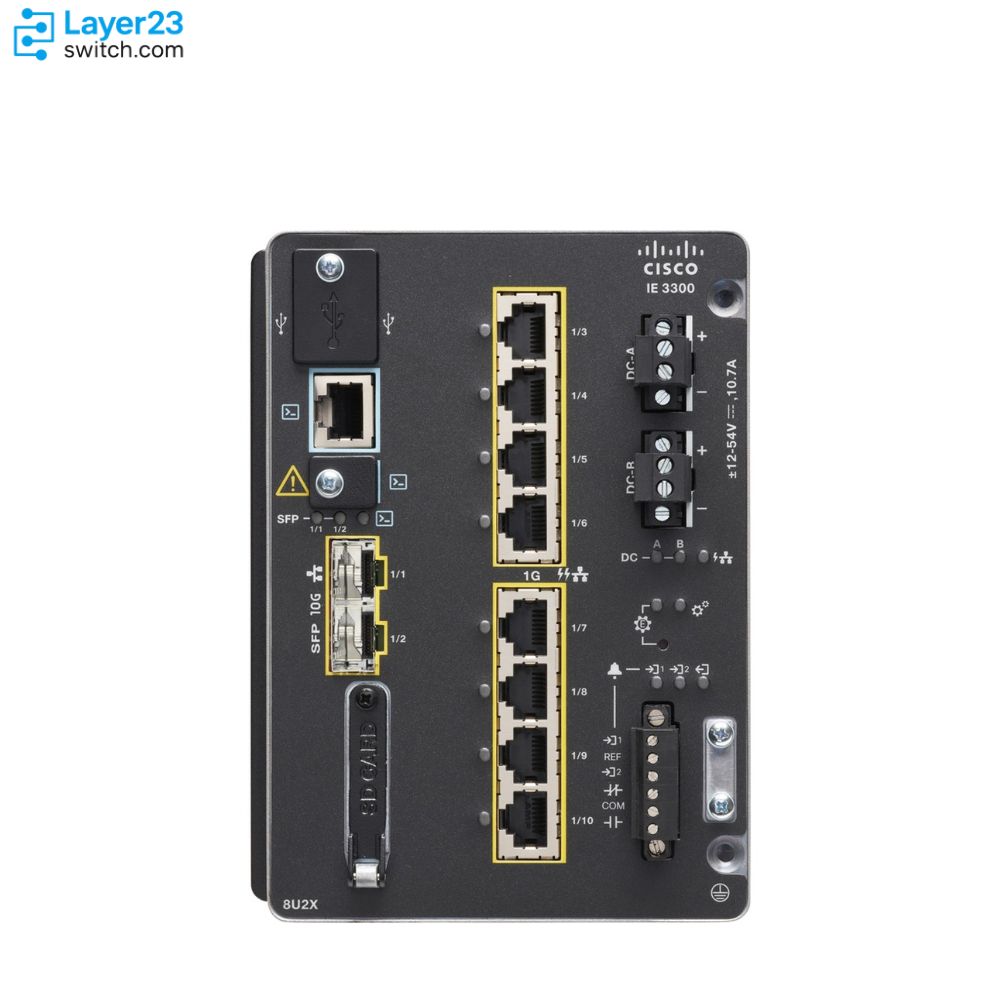

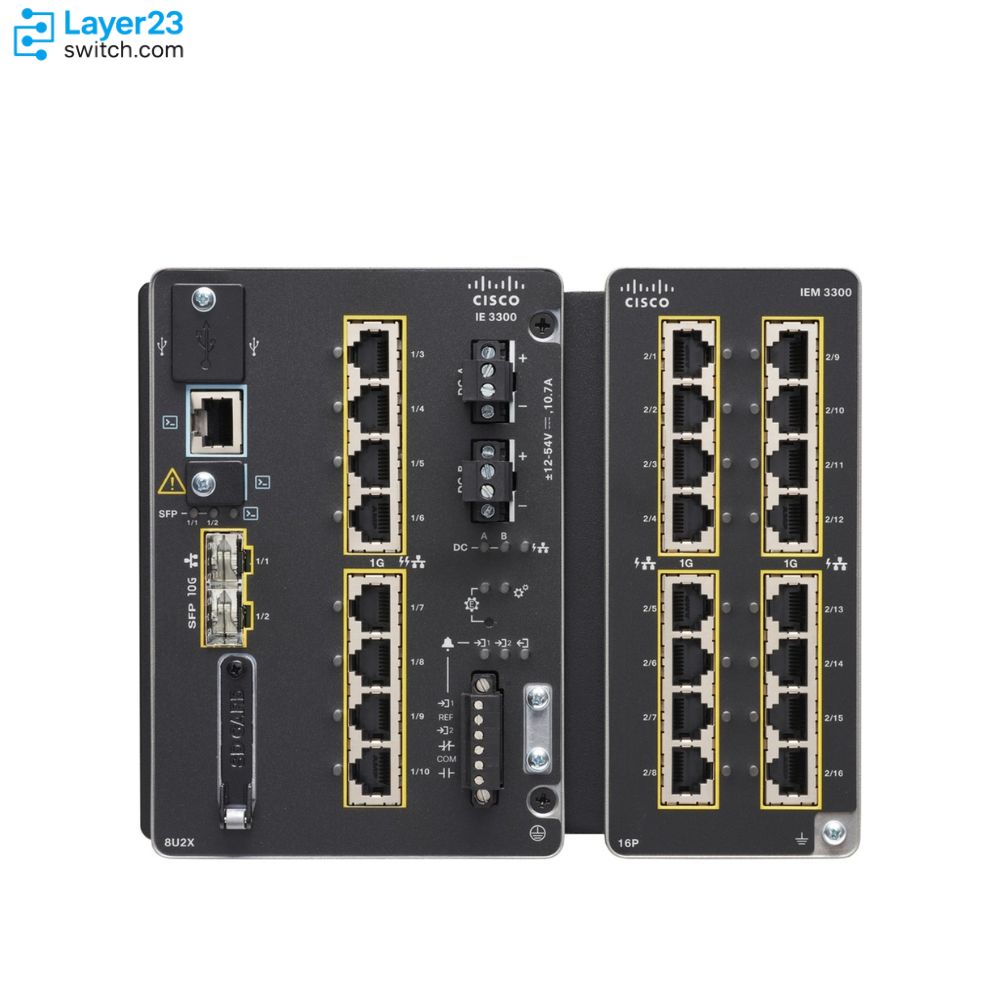

IE-3300-8U2X-A Front Panel Overview

The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.

1	10/100/1000 Copper Ethernet ports (downlink ports)	7	Flash memory card slot
2	Power connector DC-B	8	SFP module slots (uplink ports)
3	Power connector DC-A	9	USB mini-Type B (console) port
4	Protective ground connection	10	RJ-45 console port
5	Alarm connector	11	USB mini-Type A port
6	10/100/1000 Copper Ethernet ports (downlink ports)

Specifications

Parameter	Specification	Parameter	Specification
Product ID	IE-3300-8U2X-A	Network license	Network Advantage, perpetual (upgrade PID for -E units: IE3300-NW-A=)
Downlink ports	8x 10/100/1000M RJ45, 4PPoE (802.3bt Type 3)	Uplink ports	2x 1G/10G SFP+
PoE power budget	Up to 480W including expansion module; up to 24 PoE/PoE+, 8x Type 3, or 4x Type 4 ports (4MU)	PoE input requirement	48VDC for PoE; 54VDC for PoE+ and 4PPoE
Expansion	1x IEM-3300 bay; up to 24 GE + 2x10G system ports	Forwarding	Line rate, all ports and packet sizes; 8 egress queues
MAC / routes	16K MAC; 3000 IPv4 + 512 IPv6 indirect routes	VLANs / ACL	256 VLANs; 128 STP instances; 3K ACL entries
Memory	4 GB DRAM; 1.5 GB user flash; optional 4/16 GB SD	Jumbo frames	8996 bytes
Advantage features	OSPF/BGP/RIP/ISIS/EIGRP (v4+v6), PBR, VRRP/HSRP, BFD, VRF-lite, MACsec-256, PIM multicast routing	Essentials baseline	L2 switching, REP/Fast REP, MRP, PROFINET, CIP, L2NAT (not on 10G uplink ports), MACsec-128, FIPS 140-2, IOx
PTP timing	IEEE 1588 PTPv2, Default Profile only on this 10G base; no PTP on IEM-3300-4MU ports	Management	WebUI, Cisco Catalyst Center, SNMP/NETCONF/RESTCONF/YANG, Full Flexible NetFlow
Input power	Dual redundant DC, 9.6-60VDC; 10.5A max	Power consumption	42W, excluding PoE output
Compatible DIN rail supplies	PoE-capable 65W/170W/240W/480W external units, ordered separately	Alarms / console	2 alarm in, 1 alarm out; RS-232 RJ-45 + USB Mini-B console; optional USB storage
Operating temperature	-40°C to +70°C vented; +60°C sealed; +75°C at 200 LFM; +85°C type-tested 16 h	Altitude / humidity	To 15,000 ft; 5-95% non-condensing; storage -40°C to +85°C
Dimensions (H x W x D)	6 x 4.4 x 5.3 in (15.2 x 11.2 x 13.5 cm)	Weight / MTBF	4.5 lbs (2.0 kg); 436,034 hours (predicted)
Industrial compliance	IEC 62443-4-1/-4-2, IEEE 1613, EN/IEC 61850-3, ODVA CIP, NEMA TS 2-2016, AREMA C&S 11/19, DNV Marine, EN50121/EN50155, IP30; corrosion approvals pending on 10G variants	Safety / hazloc	UL/CSA 60950-1, 62368-1, 61010-2-201; UL121201/CSA 213 Class I Div 2 A-D; Class I Zone 2 ATEX/IECEx (cabinet required)
Cooling	Fanless, convection-cooled

Quality Certifications

Customer Reviews

Write A Review

4.8

Rated 4.83 out of 5

(6 reviews)

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Barbara Davis

Posted on 03/01/2026

Verified Buyer

Rated 4 out of 5

4.0

Our quality team documents all incoming hardware. This one was textbook perfect. Shipping took a couple extra days, but product itself is perfect.

Cynthia Carter

Posted on 13/12/2025

Verified Buyer

Rated 5 out of 5

5.0

The box survived a cross-country journey without a scratch on the product inside.

Denise Clark

Posted on 10/12/2025

Verified Buyer

Rated 5 out of 5

5.0

We reported a minor packaging concern. They acknowledged it and adjusted for our next order.

Ronan Castillo

Posted on 26/11/2024

Verified Buyer

Rated 5 out of 5

5.0

The modularity is a key benefit. The high-speed uplinks were perfect for connecting this edge device back to our main plant network.

Zachary Dunn

Posted on 08/08/2024

Verified Buyer

Rated 5 out of 5

5.0

Good product for the price point. It meets the harsh environmental specs required for our field operations.

Questions & Answers

What operating temperature range does IE-3300-8U2X-A support?
IE-3300-8U2X-A operates from -40°C to +70°C in a vented enclosure with 40 LFM of airflow. The unit is fanless and convection-cooled, so the cabinet must supply the airflow that the 40 LFM rating assumes.
What DC input voltage does IE-3300-8U2X-A need for PoE?
IE-3300-8U2X-A takes dual redundant DC inputs from 9.6 to 60VDC, and PoE needs a 48VDC feed. PoE+ and 4PPoE need 54VDC, and a 48VDC feed does not power PoE+ or 802.3bt endpoints.
Which IOS XE release added IOx support on IE-3300-8U2X-A?
IE-3300-8U2X-A has supported IOx since Cisco IOS XE 17.4.1, per the Catalyst IE3x00 release notes. A site that runs IOx applications on this Network Advantage switch must therefore be on 17.4.1 or later.
Which IEM-3300 modules add no PoE to IE-3300-8U2X-A?
IEM-3300-8T adds 8 copper Gigabit ports and IEM-3300-8S adds 8 SFP Gigabit ports, and both are listed as compatible with the Network Advantage base IE-3300-8U2X-A in the Cisco Industrial Ethernet DIN rail FAQ. Neither provides PoE or PoE+, so use IEM-3300-8P= or IEM-3300-16P= when more powered ports are needed.
What temperature limits apply to IE-3300-8U2X-A in a sealed enclosure?
IE-3300-8U2X-A is rated to +60°C in a sealed enclosure and to +75°C with at least 200 LFM of forced airflow. It is also type tested at +85°C for 16 hours. The +70°C figure applies only to a 40 LFM vented enclosure.
What maximum input current does IE-3300-8U2X-A draw, and is a 65W supply listed?
IE-3300-8U2X-A draws up to 10.5A at its maximum input current. PWR-IE65W-PC-AC= and PWR-IE65W-PC-DC= are the 65W PoE-capable DIN rail supplies, so they suit only small PoE loads next to the 42W switch draw, which must stay within the supply wattage.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

Check lifecycle dates

Cisco Switch Selector Tool

Filter Cisco switches by ports, uplinks, PoE, performance, features, license, and budget.

Find matching switches >

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

DataSheet Downloads

IE-3300-8U2X-A Datasheet

IE-3300-8U2X-A – 8x1G 4PPoE Ports – 2x10G SFP+ Uplinks – 480W PoE Budget

Shop Expert-Recommended Accessories for the IE-3300-8U2X-A

Stocked, Shipped and Supported by One Team

Inventory You Can See

Ships in 1 Business Day

LSCare Warranty

Free CCIE Support

Verify Before You Pay

IE-3300-8U2X-A Description

Quick Specs

Product Performance

Key Features

Application Scenarios

Product Comparison

PoE Power Planning

Ordering Checklist

Optional Add-ons

IE-3300-8U2X-A Front Panel Overview

Specifications

Quality Certifications

Customer Reviews

Questions & Answers

What operating temperature range does IE-3300-8U2X-A support?

What DC input voltage does IE-3300-8U2X-A need for PoE?

Which IOS XE release added IOx support on IE-3300-8U2X-A?

Which IEM-3300 modules add no PoE to IE-3300-8U2X-A?

What temperature limits apply to IE-3300-8U2X-A in a sealed enclosure?

What maximum input current does IE-3300-8U2X-A draw, and is a 65W supply listed?

Warranty

Verify, plan, and comparewith confidence

Cisco Switch Selector Tool

Cisco Serial Number Lookup

Product Comparison

DataSheet Downloads

Related Searches of Catalyst IE3300 Rugged Switches
